Home >> Ford >> 2002 >> Excursion 4WD V10-6.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Function Selector Switch Assembly, Front
April 5, 2026: LEMON Manuals is launched! Read the announcement.

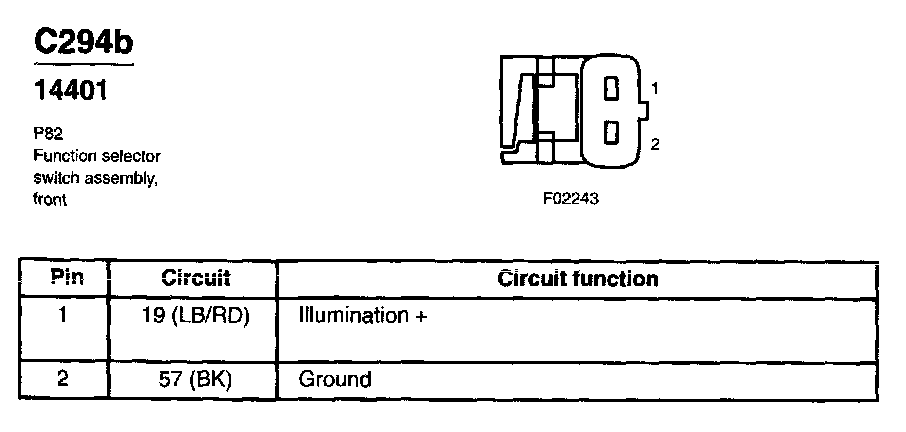

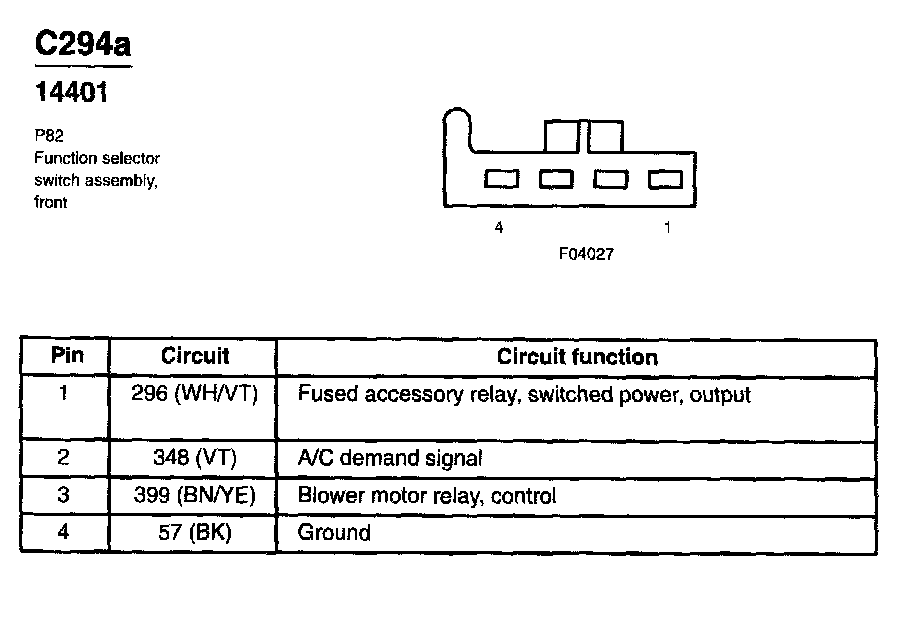

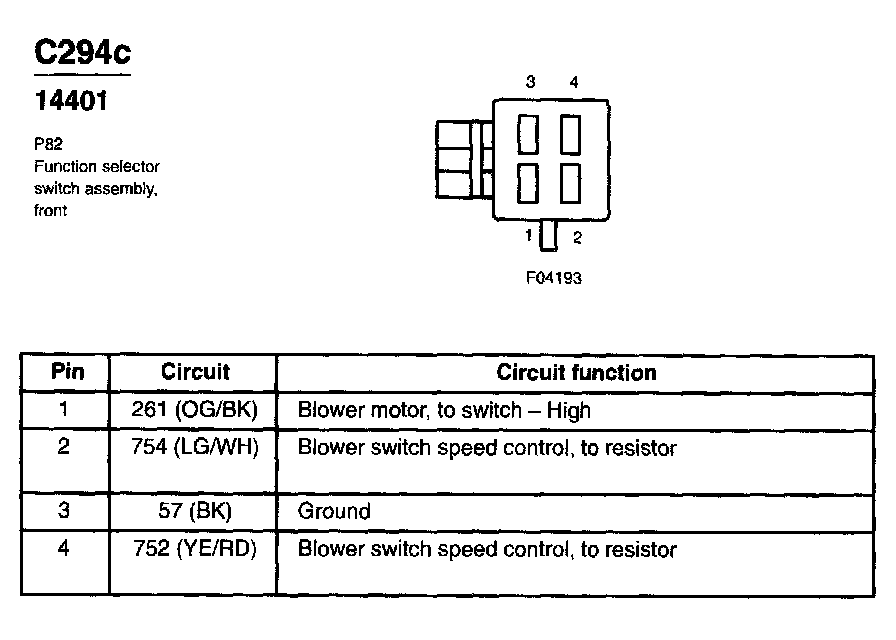

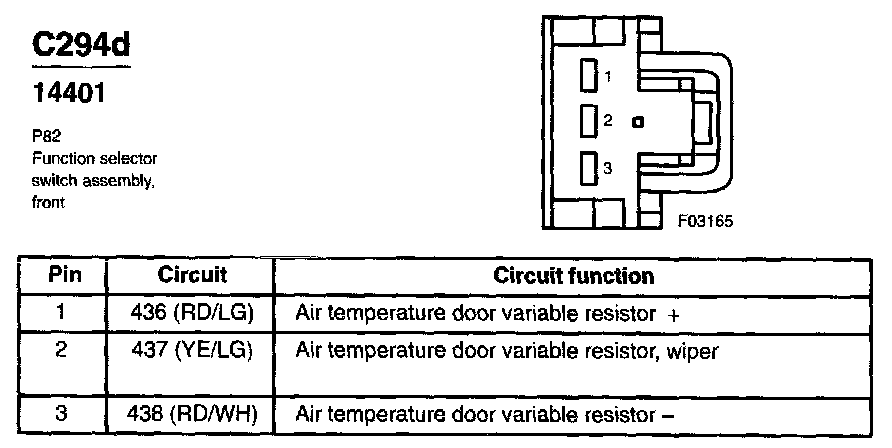

Function Selector Switch Assembly, Front
