Front

REMOVAL

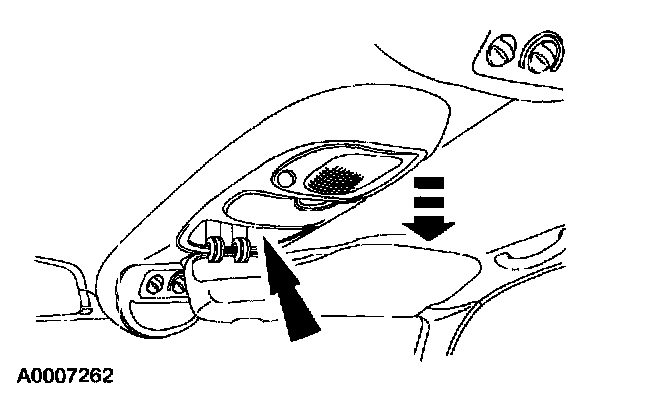

1. Remove the screw, disengage the clips, and lower the overhead console.

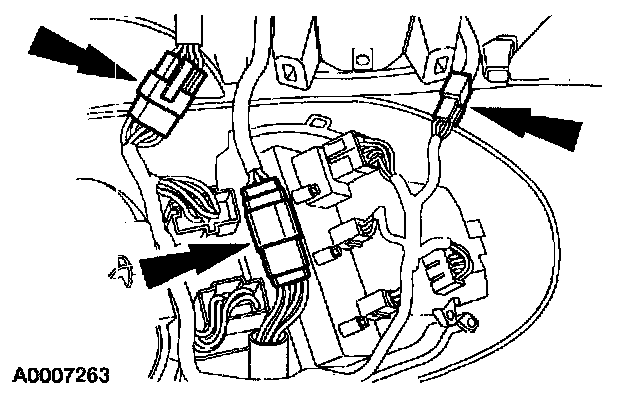

2. Disconnect the electrical connectors.







3. Remove the climate control assembly from the overhead console.

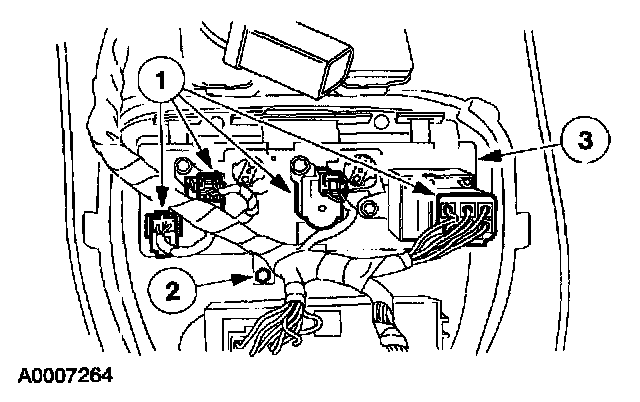

1 Disconnect the electrical connectors.
2 Remove the 2 screws.
3 Remove the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
