External Controls: Overview

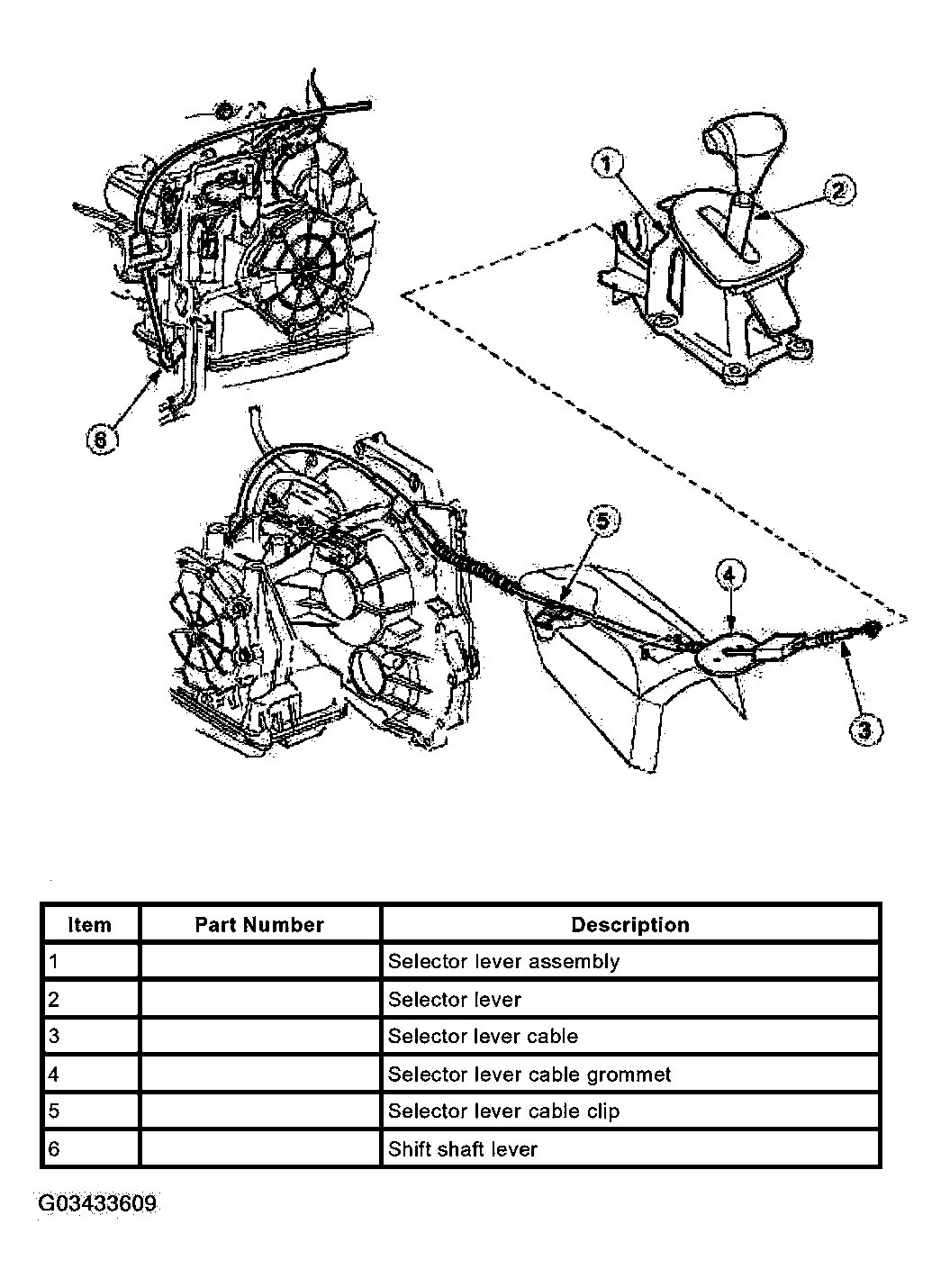

Fig 1: Identifying External Control Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
