Selector Lever: Disassembly

    NOTE: Use vise jaw protectors for all work to be done in the vise.

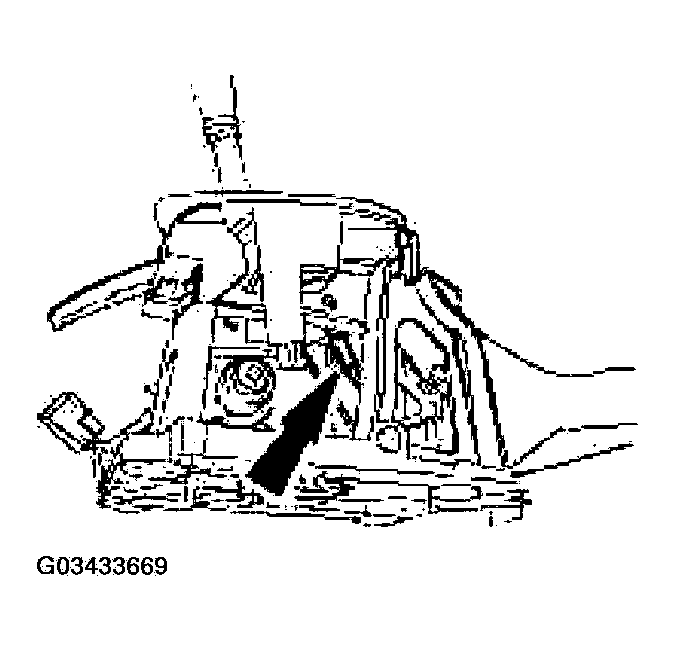

    Fig 1: Disconnecting Overdrive (O/D) Switch Electrical Connector
    G03433669Courtesy of FORD MOTOR CO.
  1. Disconnect the overdrive (O/D) switch electrical connector.
  2. Remove the selector lever knob.
    • Remove the screw.

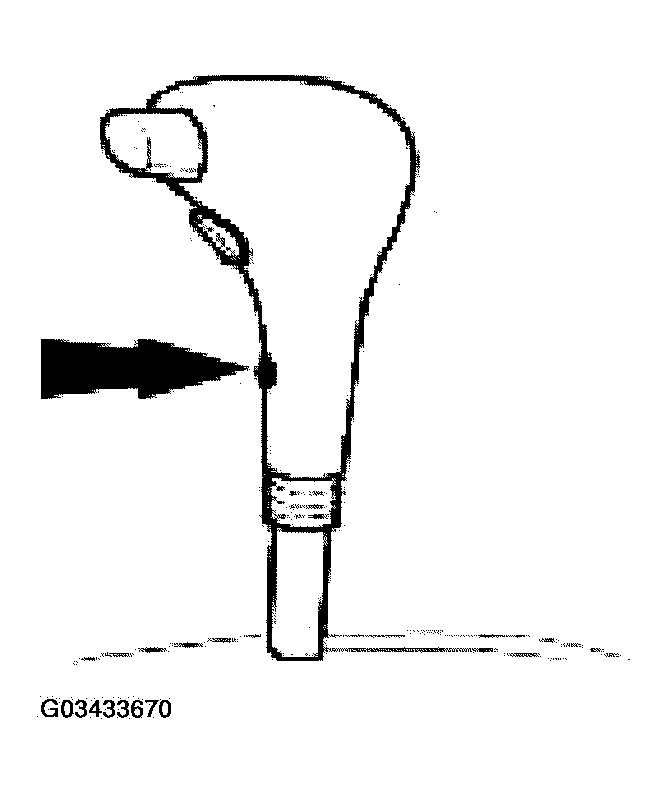

      Fig 2: Removing Selector Lever Knob Screw
      G03433670Courtesy of FORD MOTOR CO.
  3. Disassemble the selector lever.
    • Pull off the tappet.
    • Unclip the bezel.

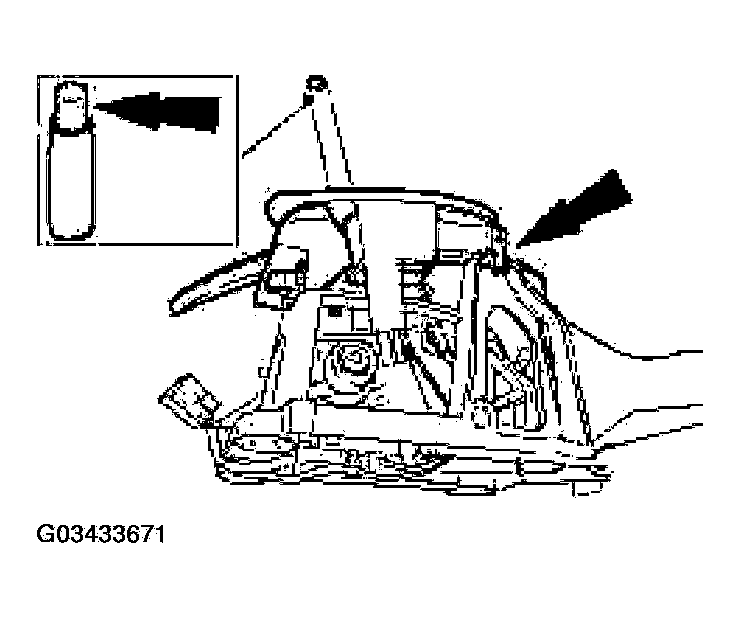

      Fig 3: Disassembling Selector Lever
      G03433671Courtesy of FORD MOTOR CO.
