Case assembly

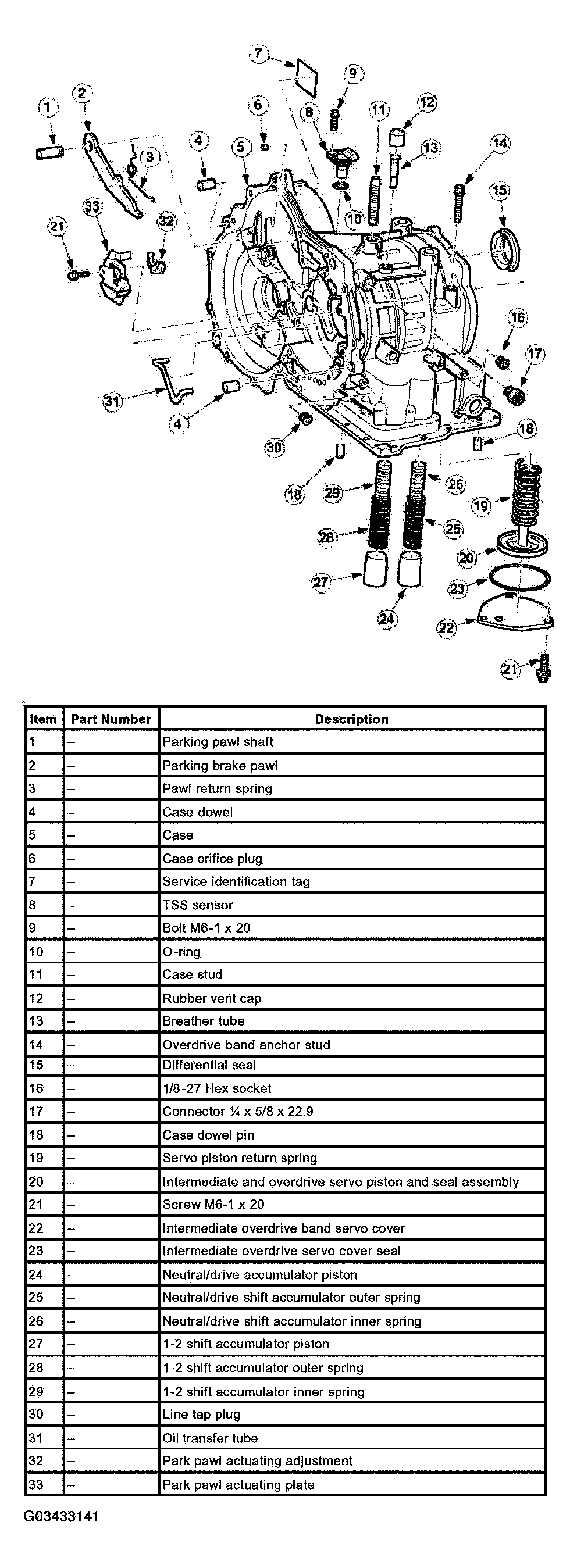

Fig 1: Exploded View Of Case Assembly Components
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
