Main Control Valve Body: Disassembly

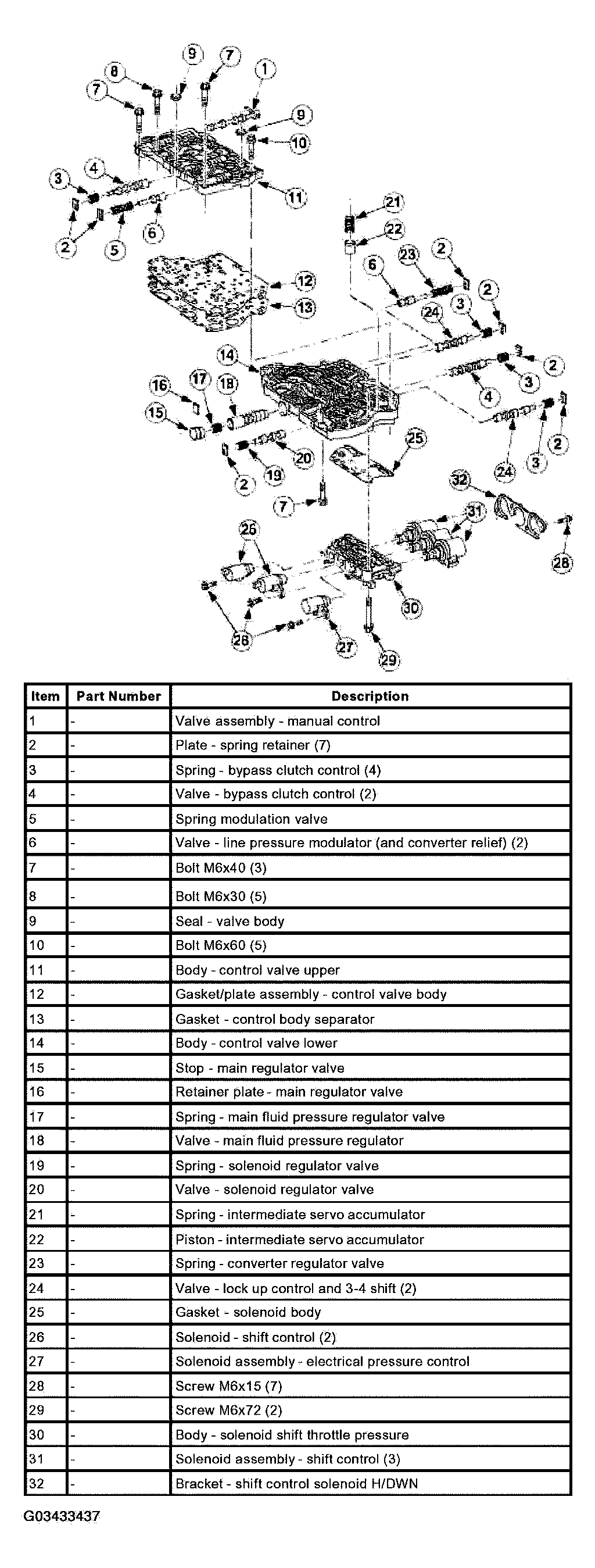

Fig 1: Disassembling View Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

Remove the solenoid body bolts and the solenoid body.

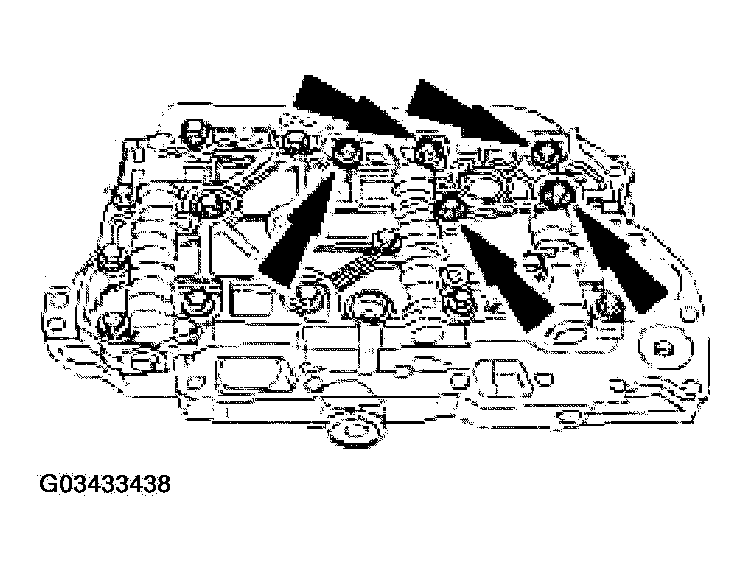

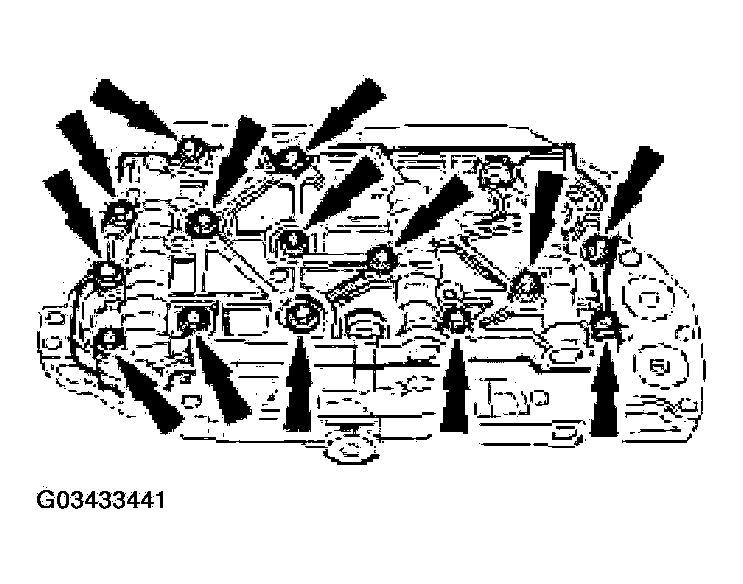

Fig 2: Removing Solenoid Body Bolts And Solenoid Body
Courtesy of FORD MOTOR CO.
Remove and discard the solenoid body gaskets.

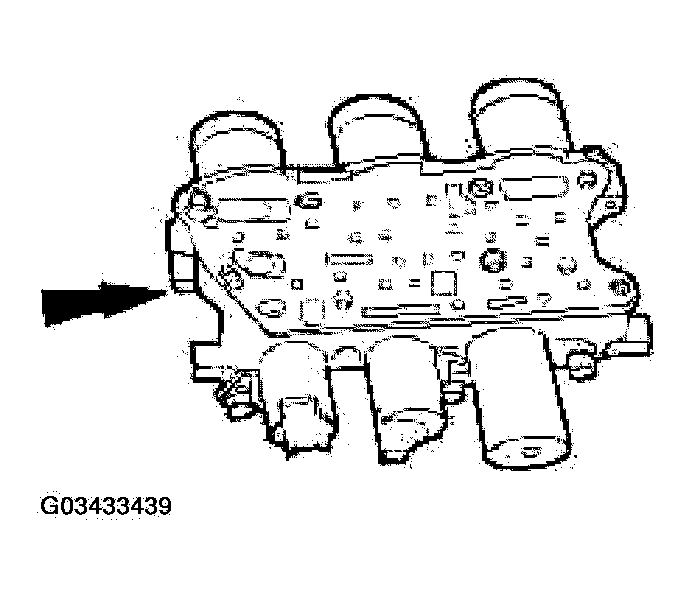

Fig 3: Removing Solenoid Body Gaskets
Courtesy of FORD MOTOR CO.
Remove and discard the seals.

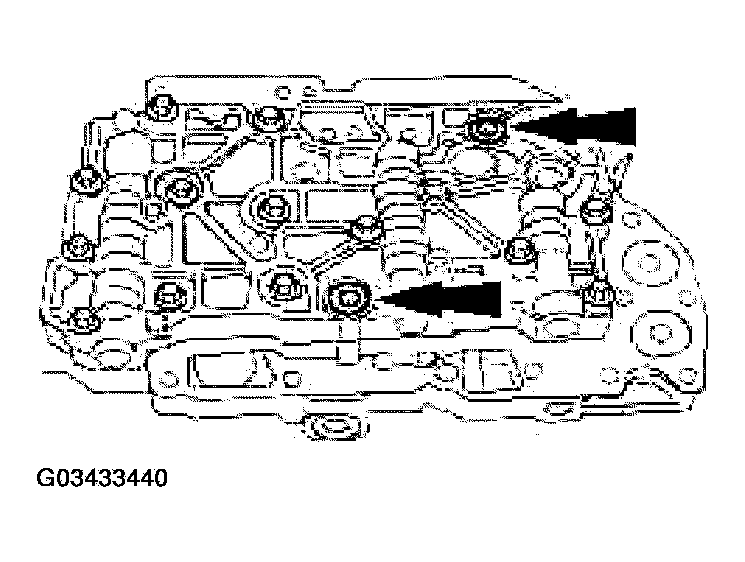

Fig 4: Removing Seals
Courtesy of FORD MOTOR CO.
Disassemble the main control valve body.

Fig 5: Disassembling Main Control Valve Body
Courtesy of FORD MOTOR CO.
