Planetary Assembly: Assembly

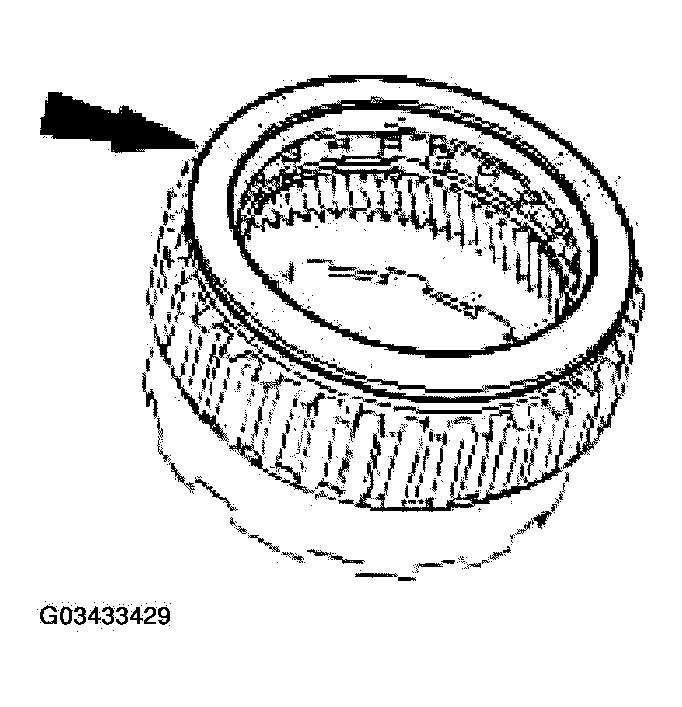

Install the lower one-way ring.

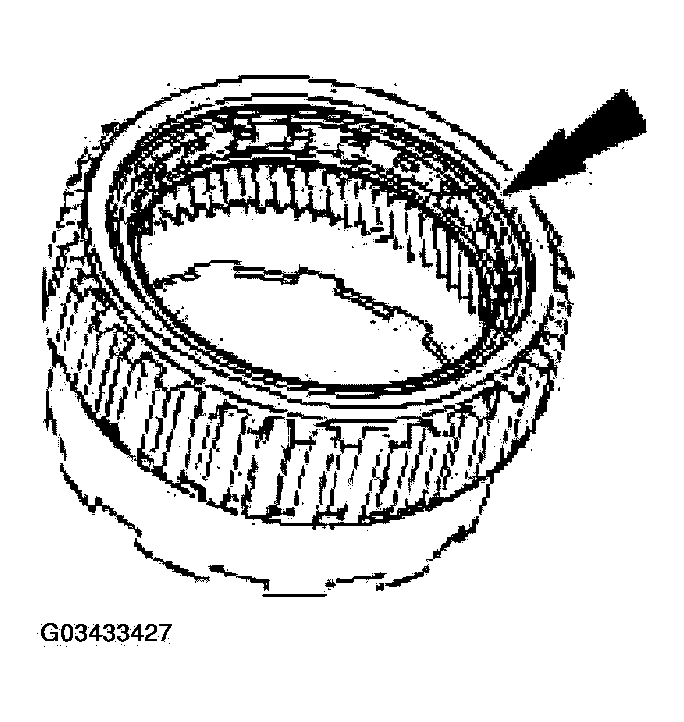

Fig 1: Installing Lower One-Way Ring
Courtesy of FORD MOTOR CO.

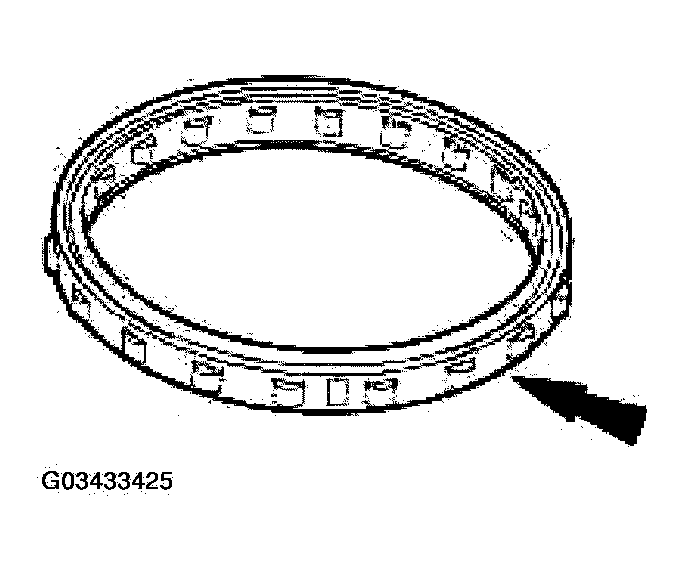

Inspect the rollers and the springs of the one-way clutch.

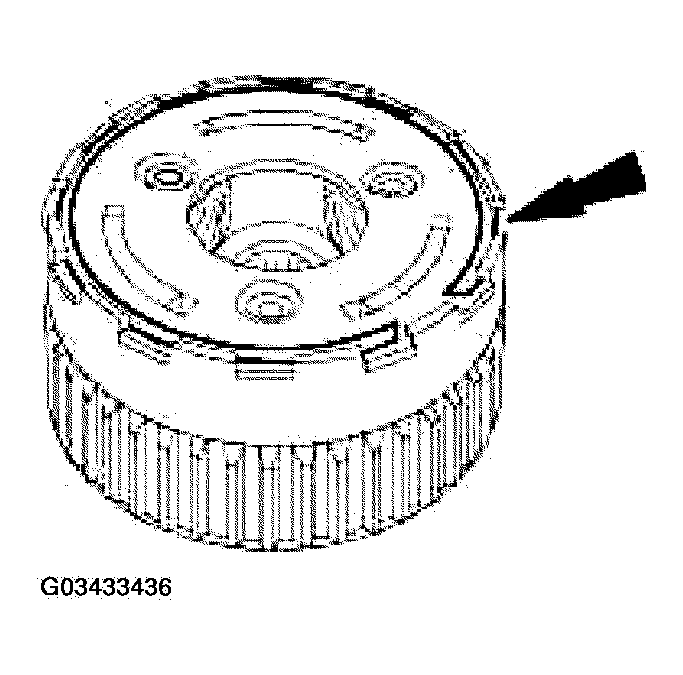

Fig 2: Inspecting Rollers And Springs Of One-Way Clutch
Courtesy of FORD MOTOR CO.

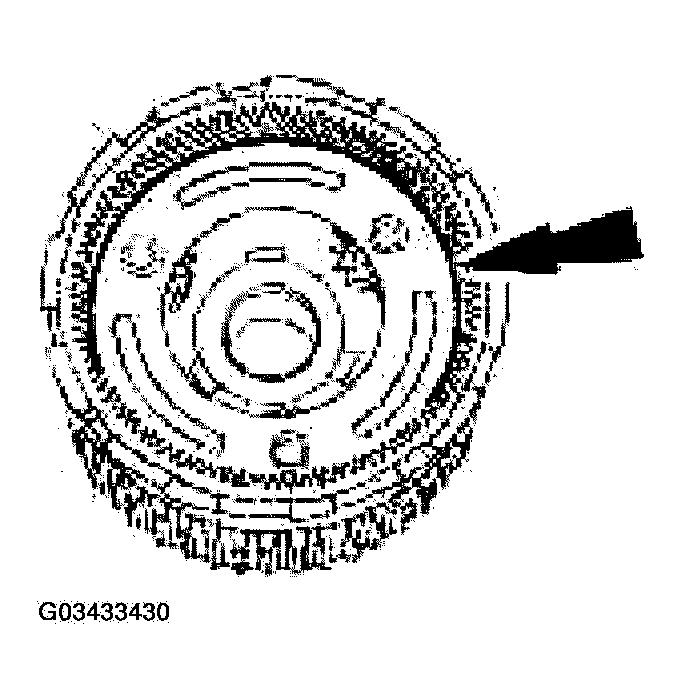

Make sure the low one-way clutch is installed with the tab pointing in the direction as shown.

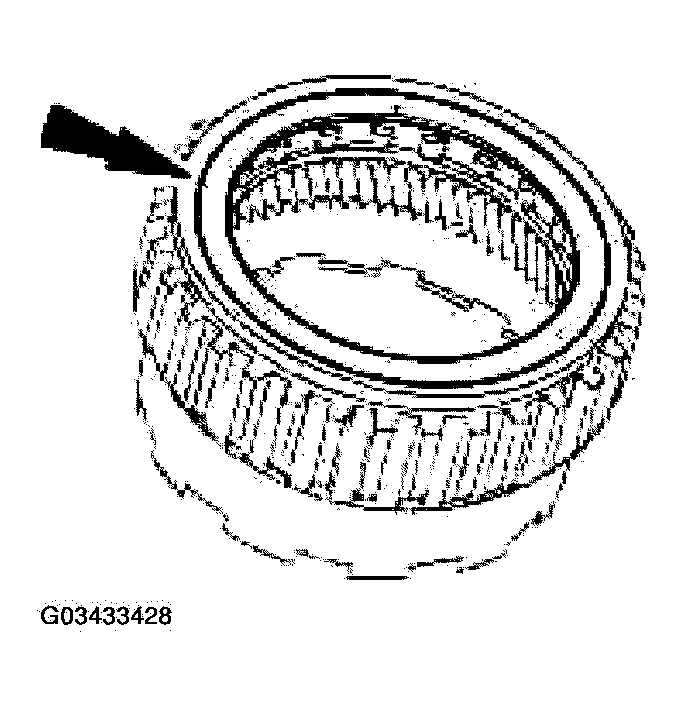

Fig 3: Locating Direction Of Tab For Low One-Way Clutch
Courtesy of FORD MOTOR CO.
Install the low one-way clutch.

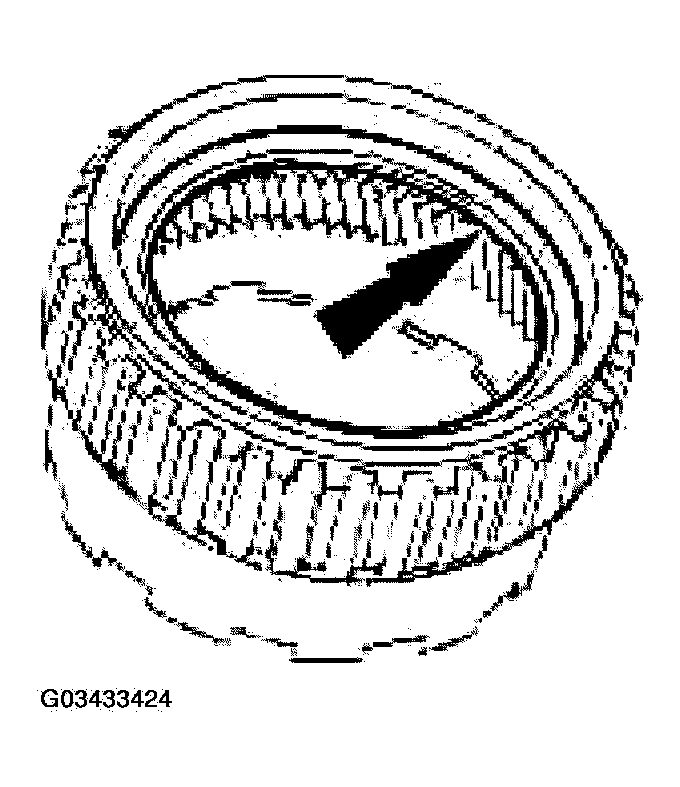

Fig 4: Installing Low One-Way Clutch
Courtesy of FORD MOTOR CO.

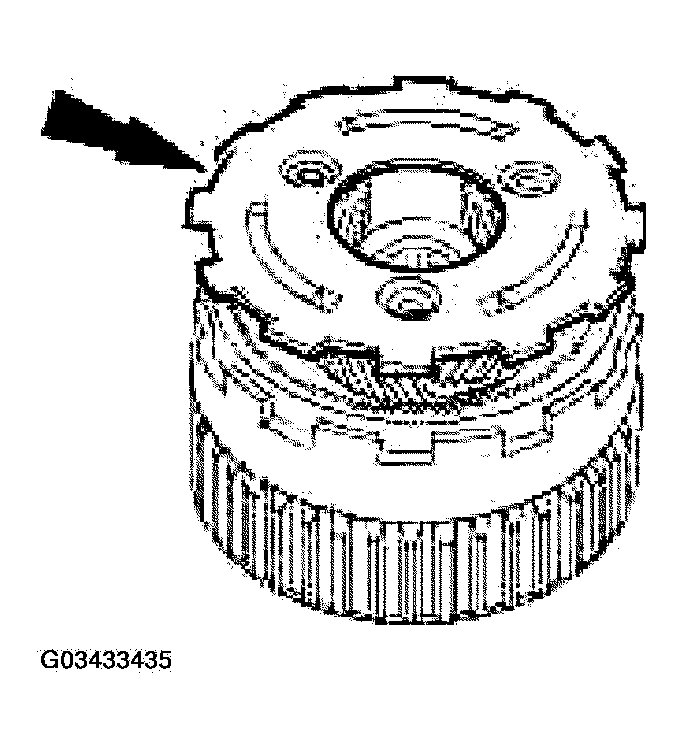

Install the top one-way clutch ring.

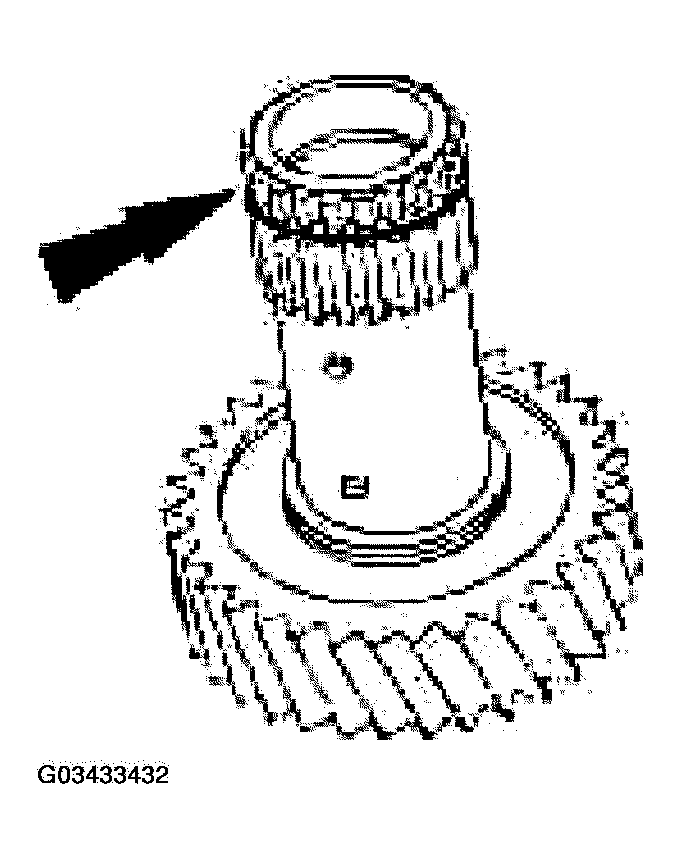

Fig 5: Installing Top One-Way Clutch Ring
Courtesy of FORD MOTOR CO.
Install the top retainer of the one-way clutch.

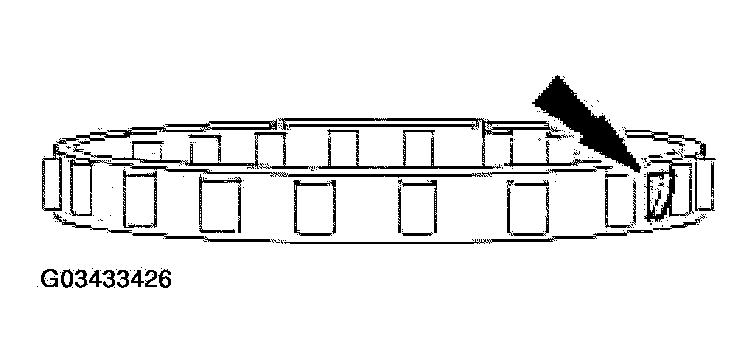

Fig 6: Installing Top Retainer Of One-Way Clutch
Courtesy of FORD MOTOR CO.
Install the forward planet assembly.

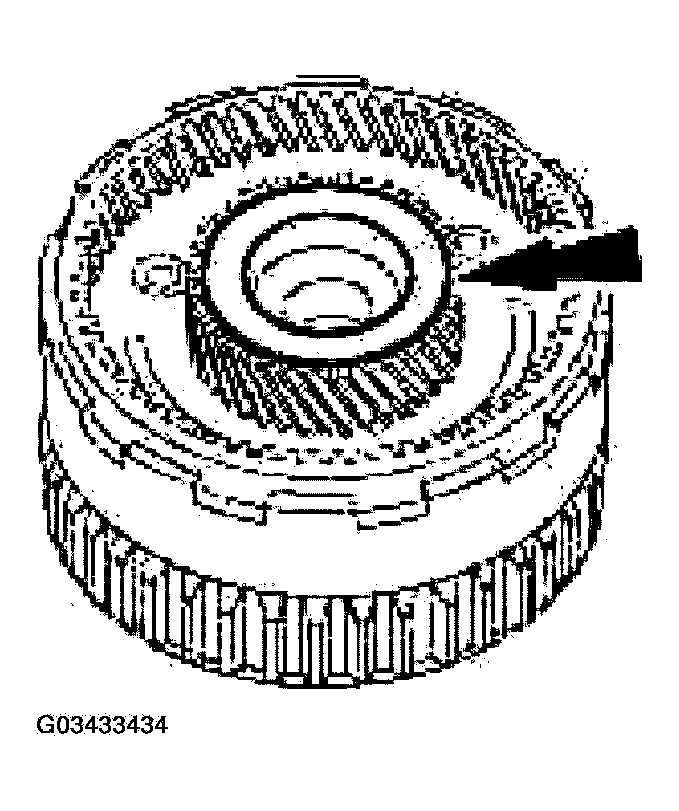

Fig 7: Installing Forward Planet Assembly
Courtesy of FORD MOTOR CO.
Install the thrust bearing.

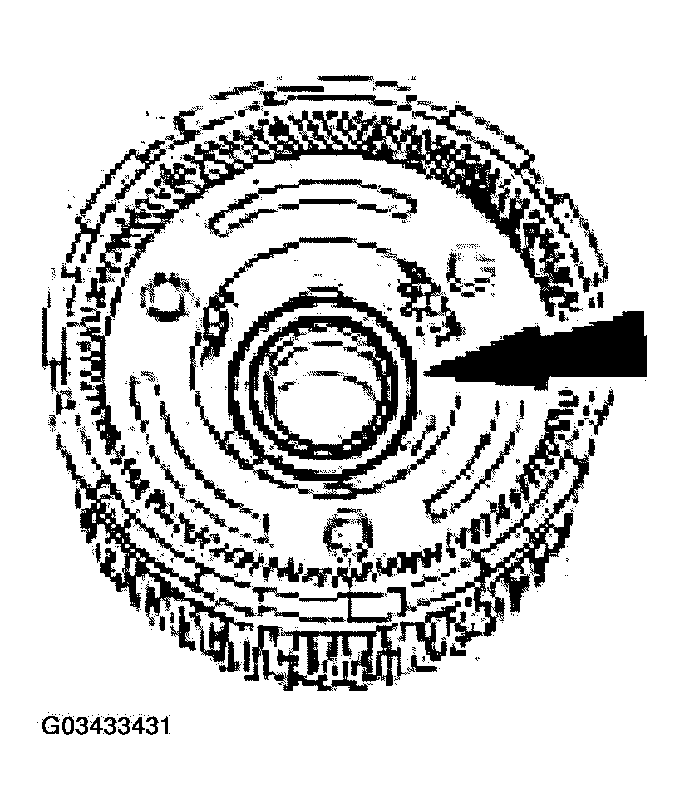

Fig 8: Installing Thrust Bearing
Courtesy of FORD MOTOR CO.
Inspect the front sun gear retaining ring.

Fig 9: Inspecting Front Sun Gear Retaining Ring
Courtesy of FORD MOTOR CO.

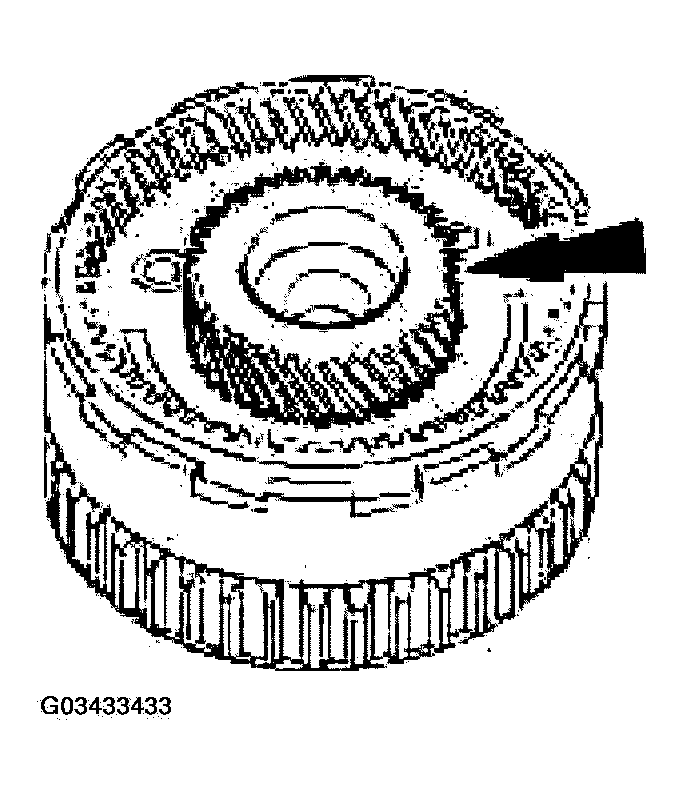

Install the forward planet sun gear.

Fig 10: Installing Forward Planet Sun Gear
Courtesy of FORD MOTOR CO.
Install the thrust bearing.

Fig 11: Installing Thrust Bearing
Courtesy of FORD MOTOR CO.
Install the rear planet assembly.

Fig 12: Installing Rear Planet Assembly
Courtesy of FORD MOTOR CO.
Install the snap ring.

Fig 13: Installing Snap Ring
Courtesy of FORD MOTOR CO.
