Planetary Assembly: Disassembly

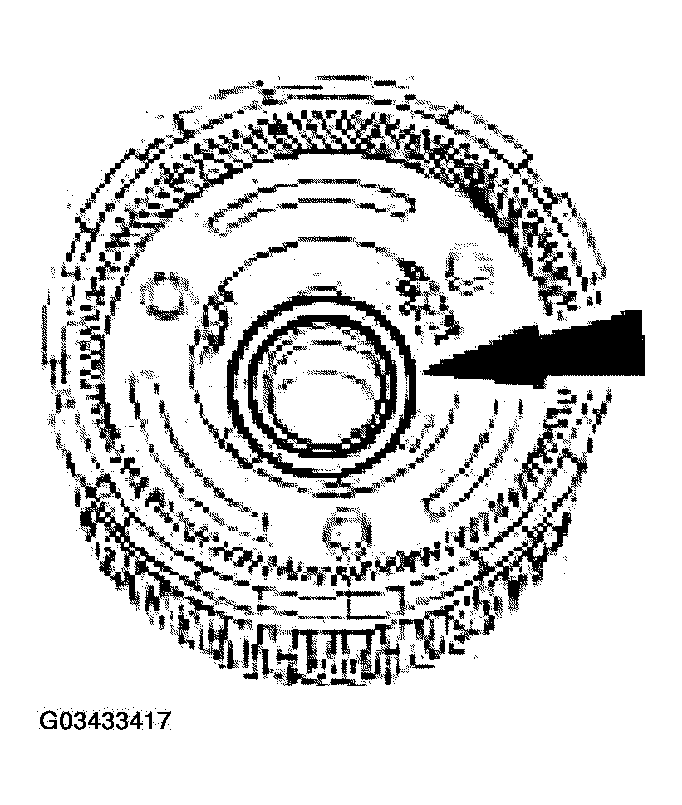

Inspect the planet internal bearing for damage.

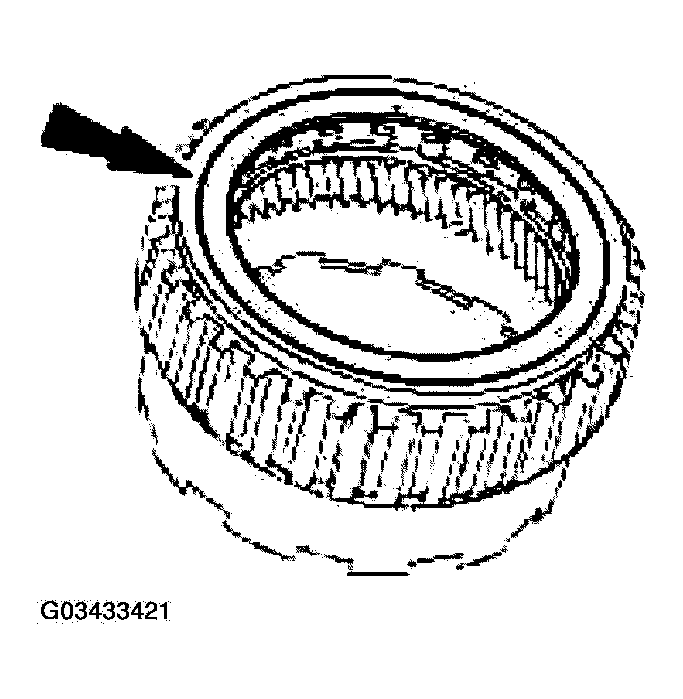

Fig 1: Inspecting Planet Internal Bearing For Damage
Courtesy of FORD MOTOR CO.

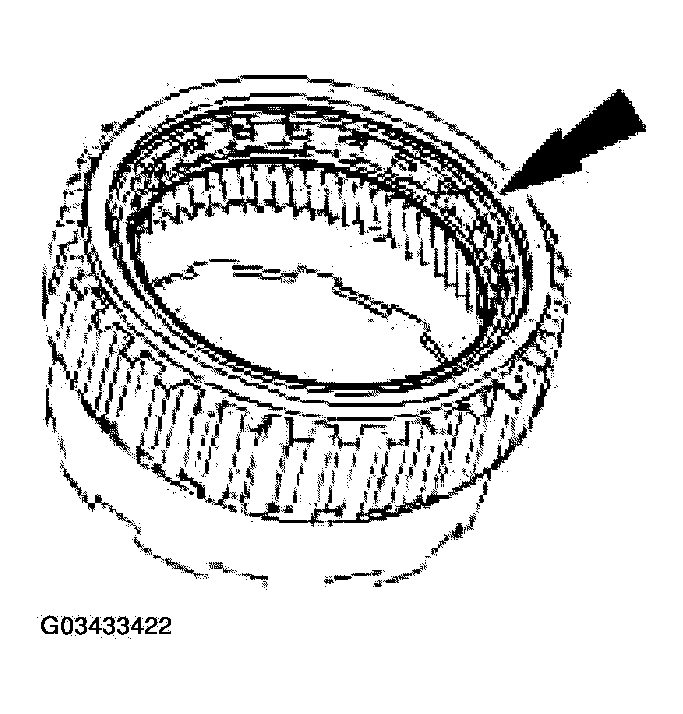

Remove the snap ring.

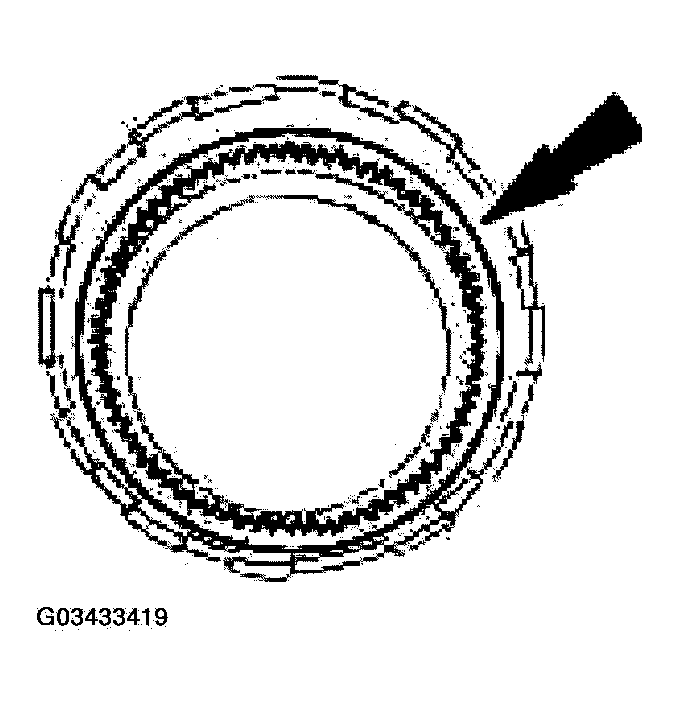

Fig 2: Removing Snap Ring
Courtesy of FORD MOTOR CO.

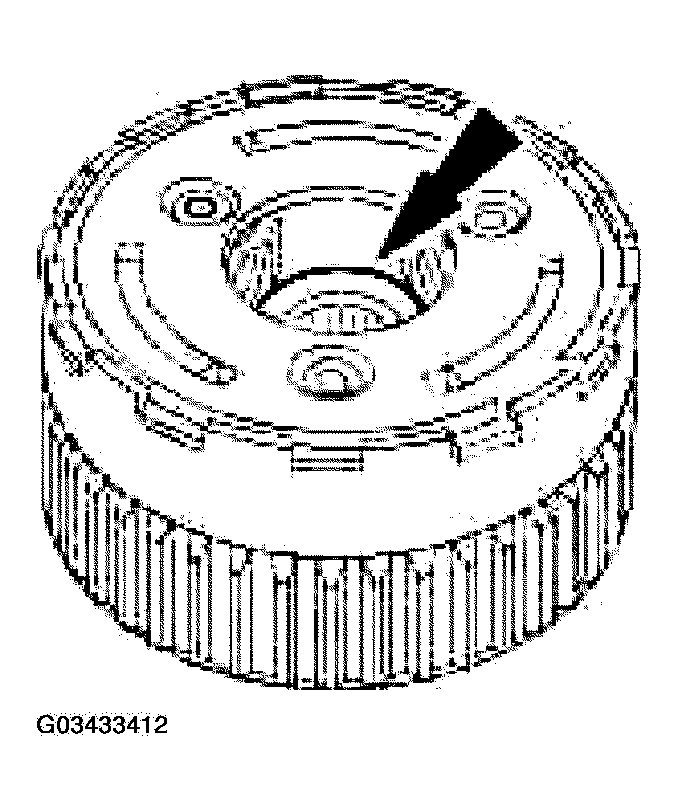

Remove the rear planet assembly.

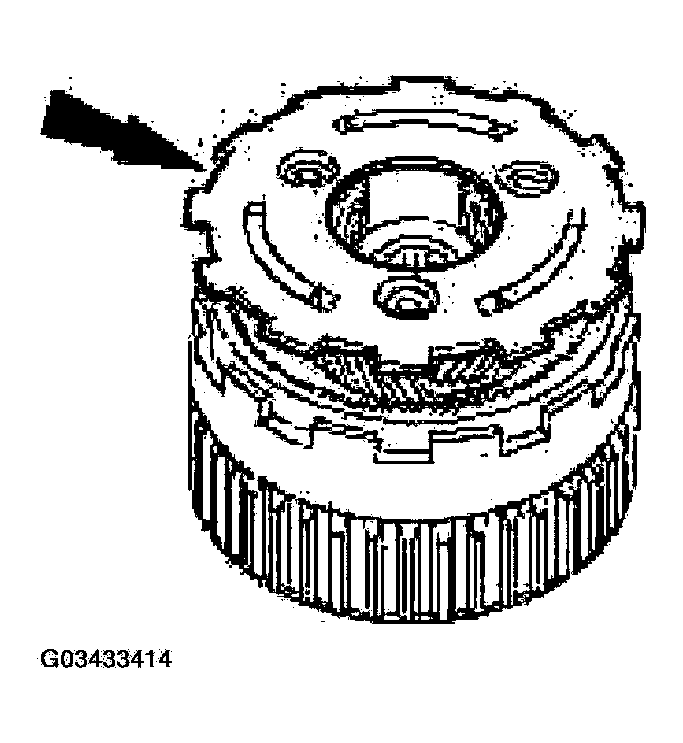

Fig 3: Removing Rear Planet Assembly
Courtesy of FORD MOTOR CO.

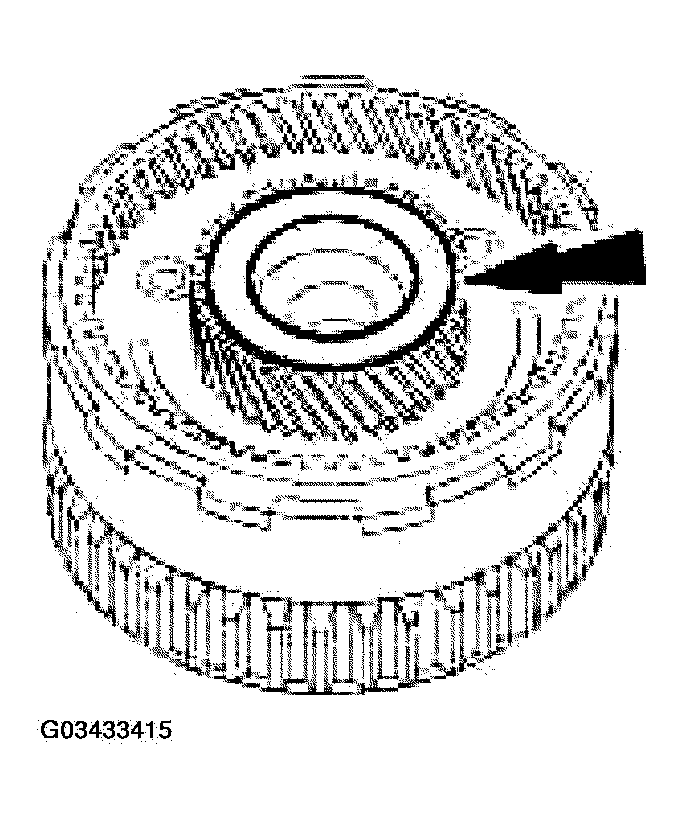

Remove the thrust bearing.

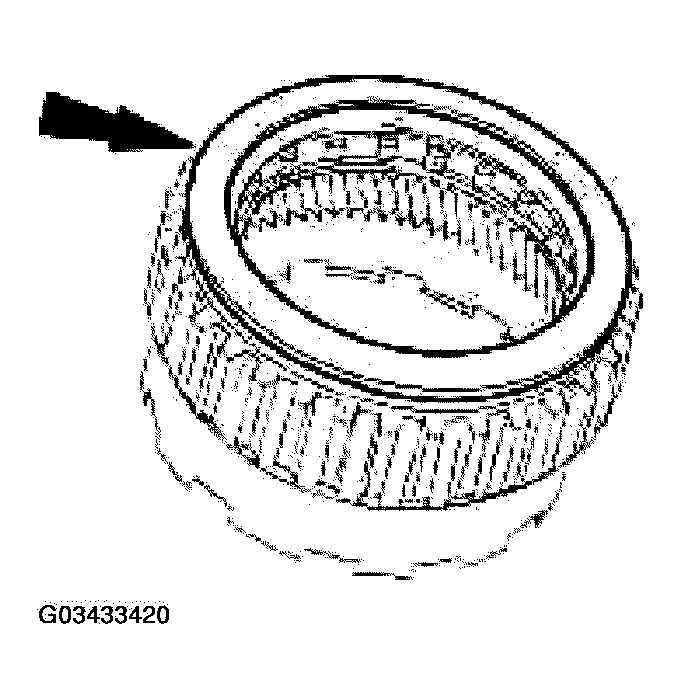

Fig 4: Removing Thrust Bearing
Courtesy of FORD MOTOR CO.
Remove the forward planet sun gear.

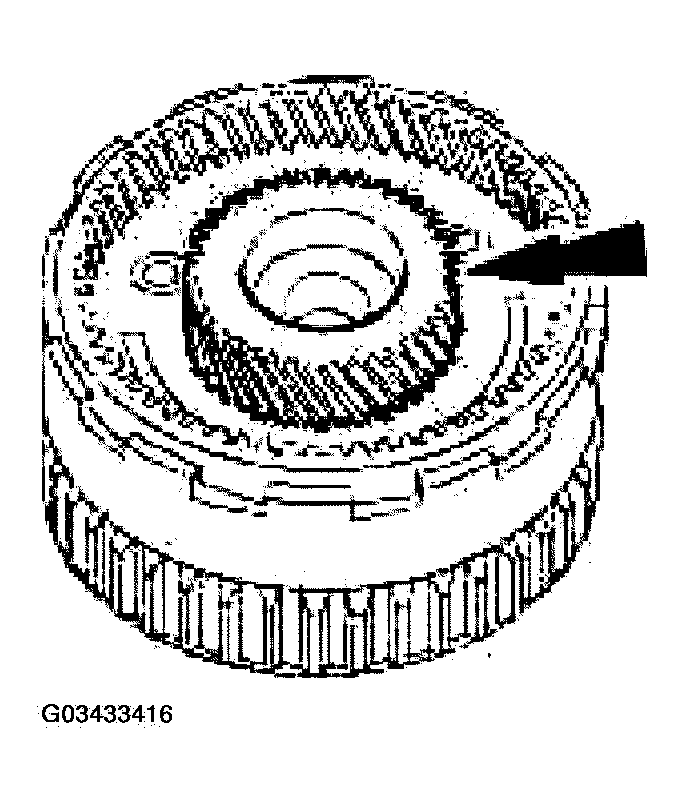

Fig 5: Removing Forward Planet Sun Gear
Courtesy of FORD MOTOR CO.
Remove the thrust bearing.

Fig 6: Removing Thrust Bearing]
Courtesy of FORD MOTOR CO.
Remove the forward planet assembly.

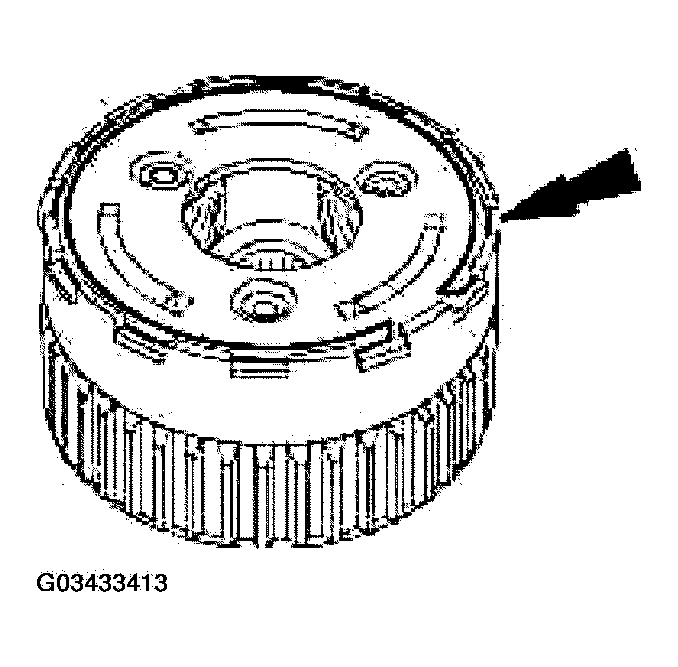

Fig 7: Removing Forward Planet Assembly
Courtesy of FORD MOTOR CO.
Inspect the low and reverse ring gear.

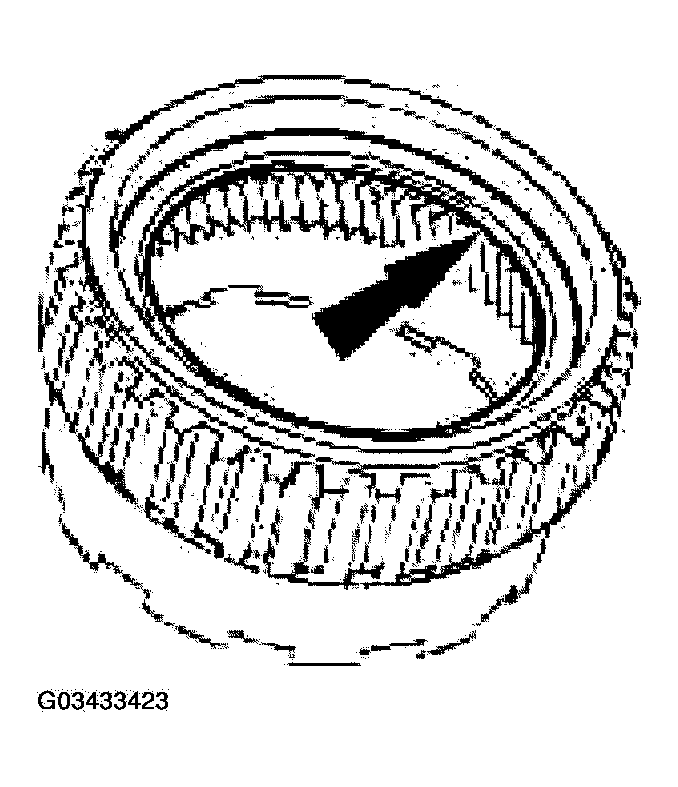

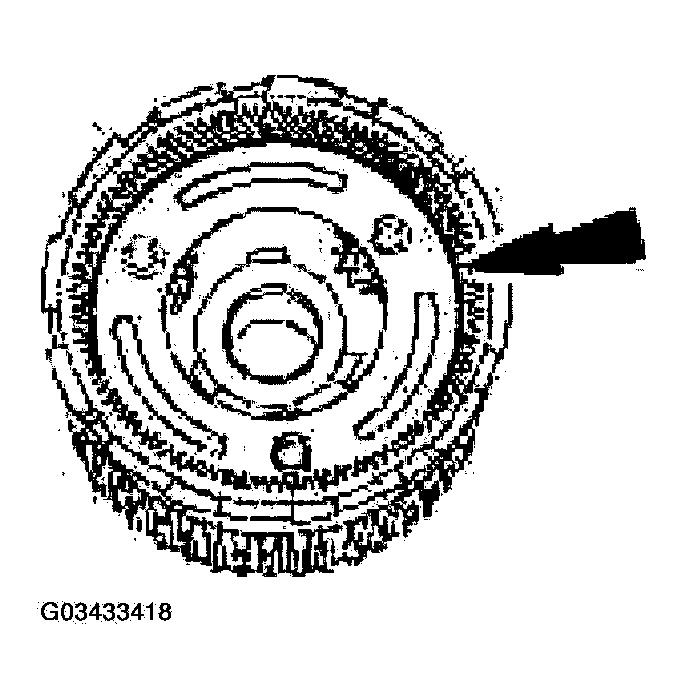

Fig 8: Inspecting Low And Reverse Ring Gear
Courtesy of FORD MOTOR CO.
Remove the top retainer of the one-way clutch.

Fig 9: Removing Top Retainer Of One-Way Clutch
Courtesy of FORD MOTOR CO.
Remove the top one-way clutch ring.

Fig 10: Removing Top One-Way Clutch Ring]
Courtesy of FORD MOTOR CO.
Remove the low one-way clutch assembly.

Fig 11: Removing Low One-Way Clutch Assembly
Courtesy of FORD MOTOR CO.
Remove the lower one-way ring.

Fig 12: Removing Lower One-Way Ring
Courtesy of FORD MOTOR CO.
