Pump Assembly: Assembly

NOTE: The smaller gear has a recess on both sides.

NOTE: The smaller recess must face away from the torque converter seal.

NOTE: The larger recess, with the beveled edge, must face toward the torque converter.

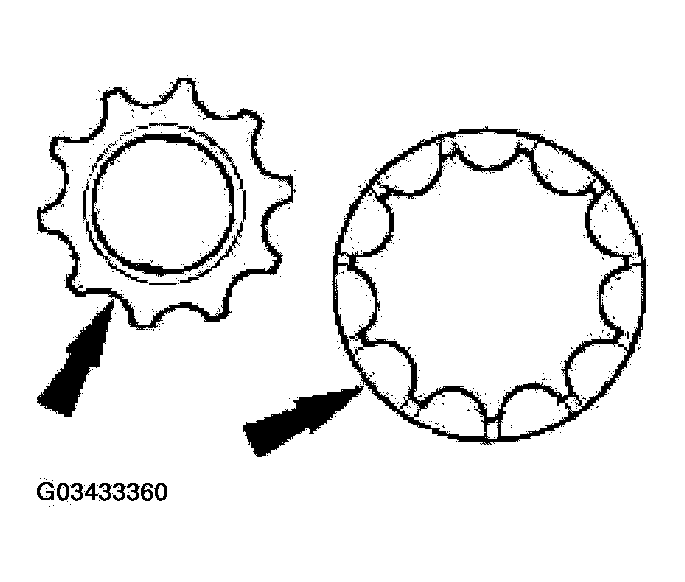

Fig 1: Inspecting Pump Gears Of Nicks, Scratches Or Gouges

Courtesy of FORD MOTOR CO.

Lubricate the gears and thrust washers with clean automatic transmission fluid.
Using the special tool, install the pump seal.
- Lubricate the gears and thrust washers with automatic transmission fluid.

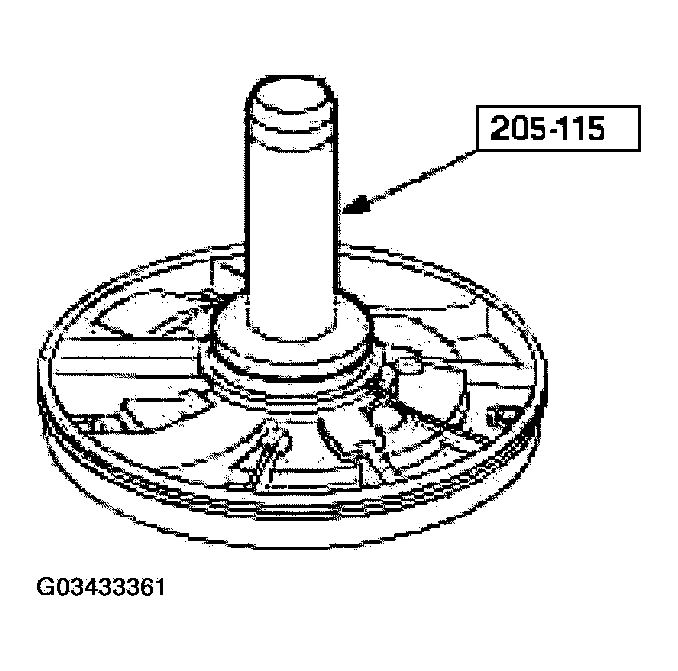

  Fig 2: Installing Pump Seal
  Courtesy of FORD MOTOR CO.
Install the top portion of the pump.

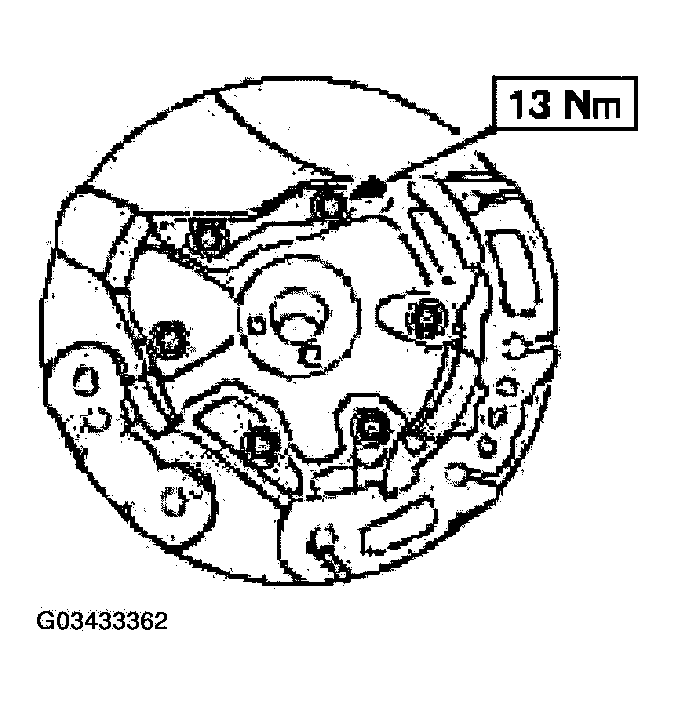

Fig 3: Installing Top Portion Of Pump
Courtesy of FORD MOTOR CO.
