Pump Assembly: Disassembly

  1. Remove the top portion of the pump.

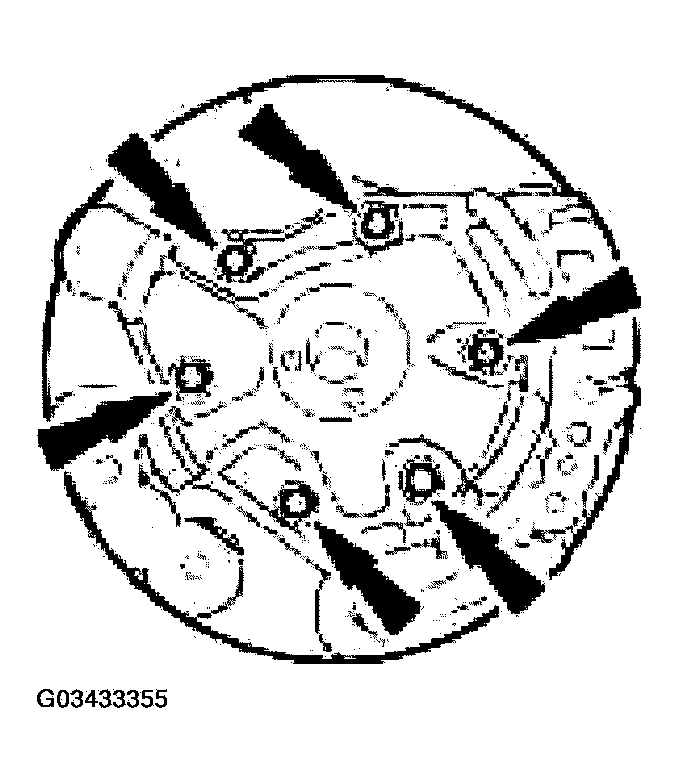

    Fig 1: Removing Top Portion Of Pump
    G03433355Courtesy of FORD MOTOR CO.
  2. Inspect the lower portion of the pump and gear pocket for nicks, scratches, gouges or wear.

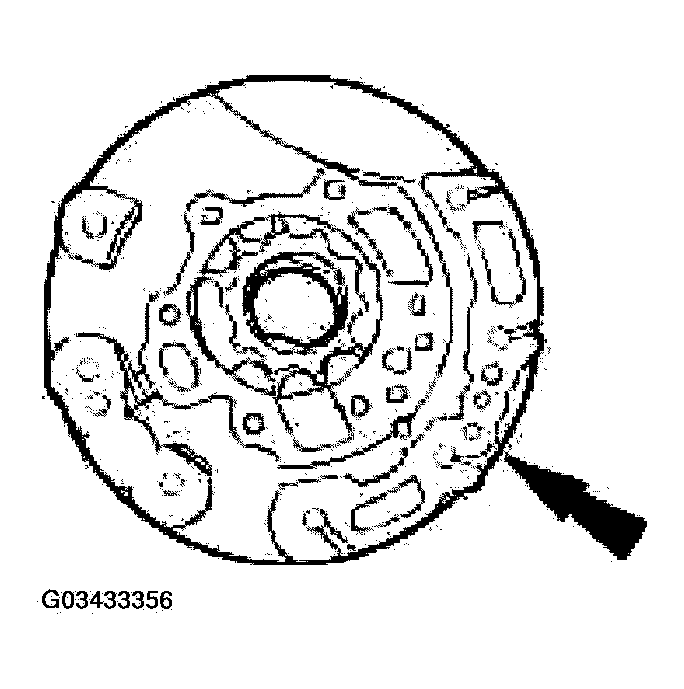

    Fig 2: Inspecting Lower Portion Of Pump And Gear Pocket For Nicks
    G03433356Courtesy of FORD MOTOR CO.
  3. Remove the pump seal.

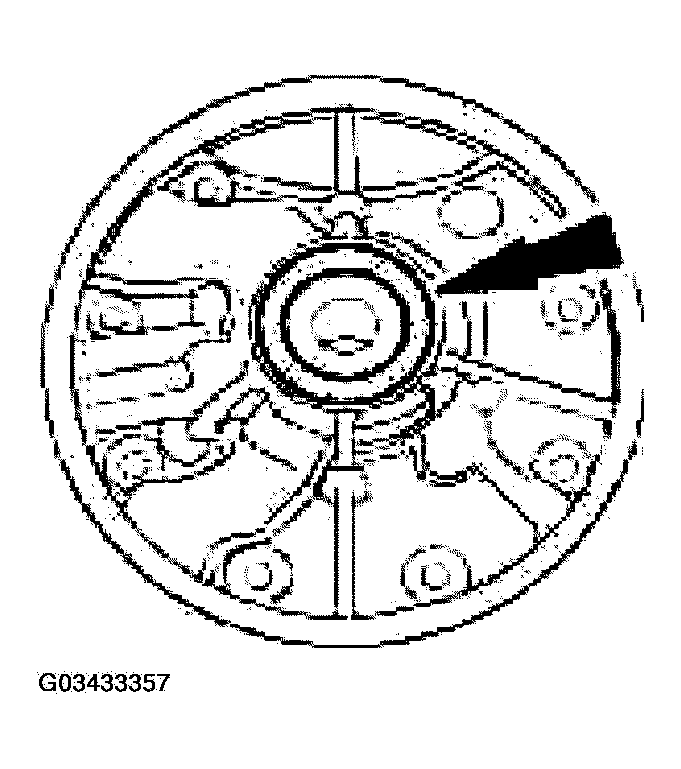

    Fig 3: Removing Pump Seal
    G03433357Courtesy of FORD MOTOR CO.
  4. Inspect the upper portion of the pump for nicks, scratches or gouges.

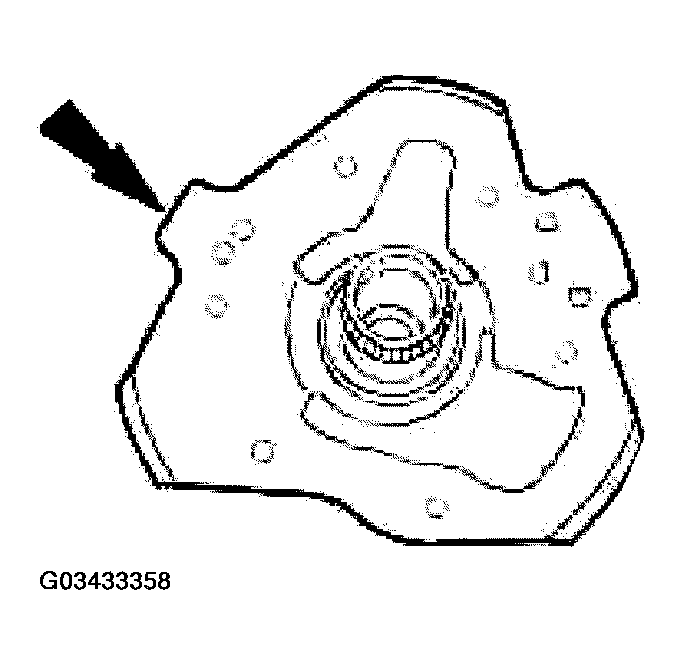

    Fig 4: Inspecting Upper Portion Of Pump For Nicks
    G03433358Courtesy of FORD MOTOR CO.
  5. Inspect the pump gears of nicks, scratches or gouges.

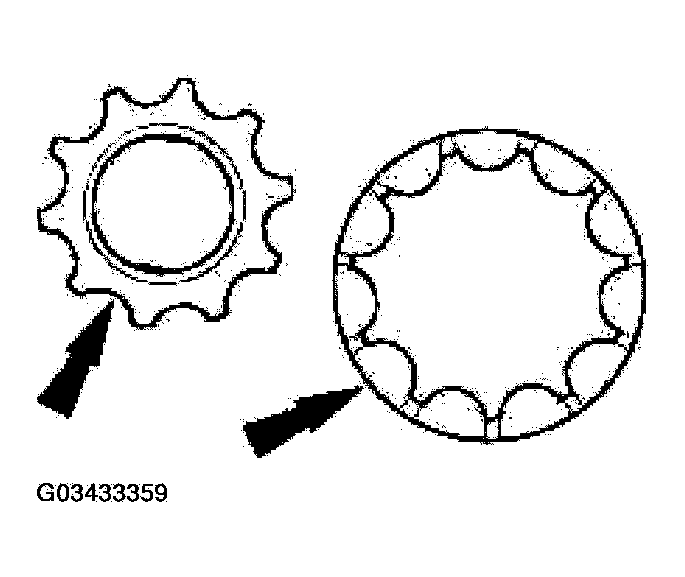

    Fig 5: Inspecting Pump Gears Of Nicks, Scratches Or Gouges
    G03433359Courtesy of FORD MOTOR CO.
