Transaxle Case: Disassembly

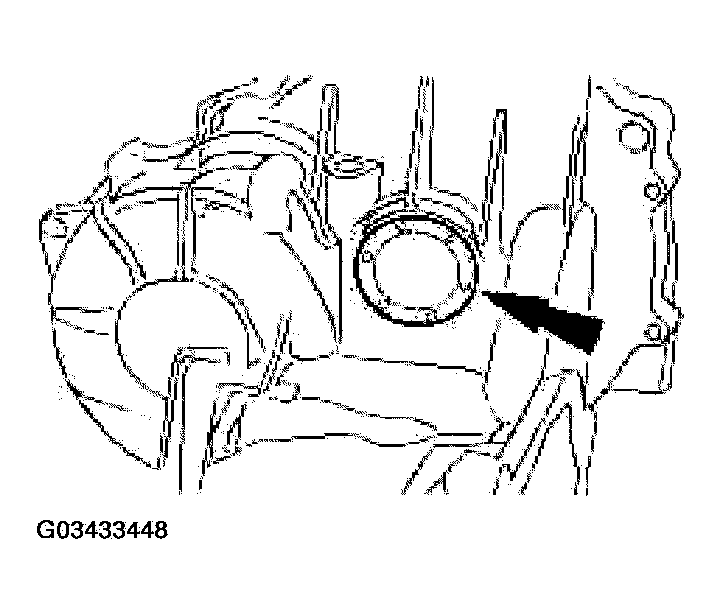

Remove the halfshaft seals (left-hand side shown).

Fig 1: Removing Halfshaft Seals (Left-Hand Side)
Courtesy of FORD MOTOR CO.

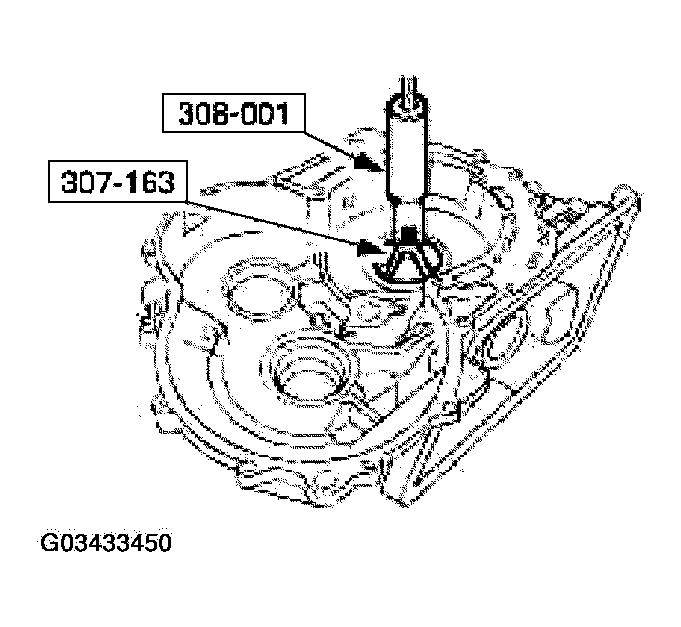

Using the special tools, remove the differential case bearing cups (left-hand side shown).

Fig 2: Removing Differential Case Bearing Cups (Left-Hand Side)
Courtesy of FORD MOTOR CO.

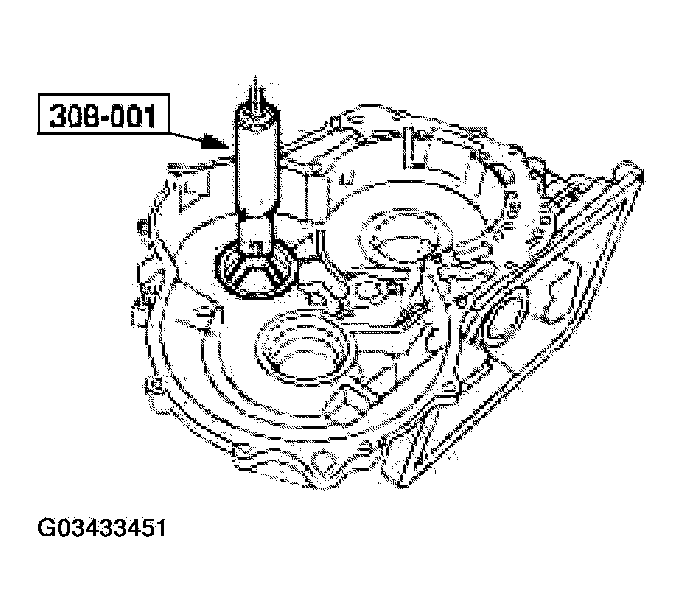

Using the special tools, remove the final drive input gear bearing cup.

Fig 3: Removing Final Drive Input Gear Bearing Cup
Courtesy of FORD MOTOR CO.

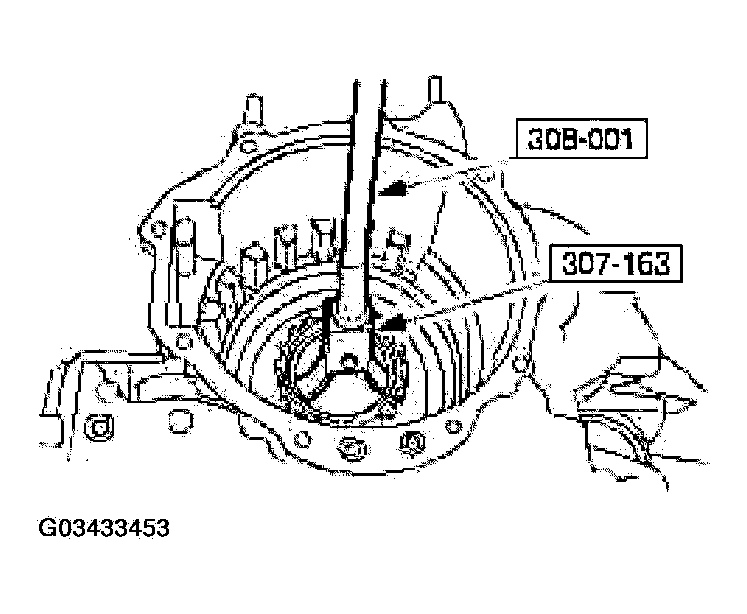

Using the special tool, remove the transfer shaft gear bearing cups (left-hand side shown).

Fig 4: Removing Transfer Shaft Gear Bearing Cups (Left-Hand Side)
Courtesy of FORD MOTOR CO.

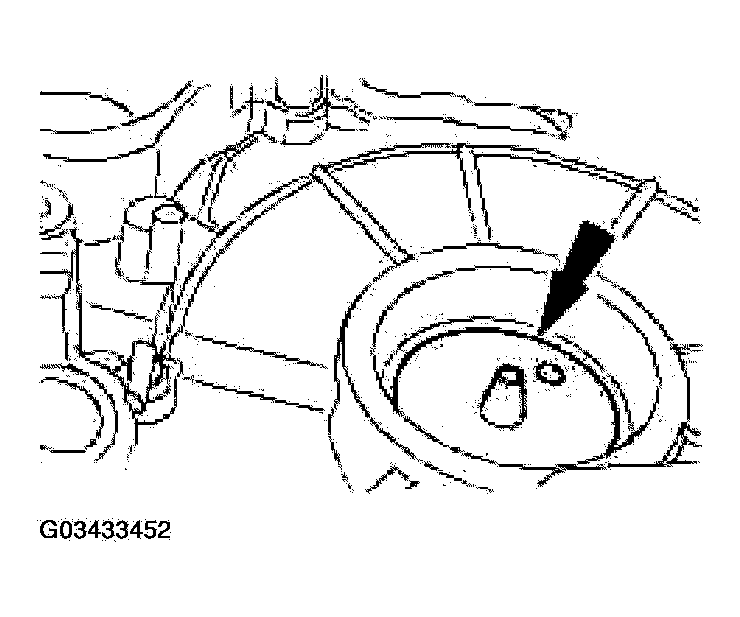

NOTE: Note the location of the bleed hole in the funnel in relation to the bottom of the case.

NOTE: Inspect the bleed hole for foreign material.

Fig 5: Removing Funnel

Courtesy of FORD MOTOR CO.

Remove the funnel.
Rotate the transaxle 180 degrees.

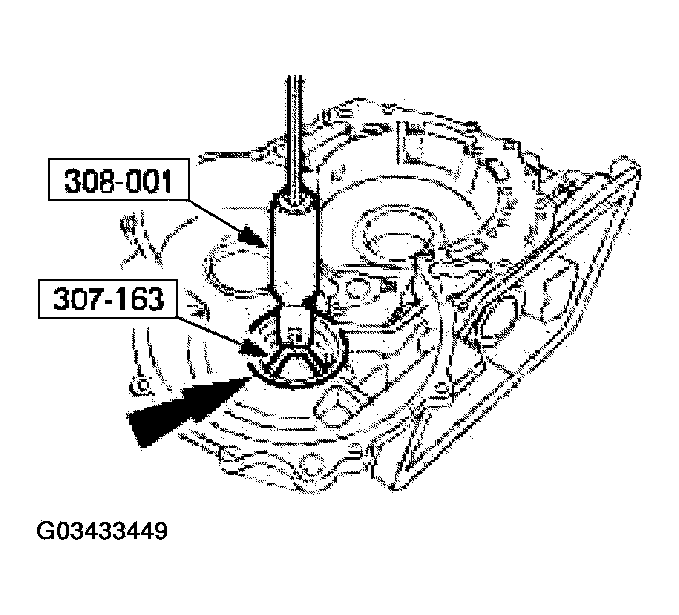

Using the special tools, remove the final drive input gear bearing cup.

Fig 6: Removing Final Drive Input Gear Bearing Cup
Courtesy of FORD MOTOR CO.
