Passenger's Power Window Control Switch

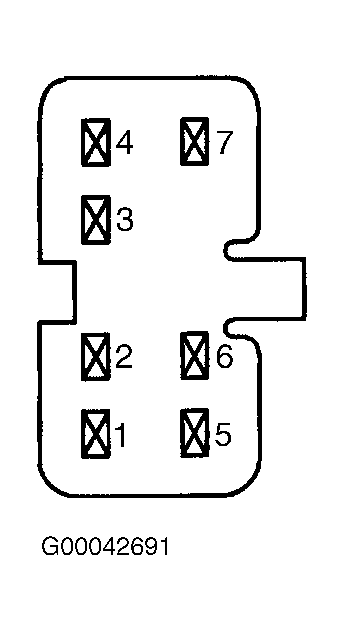

Remove power window control switch. See POWER WINDOW CONTROL SWITCH under REMOVAL & INSTALLATION. Check continuity between specified terminals at appropriate connector with switch in specified position. See PASSENGER'S POWER WINDOW CONTROL SWITCH TESTING table. See Fig 1. If continuity does not exist as specified, replace switch and retest system operation.
PASSENGER'S POWER WINDOW CONTROL SWITCH TESTING
| Test Between Terminals No. | Switch Position | Continuity |
|---|---|---|
| 1 & 2 | Neutral | No |
| 1 & 2 | Up | Yes |
| 1 & 2 | Down | No |
| 1 & 6 | Neutral | Yes |
| 1 & 6 | Up | No |
| 1 & 6 | Down | Yes |
| 2 & 7 | Neutral | No |
| 2 & 7 | Up | No |
| 2 & 7 | Down | Yes |
| 3 & 7 | Neutral | Yes |
| 3 & 7 | Up | Yes |
| 3 & 7 | Down | No |
