Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

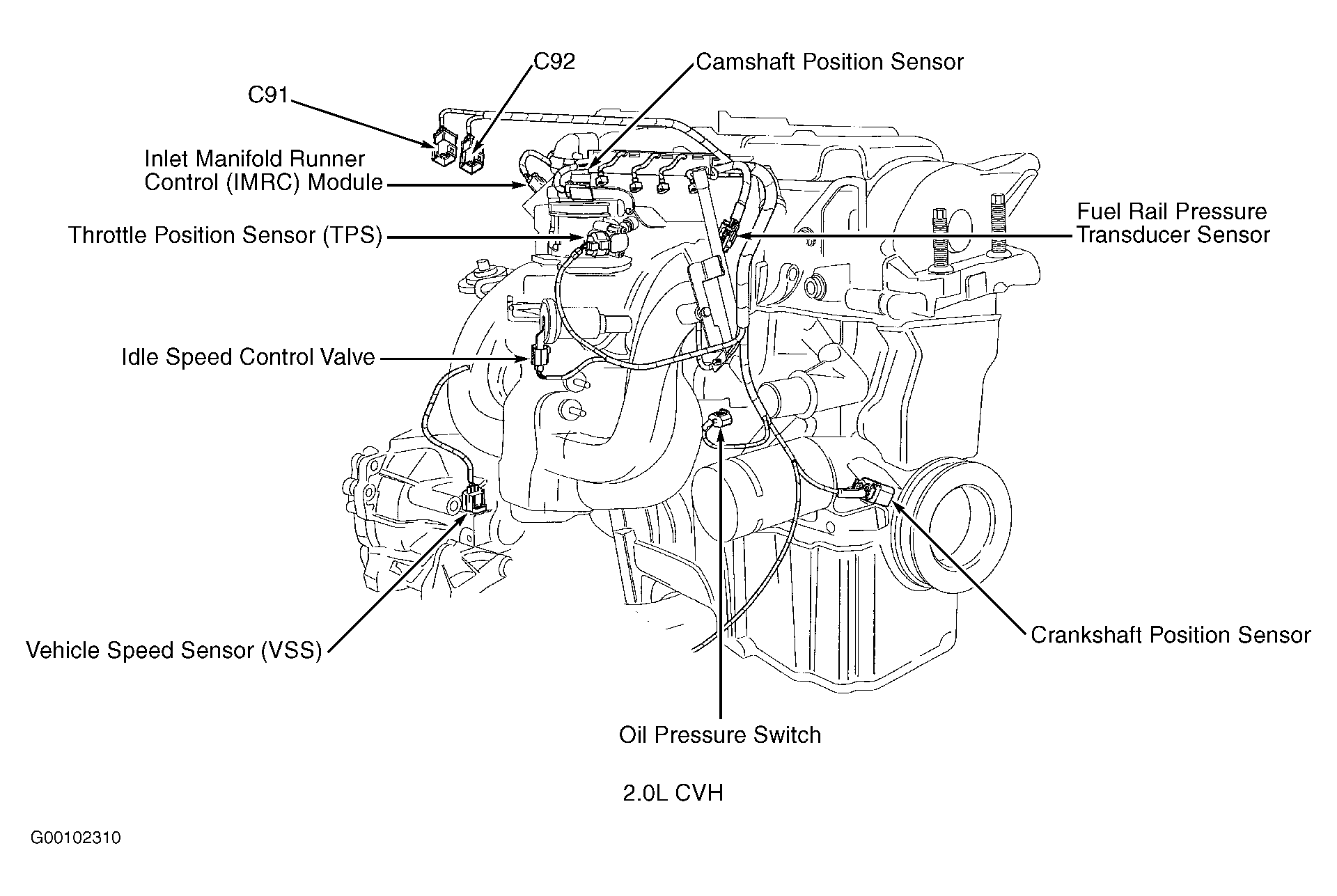

Fig 1: Left Rear Of Engine (2.0L CVH)

Courtesy of FORD MOTOR CO.

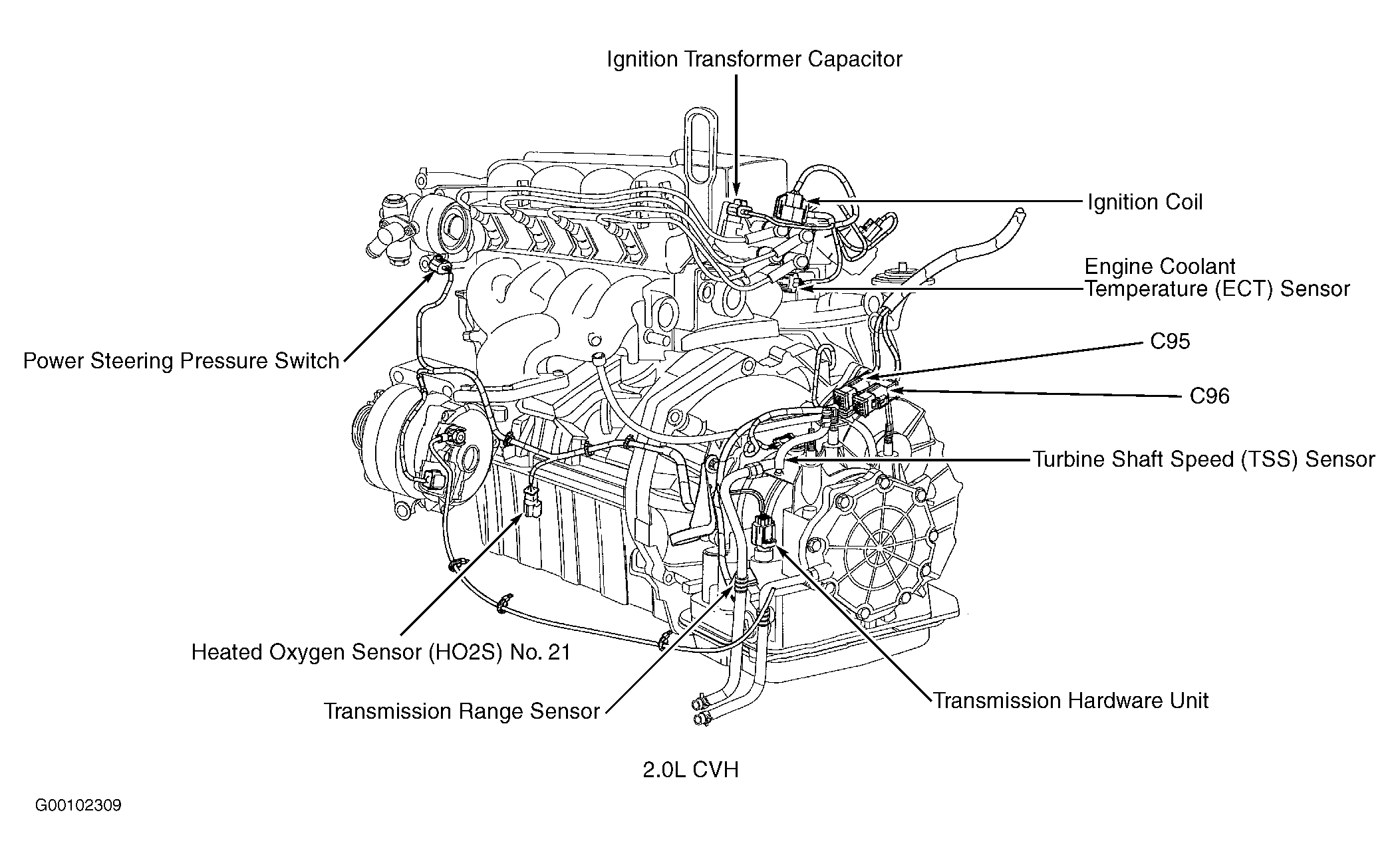

Fig 2: Right Front Of Engine (2.0L CVH)

Courtesy of FORD MOTOR CO.

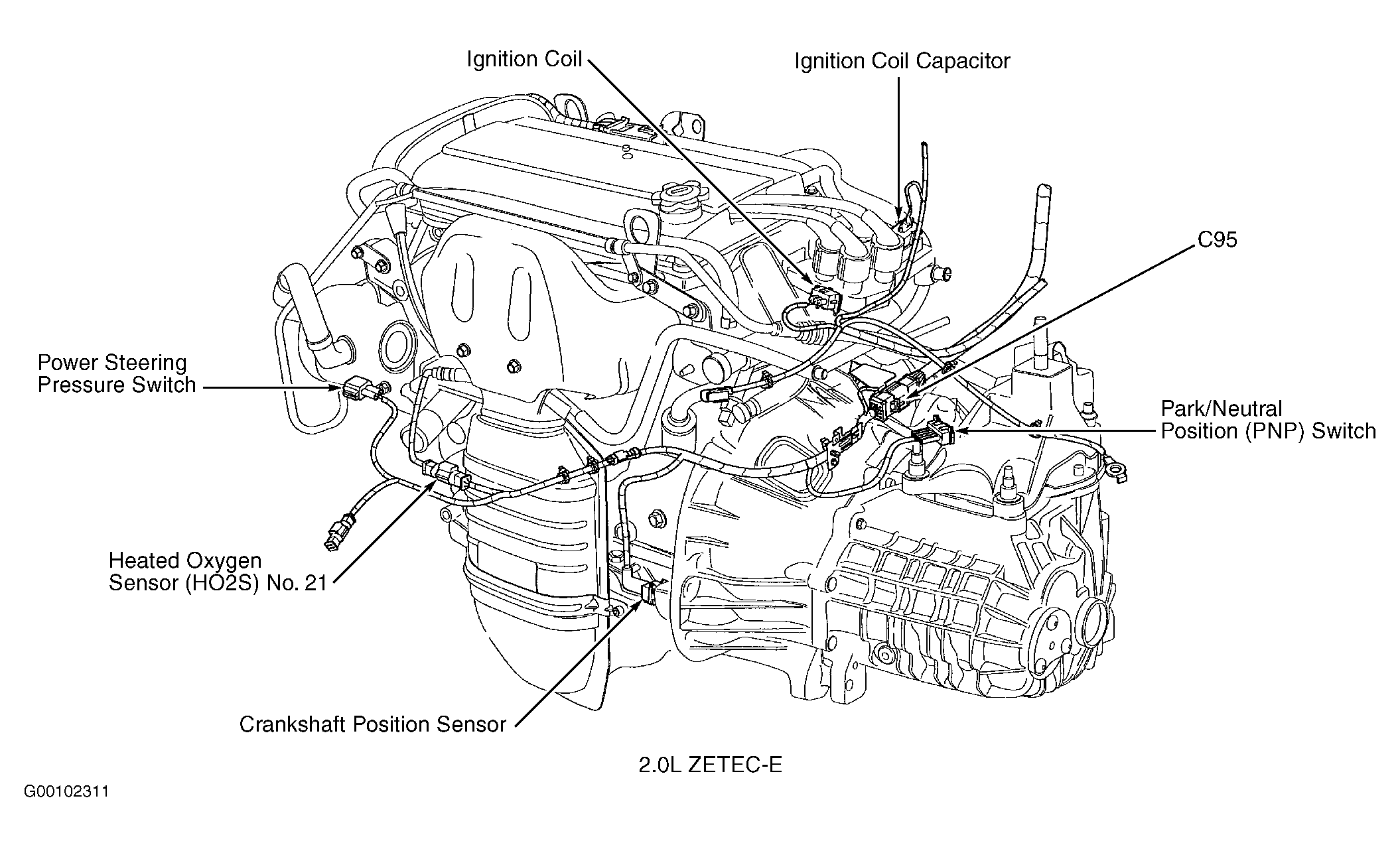

Fig 3: Left Rear Of Engine (2.0L Zetec-E)

Courtesy of FORD MOTOR CO.

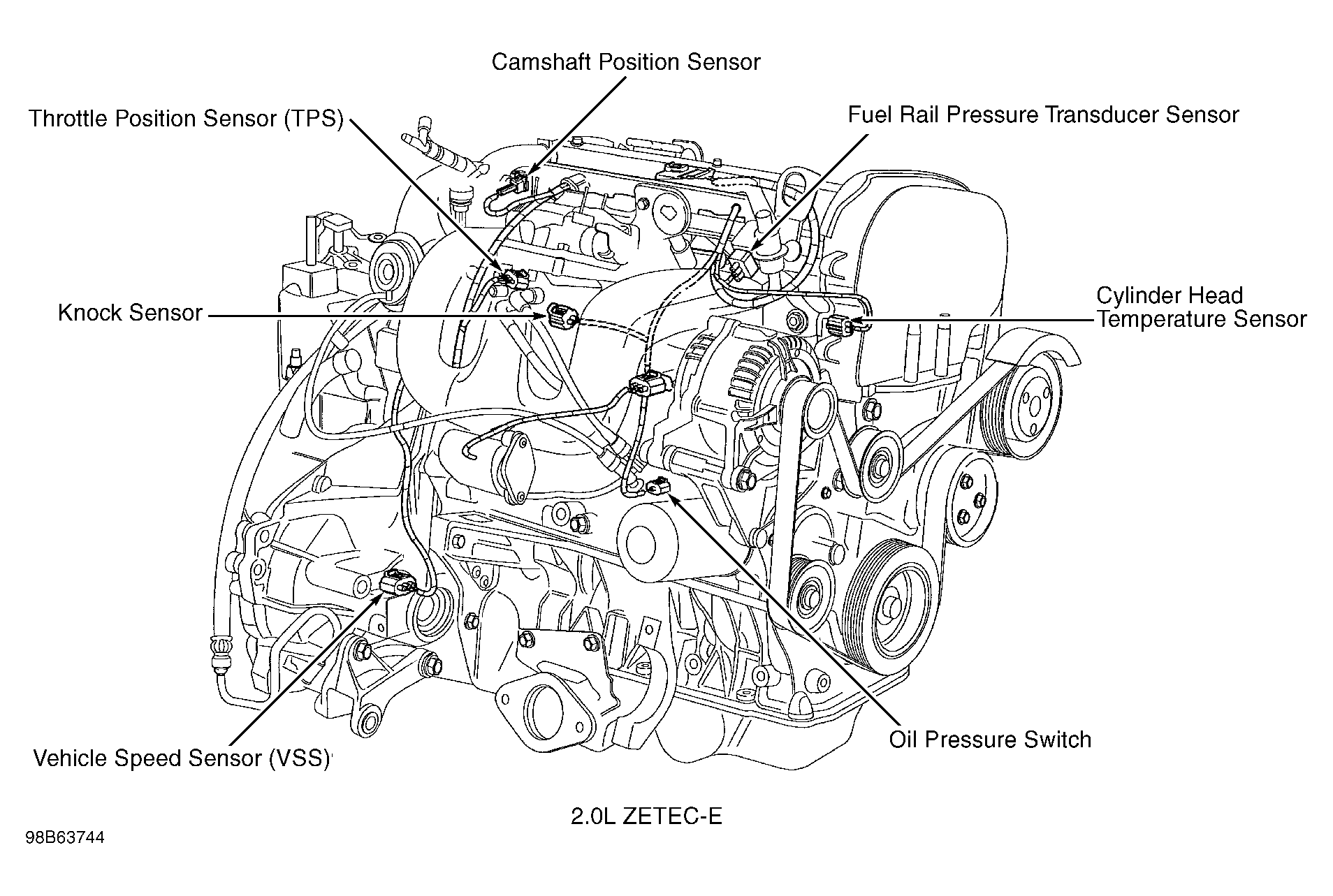

Fig 4: Right Front Of Engine (2.0L Zetec-E)

Courtesy of FORD MOTOR CO.

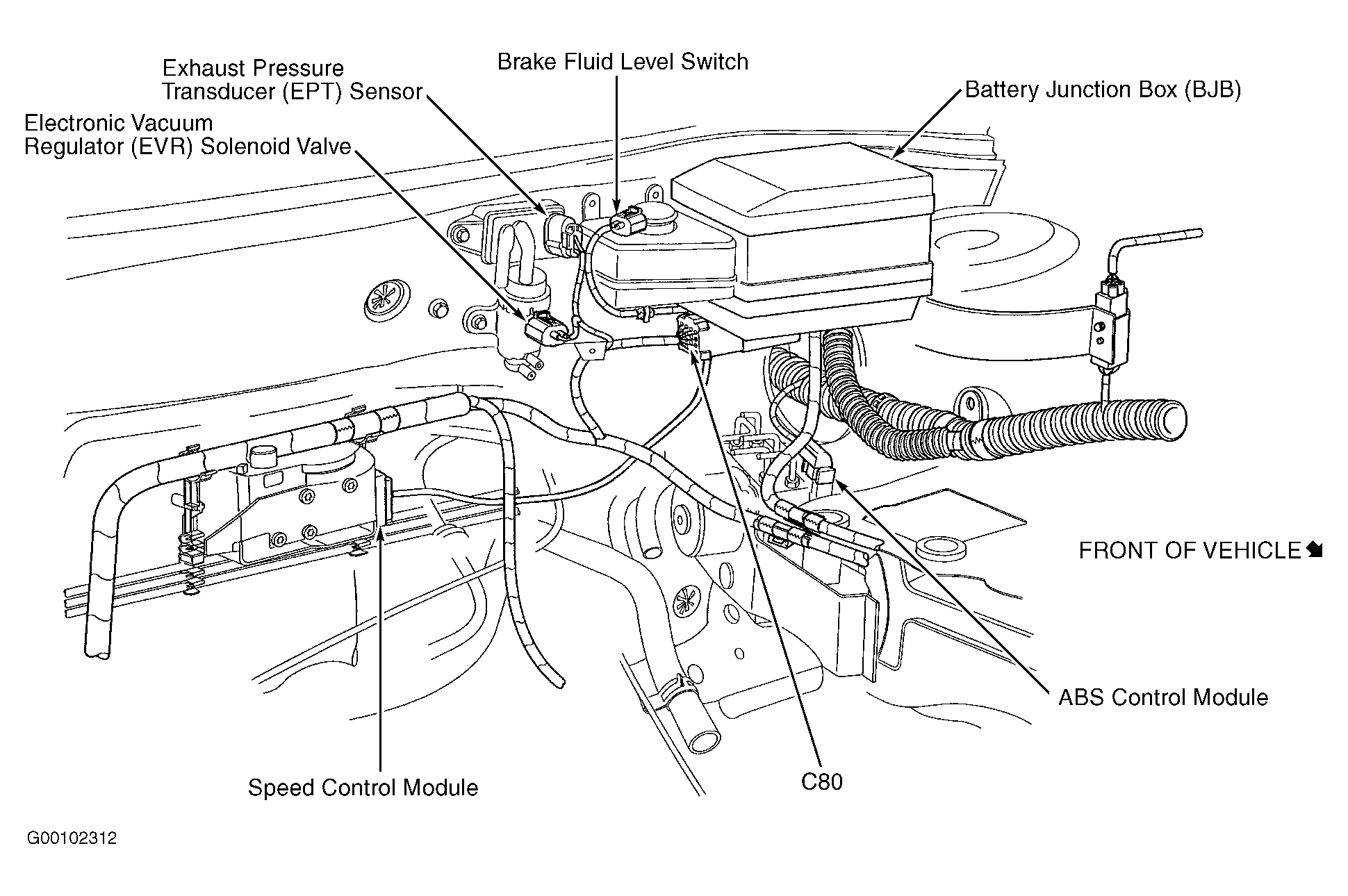

Fig 5: Left Rear Of Engine Compartment

Courtesy of FORD MOTOR CO.

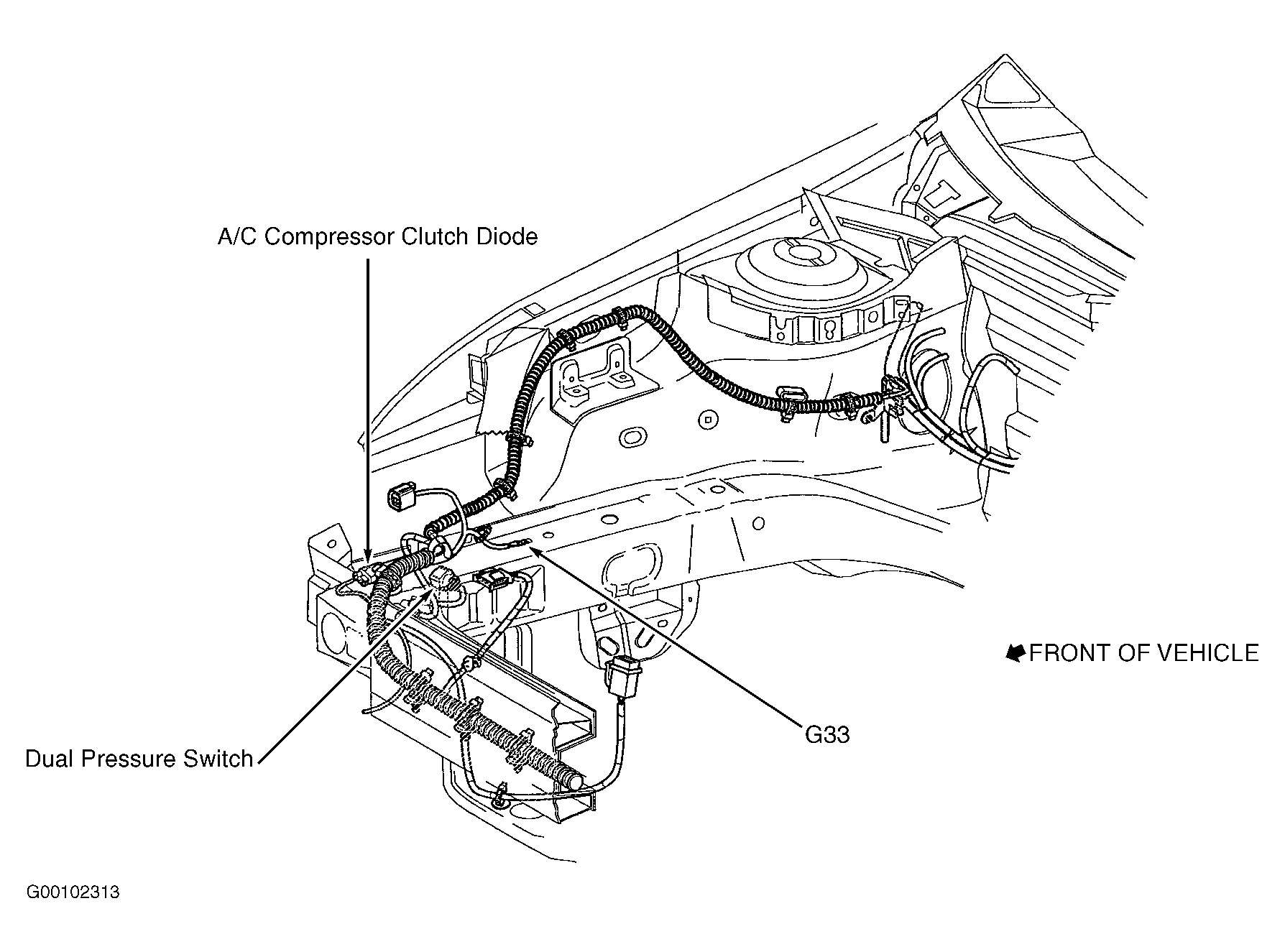

Fig 6: Right Front Of Engine Compartment

Courtesy of FORD MOTOR CO.

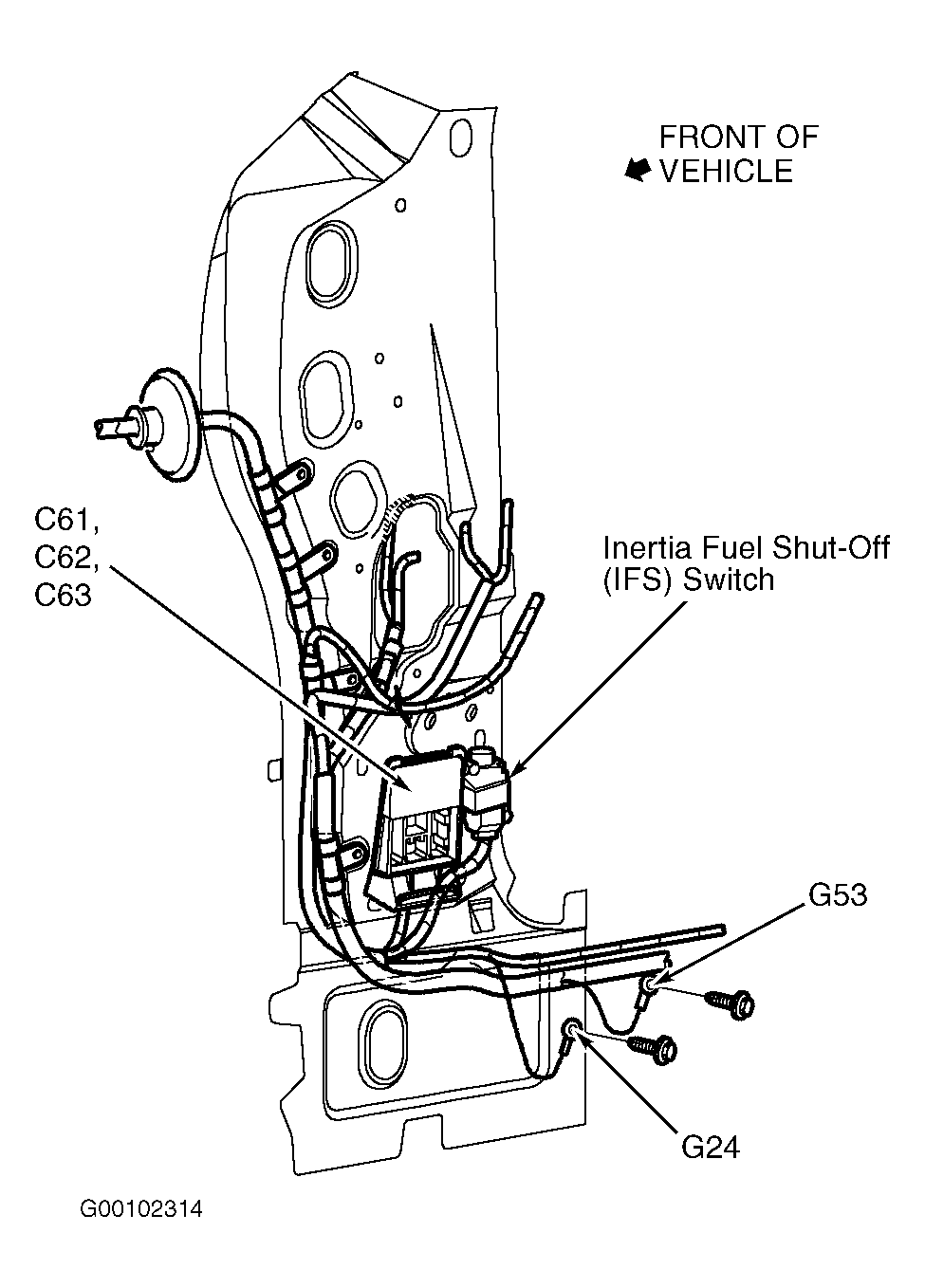

Fig 7: Left Side Of Engine Compartment

Courtesy of FORD MOTOR CO.

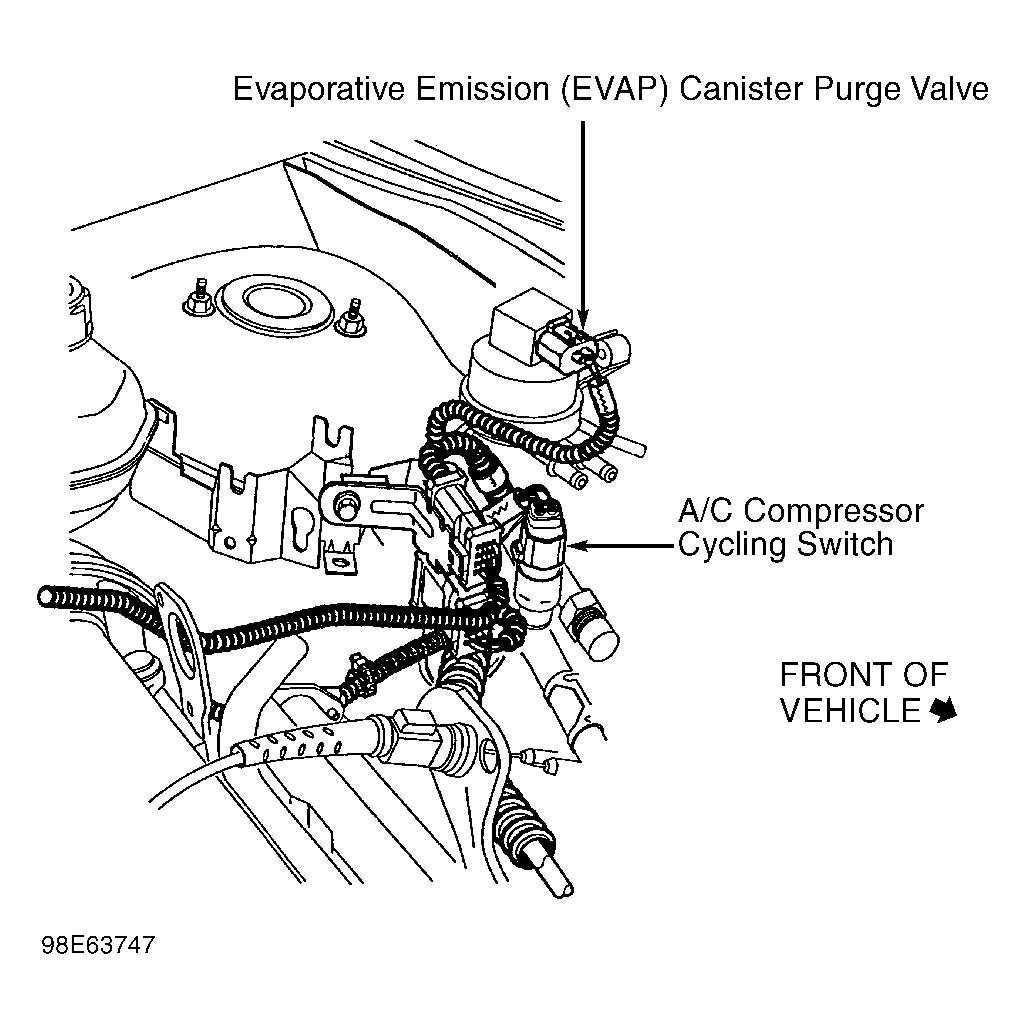

Fig 8: Right Kick Panel

Courtesy of FORD MOTOR CO.

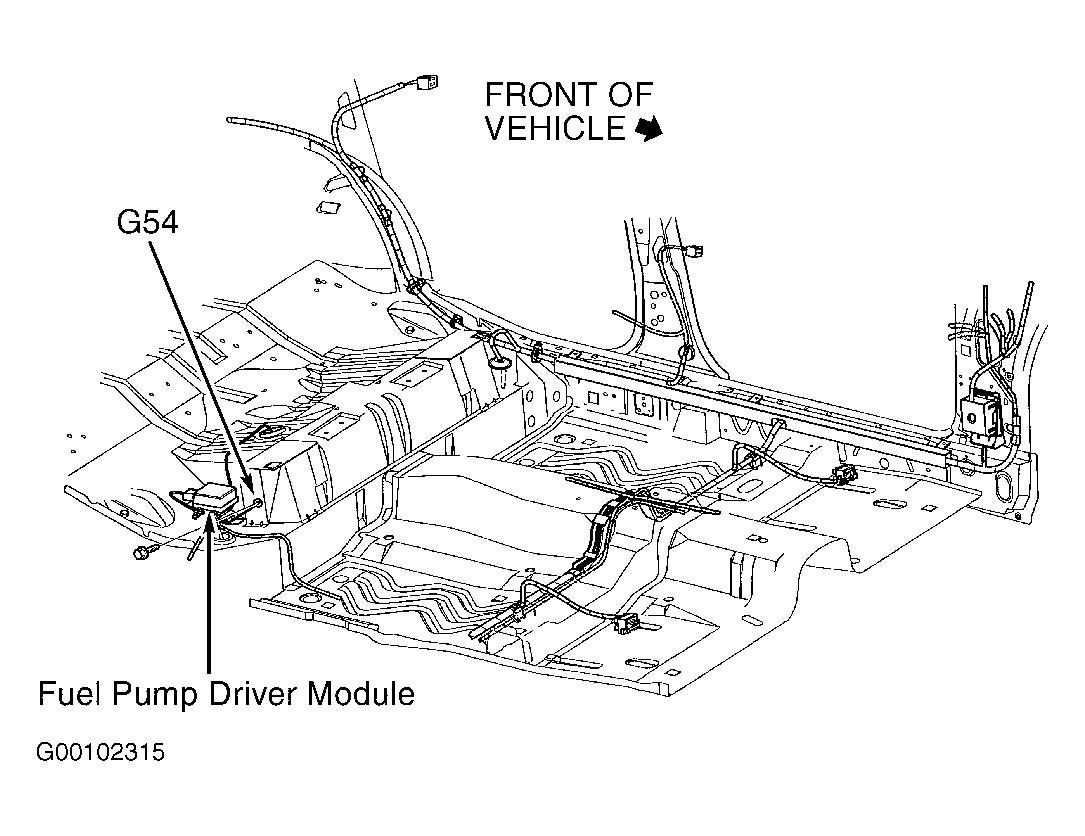

Fig 9: Center Of Vehicle

Courtesy of FORD MOTOR CO.
