Steering Column: Disassembly

All vehicles

1. Remove the two multifunction switches.
   1. Depress the retaining tangs.

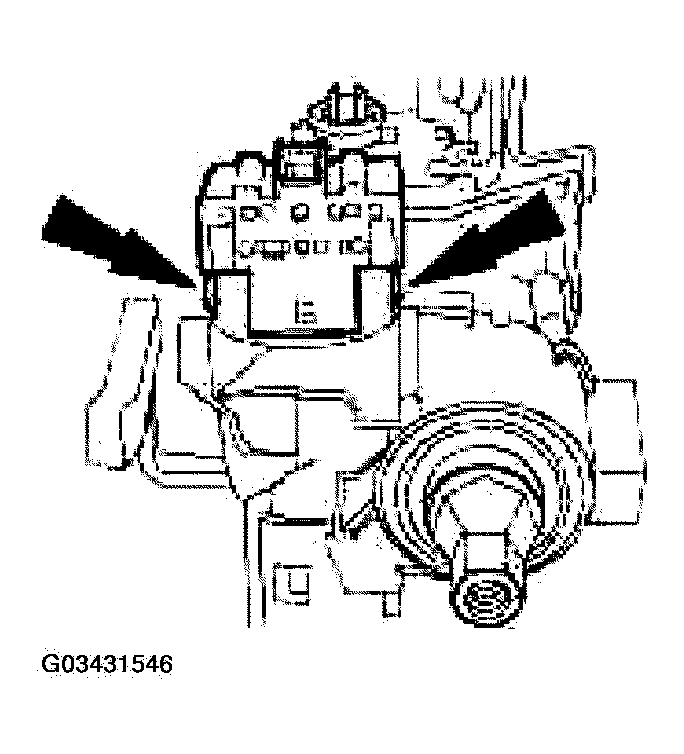

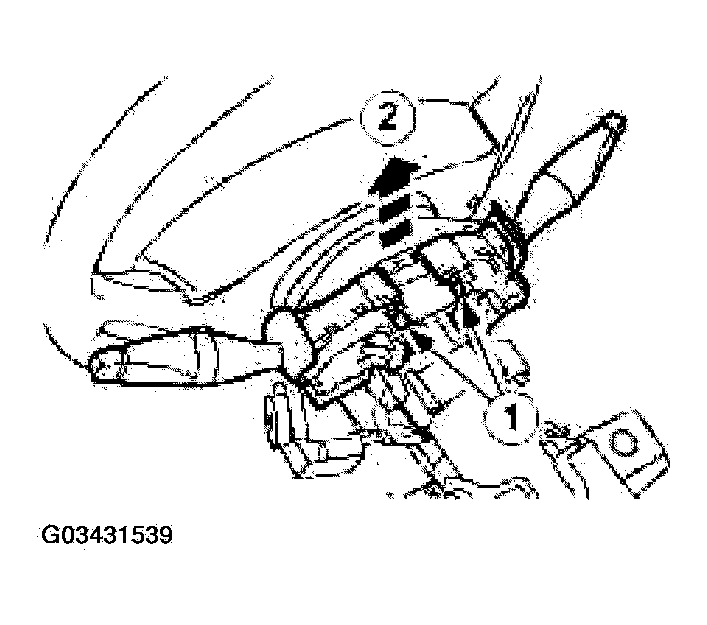

      Fig 1: Depress Retaining Tangs & Lifting Switches Upwards

      Courtesy of FORD MOTOR CO.
   2. Lift the switches upwards.
2. Detach the driver air bag module from the steering wheel.

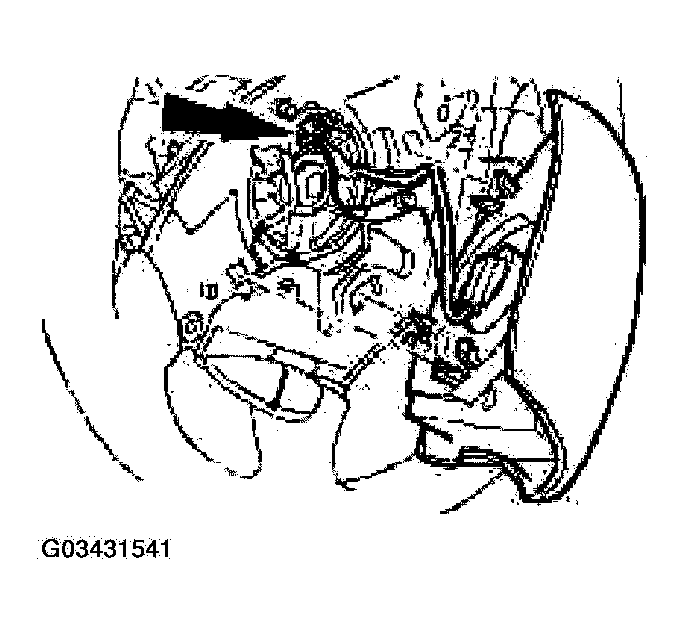

   Fig 2: Detaching Driver Air Bag Module

   Courtesy of FORD MOTOR CO.
3. Remove the driver air bag module.
   • Release the three clips.
   • Disconnect the air bag module electrical connector.

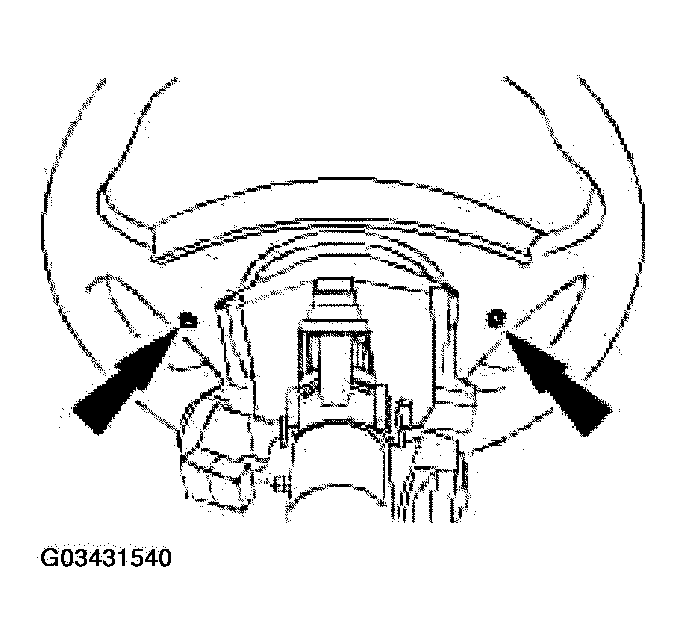

     Fig 3: Removing Driver Air Bag Module

     Courtesy of FORD MOTOR CO.
4. Remove the passive anti-theft system (PATS) transceiver.
   Fig 4: Removing Passive Anti-Theft System Transceiver

   Courtesy of FORD MOTOR CO.
5. Remove the steering wheel.
   1. Disconnect the speed control electrical connector (if equipped).

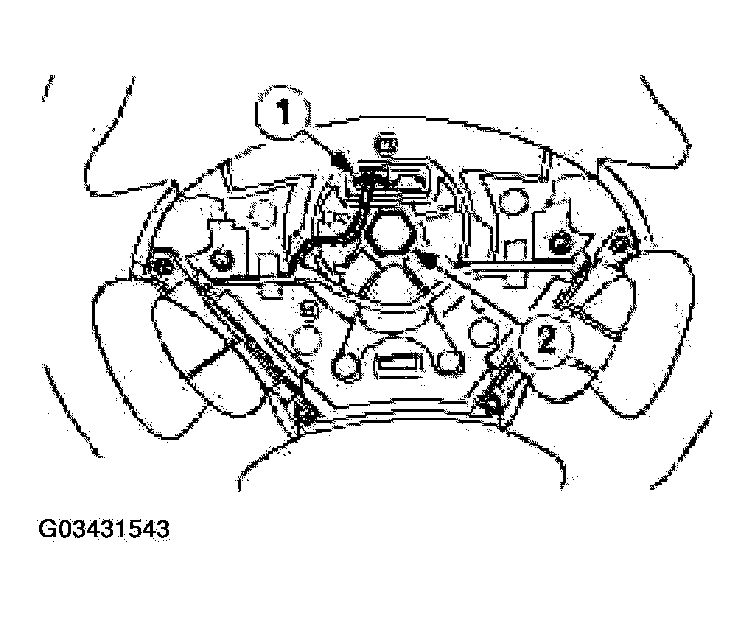

      Fig 5: Disconnecting Speed Control Electrical Connector & Steering Wheel Retaining Bolt

      Courtesy of FORD MOTOR CO.
   2. Remove the steering wheel retaining bolt.
6. Remove the tolerance ring.

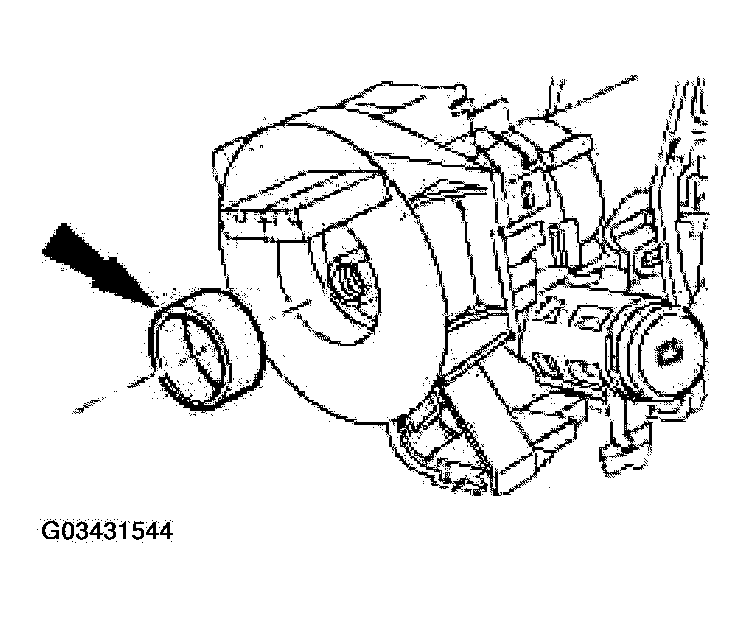

   Fig 6: Removing Tolerance Ring

   Courtesy of FORD MOTOR CO.
NOTE: Make sure the clockspring is not allowed to rotate. Secure in the central position with a piece of suitable tape.
7. Remove the clockspring.
   • Using a thin bladed screwdriver, release the two retaining clips.

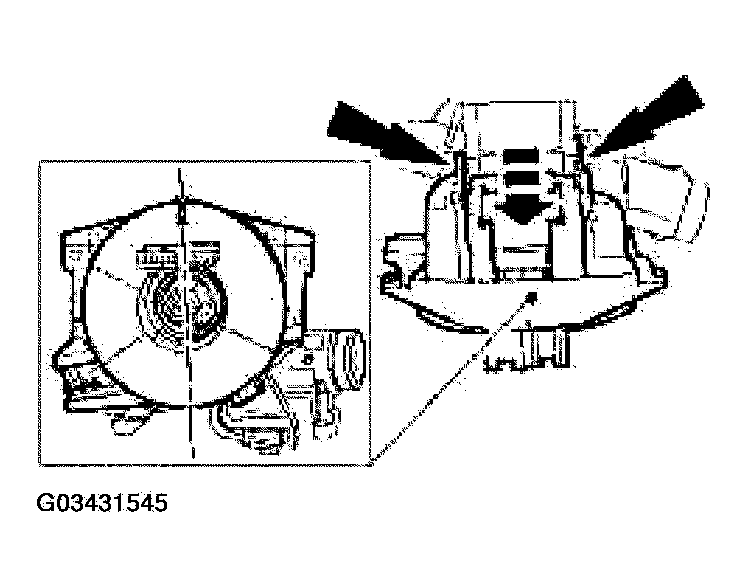

     Fig 7: Releasing Two Retaining Clips

     Courtesy of FORD MOTOR CO.
8. Remove the ignition switch.

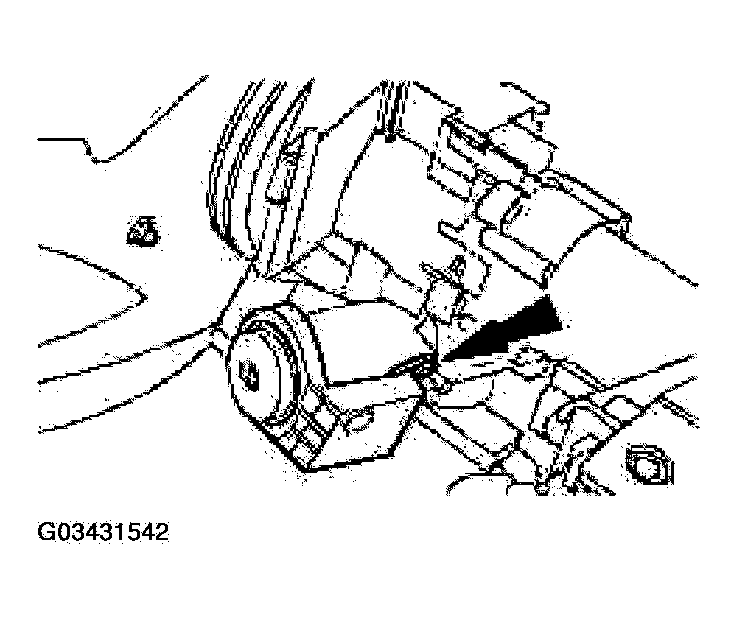

   Fig 8: Removing Ignition Switch

   Courtesy of FORD MOTOR CO.
   • Release the clips.
9. Remove the ignition switch lock cylinder.
   1. Insert and turn the ignition key to position I (Accessory).

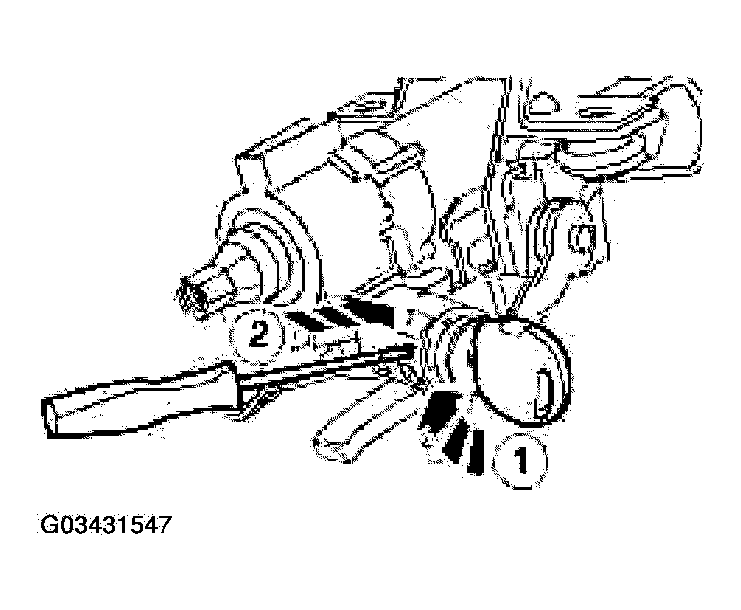

      Fig 9: Turning Ignition Key To Accessory & Depressing Detent

      Courtesy of FORD MOTOR CO.
   2. Using a thin bladed screwdriver, depress the detent.
   3. Remove the ignition switch lock cylinder.

   Vehicles With Stability Assist

10. Fully extend the steering column
    1. Release the locking lever.

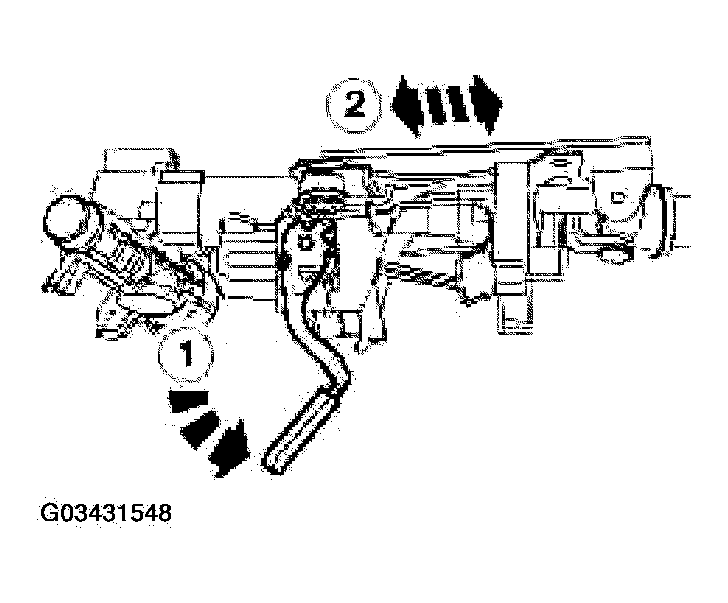

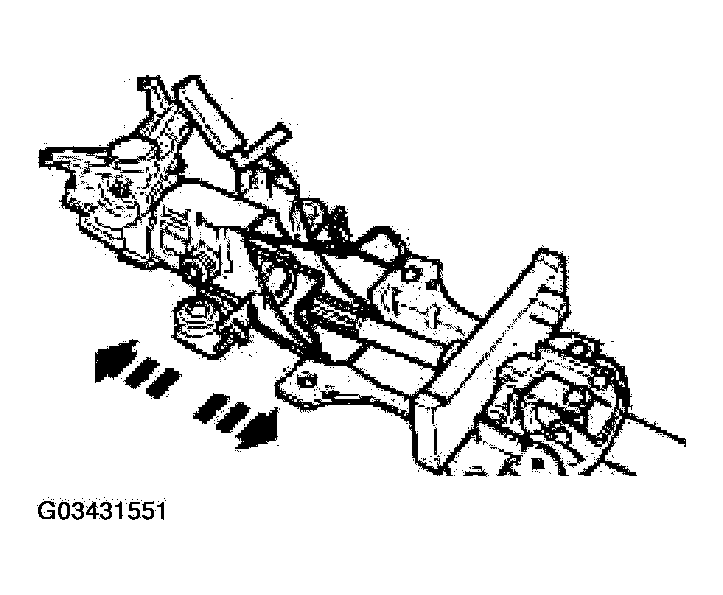

       Fig 10: Releasing Locking Lever & Fully Extend Steering Column

       Courtesy of FORD MOTOR CO.
    2. Fully extend the steering column.
NOTE: The steering column two halves must be marked before separating.
Fig 11: Marking Two Halves Of Steering Column
Courtesy of FORD MOTOR CO.
11. Mark the two halves of the steering column.

    All Vehicles

12. Remove the Allen bolt.

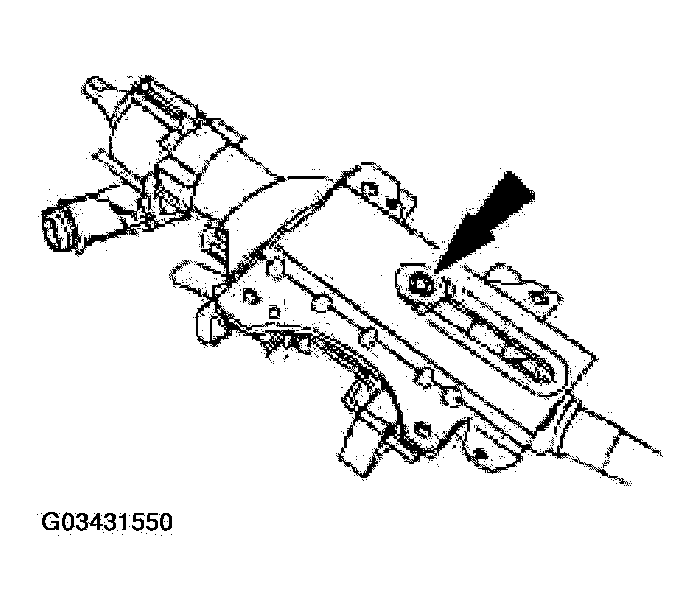

    Fig 12: Removing Allen Bolt

    Courtesy of FORD MOTOR CO.
13. Separate the steering column two halves.

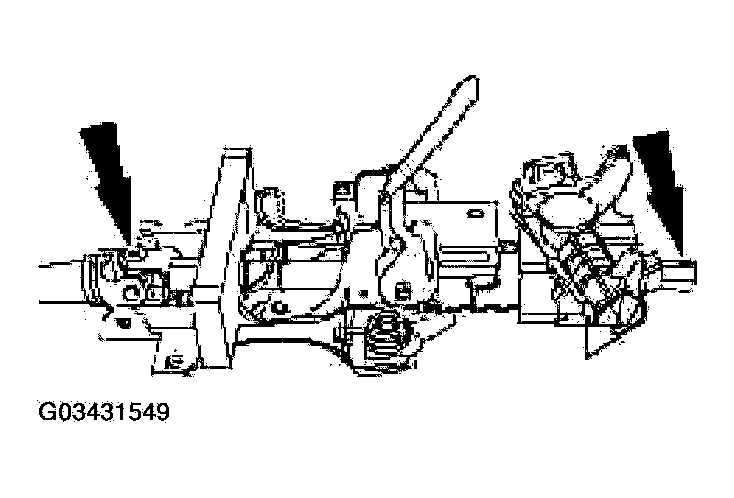

    Fig 13: Identifying Separate Steering Column Two Halves

    Courtesy of FORD MOTOR CO.

    Vehicles with stability assist

14. Remove the steering wheel rotation sensor clamp.
    1. Remove the screws.

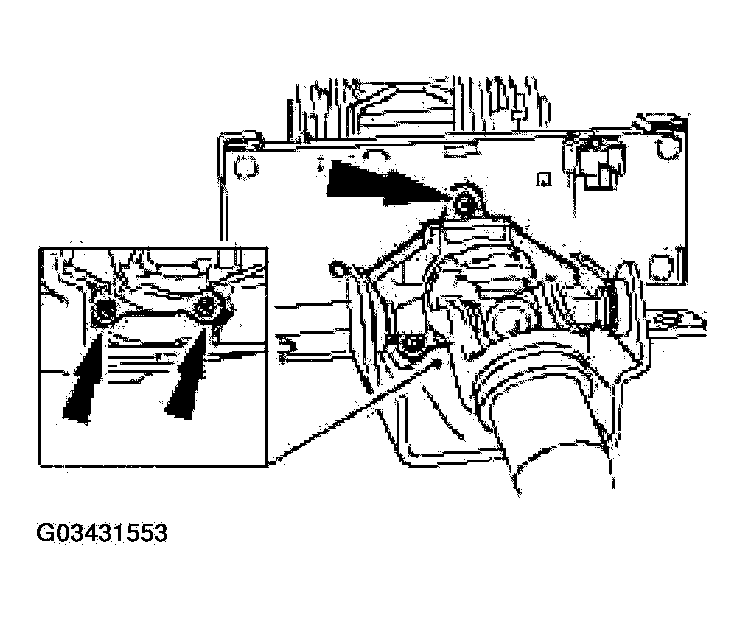

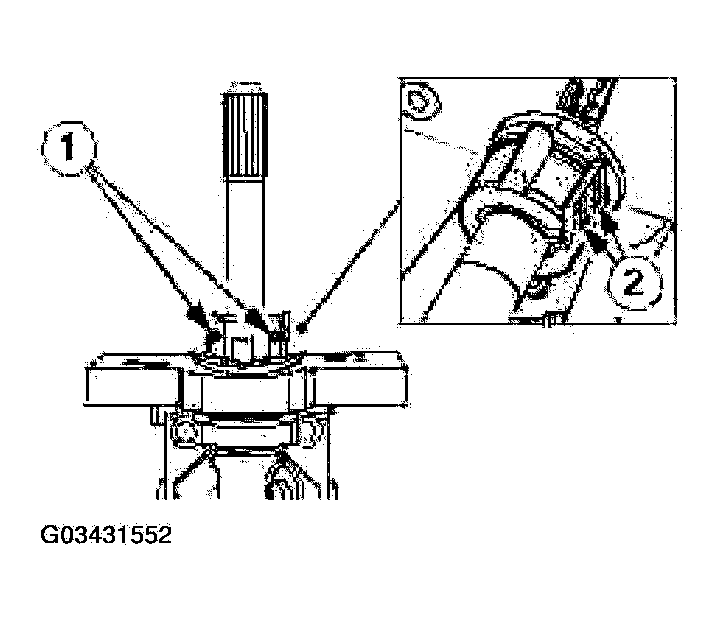

       Fig 14: Locating Screws & Tangs

       Courtesy of FORD MOTOR CO.
    2. Using a thin bladed screwdriver, depress the locking tangs and remove the steering wheel rotation sensor clamp.
15. Remove the steering wheel rotation sensor retaining screws.
    Fig 15: Removing Steering Wheel Rotation Sensor Retaining Screws

    Courtesy of FORD MOTOR CO.
16. Remove the steering wheel rotation sensor.

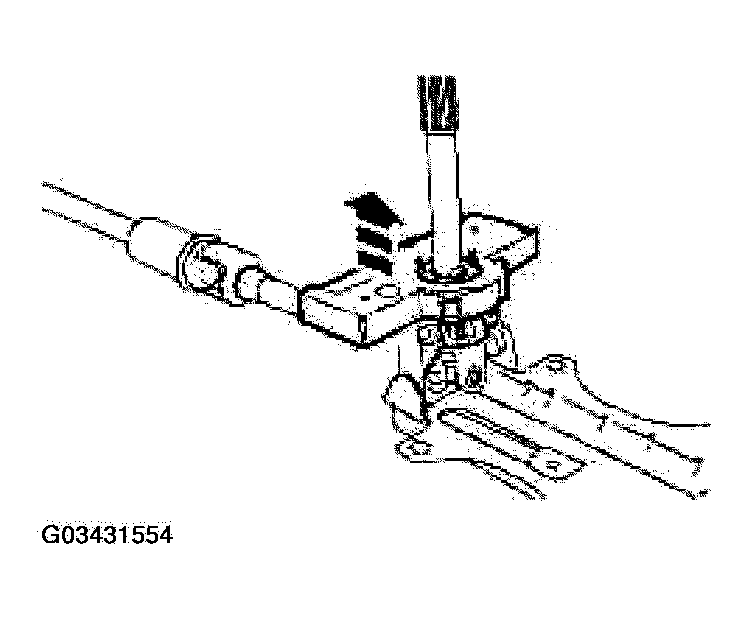

    Fig 16: Removing Steering Wheel Rotation Sensor

    Courtesy of FORD MOTOR CO.
