Engine
Part 1 Of 2:
Part 2 Of 2:

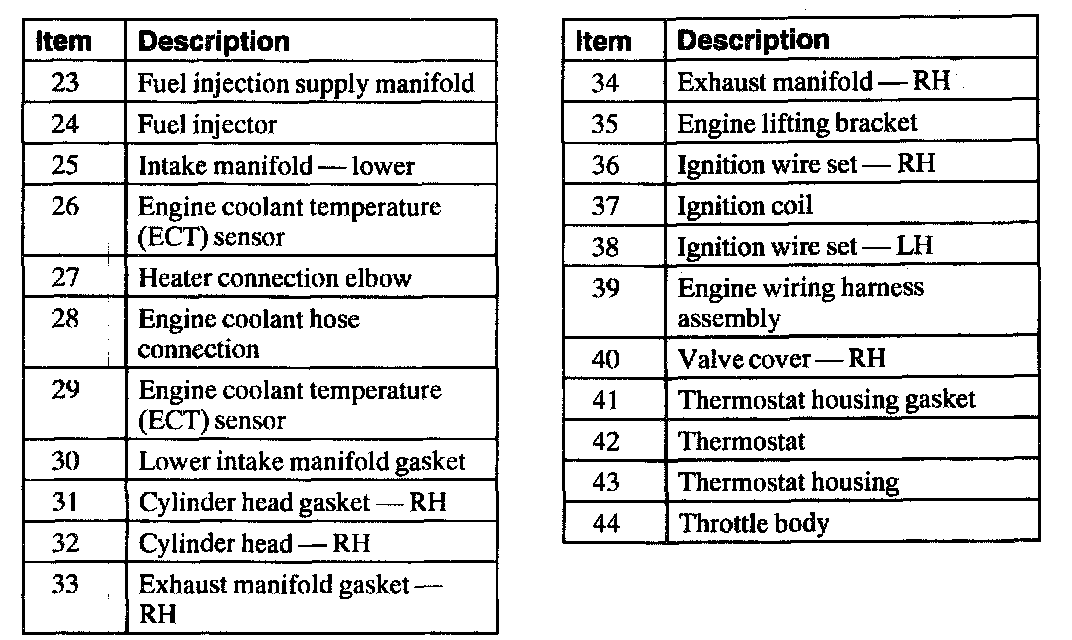

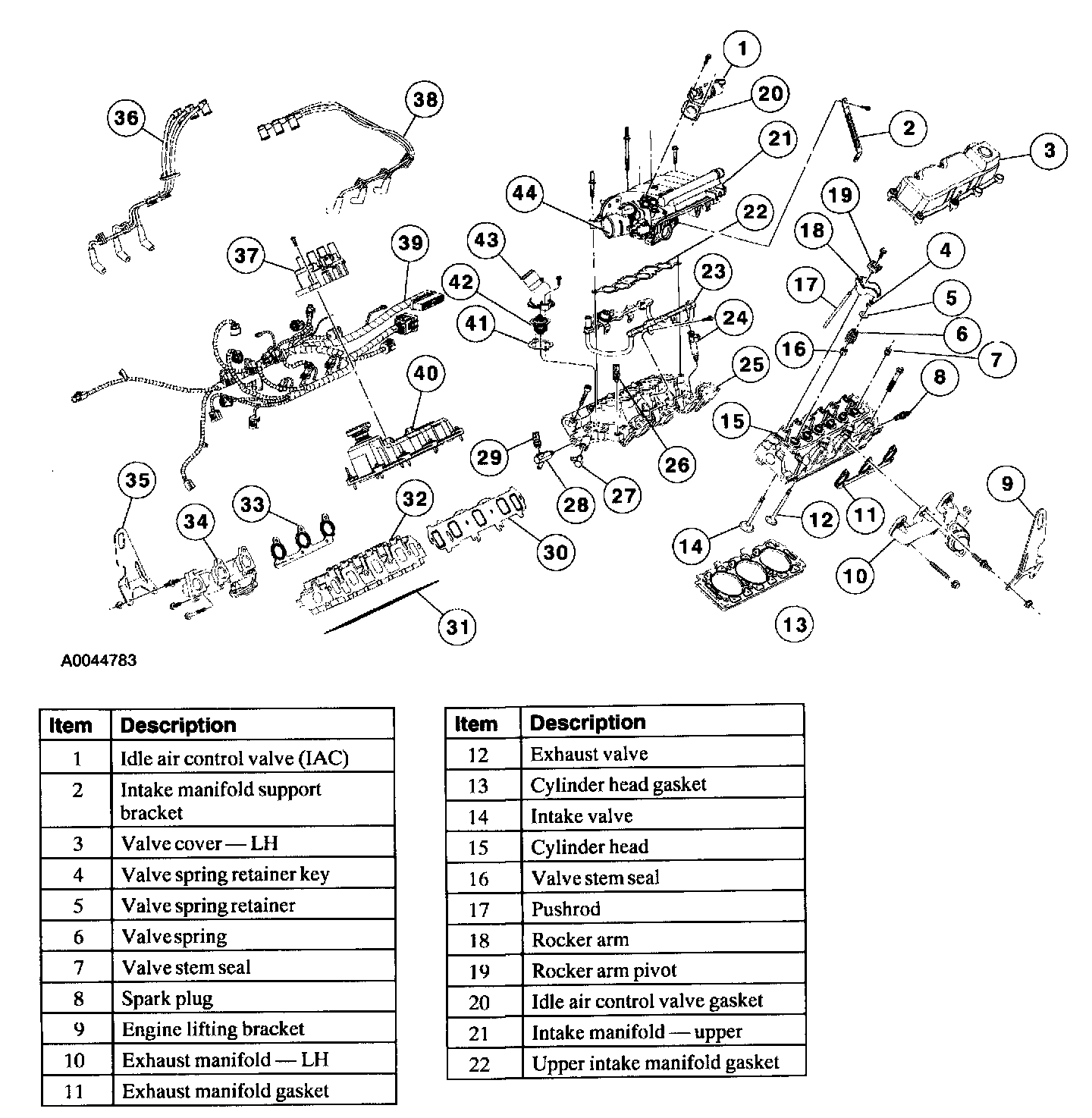

Major Upper Engine Components
Part 1 Of 2:
Part 2 Of 2:

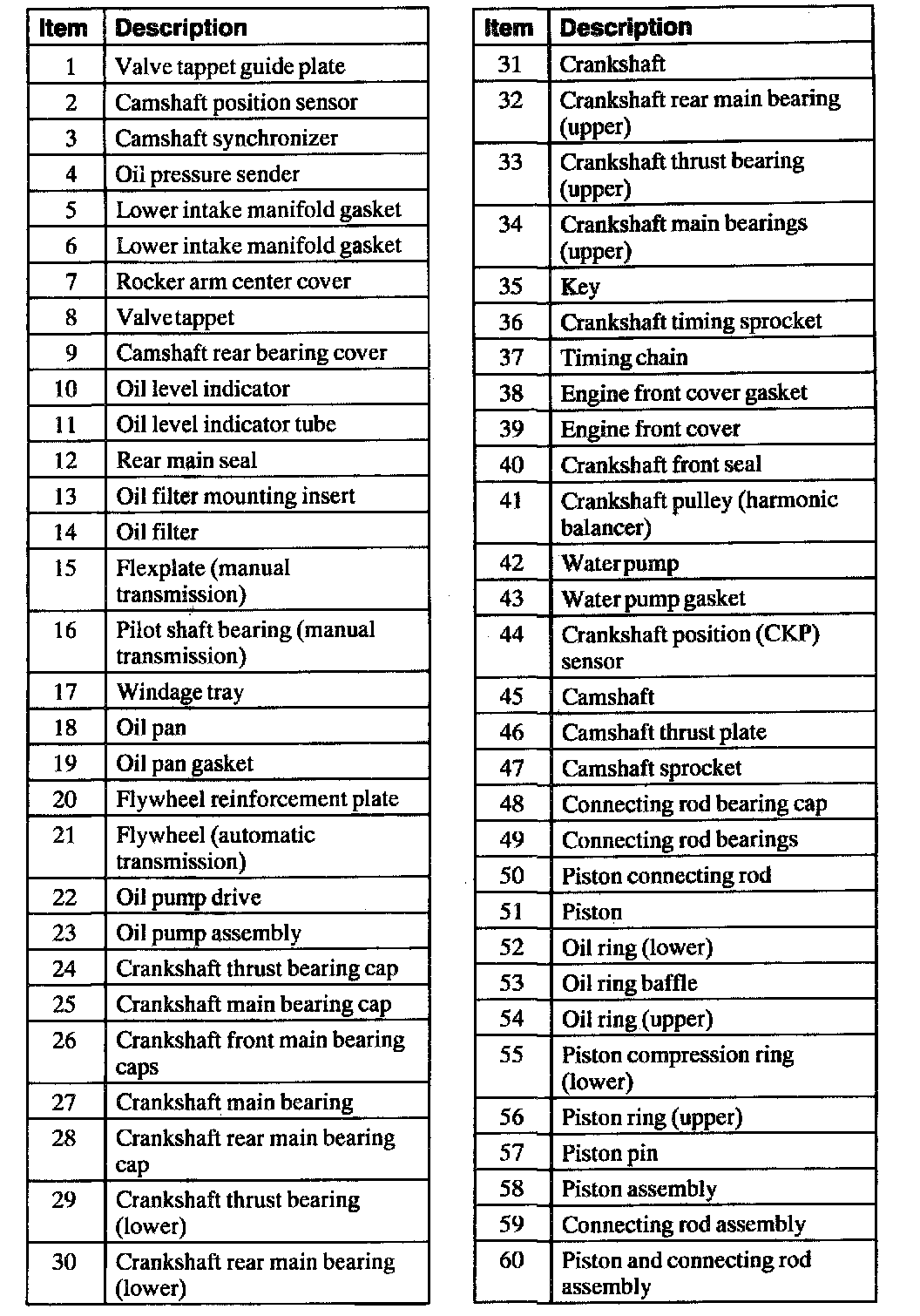

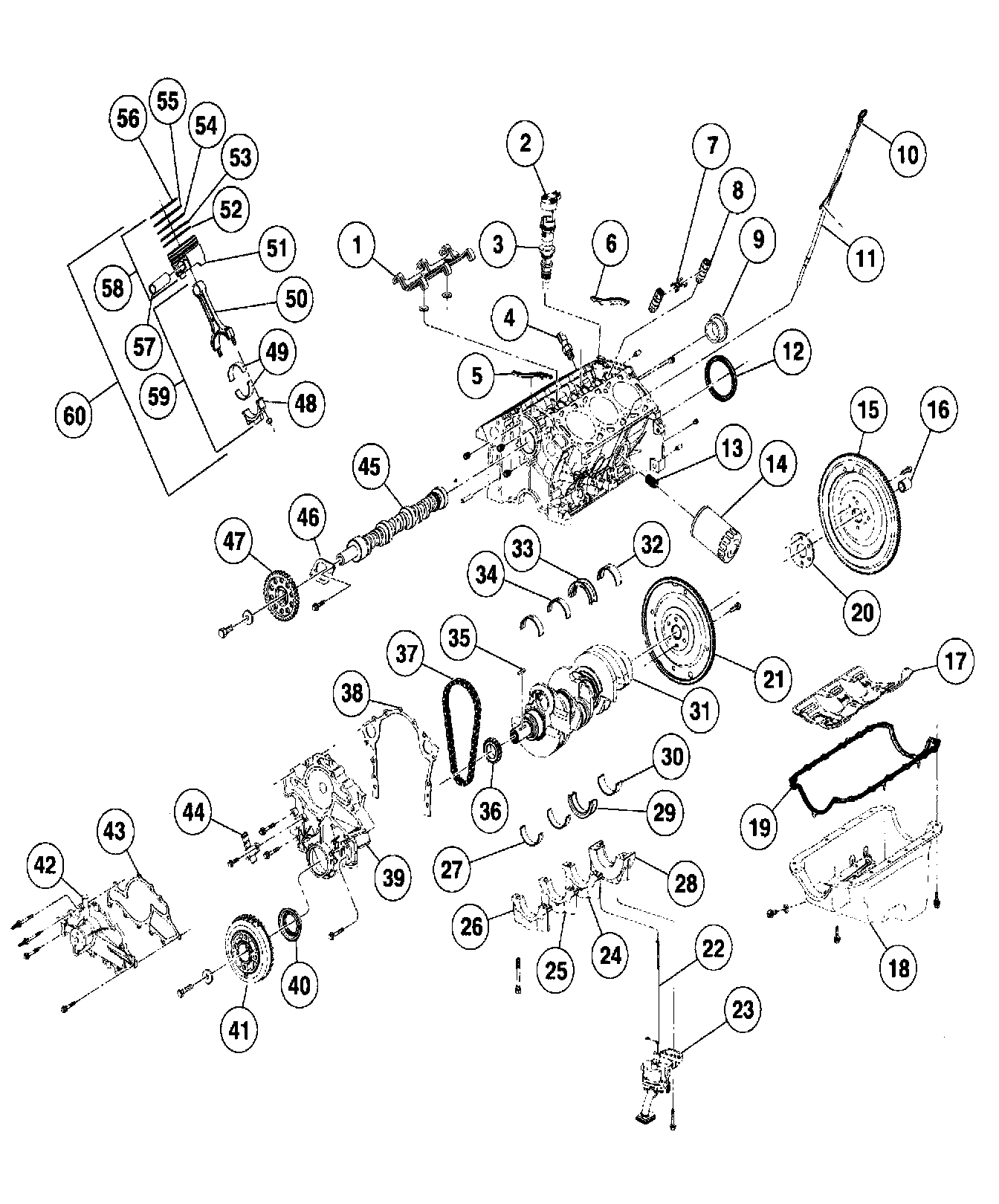

Cylinder block-Lower
