Removal and Installation

Remove the console panel assembly. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .

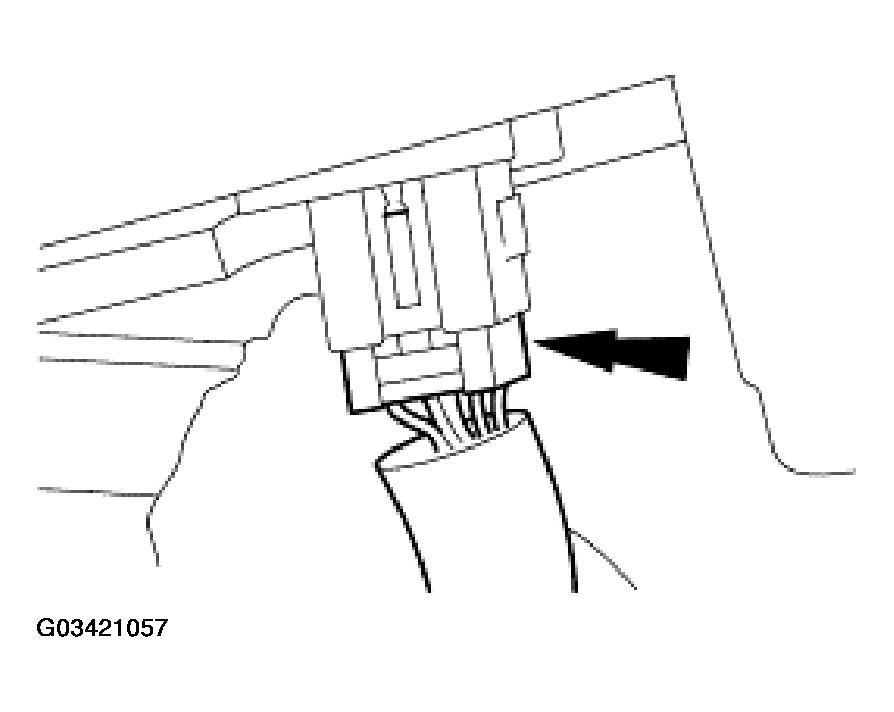

Remove the traction control switch electrical connector.

Fig 1: Removing Traction Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the traction control switch.

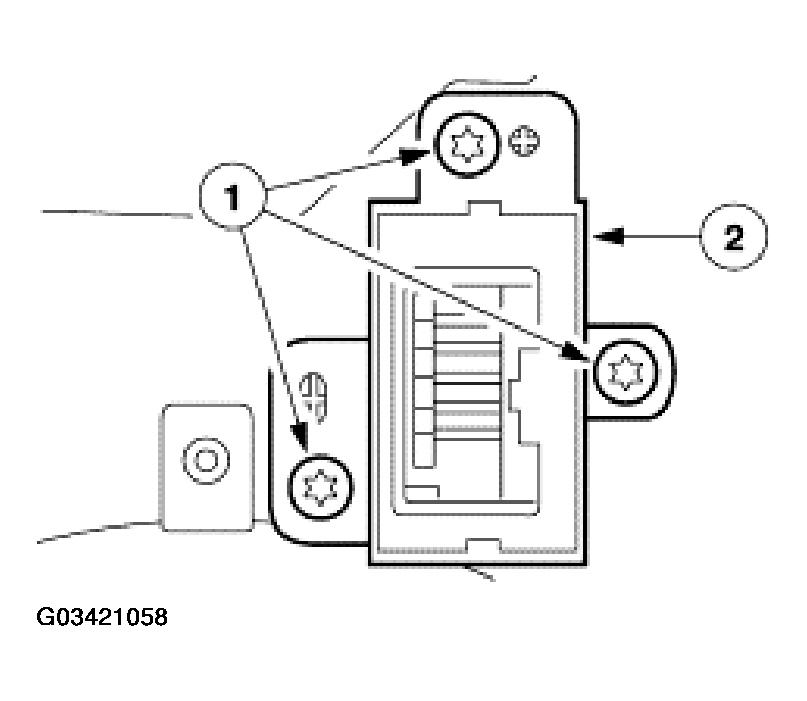

1. Remove the traction control switch screws.
2. Remove the traction control switch.

  Fig 2: Removing Traction Control Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
