Main Control Valve Body: Disassembly

NOTE: The valve body separator plate has a bonded gasket. Do not reuse. Discard the plate.

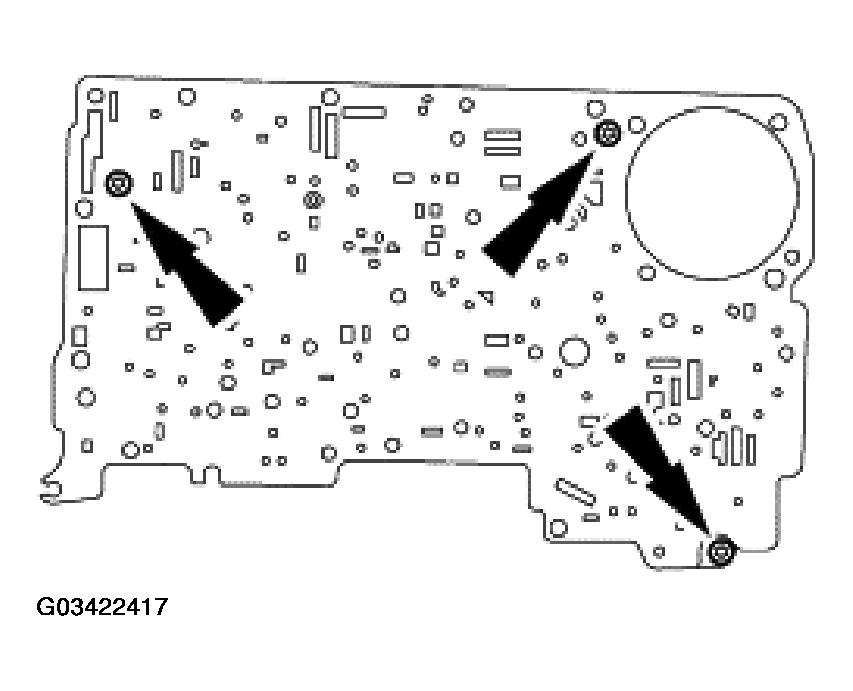

Fig 1: Removing Valve Body Separator Plate

Courtesy of FORD MOTOR CO.

Remove and discard the valve body separator plate.
Remove the pressure control limit relief valve and spring.

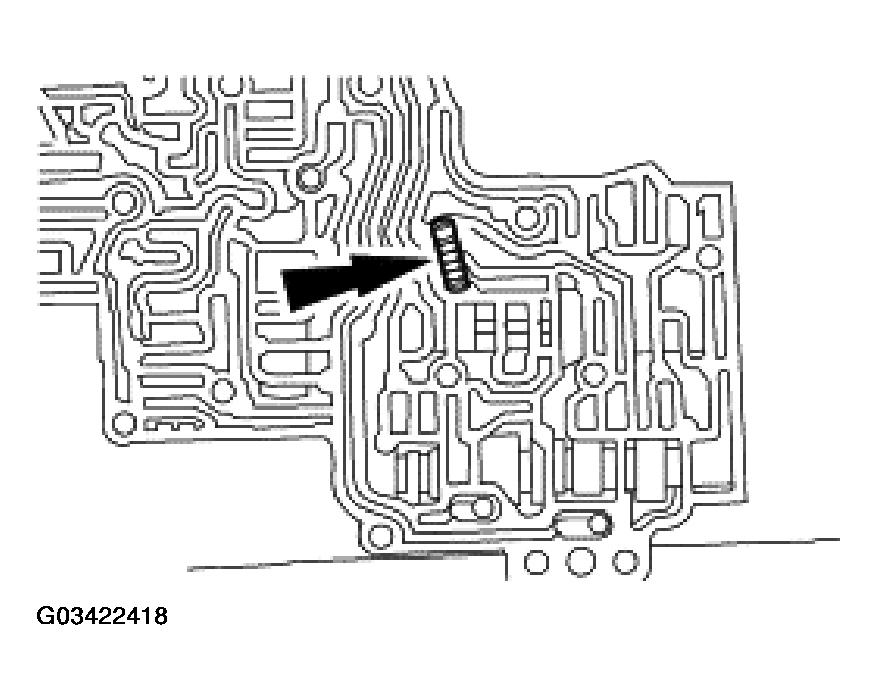

Fig 2: Removing Pressure Control Limit Relief Valve And Spring
Courtesy of FORD MOTOR CO.
Remove the check balls.

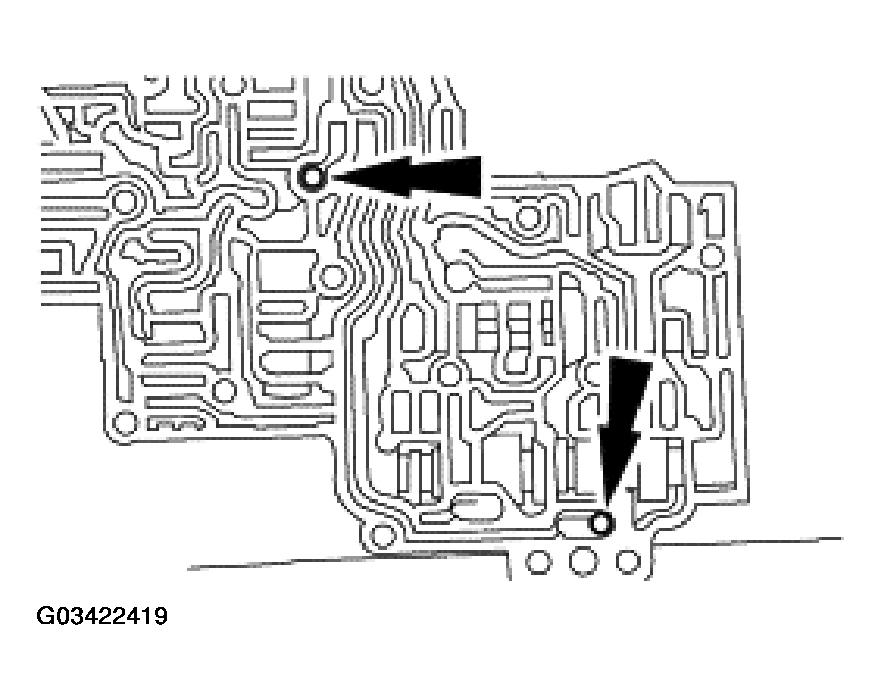

Fig 3: Removing Check Balls
Courtesy of FORD MOTOR CO.

NOTE: Refer to the Disassembled Views .
