Heated Seat Module: Installation

  1. Install the heated seat module on the heated seat module bracket and install the electrical connector.

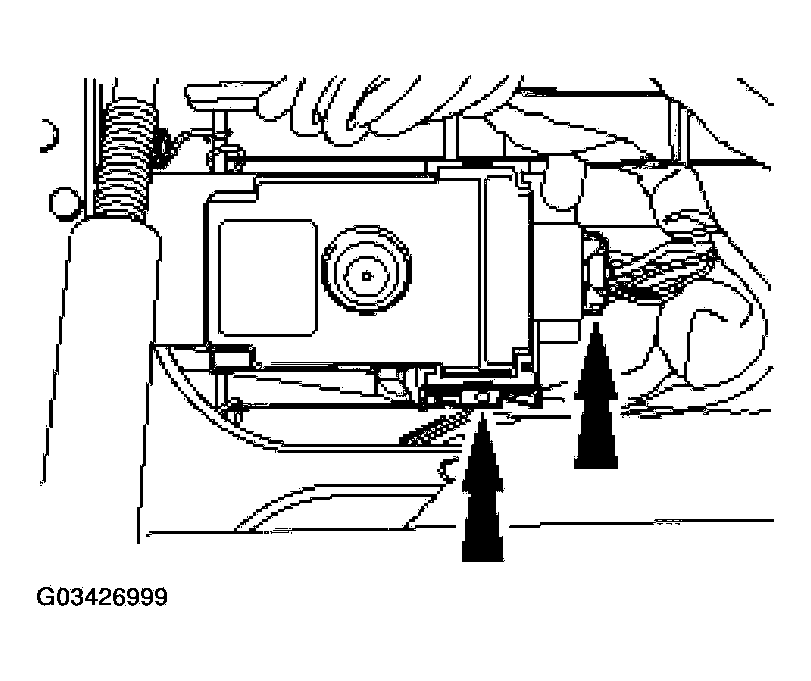

    Fig 1: Installing Heated Seat Module On Heated Seat Module Bracket
    G03426999Courtesy of FORD MOTOR CO.
  2. Install the affected seat. Refer to DRIVER SEAT  or PASSENGER SEAT  in the this section.
  3. Repower the SRS. Refer to ACTIVATING SYSTEM .
  4. Check the active restraint system for correct operation.
