Seat Track- Front Power: Installation

All vehicles

1. Position the safety belt buckle and install the bolt.

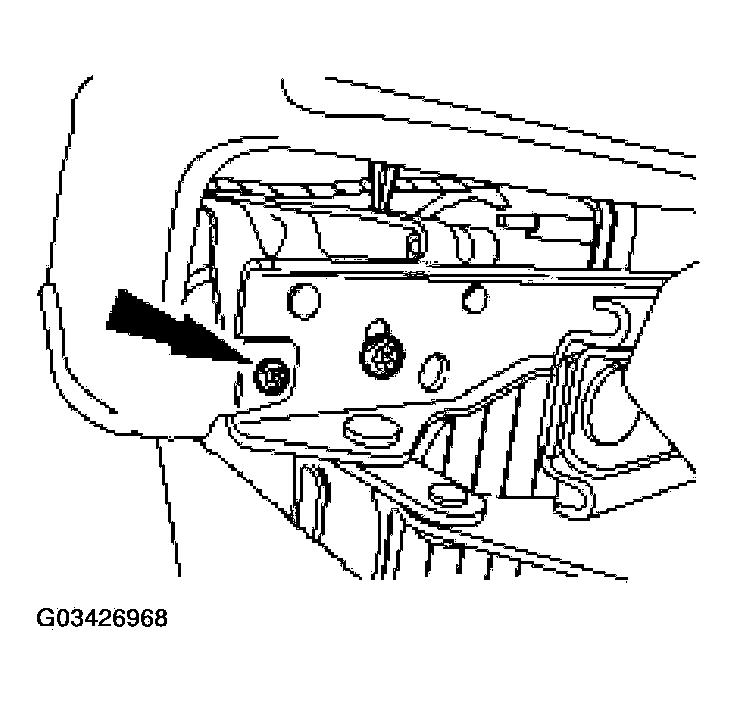

   Fig 1: Installing Safety Belt Buckle And Bolt

   Courtesy of FORD MOTOR CO.
2. Position the seat track. Install the wire harness pin-type retainer.

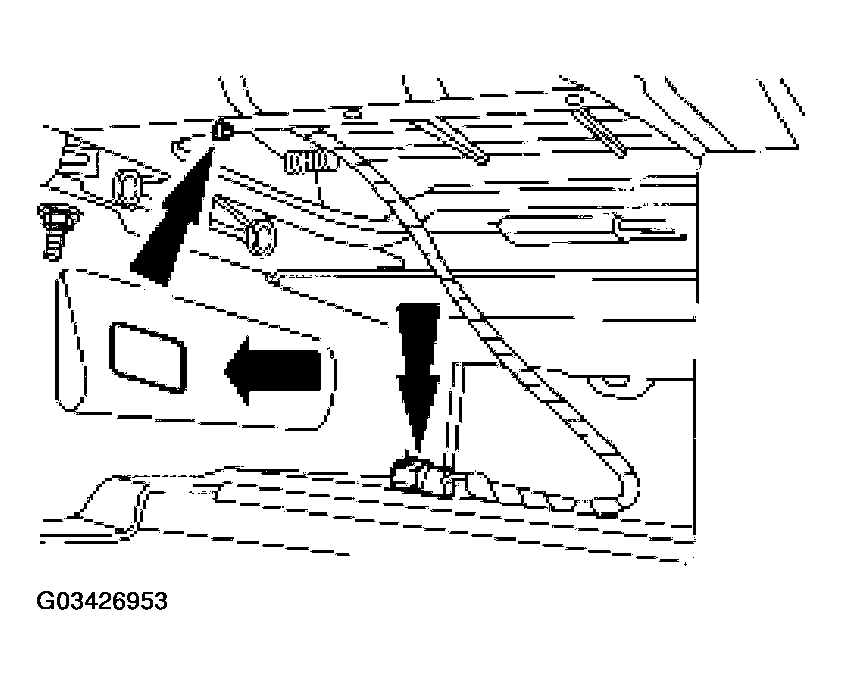

   Fig 2: Installing Wire Harness Pin-Type Retainer

   Courtesy of FORD MOTOR CO.
3. Connect the electrical connectors.

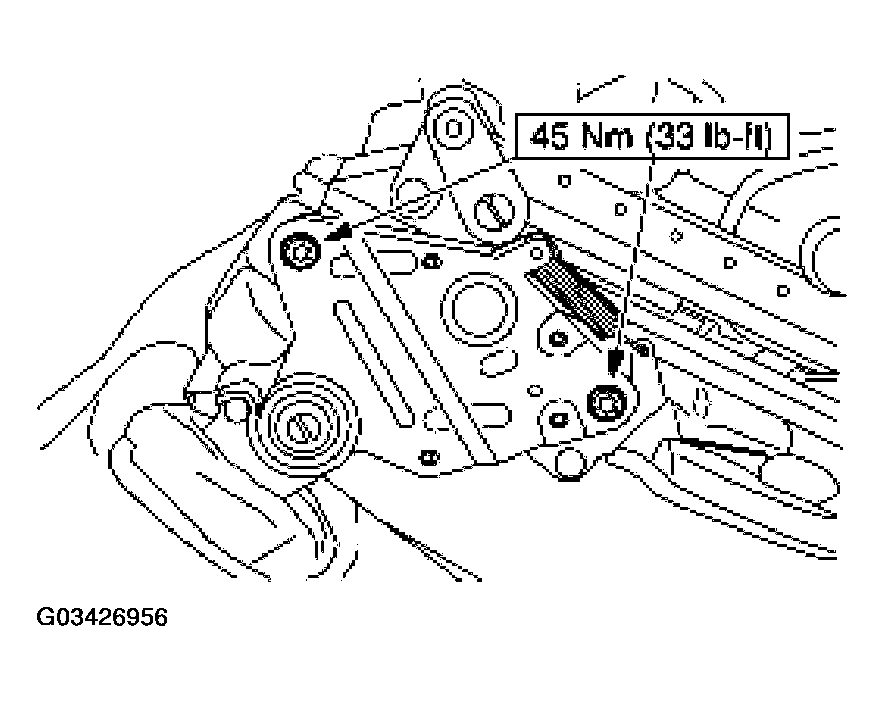

   Fig 3: Connecting Electrical Connectors

   Courtesy of FORD MOTOR CO.
4. Install the four screws.

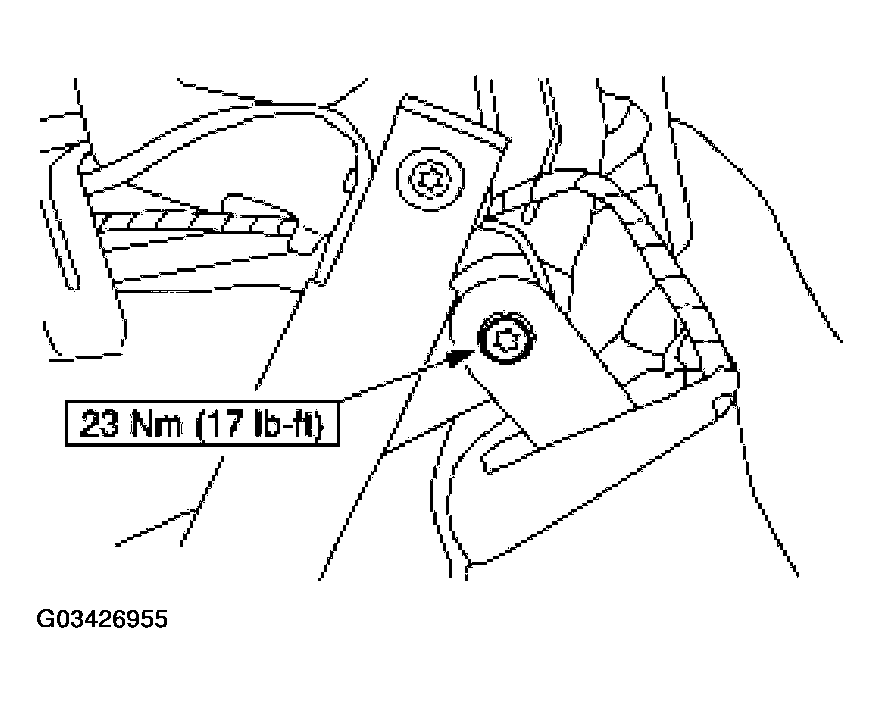

   Fig 4: Installing Four Screws

   Courtesy of FORD MOTOR CO.

   Vehicles with side air bags

5. Route the side air bag wire harness. Install the pin-type retainers.

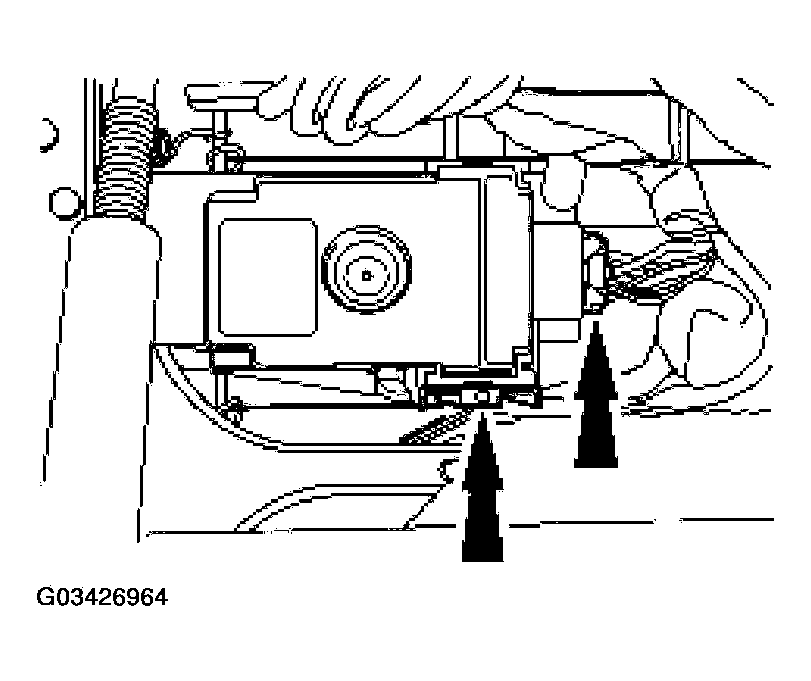

   Fig 5: Routing Side Air Bag Wire Harness And Installing Pin-Type Retainers

   Courtesy of FORD MOTOR CO.

   All vehicles

6. Install the wire harness pin-type retainers.

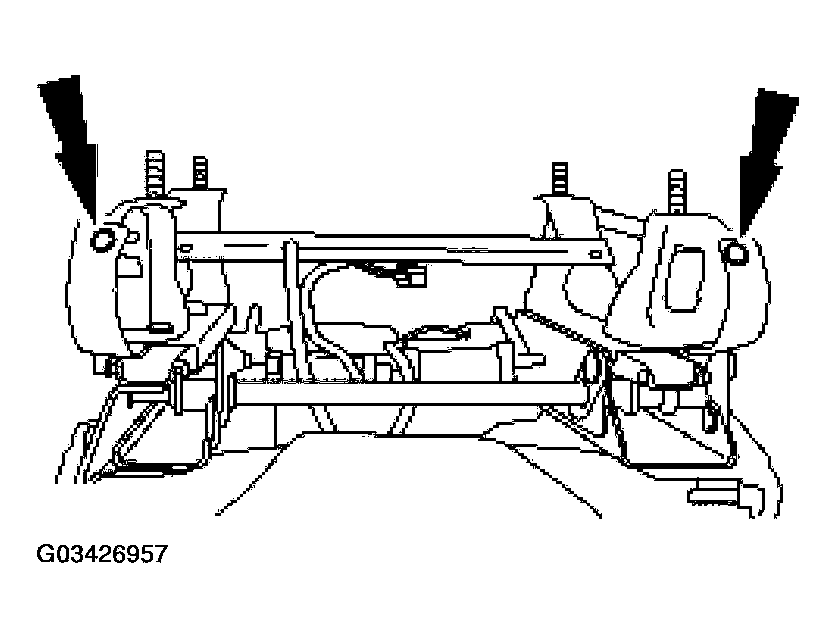

   Fig 6: Installing Wire Harness Pin-Type Retainers

   Courtesy of FORD MOTOR CO.
7. Install the bolt.

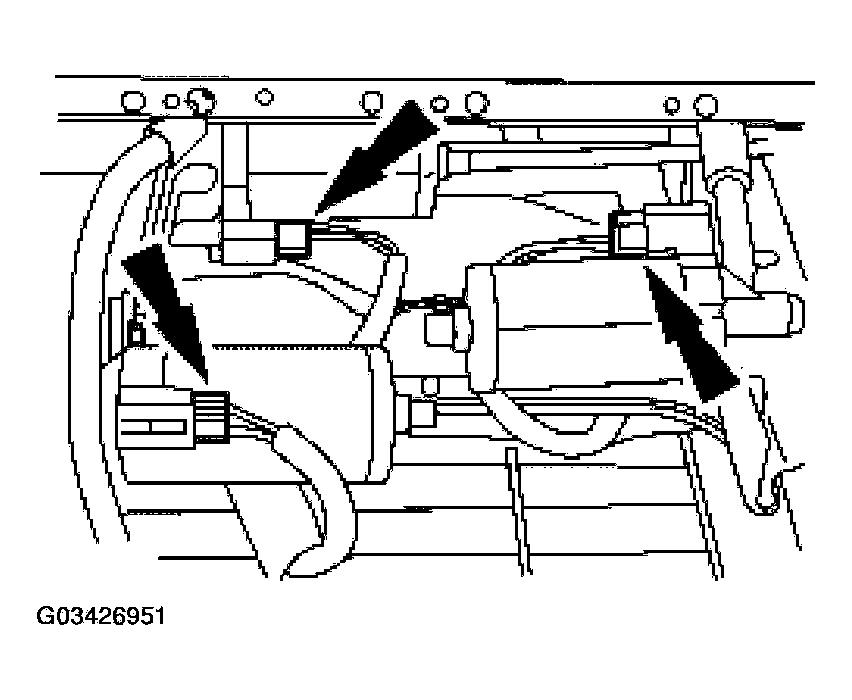

   Fig 7: Installing Bolt

   Courtesy of FORD MOTOR CO.
8. Install the bolts.

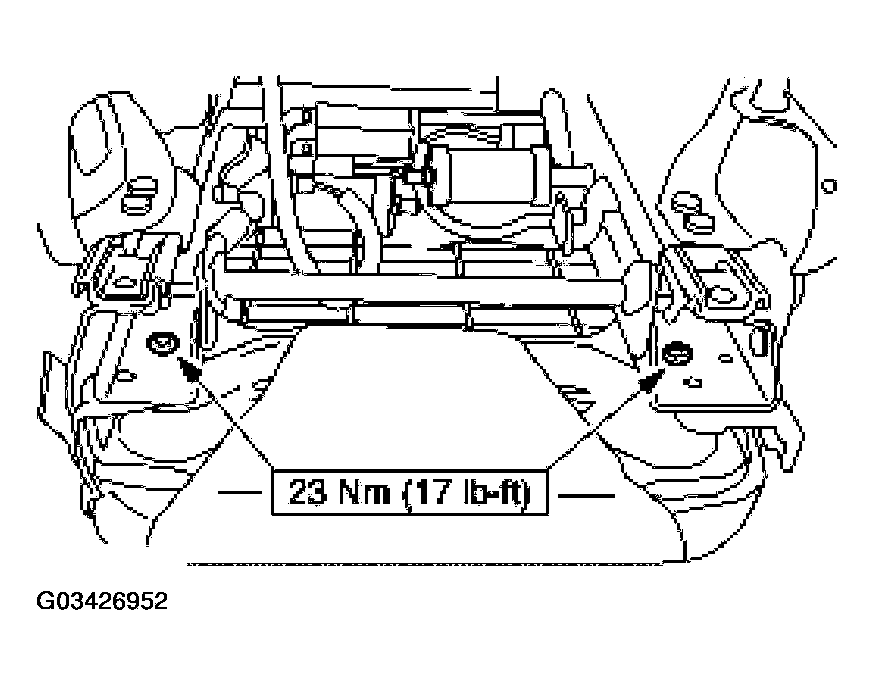

   Fig 8: Installing Bolt

   Courtesy of FORD MOTOR CO.
9. Install the pin-type retainers.
   Fig 9: Installing Pin-Type Retainers

   Courtesy of FORD MOTOR CO.
10. Position the inboard side shield.
    1. Install the power lumbar switch to the side shield.
    2. Install the inboard side shield front retainer.
       Fig 10: Installing Inboard Side Shield Front Retainer

       Courtesy of FORD MOTOR CO.
11. Engage the inboard side shield retainers.
    1. Lift the inboard side shield.
    2. While holding the side shield up, rotate the side shield to engage the retainers.
       Fig 11: Installing Inboard Side Shield Retainers

       Courtesy of FORD MOTOR CO.
12. Install the recliner handle cover.
    1. Lift up on the inboard side shield.
    2. Push in and then down to engage the side shield retainer.
    3. Install the recliner handle cover.
       Fig 12: Installing Recliner Handle Cover

       Courtesy of FORD MOTOR CO.
13. Install the inboard side shield screw.
    Fig 13: Installing Inboard Side Shield Screw

    Courtesy of FORD MOTOR CO.

    Driver seat with optional memory

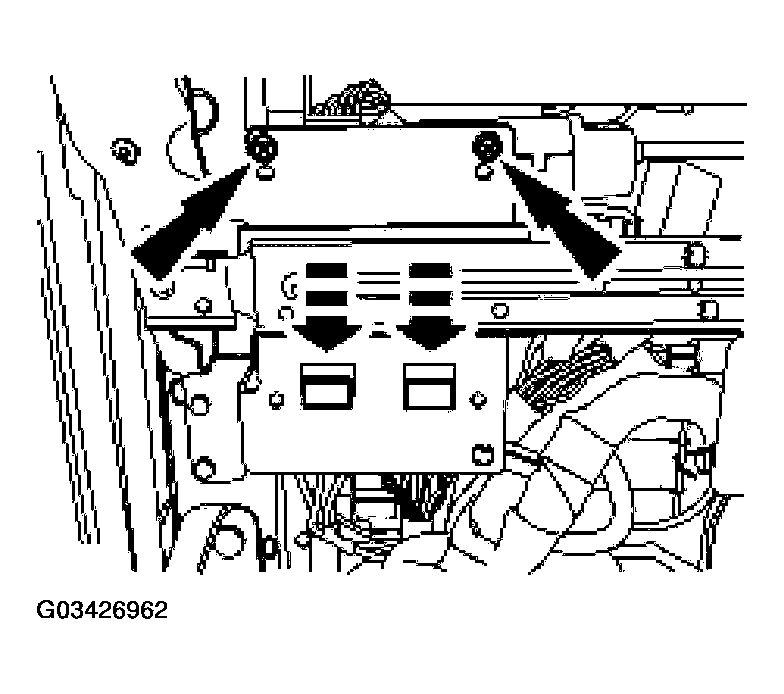

14. Slide the memory seat module on the bracket and install the two screws. Connect the electrical connectors to the memory seat module.
    Fig 14: Connecting Electrical Connectors To Memory Seat Module

    Courtesy of FORD MOTOR CO.

    Vehicles with heated seats

15. Install the heated seat module bracket and install the two pin-type retainer screws.
    Fig 15: Installing Heated Seat Module Bracket And Two Pin-Type Retainer Screws

    Courtesy of FORD MOTOR CO.
16. Install the heated seat module on the bracket and connect the electrical connector.
    Fig 16: Installing Heated Seat Module On Bracket And Electrical Connector

    Courtesy of FORD MOTOR CO.
17. Insert the electrical connector through the heated seat switch housing and connect the heated seat switch connector.
18. Insert the heated seat switch into the housing until the switch is seated in the housing.
19. Install the heated seat switch housing on the seat and install the two pin-type retainers.

    All vehicles

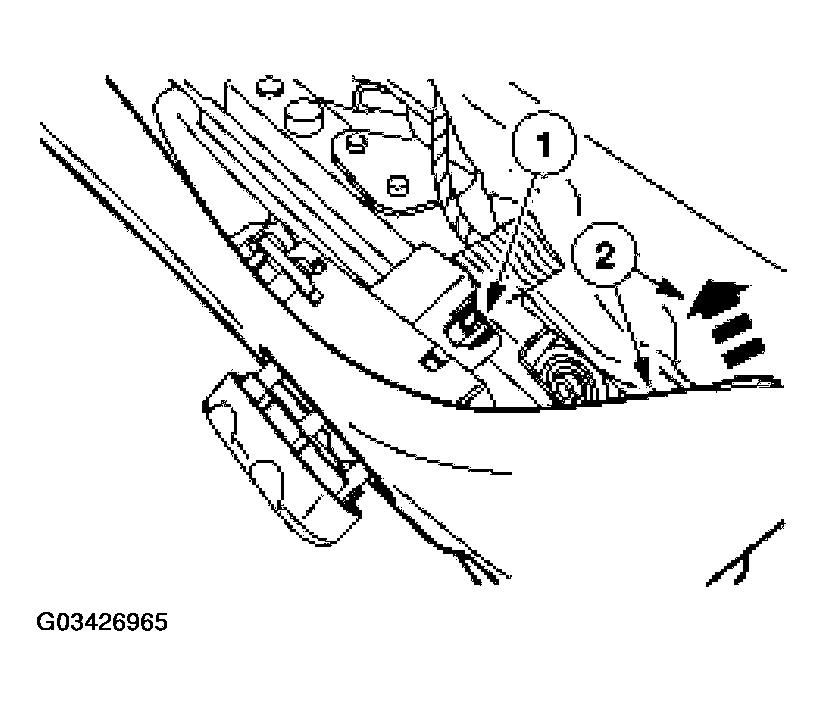

20. Position the outboard side shield.
    1. Connect the power seat switch electrical connector.
    2. Install the outboard side shield front retainer (not shown).
       Fig 17: Installing Outboard Side Shield Front Retainer

       Courtesy of FORD MOTOR CO.

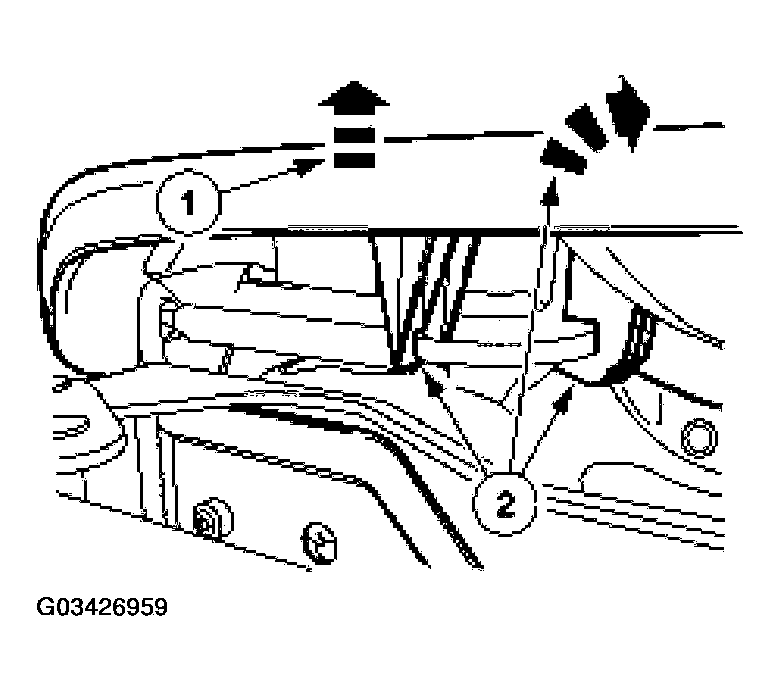

21. Engage the outboard side shield retainers.
    1. Lift the outboard side shield.
    2. While holding the side shield up, rotate the side shield to engage the retainers.
       Fig 18: Installing Outboard Side Shield Retainers

       Courtesy of FORD MOTOR CO.
22. Lift, push in and then down to engage the side shield retainer.
    Fig 19: Installing Side Shield Retainer

    Courtesy of FORD MOTOR CO.
23. Install the outboard side shield screw.
    Fig 20: Installing Outboard Side Shield Screw

    Courtesy of FORD MOTOR CO.
24. Install the affected seat. Refer to DRIVER SEAT  or PASSENGER SEAT .
25. Repower the SRS. Refer to ACTIVATING SYSTEM .
26. Check the active restraint system for correct operation.
