Pinpoint Test M: DTC-C1446 Brake Switch Circuit Failure

NOTE: This code is an advisory code only. This code will not enable the ABS.

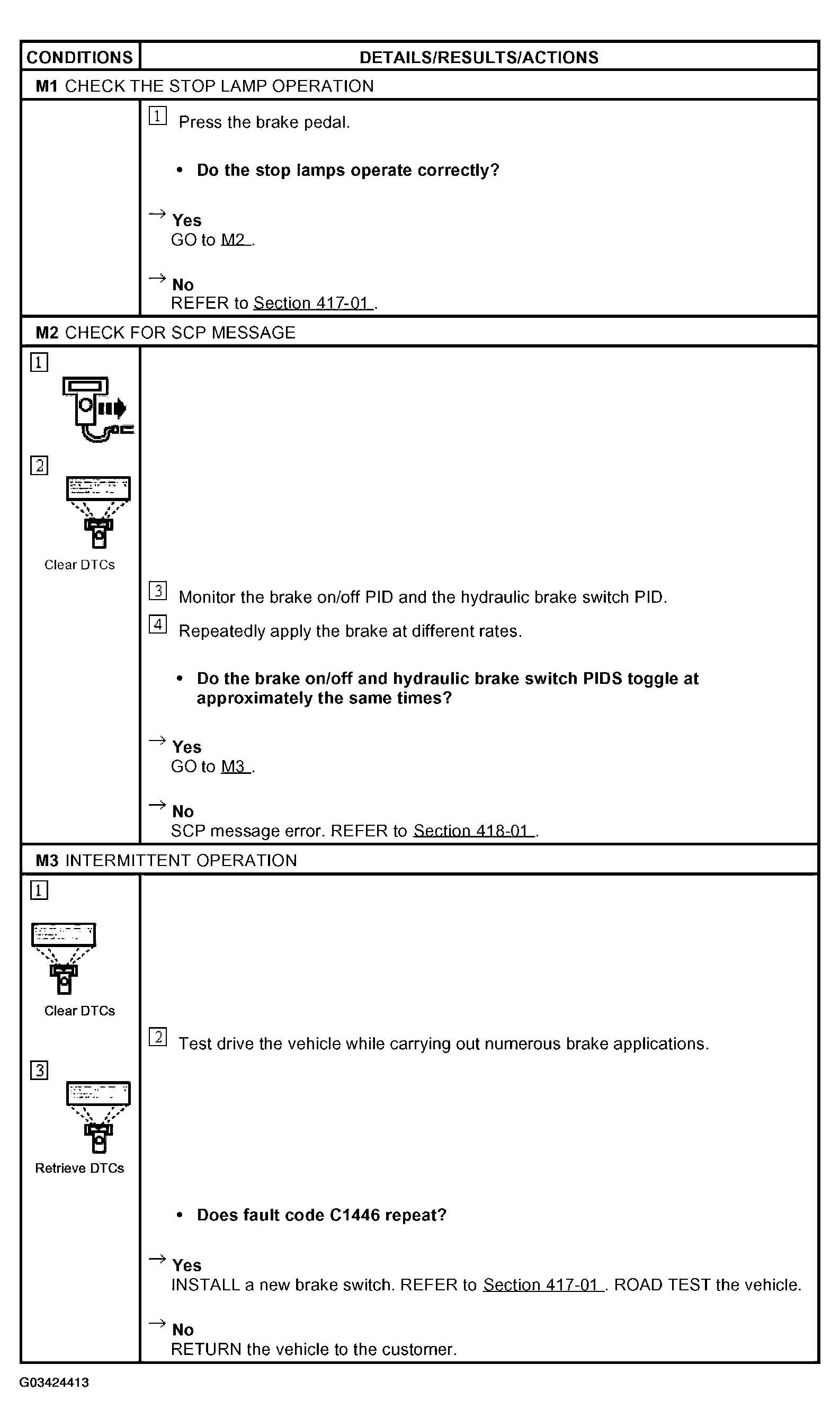

Fig 1: Pinpoint Test M: DTC-C1446 Brake Switch Circuit Failure (M1-M3)
G03424413Courtesy of FORD MOTOR CO.
