Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Anti-Lock Brake Control Module | Under vehicle, attached to hydraulic control unit. |
| Compass Module | Center front underside of ceiling. |

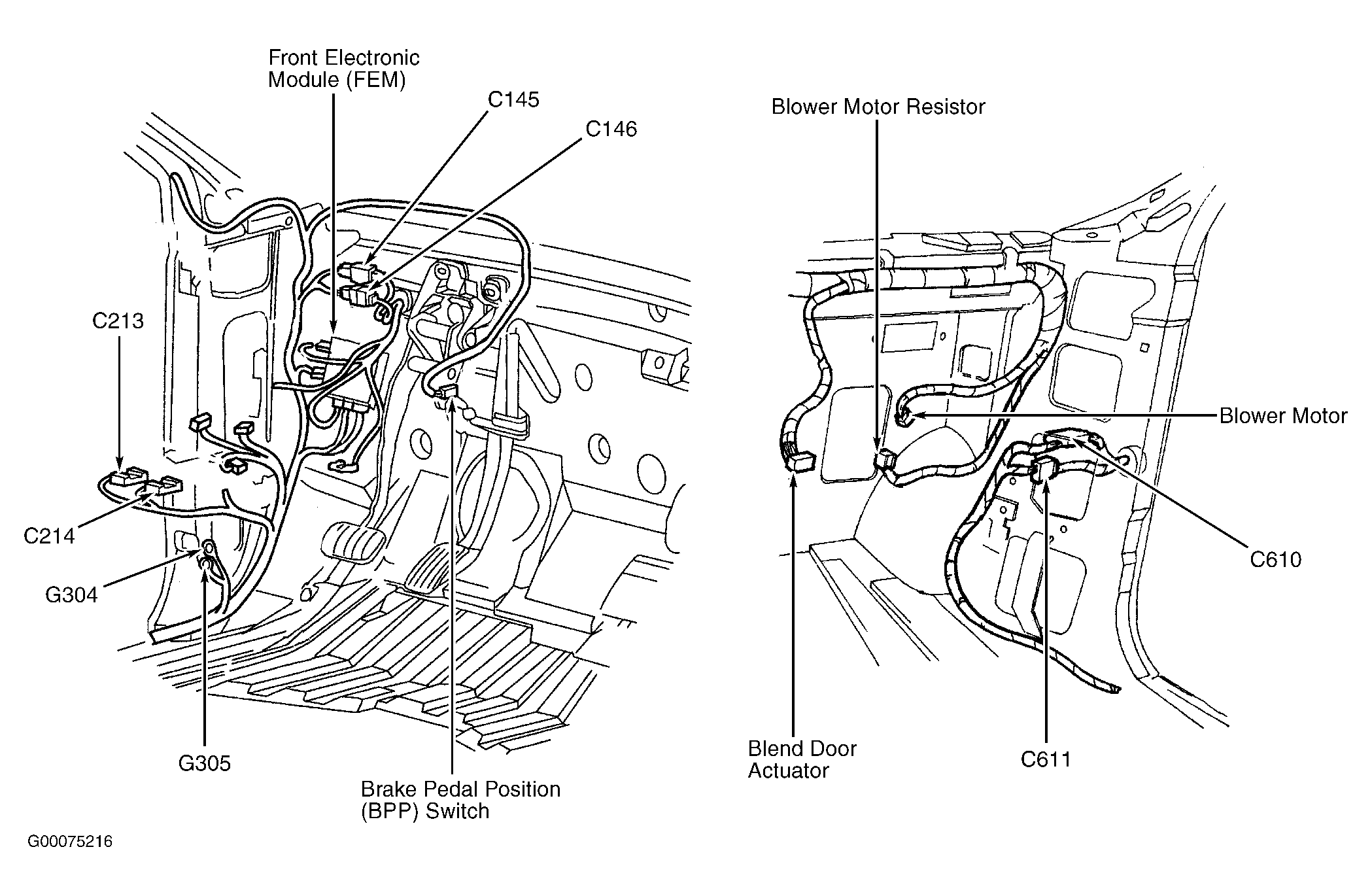

| Front Electronic Module (FEM) | Below left side of dash. See Figure. |
| Parking Aid Module (PAM) | Right rear of vehicle. |

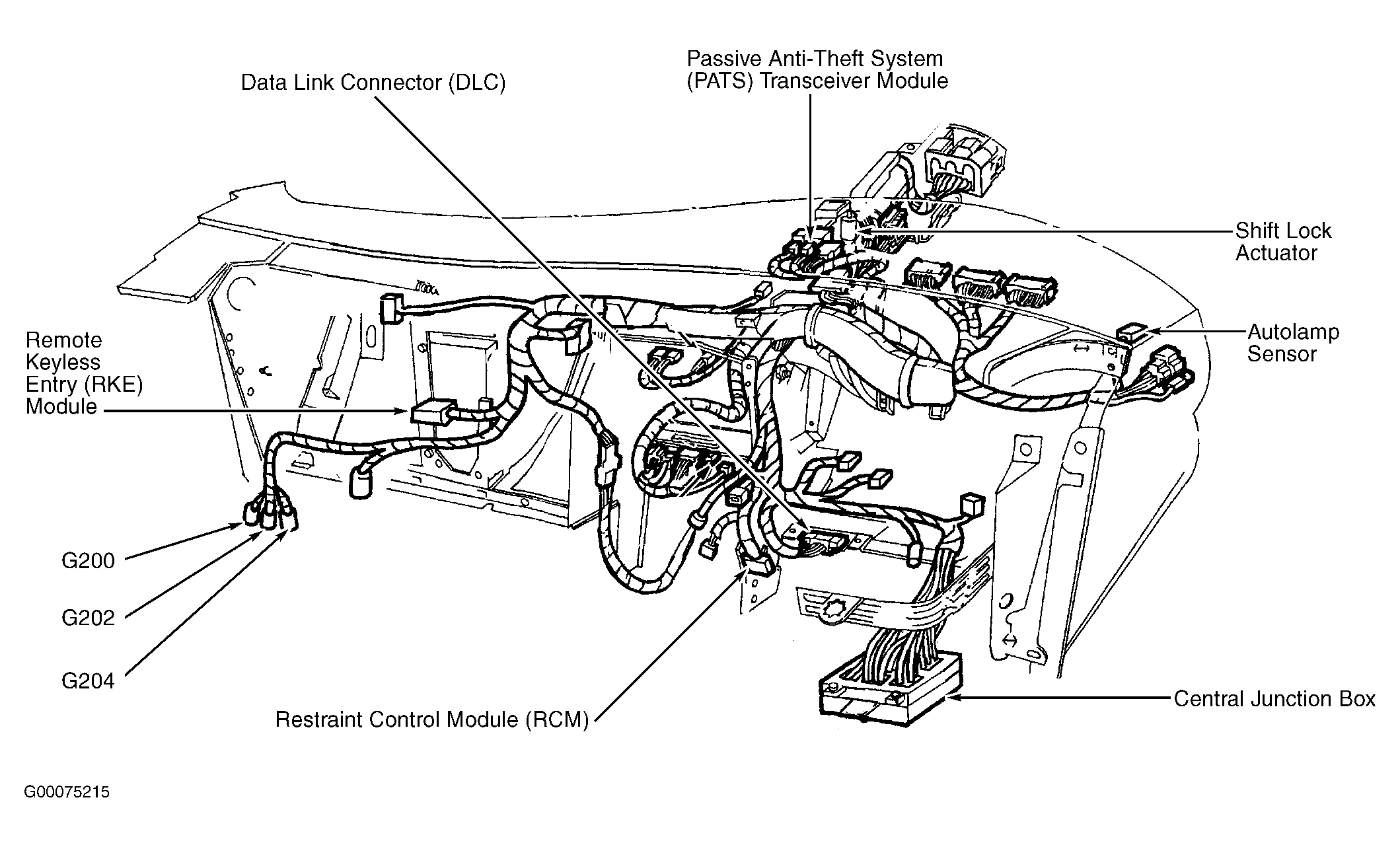

| Passive Anti-Theft System (PATS) Transceiver Module | On steering column. See Figure. |
| Power Sliding Door Module (Left) | In left rear quarter panel. |
| Power Sliding Door Module (Right) | In right rear quarter panel. |
| Powertrain Control Module (PCM) | Behind right side of dash, through firewall. See Figure. |

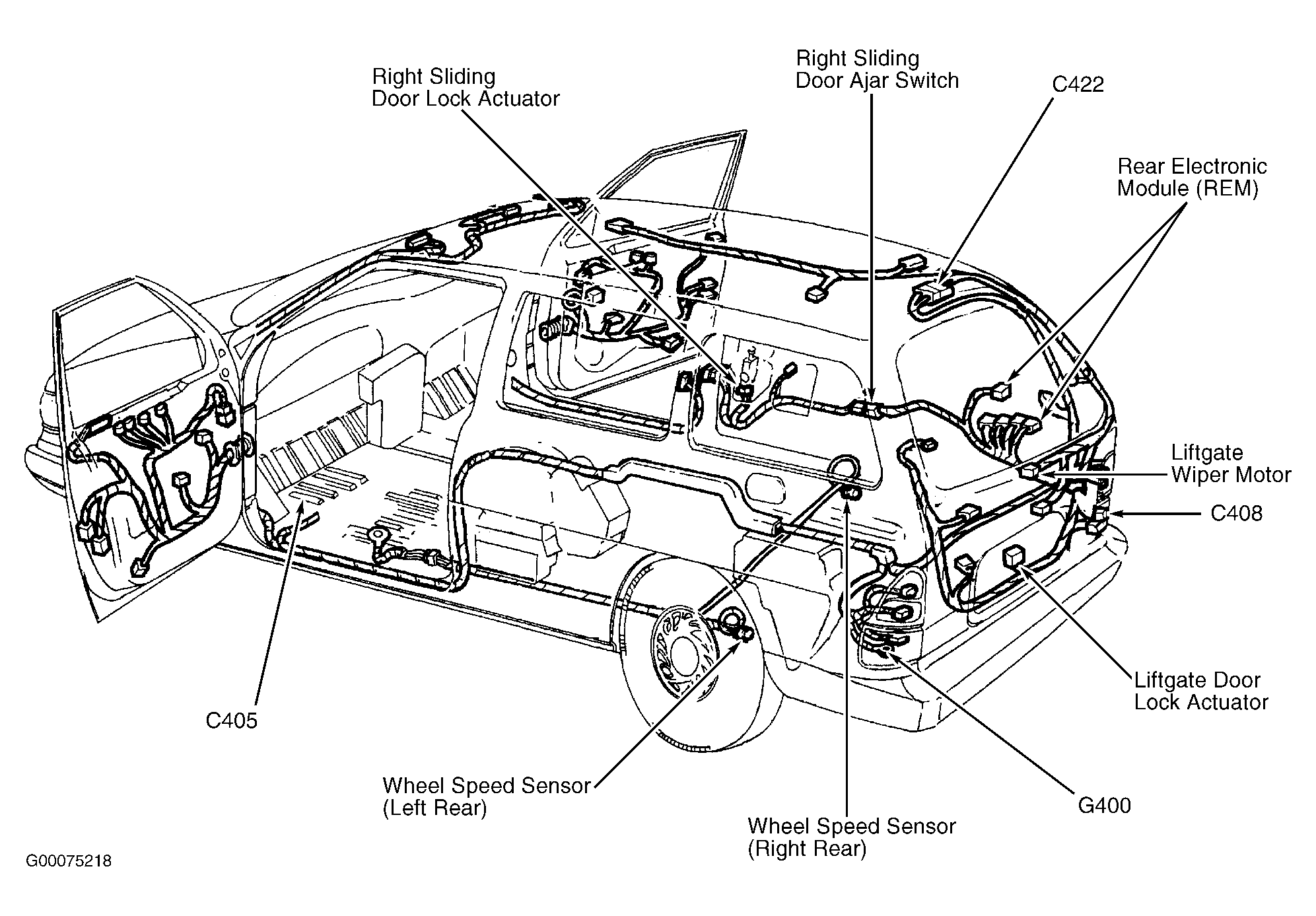

| Rear Electronic Module (REM) | At right rear quarter panel. See Figure. |
| Rear Seat Entertainment Module | In rear seat entertainment console. |
| Remote Keyless Entry (RKE) Module | Behind right side of dash. See Figure. |
| Restraint Control Module (RCM) | Behind left side of dash. See Figure. |
| Trailer Tow Module | On right "D" pillar. |
