Valve - Spring Squareness

  1. Measure the out-of-square on each valve spring.
    • Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square. Refer to ENGINE for the procedure .

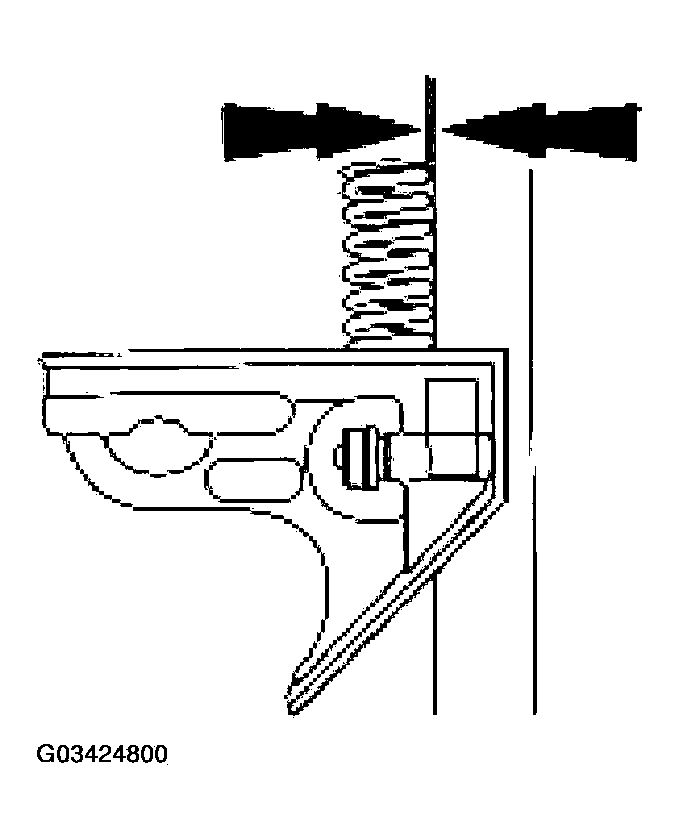

      Fig 1: Measuring Out-Of-Squareness On Each Valve Spring
      G03424800Courtesy of FORD MOTOR CO.
