Planet Assembly: Notes

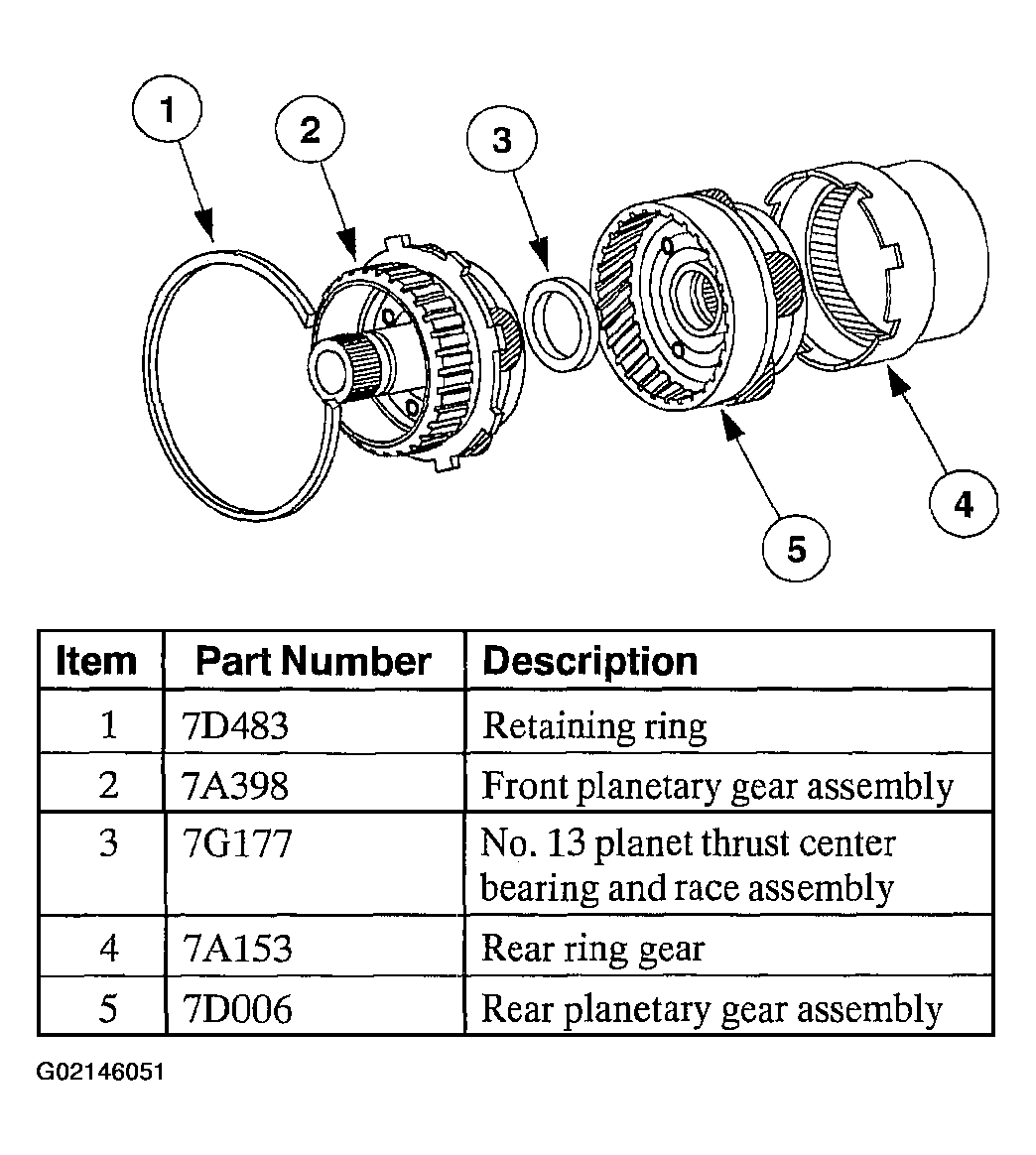

Fig 1: Identifying Planet Assembly Components And Description Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
