Pump Assembly: Disassembly

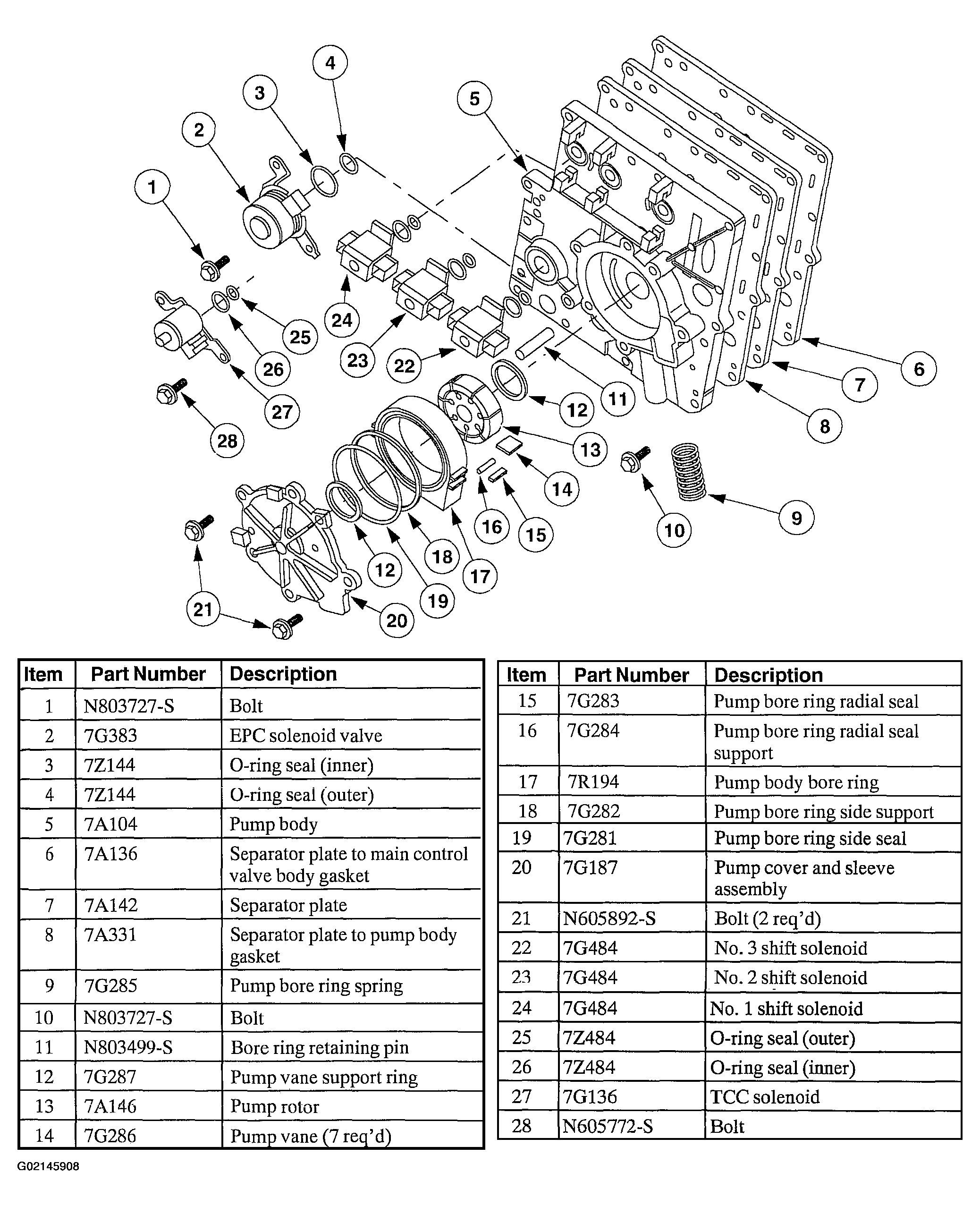

Fig 1: Exploded View Of Pump Assembly Components
G02145908Courtesy of FORD MOTOR CO.
  1. Remove the bolts.

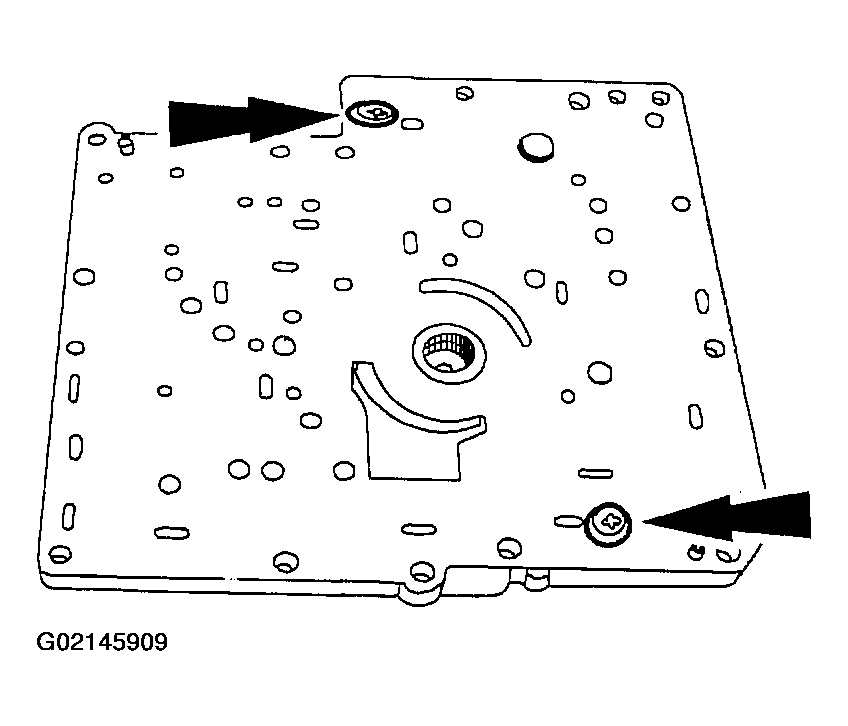

    Fig 2: Removing Pump Assembly Bolts
    G02145909Courtesy of FORD MOTOR CO.
  2. Remove the valve body separator plates and gaskets.

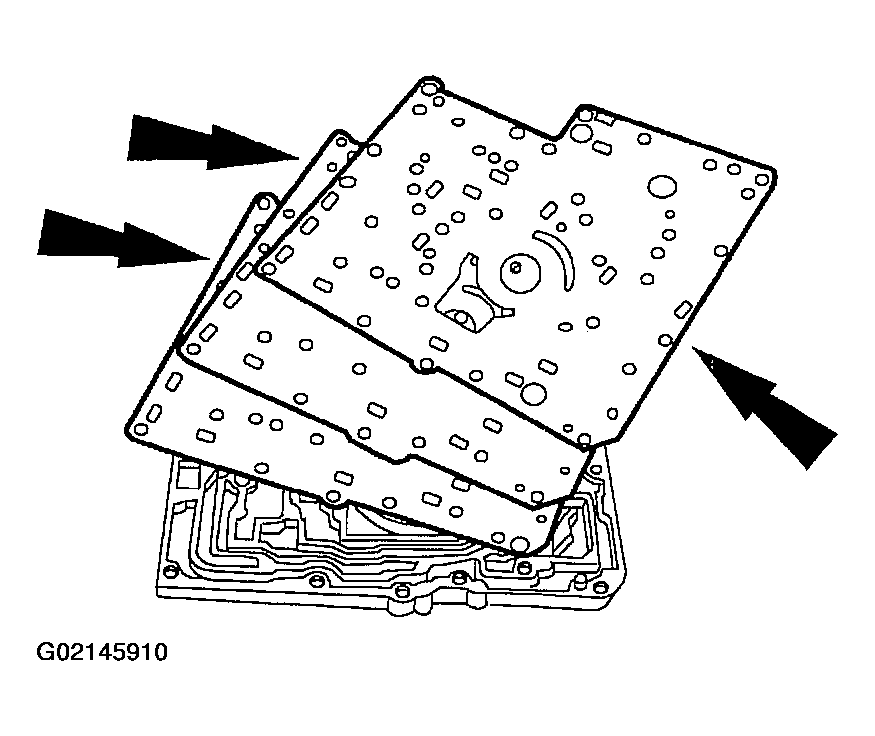

    Fig 3: Removing Valve Body Separator Plates And Gaskets
    G02145910Courtesy of FORD MOTOR CO.
  3. Remove the check ball and nuts the location.

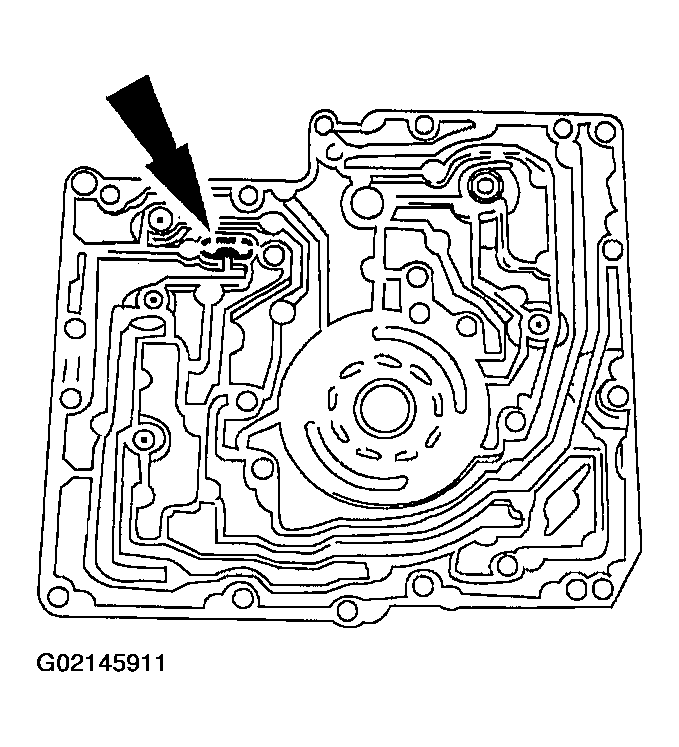

    Fig 4: Removing Check Ball
    G02145911Courtesy of FORD MOTOR CO.
  4. Remove the bolts and the pump cover.

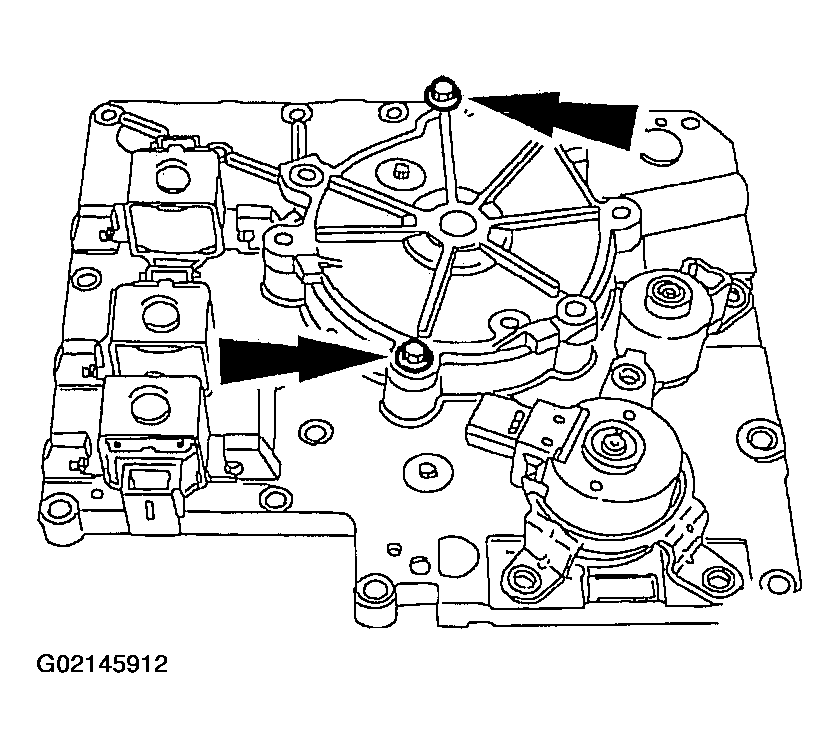

    Fig 5: Removing Bolts And Pump Cover
    G02145912Courtesy of FORD MOTOR CO.
    5. WARNING: Use extreme caution when removing spring to prevent personal injury.
    CAUTION: Place a piece of cardboard or a suitable material under a screwdriver to prevent damage to the housing gasket surface.

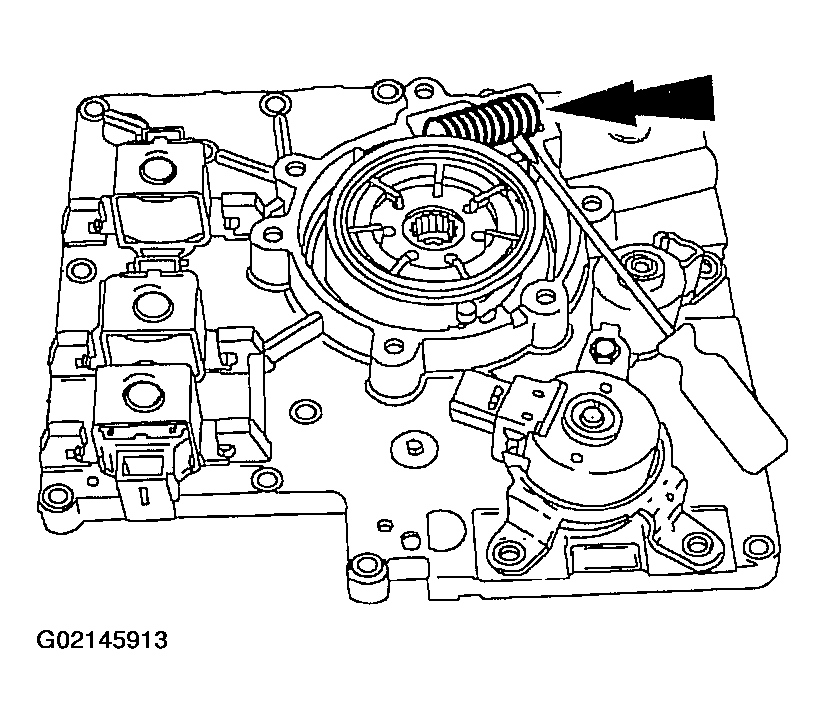

    Fig 6: Removing Bore Ring Spring
    G02145913Courtesy of FORD MOTOR CO.
  5. Remove the bore ring spring.
  6. Remove the pump bore ring pin.

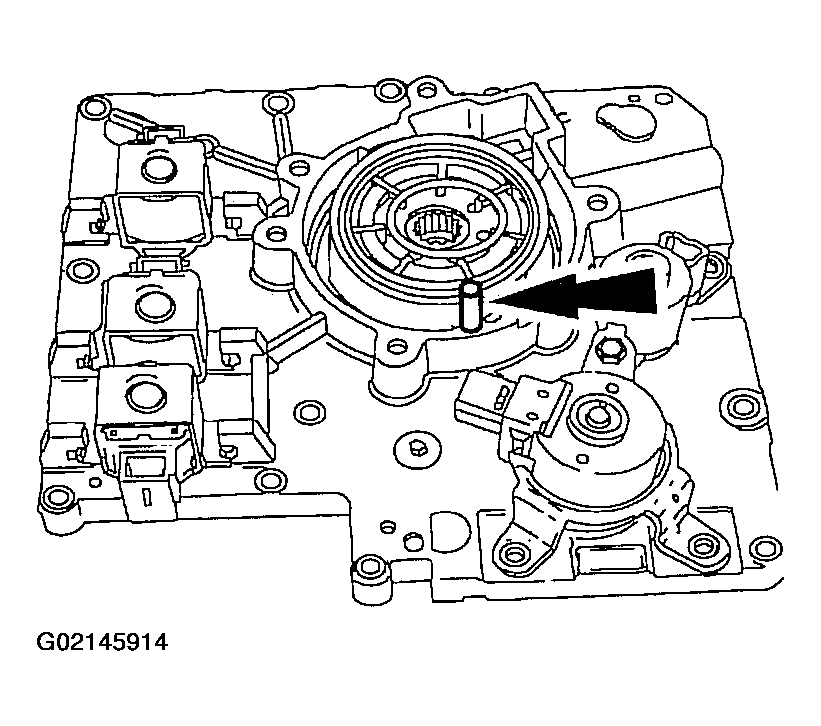

    Fig 7: Removing Pump Bore Ring Pin
    G02145914Courtesy of FORD MOTOR CO.
  7. Remove the metal bore ring and support seal.
    1. Remove the bore ring side seal (metal).
    2. Remove the support seal (O-Ring).

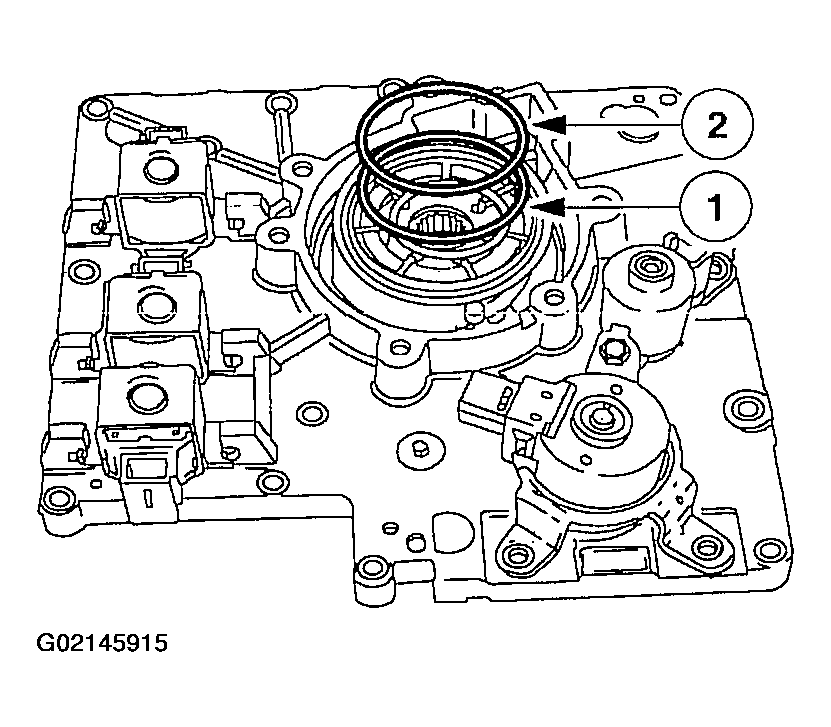

    Fig 8: Removing Metal Bore Ring And Support Seal
    G02145915Courtesy of FORD MOTOR CO.

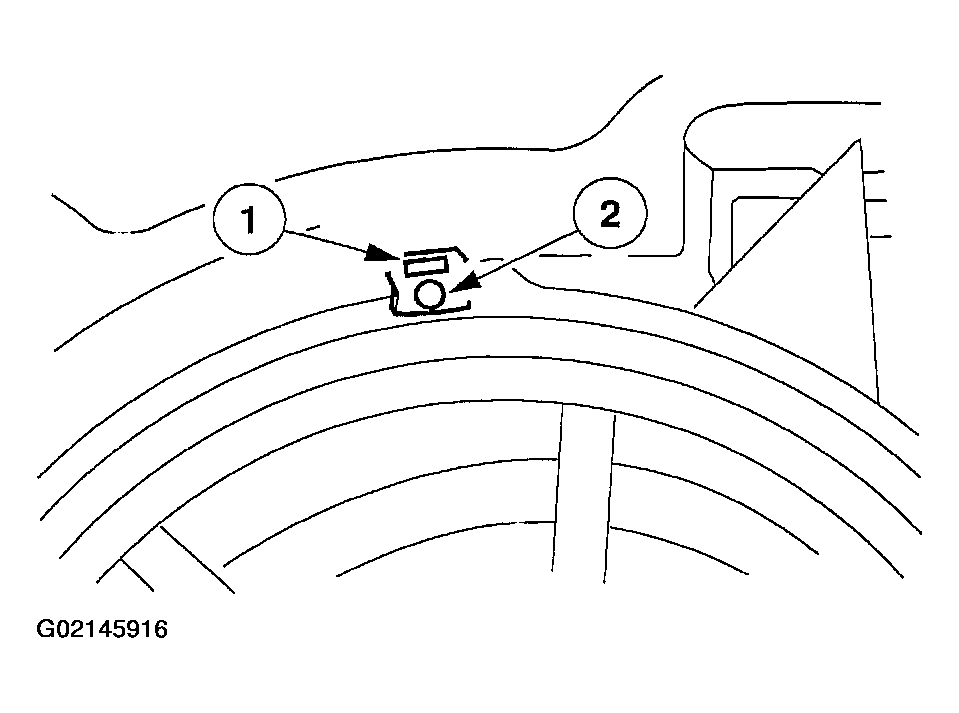

  8. Remove the pump bore ring radial seal and support.
    1. Remove the pump bore ring radial seal (orange rectangular).
    2. Remove the pump bore ring radial seal support (black round).
    Fig 9: Removing Pump Bore Ring Radial Seal And Support
    G02145916Courtesy of FORD MOTOR CO.

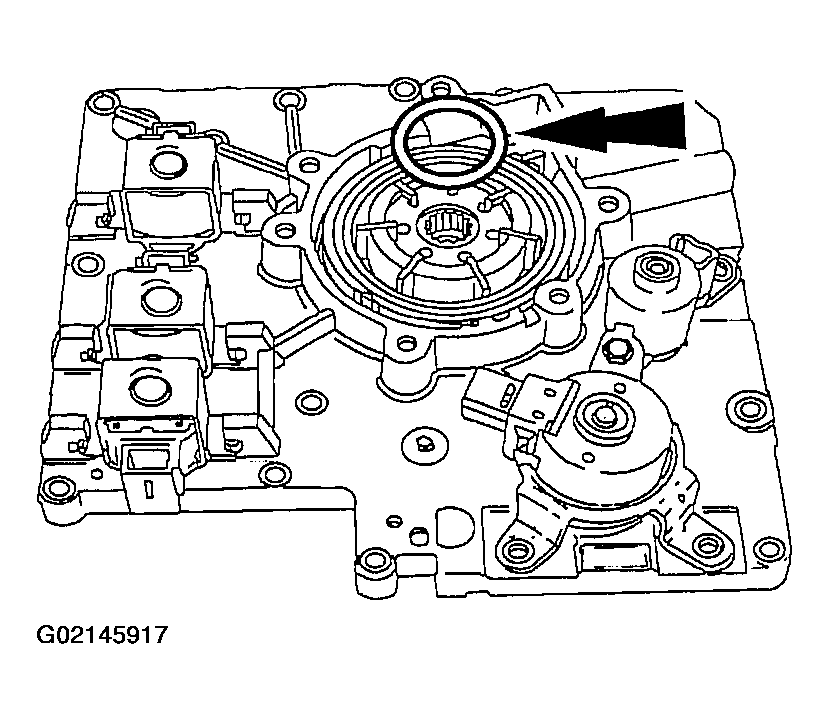

  9. Remove the top pump vane support ring.
    Fig 10: Removing Top Pump Vane Support Ring
    G02145917Courtesy of FORD MOTOR CO.

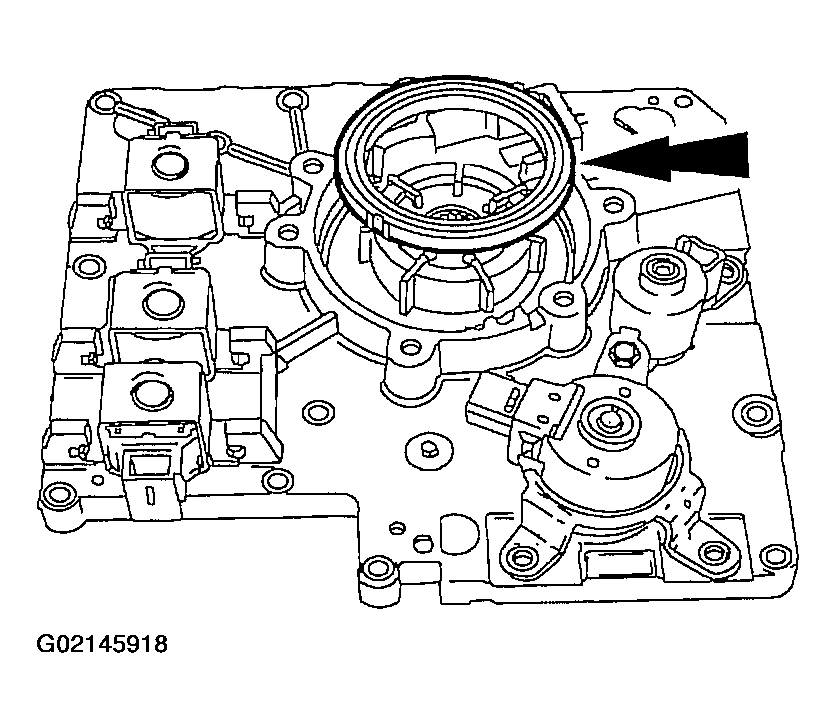

  10. Remove the outer pump bore ring.
    Fig 11: Removing Outer Pump Bore Ring
    G02145918Courtesy of FORD MOTOR CO.
  11. Remove the vanes.

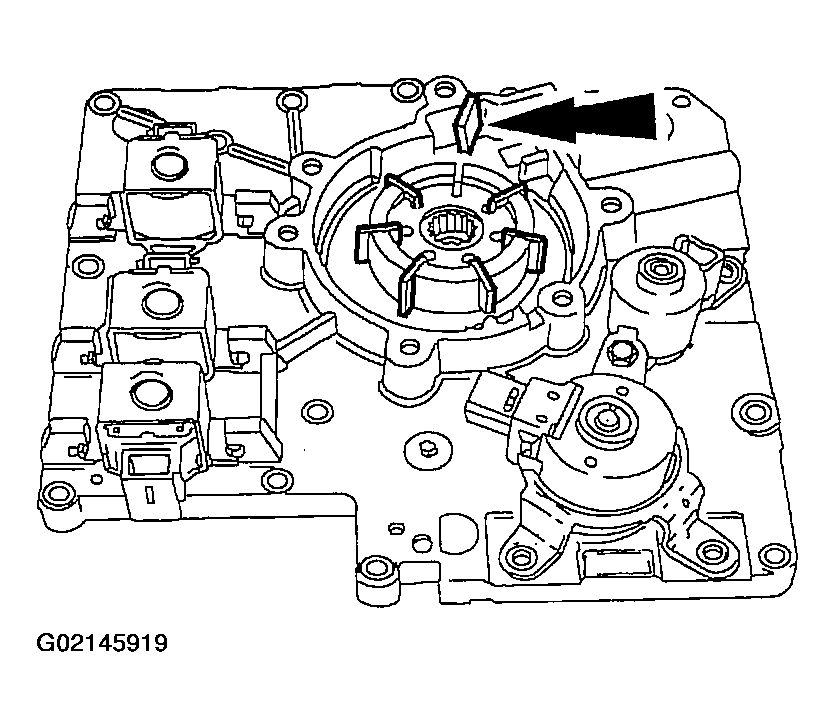

    Fig 12: Removing Vanes
    G02145919Courtesy of FORD MOTOR CO.
  12. Remove the rotor.

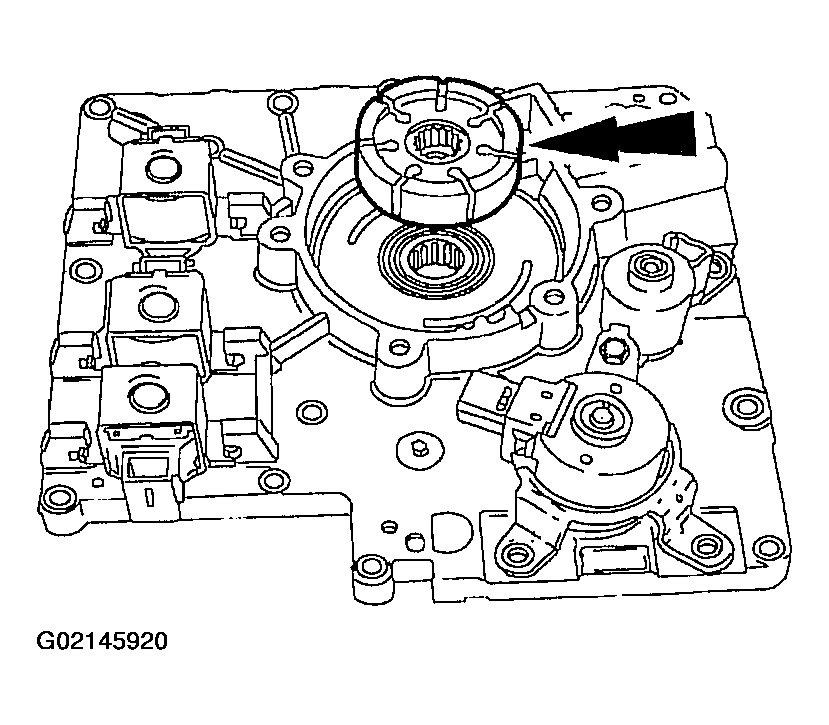

    Fig 13: Removing Rotor
    G02145920Courtesy of FORD MOTOR CO.
  13. Remove the bottom pump vane support ring.

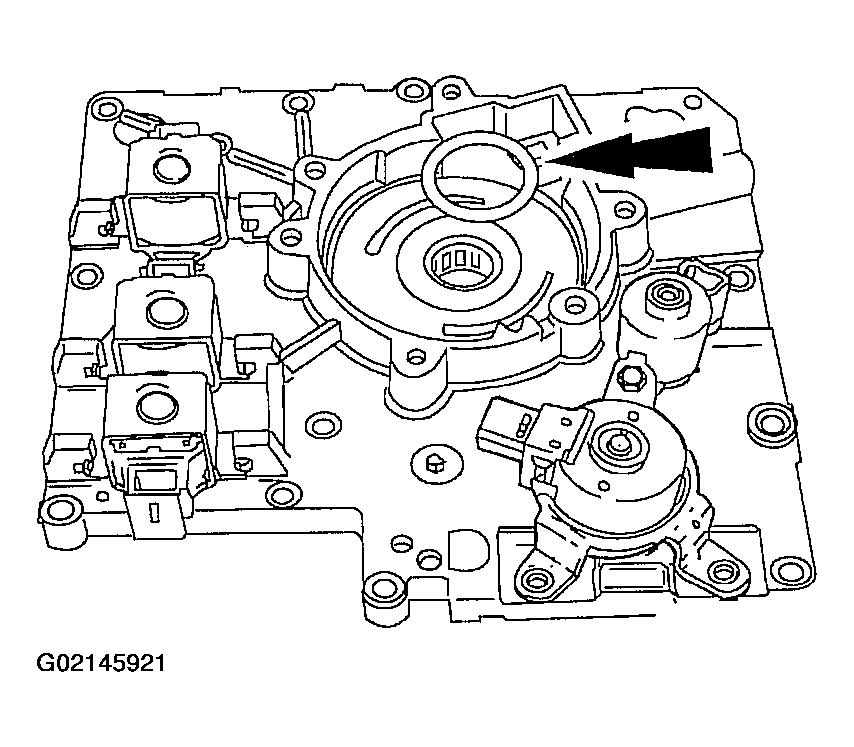

    Fig 14: Removing Bottom Pump Vane Support Ring
    G02145921Courtesy of FORD MOTOR CO.
  14. Remove the EPC, TCC solenoids and seals.
    • Remove the bolts.
    • Remove the EPC, TCC solenoids.

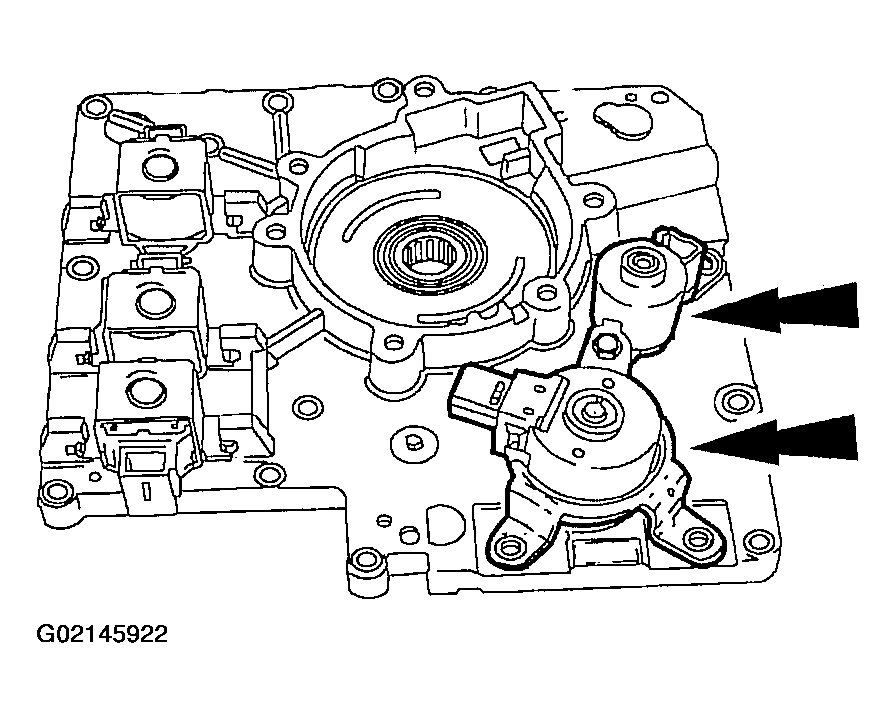

    Fig 15: Removing EPC, TCC Solenoids And Seals
    G02145922Courtesy of FORD MOTOR CO.
    15. NOTE: The shift solenoids are interchangeable. Take note of the shift solenoid connector orientation.

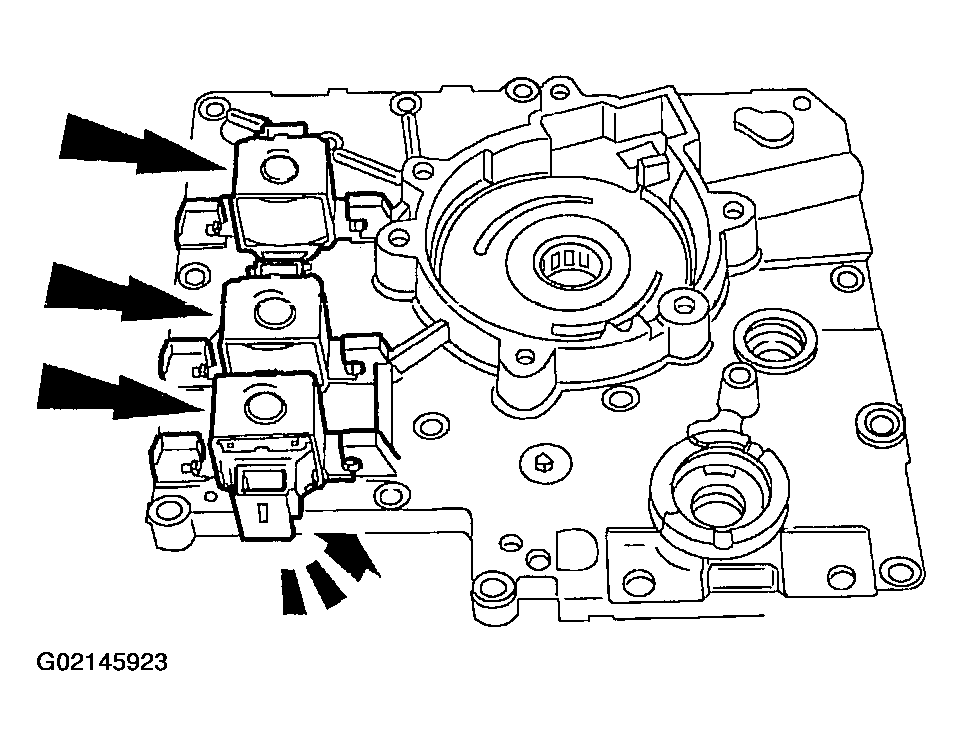

    Fig 16: Removing Shift Solenoids
    G02145923Courtesy of FORD MOTOR CO.
  15. Remove the shift solenoids by pressing locking tab with a screwdriver and rotating them.
