Removal And Installation

  1. Raise and support the vehicle.
  2. Remove the dual converter Y-pipe. For additional information, refer to EMISSION SYSTEMS & SUBSYSTEMS .
  3. Remove the heat shield.

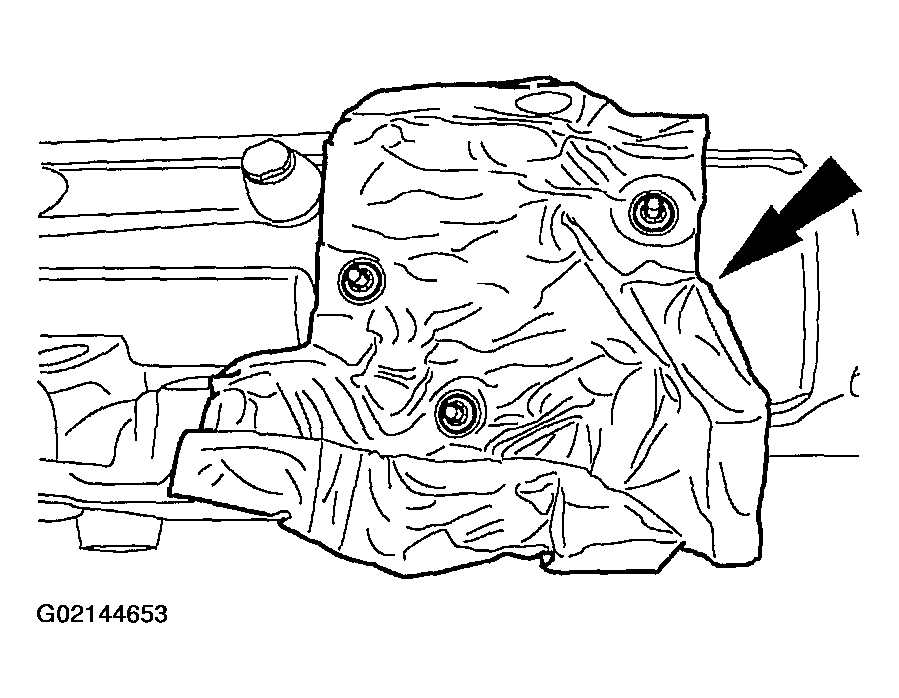

    Fig 1: Removing Heat Shield
    G02144653Courtesy of FORD MOTOR CO.
  4. Disconnect the output shaft speed (OSS) sensor connector.

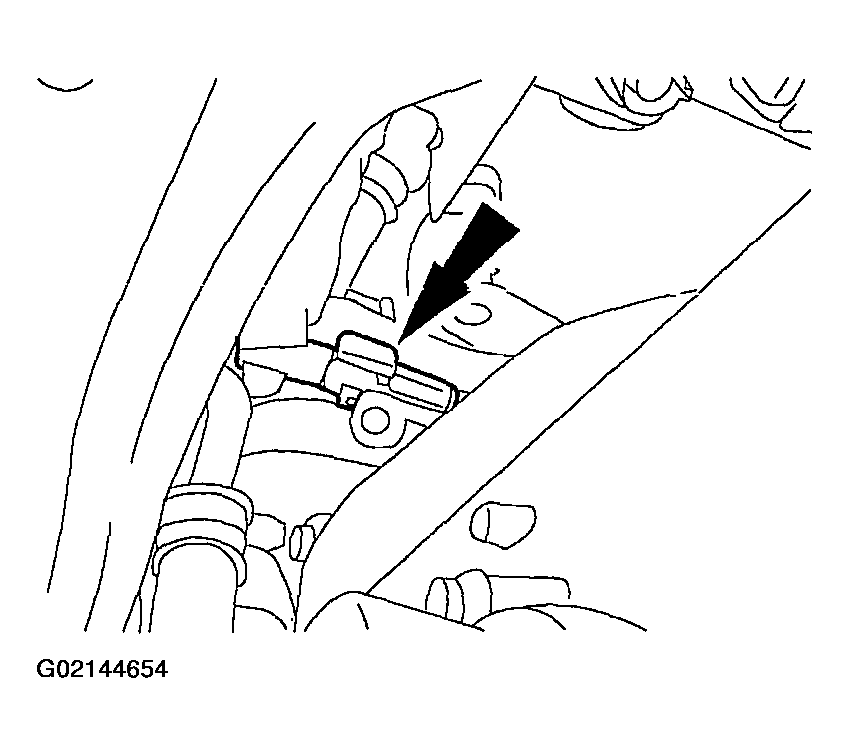

    Fig 2: Disconnecting Output Shaft Speed Sensor Connector
    G02144654Courtesy of FORD MOTOR CO.
  5. Remove the OSS Sensor cover.
    1. Remove the connector.
    2. Remove the bolt.
    3. Remove the cover.

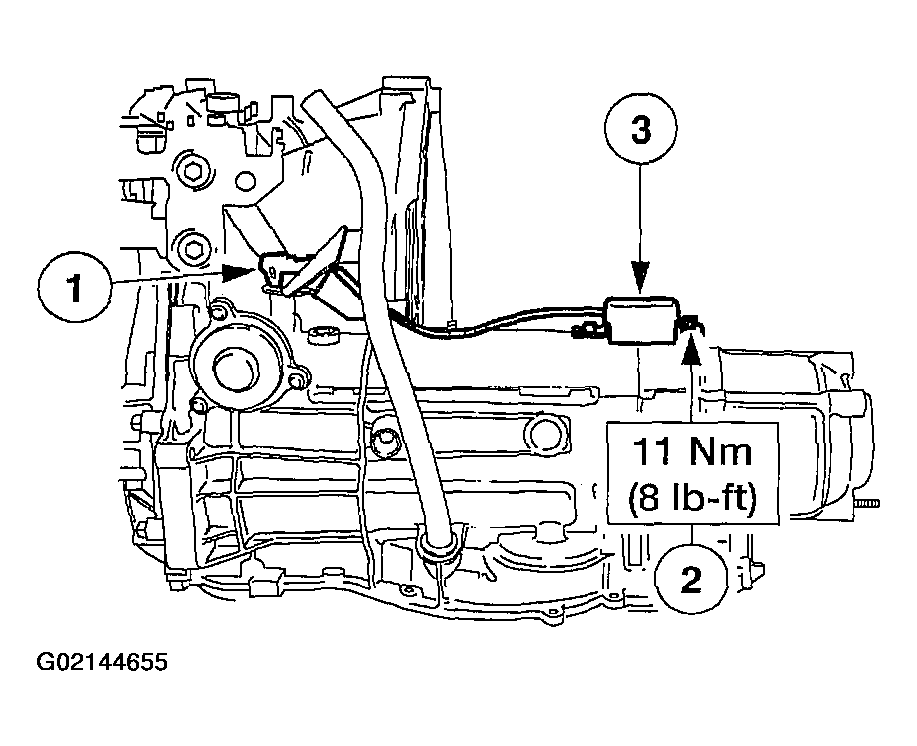

    Fig 3: Removing OSS Sensor Cover
    G02144655Courtesy of FORD MOTOR CO.
  6. Remove the OSS sensor.

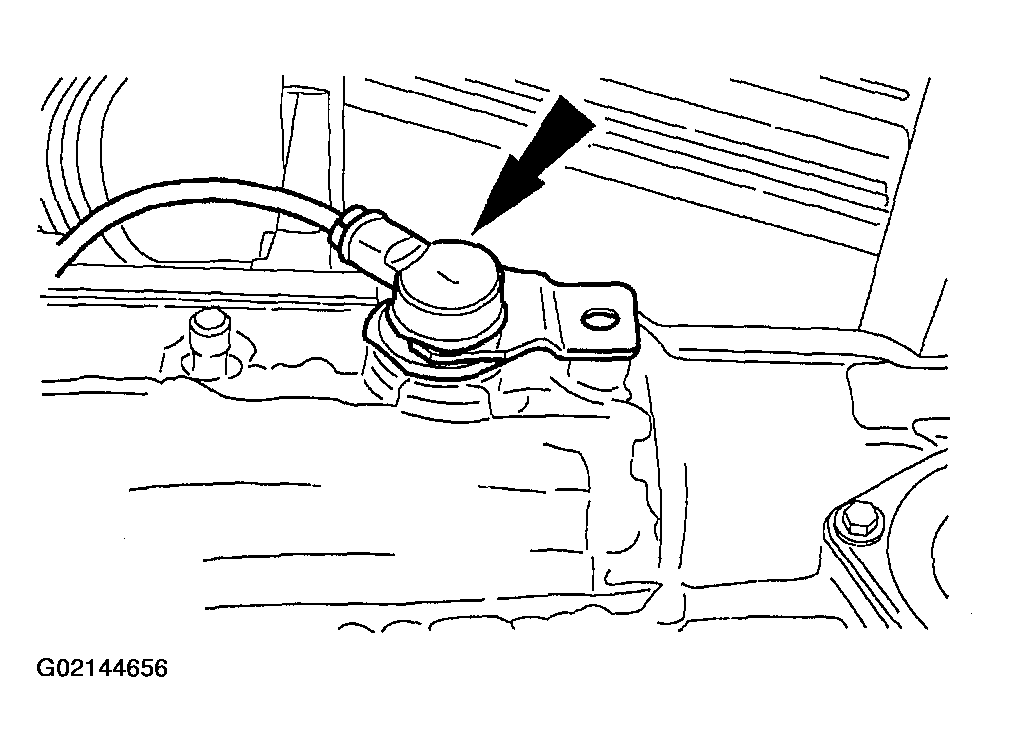

    Fig 4: Removing OSS Sensor
    G02144656Courtesy of FORD MOTOR CO.
  7. To install, reverse the removal procedure.
