Automatic Transmission: Specifications
General Specifications
| Item | Specification |
|---|---|
| Multi-Purpose Grease D0AZ-19584-AA | ESB-M1C93-B |

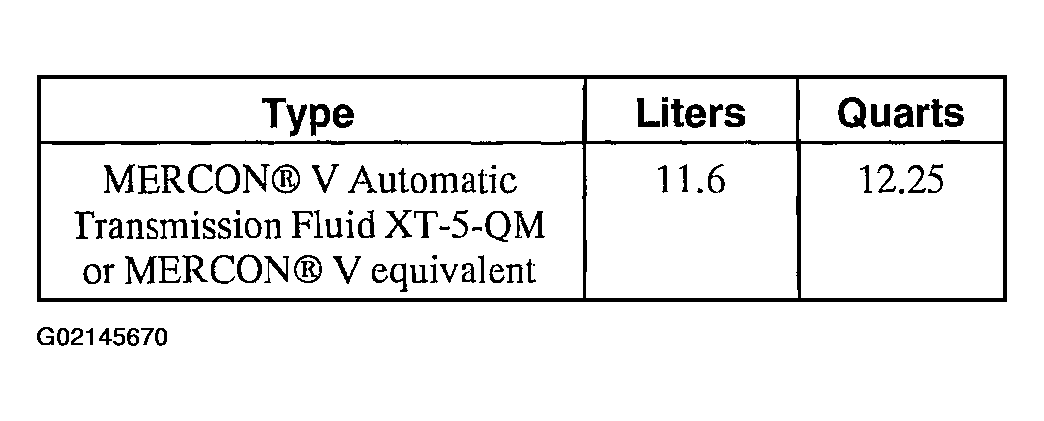

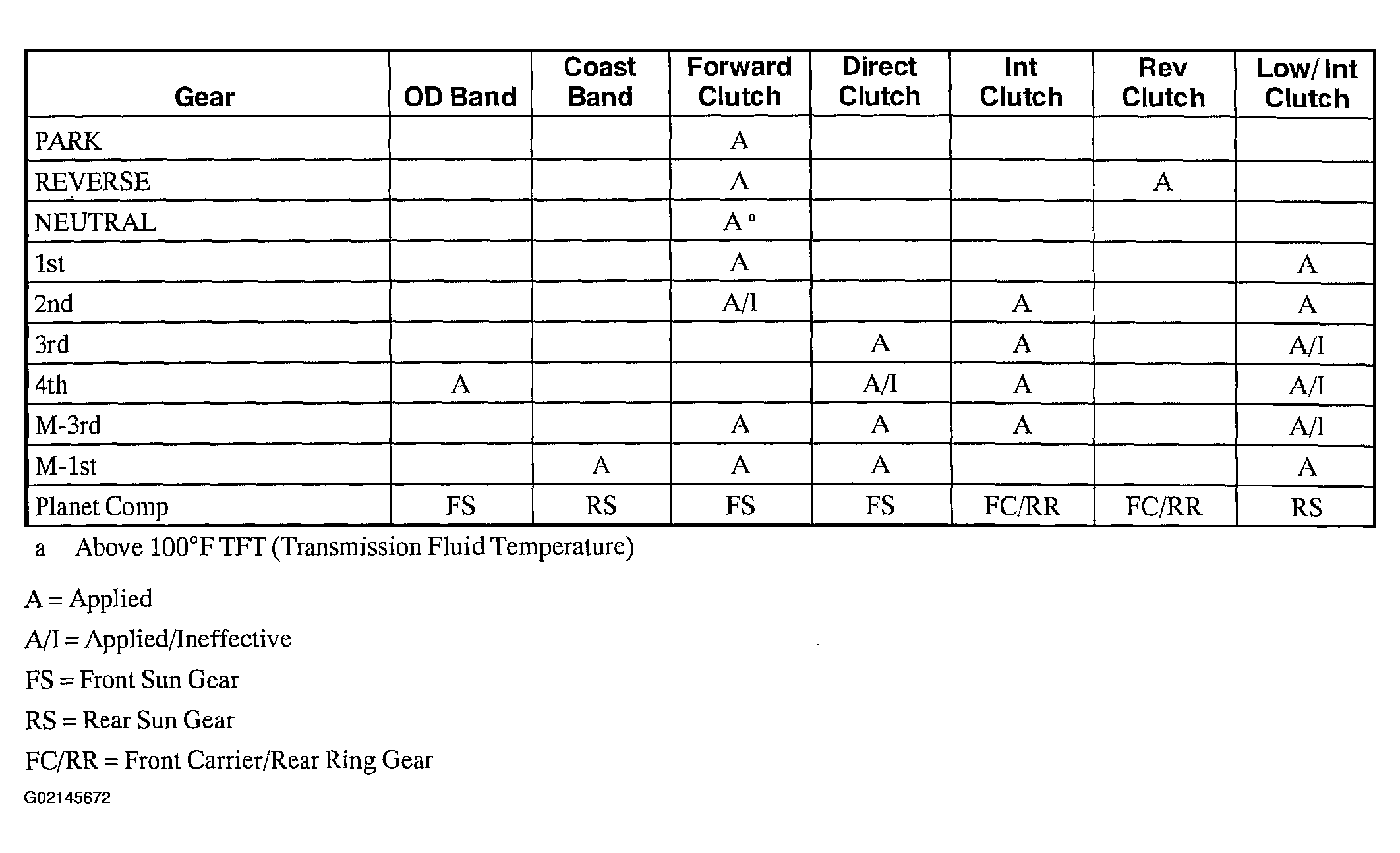

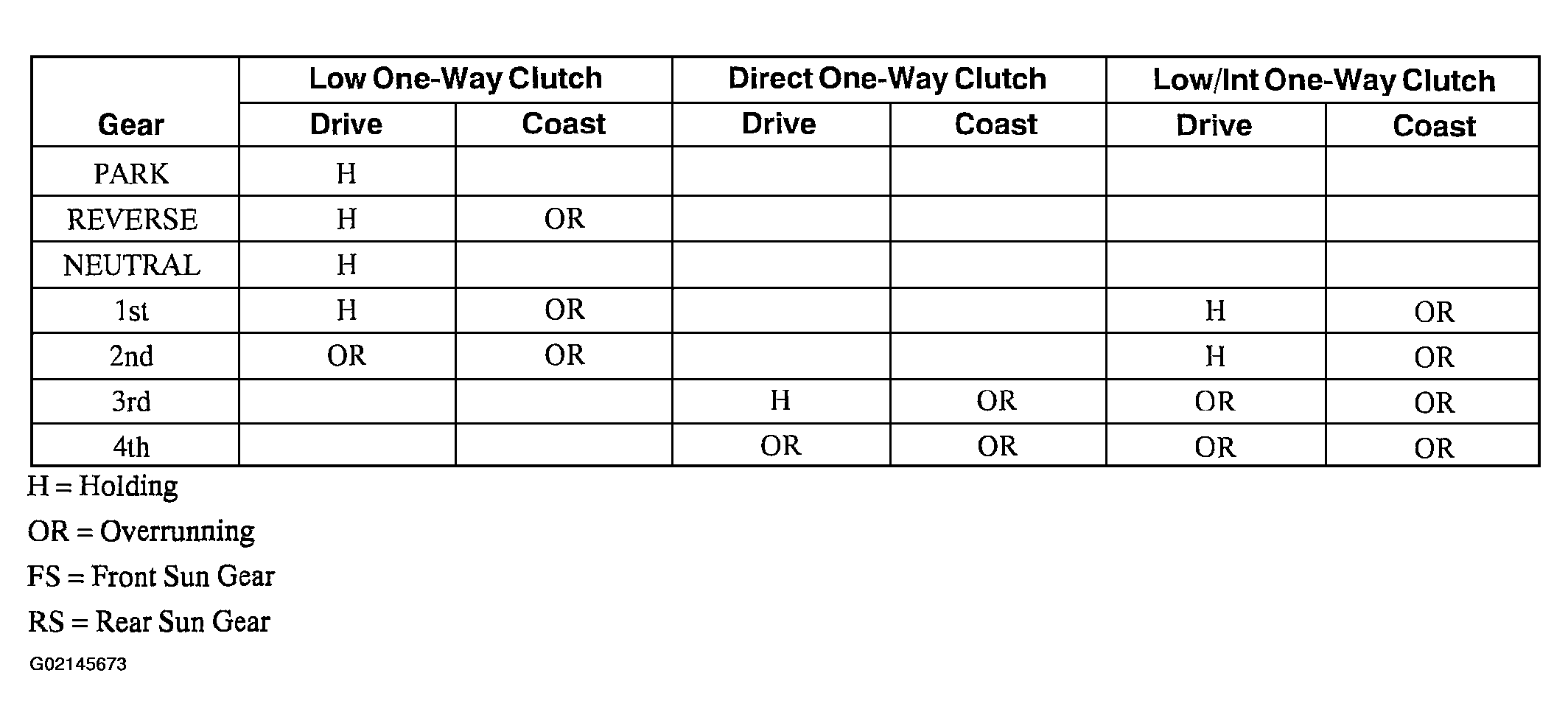

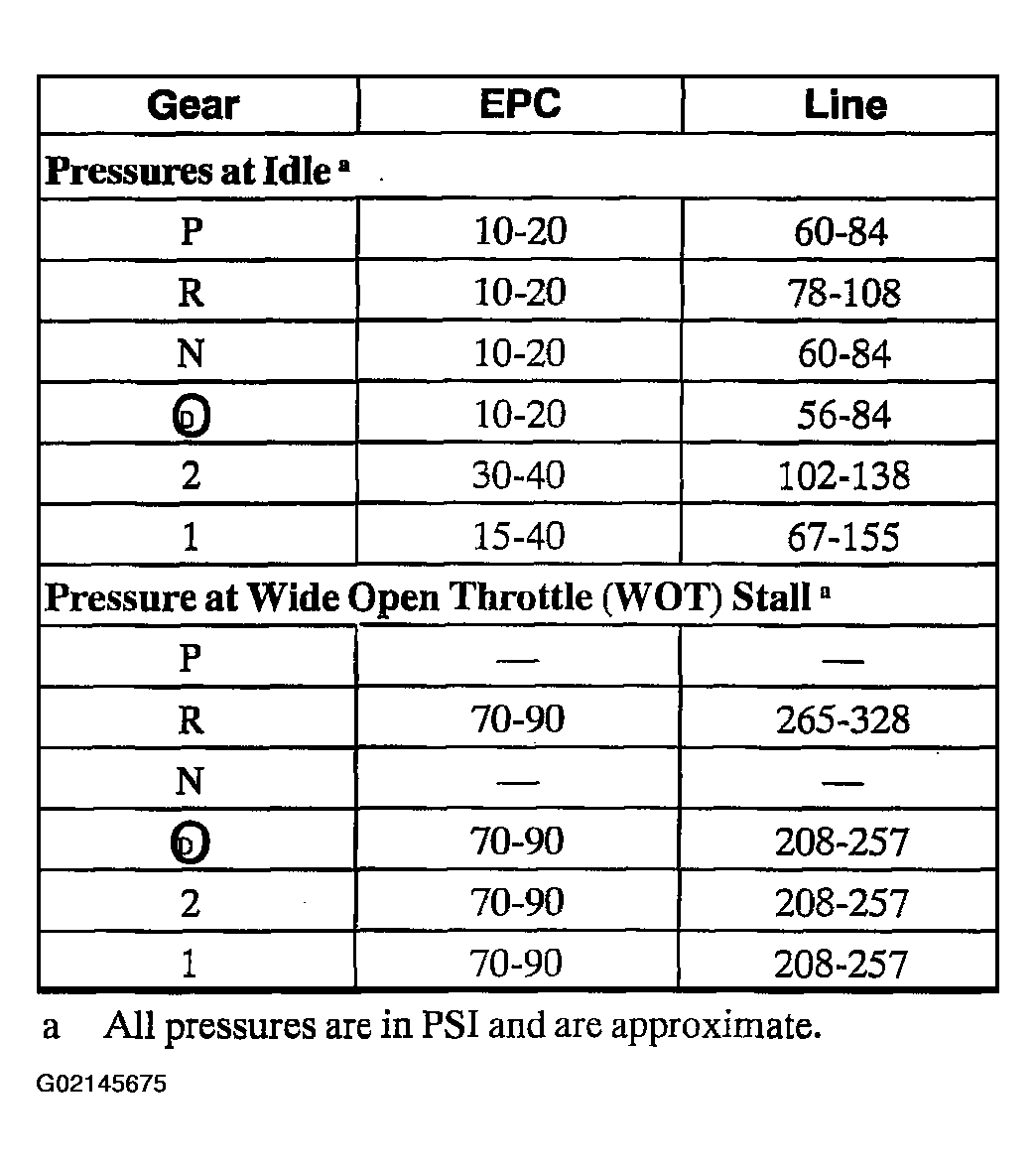

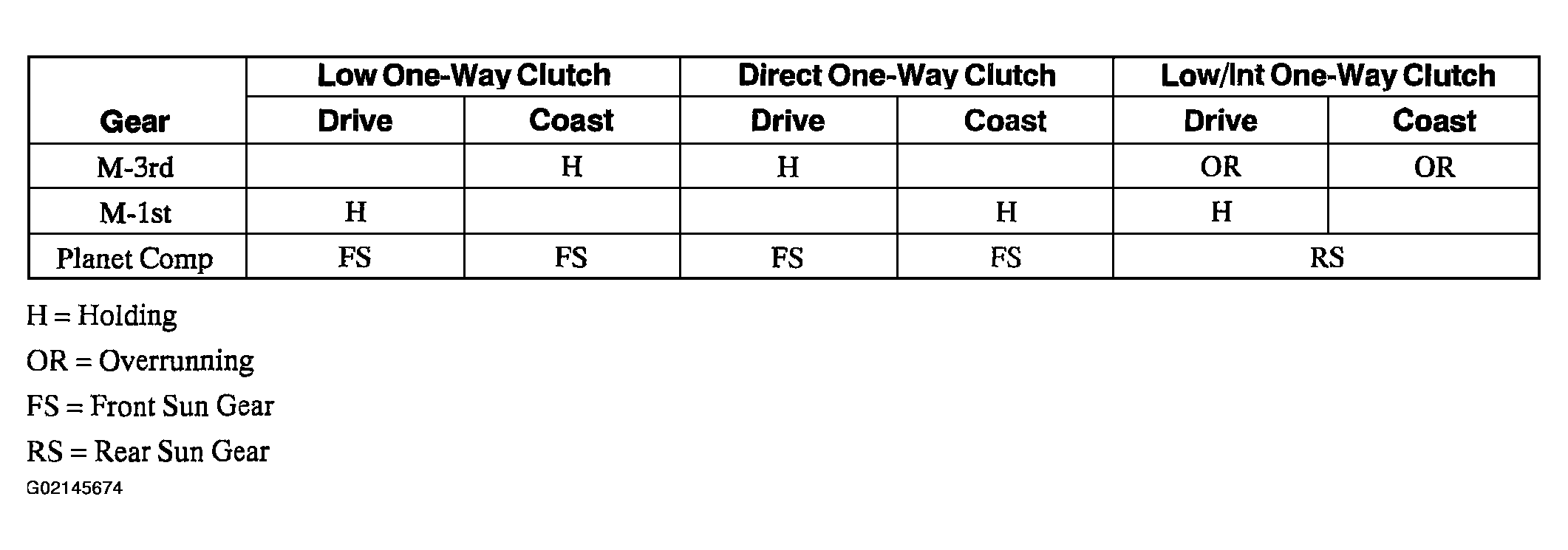

| MERCON V® Automatic Transmission Fluid XT-5-QM | MERCON V® |
TORQUE SPECIFICATIONS
| Description | N.m | Lb-Ft | Lb-In |
|---|---|---|---|
| Case-to-chain cover (10 mm socket size) | 26 | 19 | - |
| Case-to-chain cover (8 mm socket size) | 12 | 9 | - |
| Chain cover-to-case (10 mm socket size) | 25 | 18 | - |
| Chain cover-to-case (24 mm socket size) | 31 | 23 | - |
| Chain cover-to-case (13 mm socket size) | 43 | 32 | - |
| Chain cover-to-case bolts (8 mm socket size) | 11 | 8 | - |
| Case-to-stator support | 11 | 8 | - |
| Transmission range sensor-to-case | 10 | - | 89 |
| Valve body-to-pump | 10 | - | 89 |
| Pump assembly-to-main control | 10 | - | 89 |
| Valve body/solenoid-to-chain cover | 10 | - | 89 |
| Pump cover-to-pump body | 10 | - | 89 |
| Pump body-to-chain cover | 10 | - | 89 |
| EPC and TCC-to-pump body | 12 | 9 | - |
| Separator plate-to-pump body and valve body | 11 | 8 | - |
| Park rod abutment bolts | 28 | 21 | - |
| Detent spring-to-chain cover | 11 | 8 | - |
| Main control cover-to-chain cover (upper reservoir) (8 mm socket size) | 12 | 9 | - |
| Main control cover bolts (10 mm socket size) | 25 | 18 | - |
| Lube tube support bracket bolts | 11 | 8 | - |
| Fluid pan-to-case (lower reservoir) | 12 | 9 | - |
| Filler tube-to-case bolt | 11 | 8 | - |
| Upper fluid filler tube-to-case bolt | 11 | 8 | - |
| Reverse clutch locator bolt | 11 | 8 | - |
| Reverse clutch locator lock nut | 43 | 32 | - |
| Turbine shaft speed (TSS) sensor retaining bolt | 11 | 8 | - |
| Output shaft speed (OSS) sensor retaining bolt | 11 | 8 | - |
| Overdrive servo cover-to-case | 11 | 8 | - |
| Neutral/drive accumulator retaining bolt | 11 | 8 | - |
| Pressure tap plug for chain cover and pump body | 8 | - | 71 |
| Cooler line fitting at transaxle | 20 | 15 | - |
| Transaxle shift cable bracket retaining nut | 23 | 17 | - |
| Upper transaxle-to-engine bolts | 62 | 46 | - |
| Lower engine-to-transaxle bolts | 62 | 46 | - |
| Torque converter-to-flexplate nuts | 35 | 26 | - |
| RH engine mount-to-transaxle case bolts and nut | 62 | 46 | - |
| Dust cover-to-case | 10 | - | 89 |
| Transmission housing cover bolts | 10 | - | 89 |
| Engine mount bolts | 98 | 72 | - |
| Rear engine support bolts | 70 | 52 | - |
| Engine mount-to-support | 90 | 66 | - |
| Shaft cable stud chain cover-to-case | 31 | 23 | - |
| Manual lever-to-manual shaft | 13 | 10 | - |
| Manual cable bracket bolt | 23 | 17 | - |
| Rear engine transaxle-to-support bracket bolts | 62 | 46 | - |
| Ground strap nut | 20 | 15 | - |
| Cooler tube bracket bolts | 11 | 8 | - |
| Driven sprocket support bolts | 25 | 18 | - |
| Ground strap nut | 20 | 15 | - |
| Engine mount bolts | 90 | 66 | - |
| Rear engine support bolts | 70 | 52 | - |
| Subframe-to-body bolts | 90 | 66 | - |
| Power steering line-to-subframe bolts | 6 | - | 53 |
| Power steering rack nuts | 133 | 98 | - |
| Sway bar retaining bolts | 62 | 46 | - |
| Sway bar link nuts | 55 | 41 | - |
| Lower control arm pinch bolt | 62 | 46 | - |
| Tie rod nut | 55 | 41 | - |
| Engine oil pan-to-transaxle case bolt | 62 | 46 | - |
| RH engine mount-to-transaxle case bolts | 62 | 46 | - |
