Visual Inspection

Visually inspect for obvious signs of mechanical and electrical damage.

If the fault is not visually evident, verify the symptom; refer to the SYSTEM PRE-CHECK .

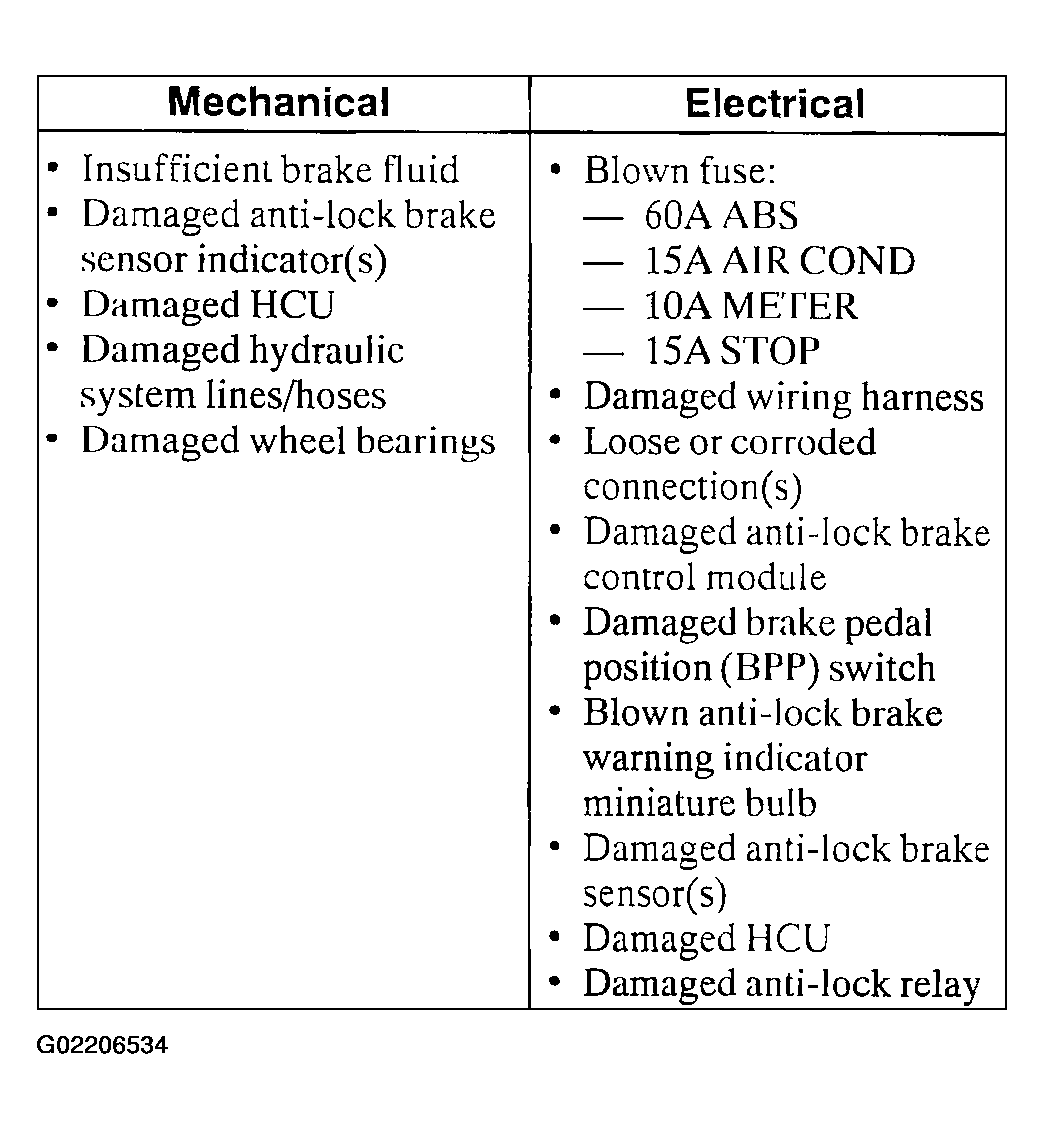

Fig 1: Visual Inspection Chart

Courtesy of FORD MOTOR CO.
