Pinpoint Test B: DTC C1095 - Pump Motor Shorted

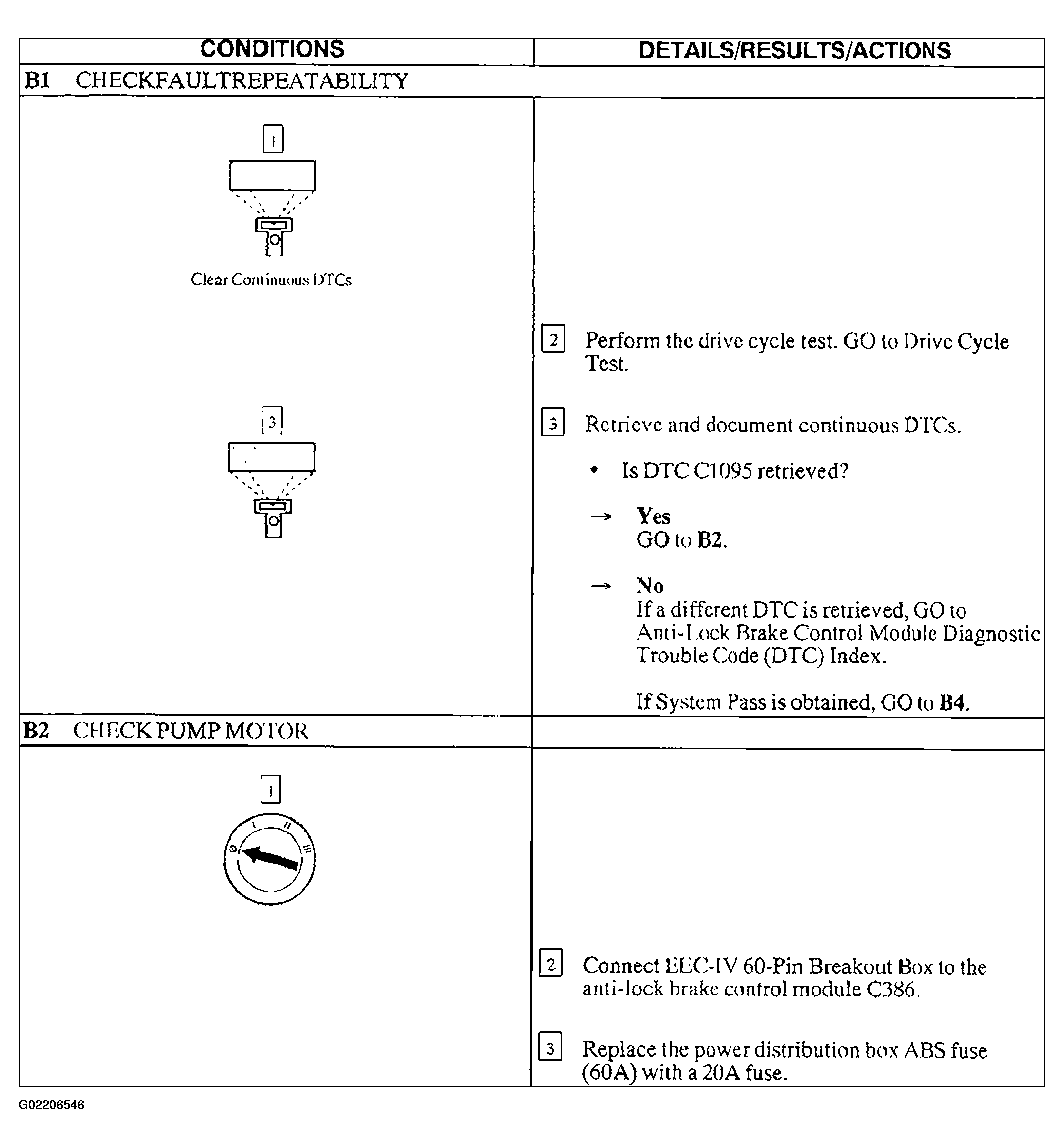

Fig 1: Pinpoint Test B: DTC C1095 - Pump Motor Shorted (Steps B1 & B2)

Courtesy of FORD MOTOR CO.

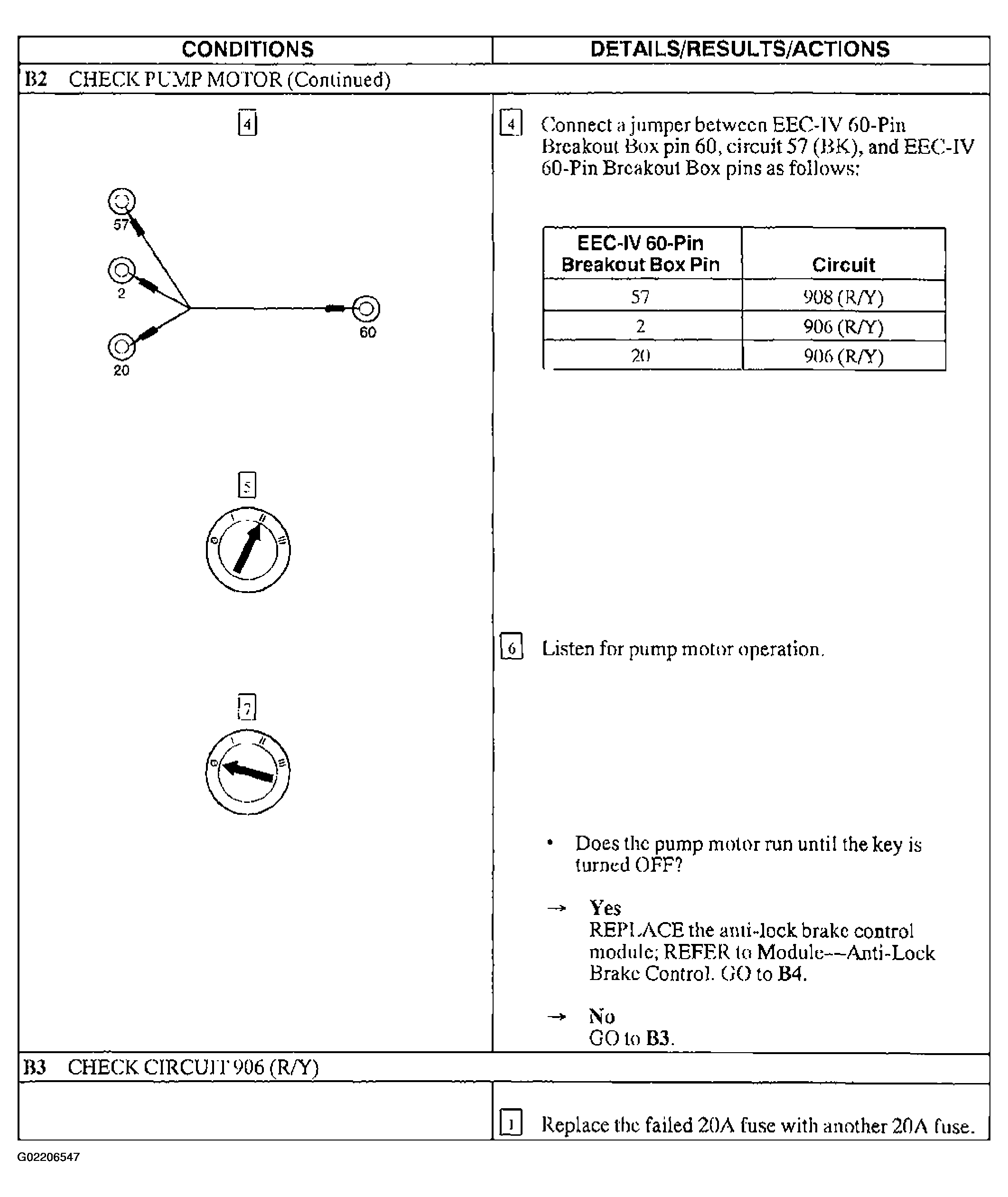

Fig 2: Pinpoint Test B: DTC C1095 - Pump Motor Shorted (Steps B2 Cont & B3)

Courtesy of FORD MOTOR CO.

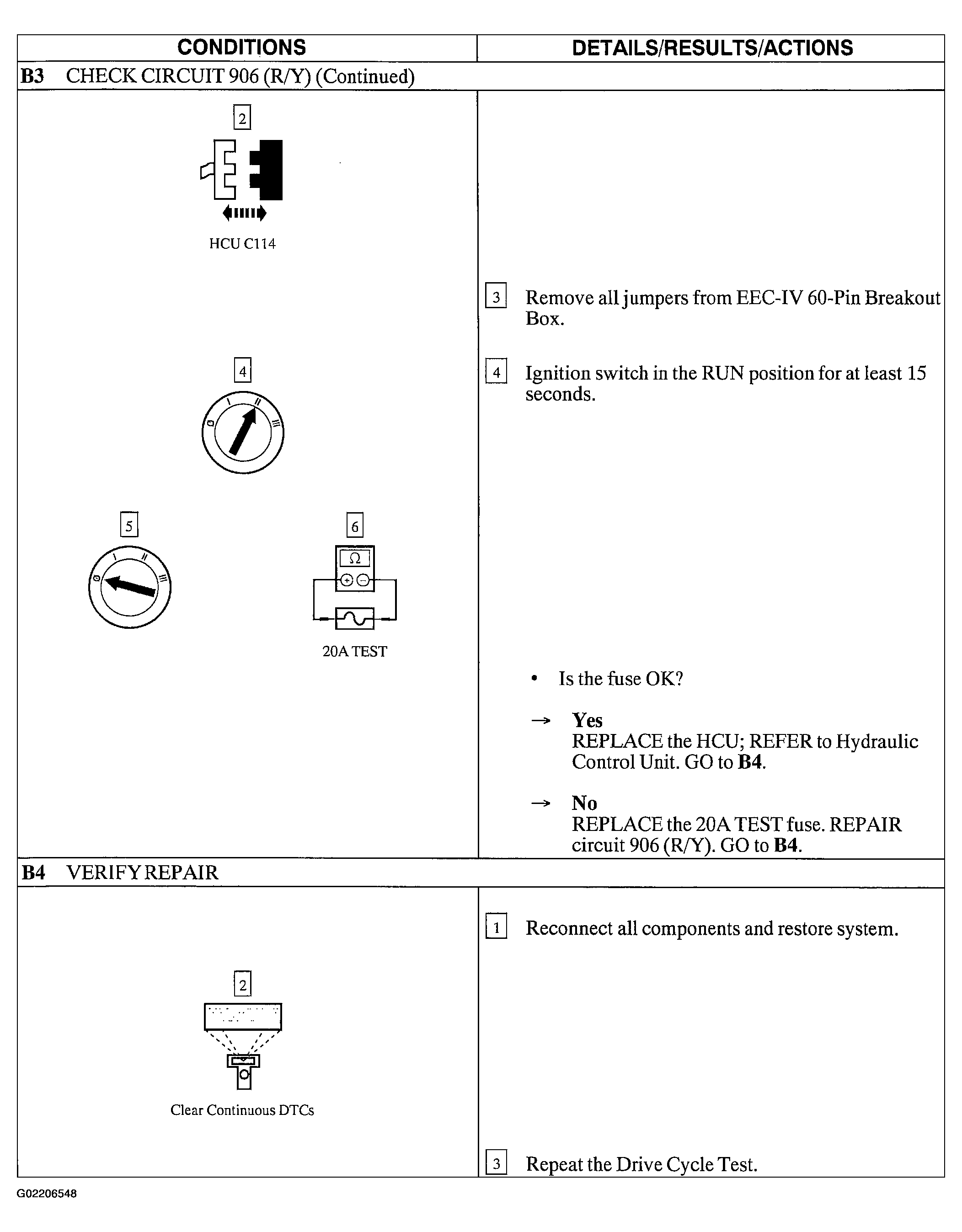

Fig 3: Pinpoint Test B: DTC C1095 - Pump Motor Shorted (Steps B3 Cont & B4)

Courtesy of FORD MOTOR CO.

Fig 4: Pinpoint Test B: DTC C1095 - Pump Motor Shorted (Steps B4 Cont)

Courtesy of FORD MOTOR CO.
