Pinpoint Test R: No Communication With Module

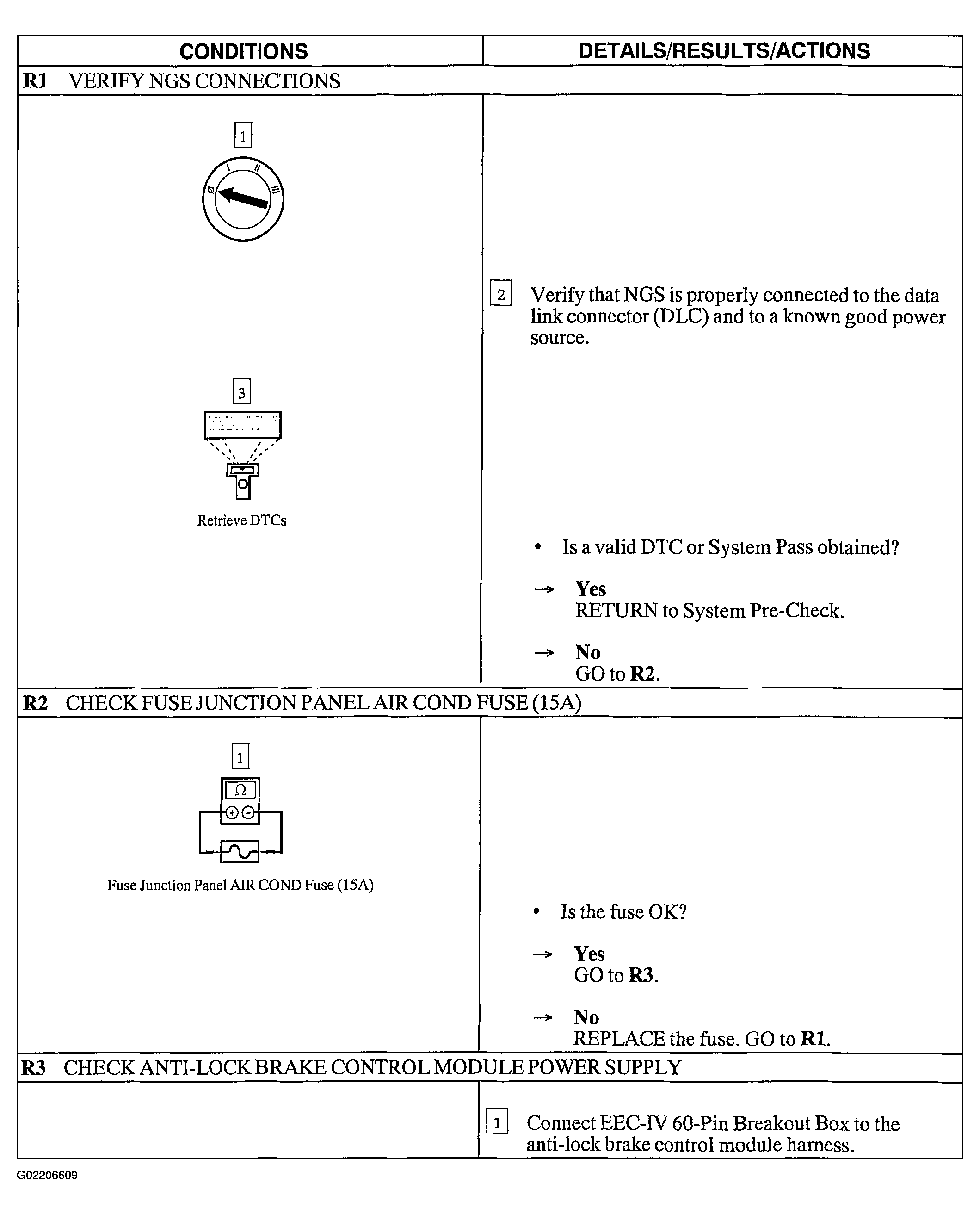

Fig 1: Pinpoint Test R: No Communication With Module (Steps R1-R3)

Courtesy of FORD MOTOR CO.

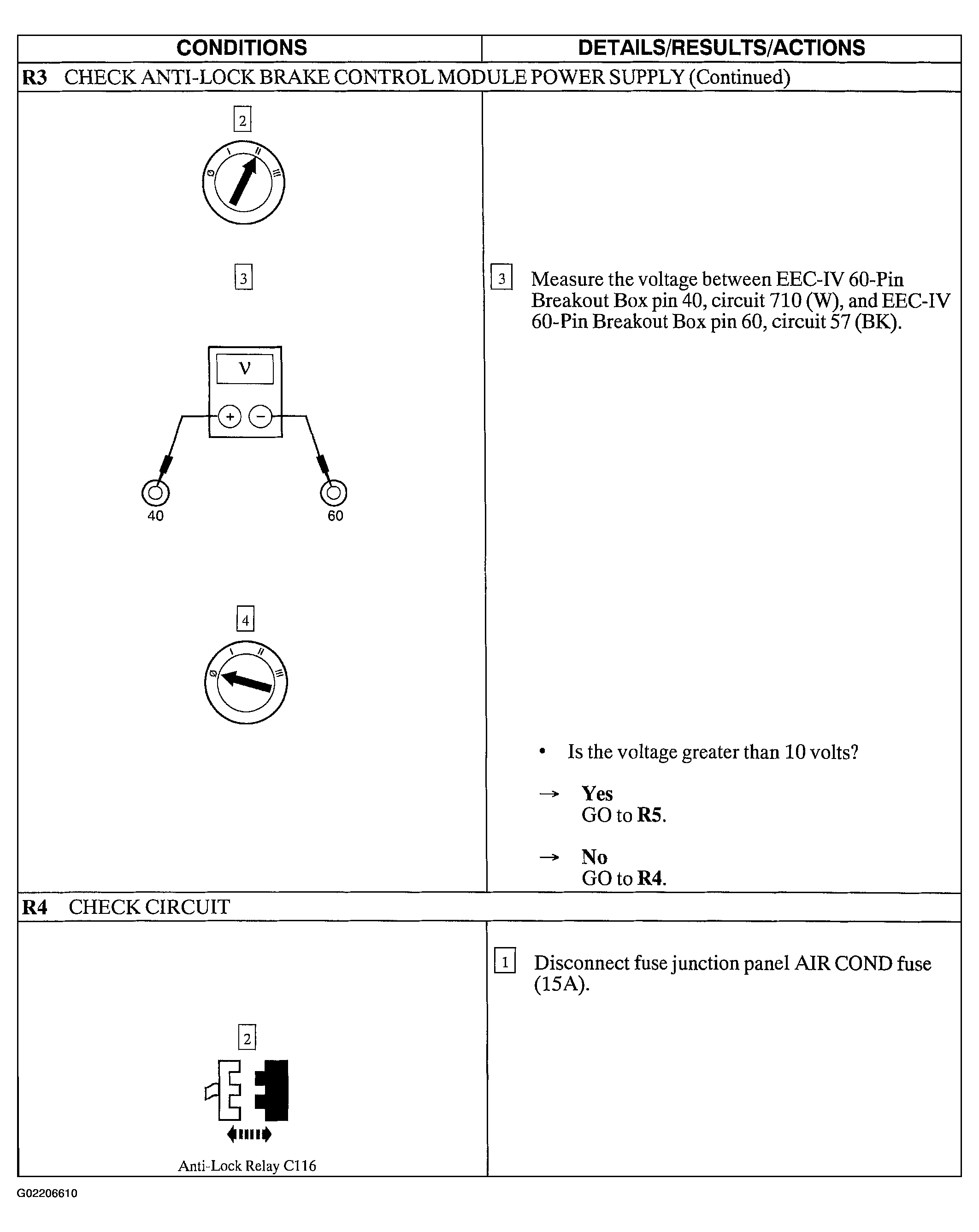

Fig 2: Pinpoint Test R: No Communication With Module (Steps R3 & R4)

Courtesy of FORD MOTOR CO.

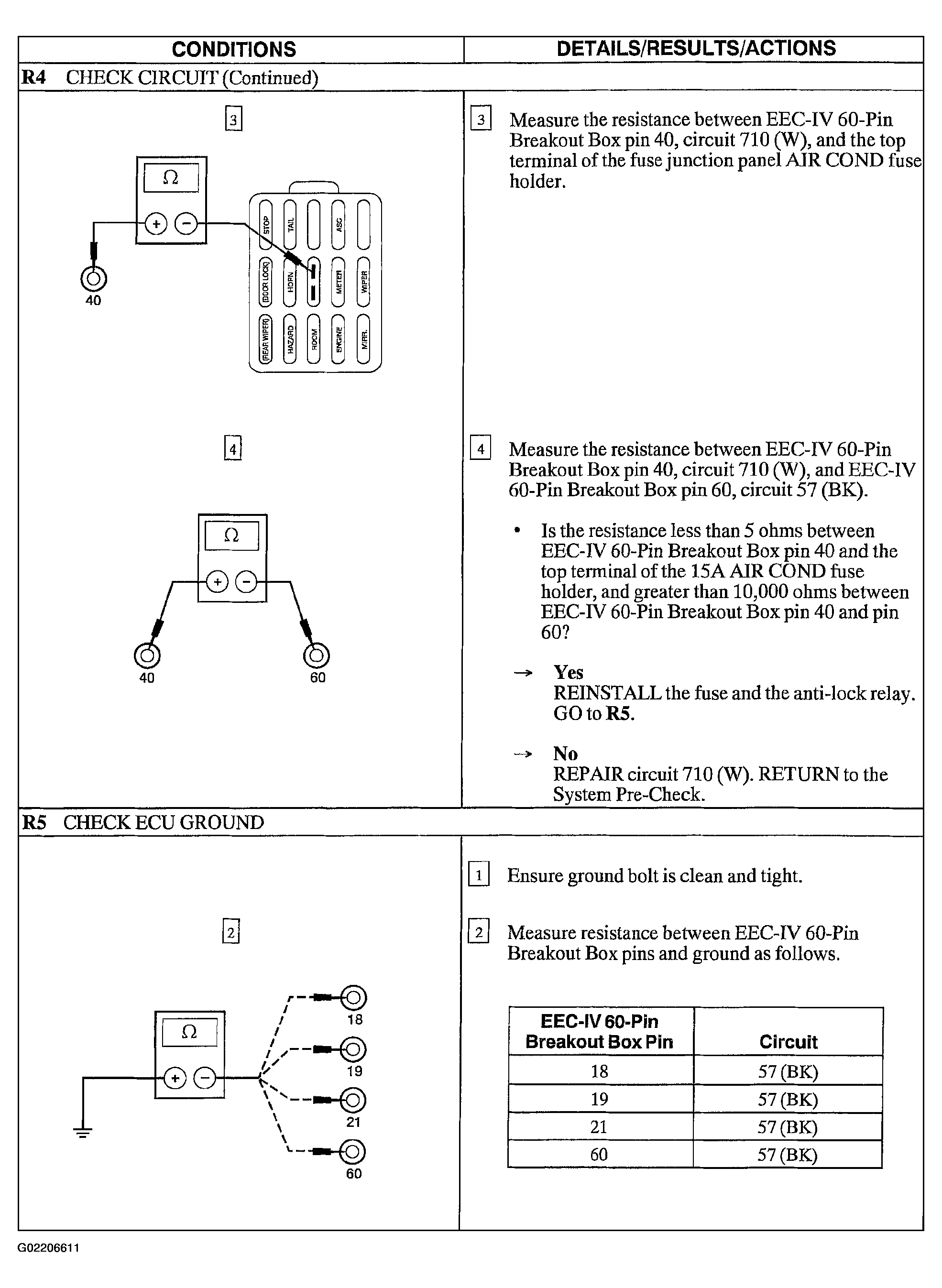

Fig 3: Pinpoint Test R: No Communication With Module (Steps R4 Cont & R5)

Courtesy of FORD MOTOR CO.

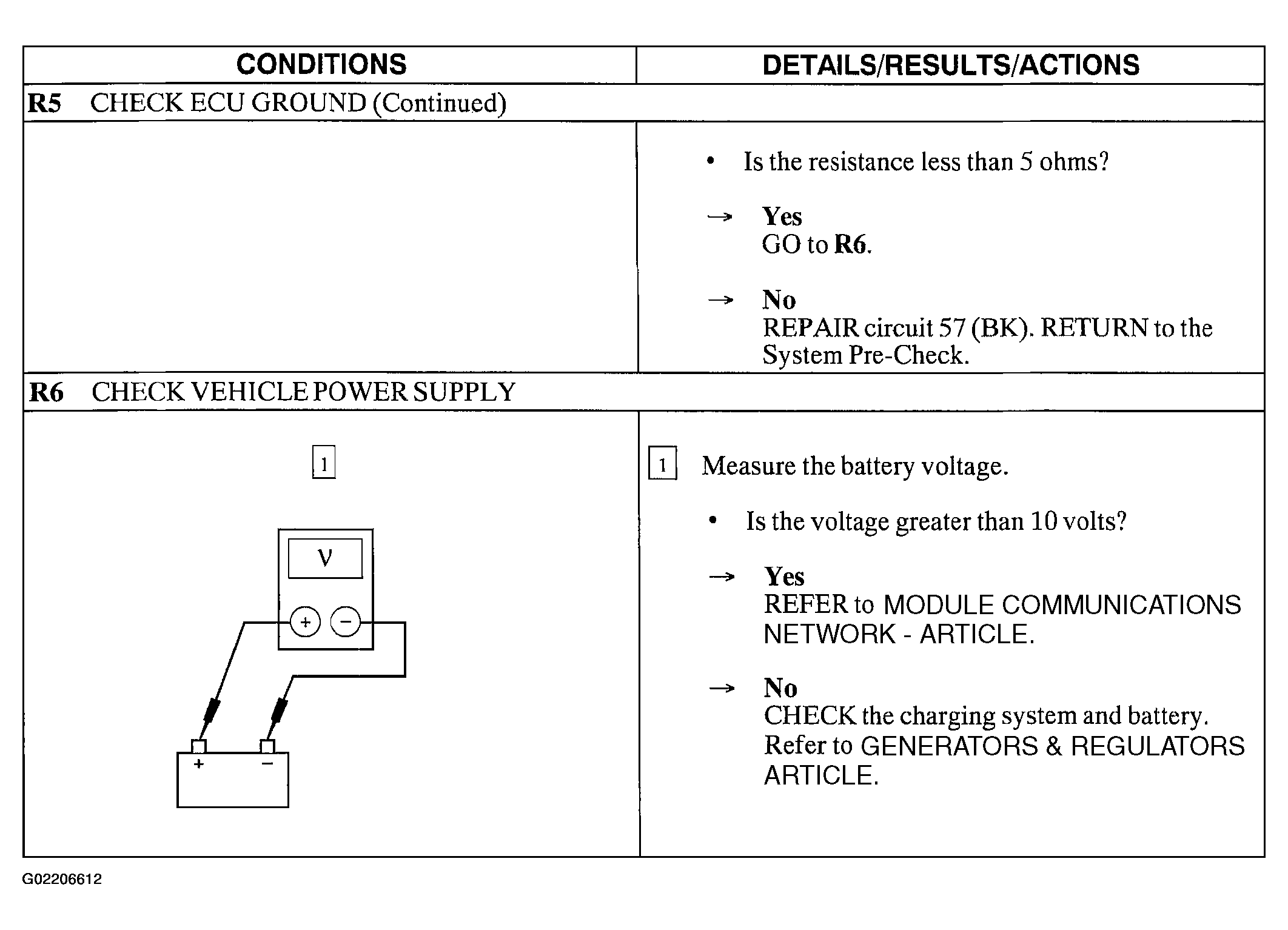

Fig 4: Pinpoint Test R: No Communication With Module (Steps R5 Cont & R6)

Courtesy of FORD MOTOR CO.
