Hydraulic Control Unit: Removal

Remove the battery tray.
Disconnect the two hydraulic control unit (HCU) electrical connectors.

NOTE: Plug each port to prevent brake fluid from spilling.

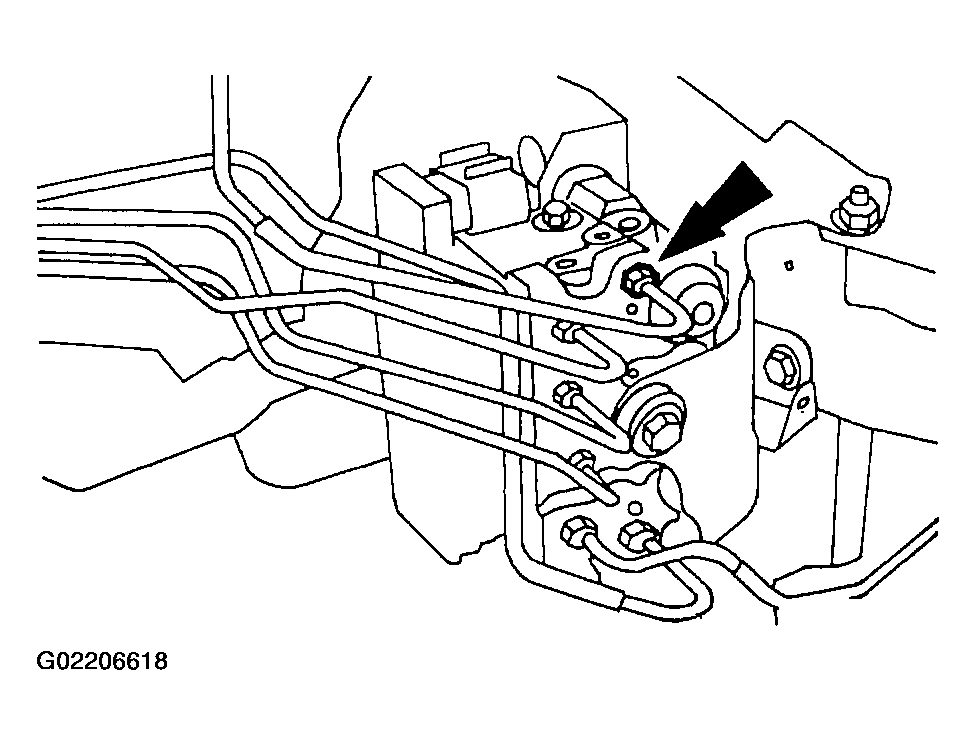

Fig 1: Disconnecting Hydraulic Brake Lines

G02206618

Courtesy of FORD MOTOR CO.

Disconnect the six hydraulic brake lines.
Remove the HCU.
1. Remove the bolts.

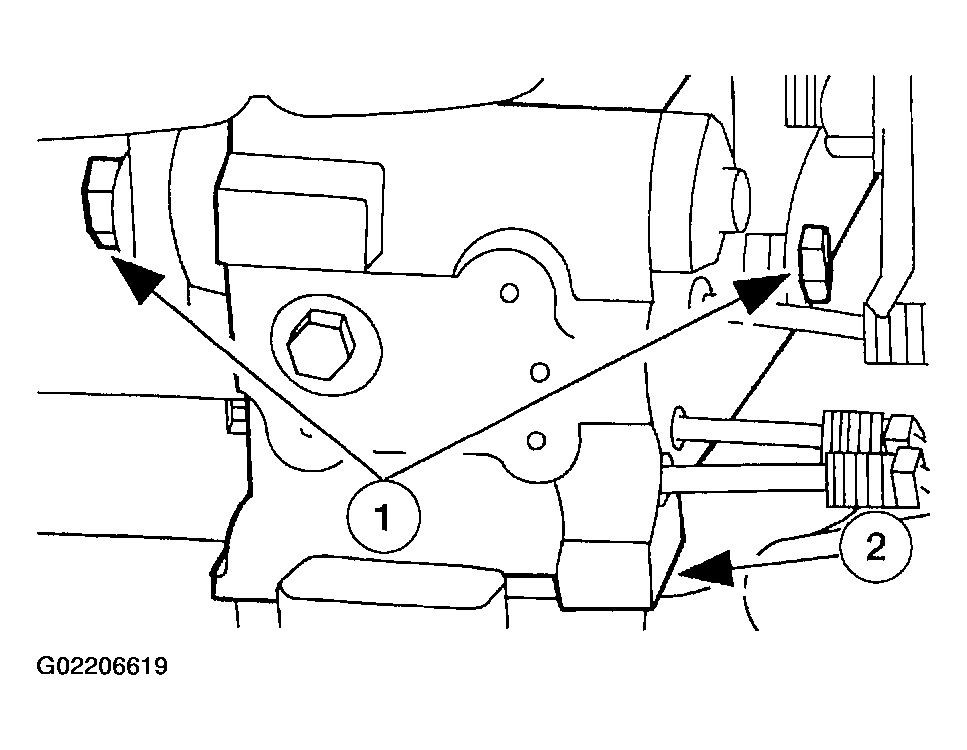

  Fig 2: Removing HCU
  Courtesy of FORD MOTOR CO.
2. Remove the HCU.
