Sensor - Front Anti-Lock Brake: Installation

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn its strategy.

To install, reverse the removal procedure.

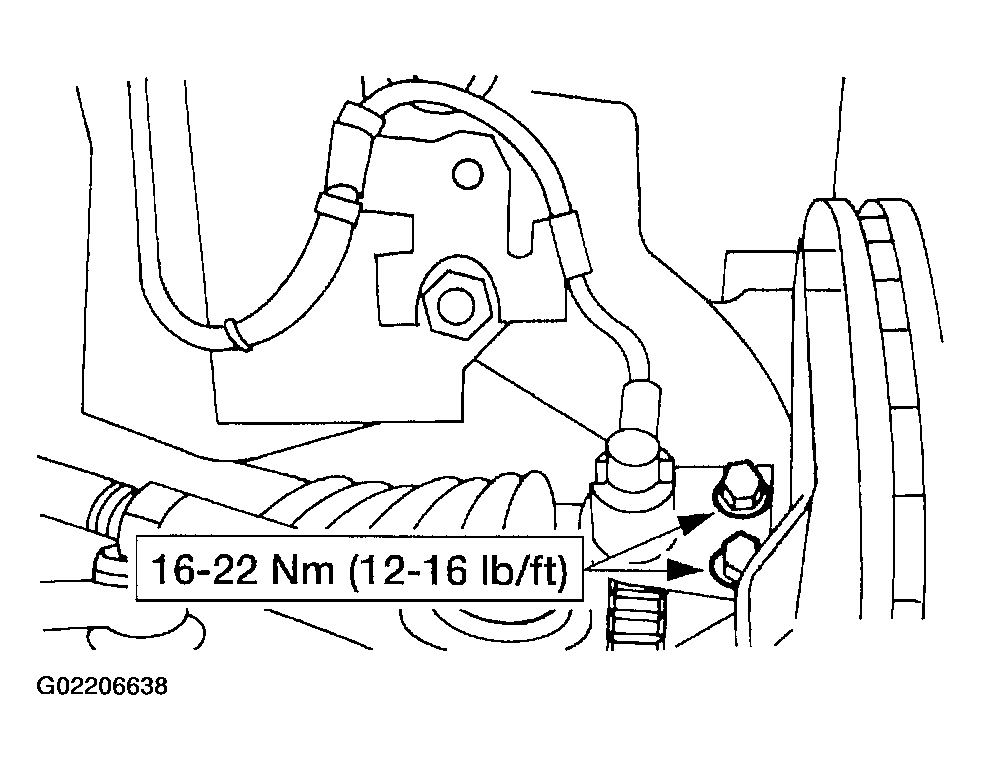

Fig 1: Installing Front Anti-Lock Brake Sensor Bracket
Courtesy of FORD MOTOR CO.

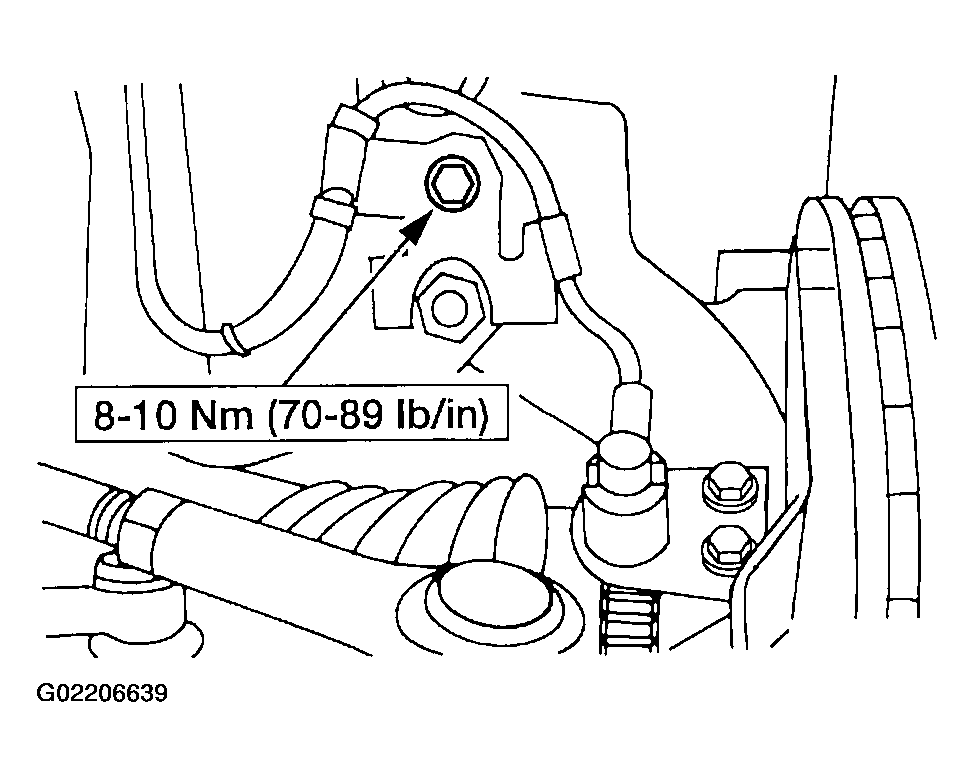

Fig 2: Installing Front Anti-Lock Brake Sensor & Upper Bracket
Courtesy of FORD MOTOR CO.

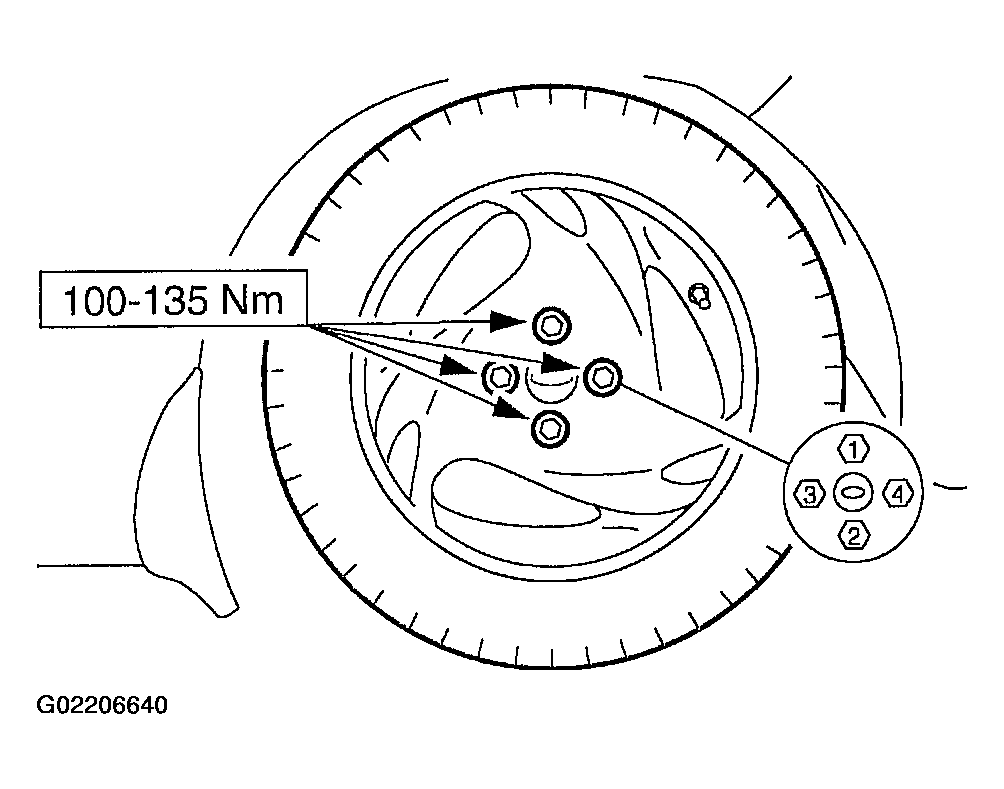

Fig 3: Installing Lug Nuts
Courtesy of FORD MOTOR CO.
