Cylinder Block-Distortion

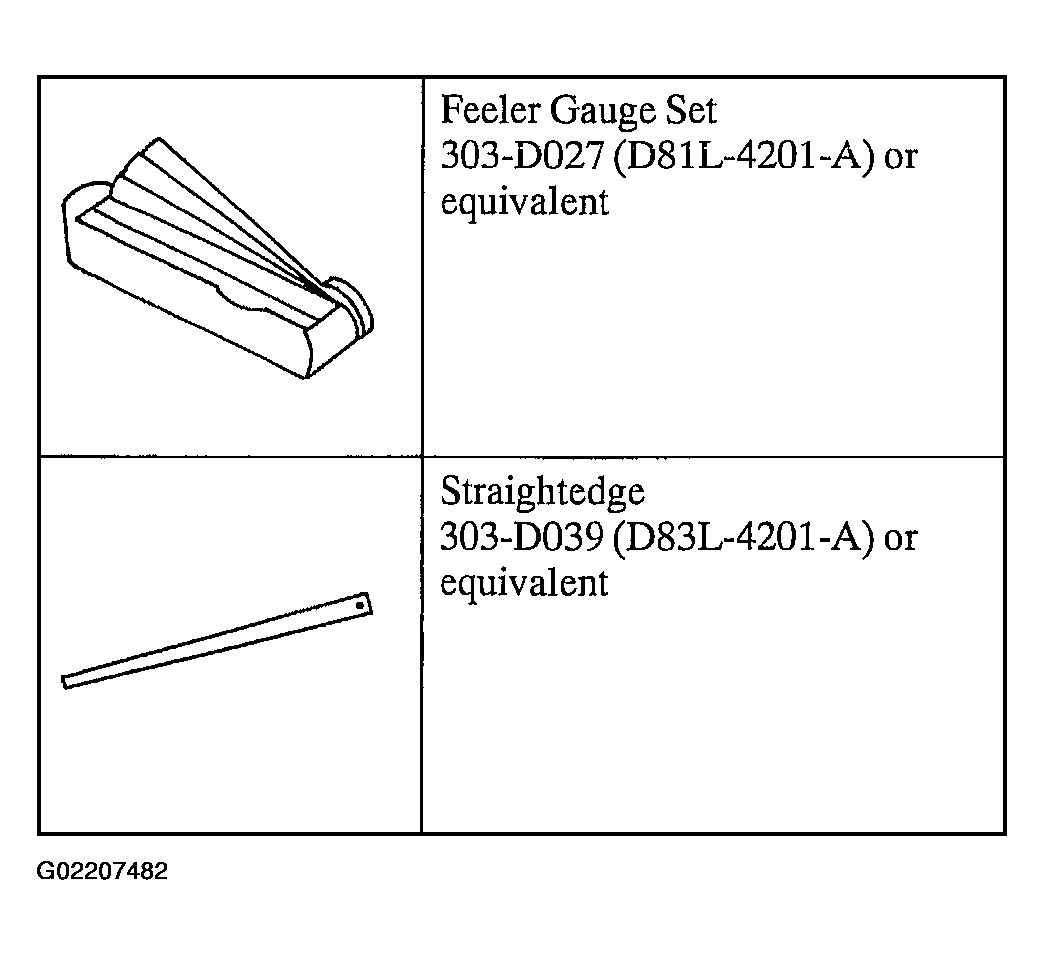

Fig 1: Identifying Special Tools
G02207482Courtesy of FORD MOTOR CO.
  1. Use a straightedge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, resurface the cylinder block within specification.

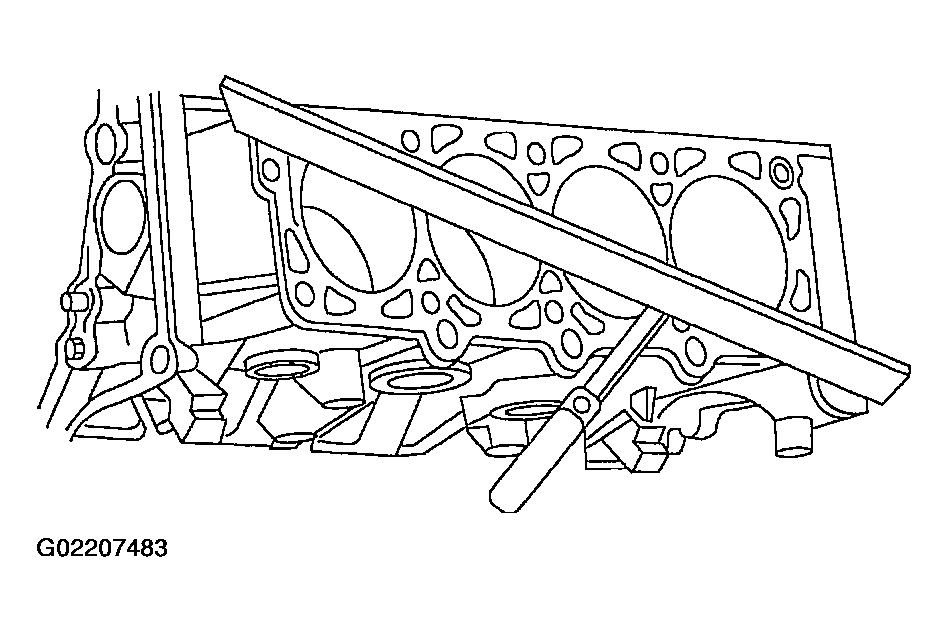

    Fig 2: Inspecting Cylinder Block Flatness
    G02207483Courtesy of FORD MOTOR CO.
