WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

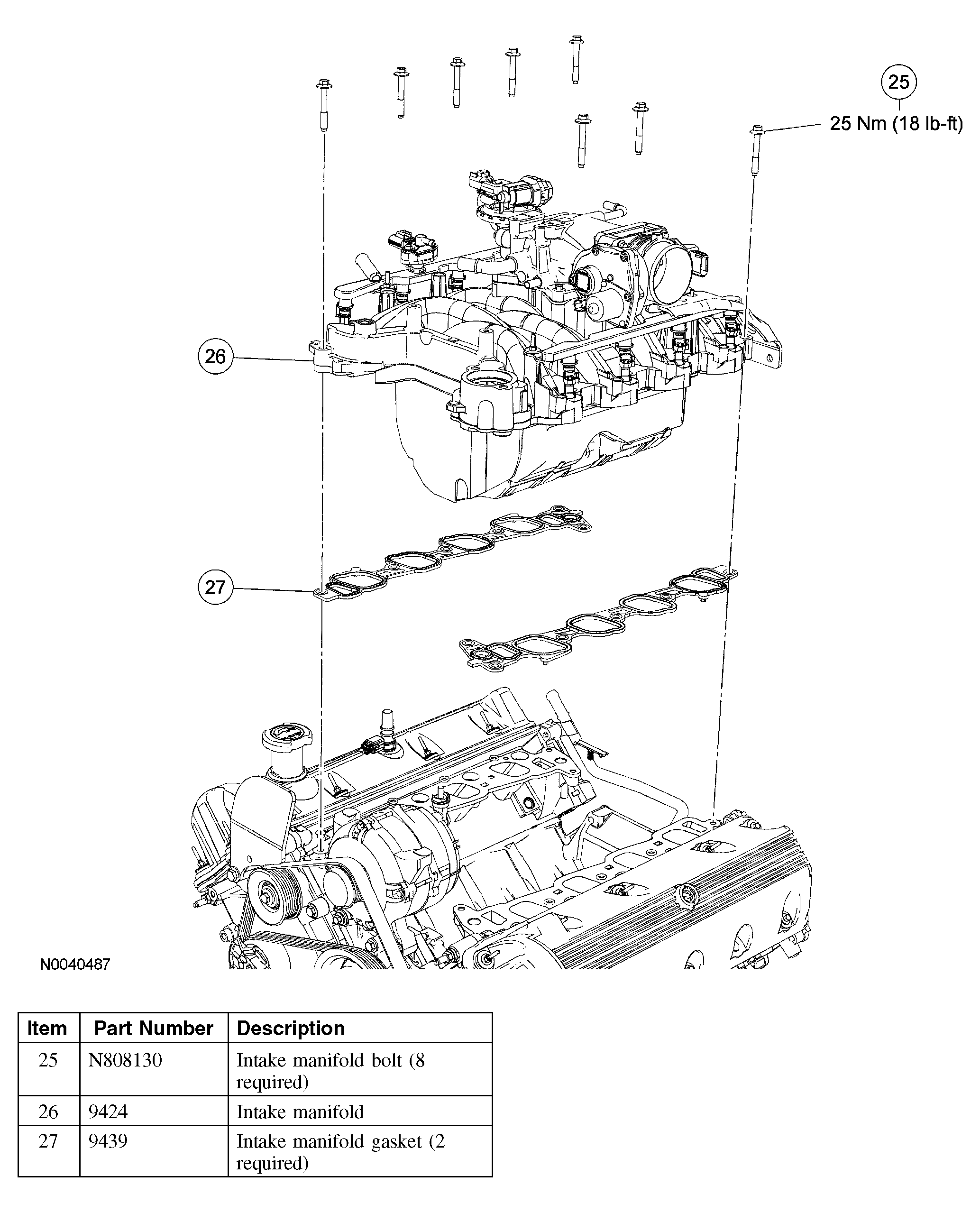

Fig 1: Identifying Intake Manifold Components (1 Of 3)
Courtesy of FORD MOTOR CO.

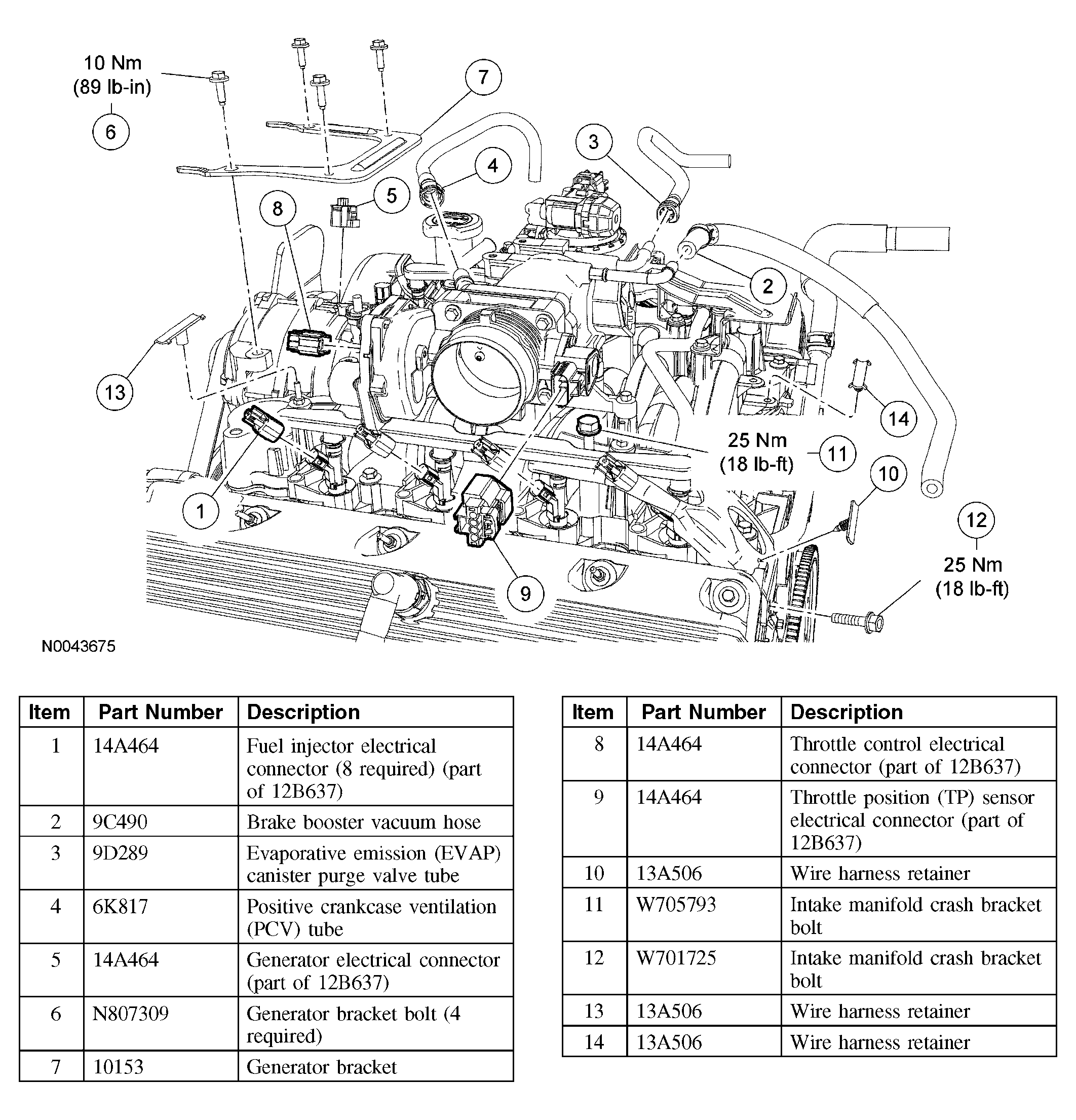

Fig 2: Identifying Intake Manifold Components (2 Of 3)
Courtesy of FORD MOTOR CO.

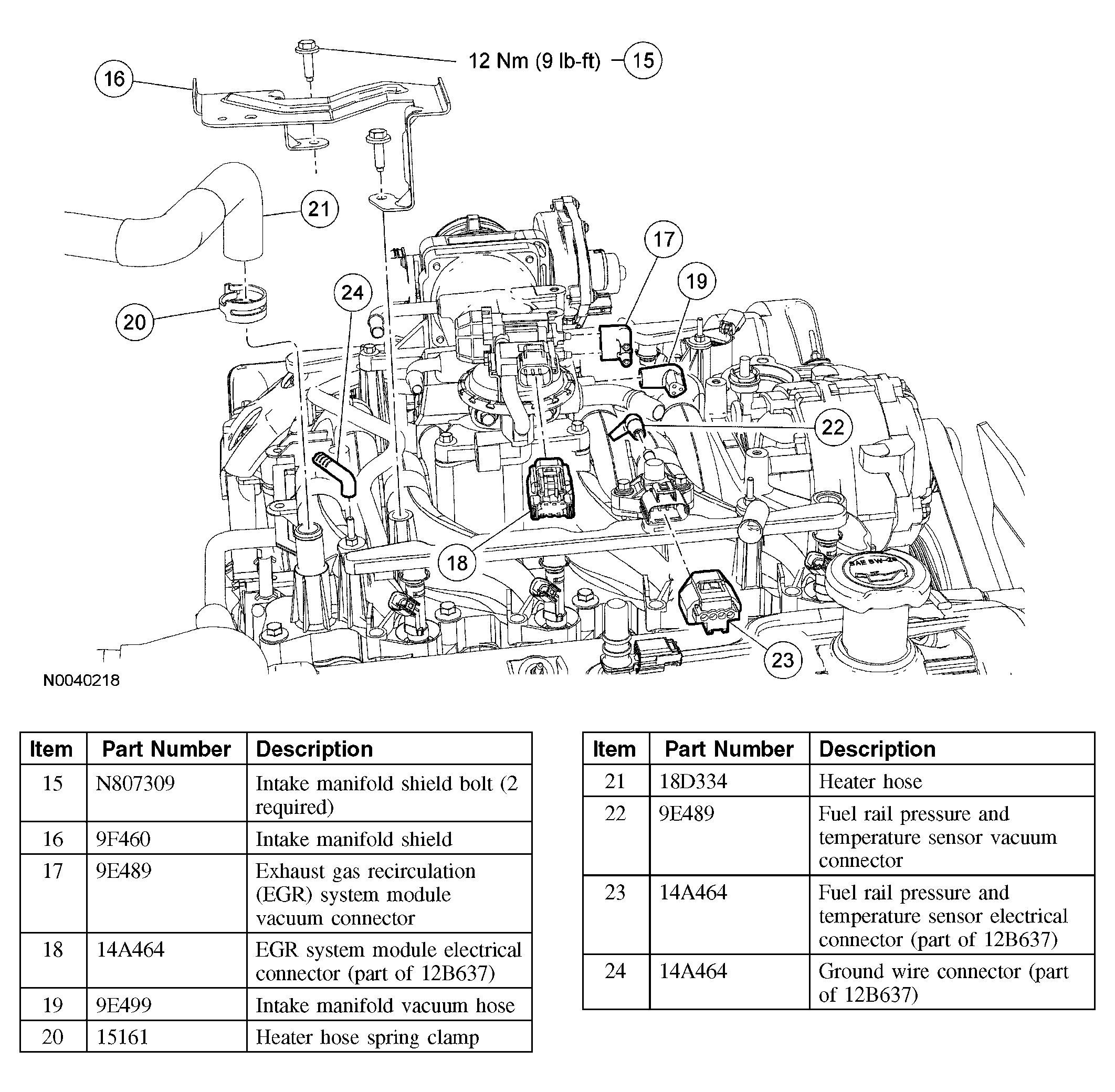

Fig 3: Identifying Intake Manifold Components (3 Of 3)
