WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

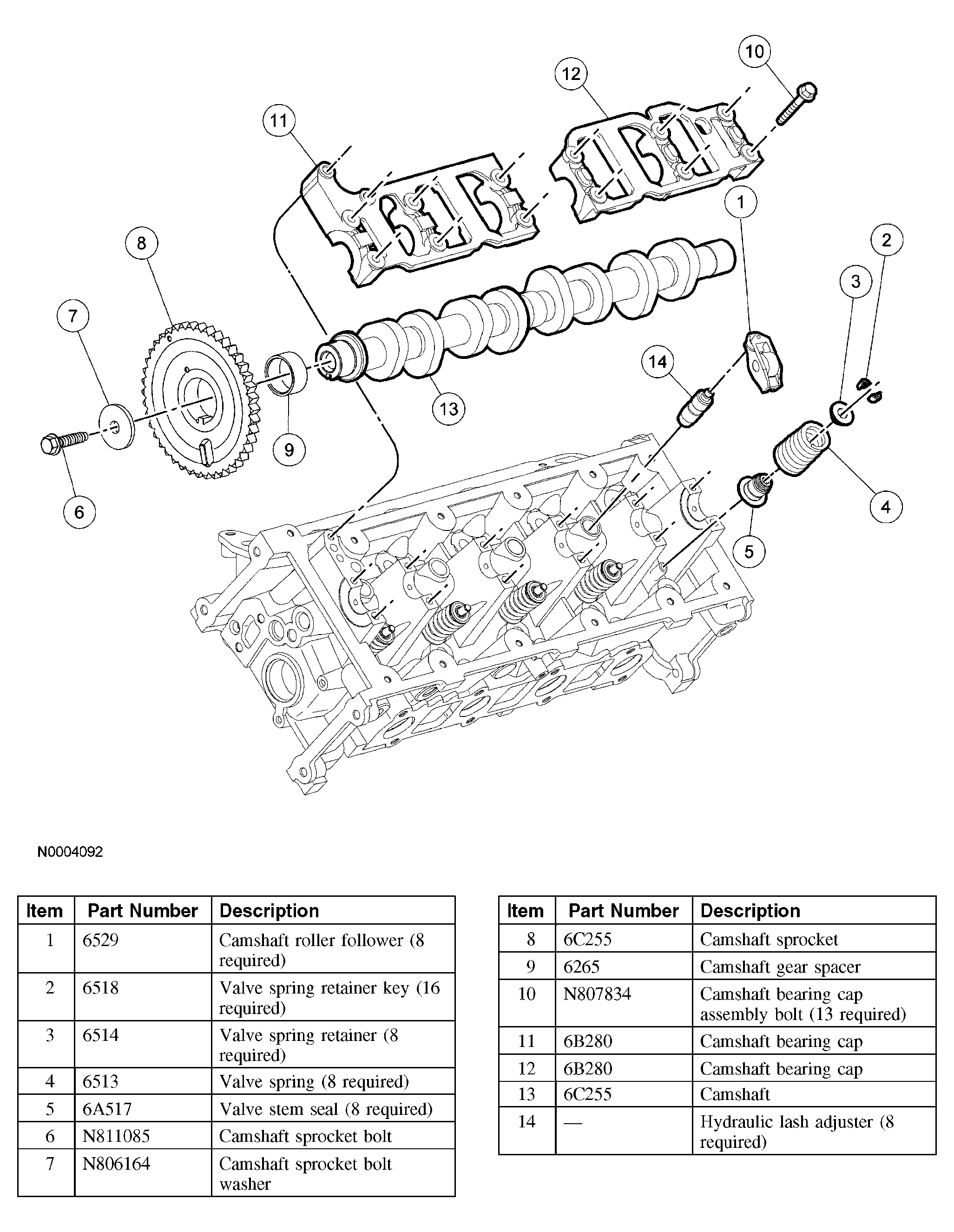

Fig 1: Exploded View Of Valve Train Components
Courtesy of FORD MOTOR CO.
For additional information, refer to the procedures in this article.
