Multifunction Switch, Wiper/Washer Portion: Schematic

WARNING: This page is about a different car, the 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

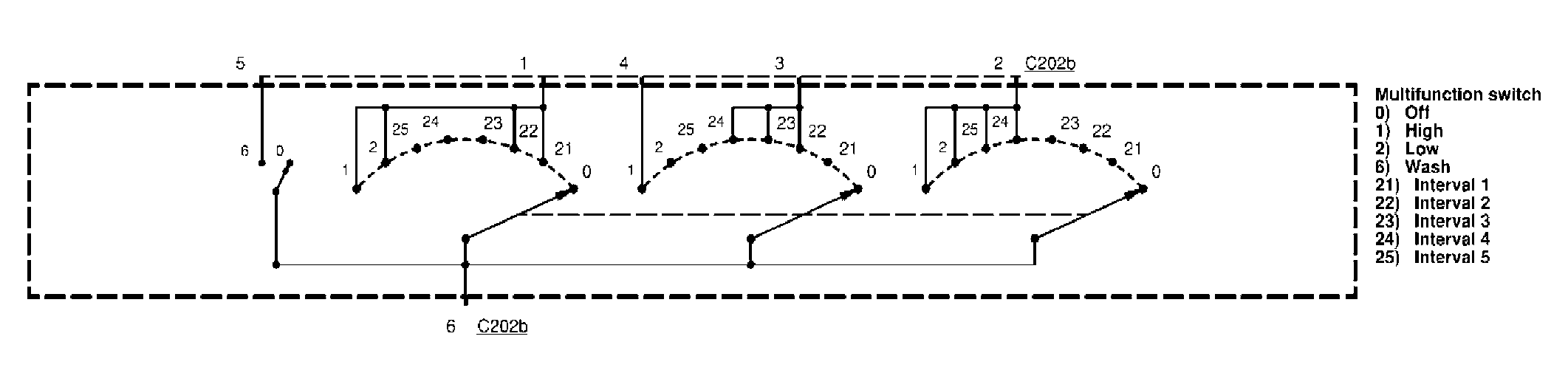

Fig 1: Multifunction Switch, Wiper/Washer Portion - Schematic
G04598974Courtesy of FORD MOTOR CO.
