General Procedures: Fill

WARNING: Do not mix oil types, any mixture or any unapproved oil could lead to seal deterioration and leaks. A leak could ultimately cause loss of fluid, which could result in a loss of power steering assist.

Fill the reservoir.
- Use Motorcraft MERCON® Multi-Purpose ATFXT-2-QDX or MERCON® equivalent.

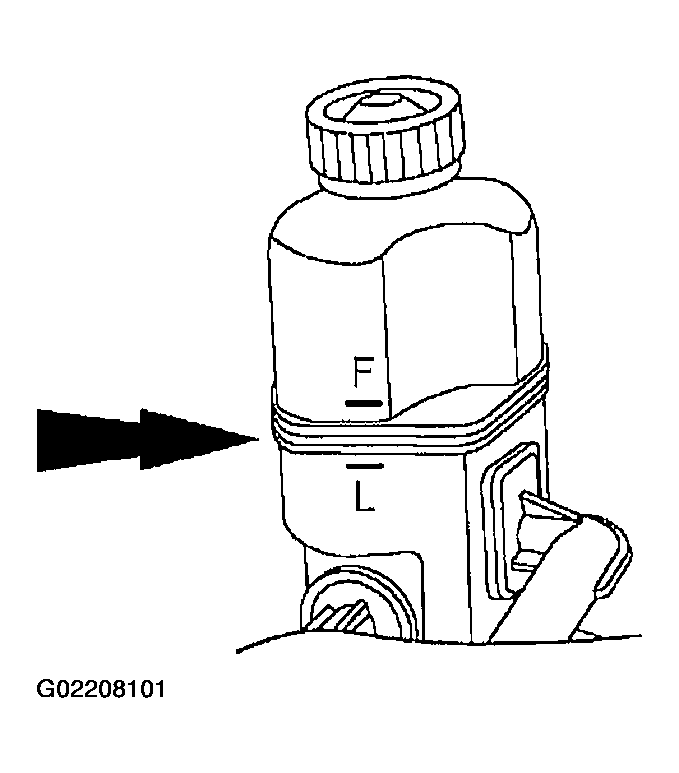

  Fig 1: Identifying Reservoir Minimum And Maximum Level
  Courtesy of FORD MOTOR CO.
Remove the ENGINE fuse to disable the vehicle.

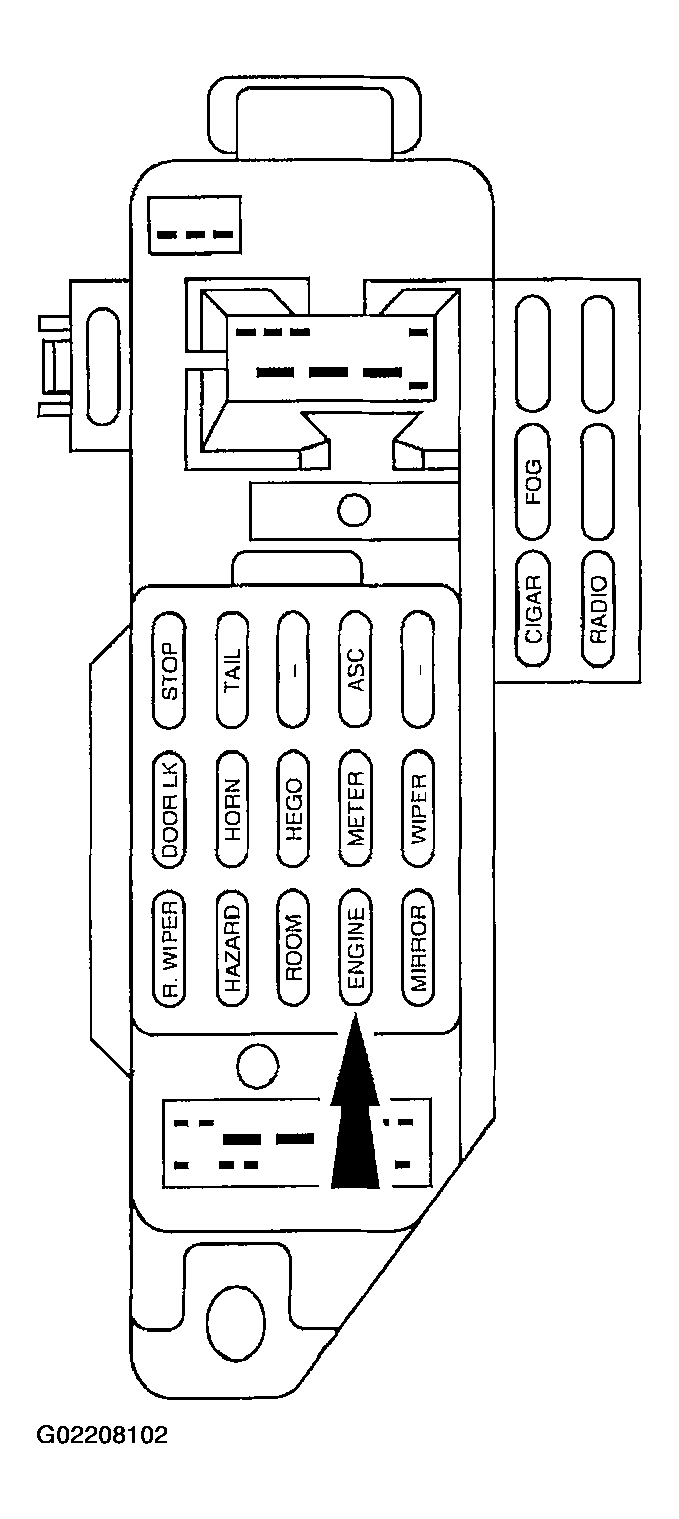

Fig 2: Removing ENGINE Fuse
Courtesy of FORD MOTOR CO.
Raise the front wheels off the floor.

CAUTION: Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.

CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump could occur.

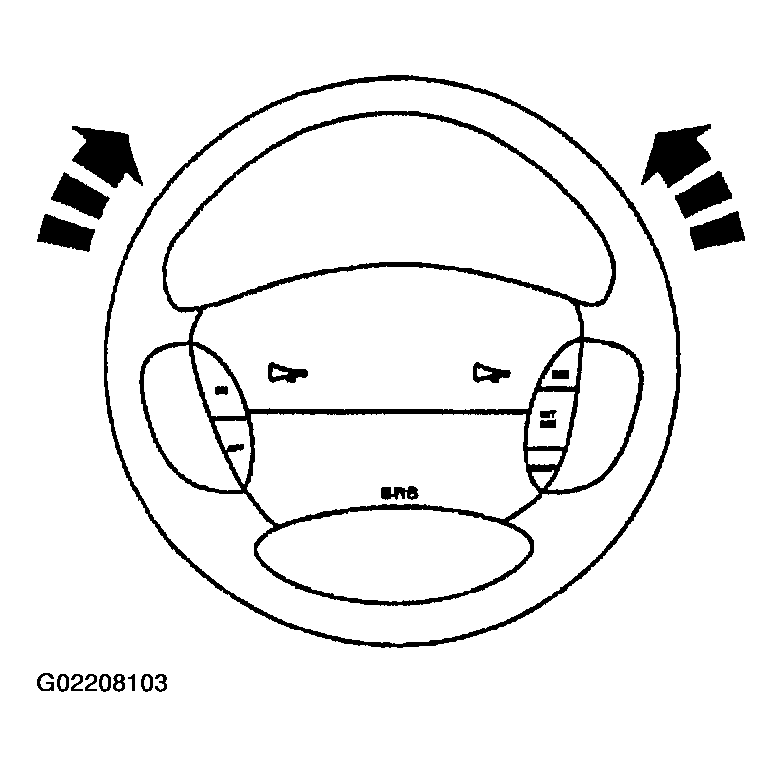

Fig 3: Turning Steering Wheel From Stop-To-Stop

Courtesy of FORD MOTOR CO.

Turn the steering wheel from stop-to-stop while cranking the engine.
Lower the vehicle.

CAUTION: Do not overfill the reservoir.

Fill the reservoir.
- Use Motorcraft MERCON® Multi-Purpose ATFXT-2-QDX or MERCON® equivalent.

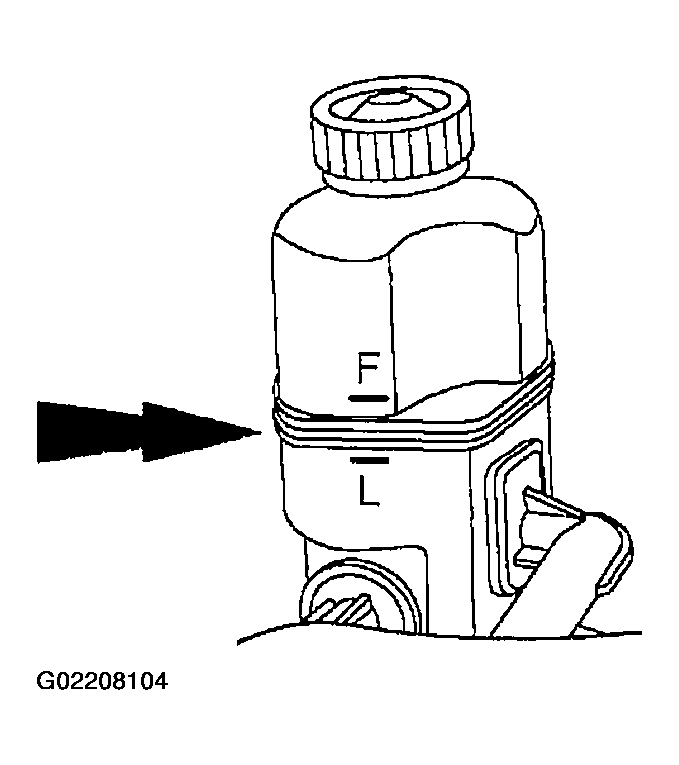

  Fig 4: Identifying Reservoir Minimum And Maximum Level
  Courtesy of FORD MOTOR CO.
Install the ENGINE fuse.

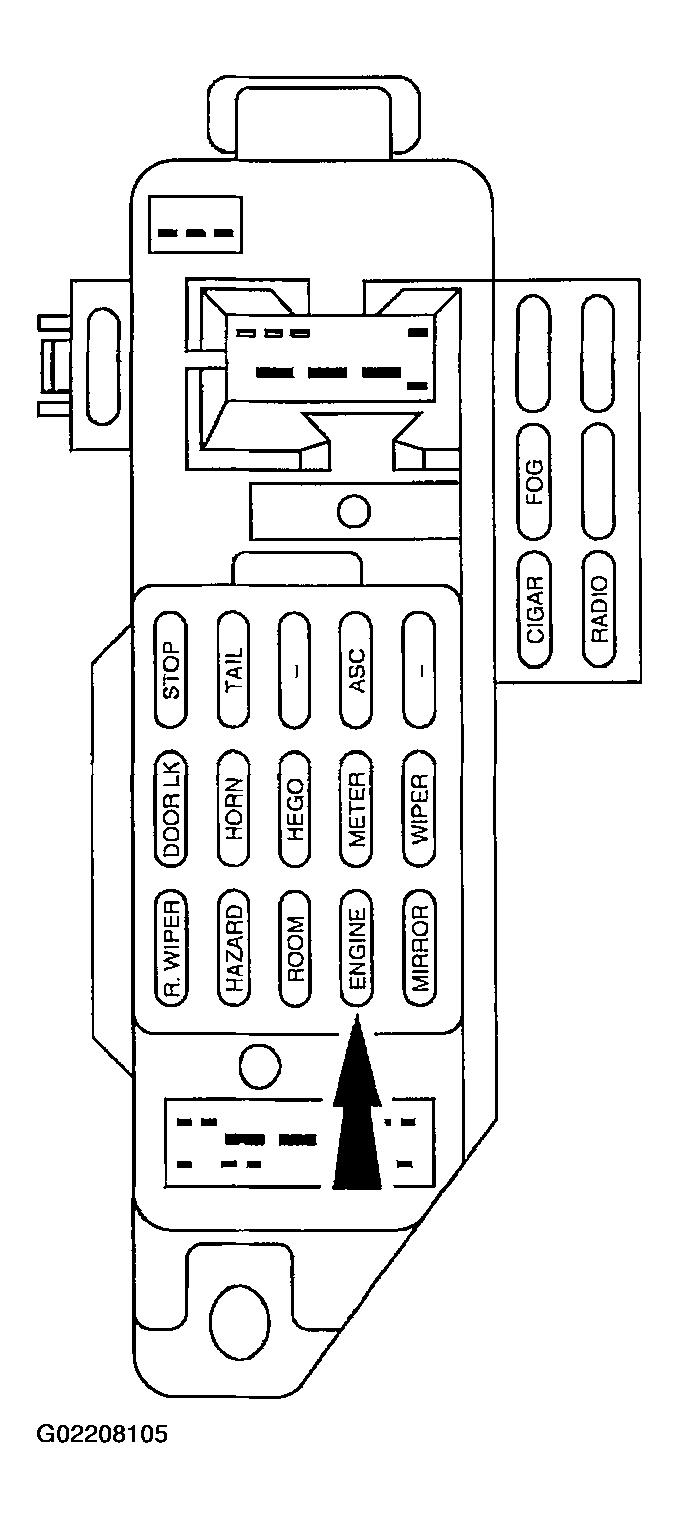

Fig 5: Installing ENGINE Fuse
Courtesy of FORD MOTOR CO.
