Wheel Alignment Specifications

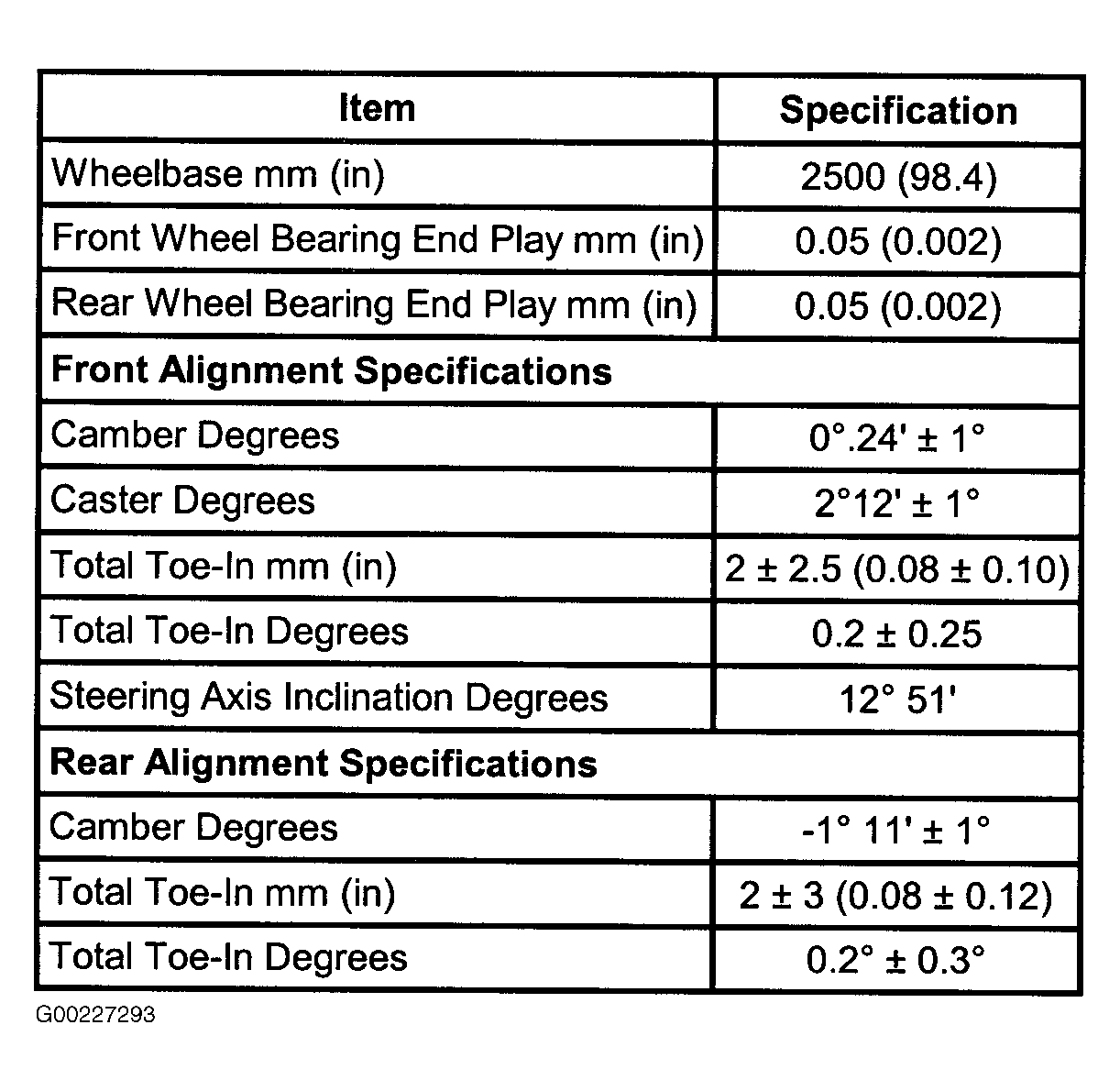

Fig 1: Wheel Alignment Specifications
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
