Automatic Transmission Servicing: Identification: Transaxle

Transaxle is identified by an "E" designation under TR space, on the service identification tag. See Fig 1 . Label is attached to driver-side door jamb, below the latch striker. Assembly and serial number information is on service identification tag attached to transaxle. See Fig 2 .

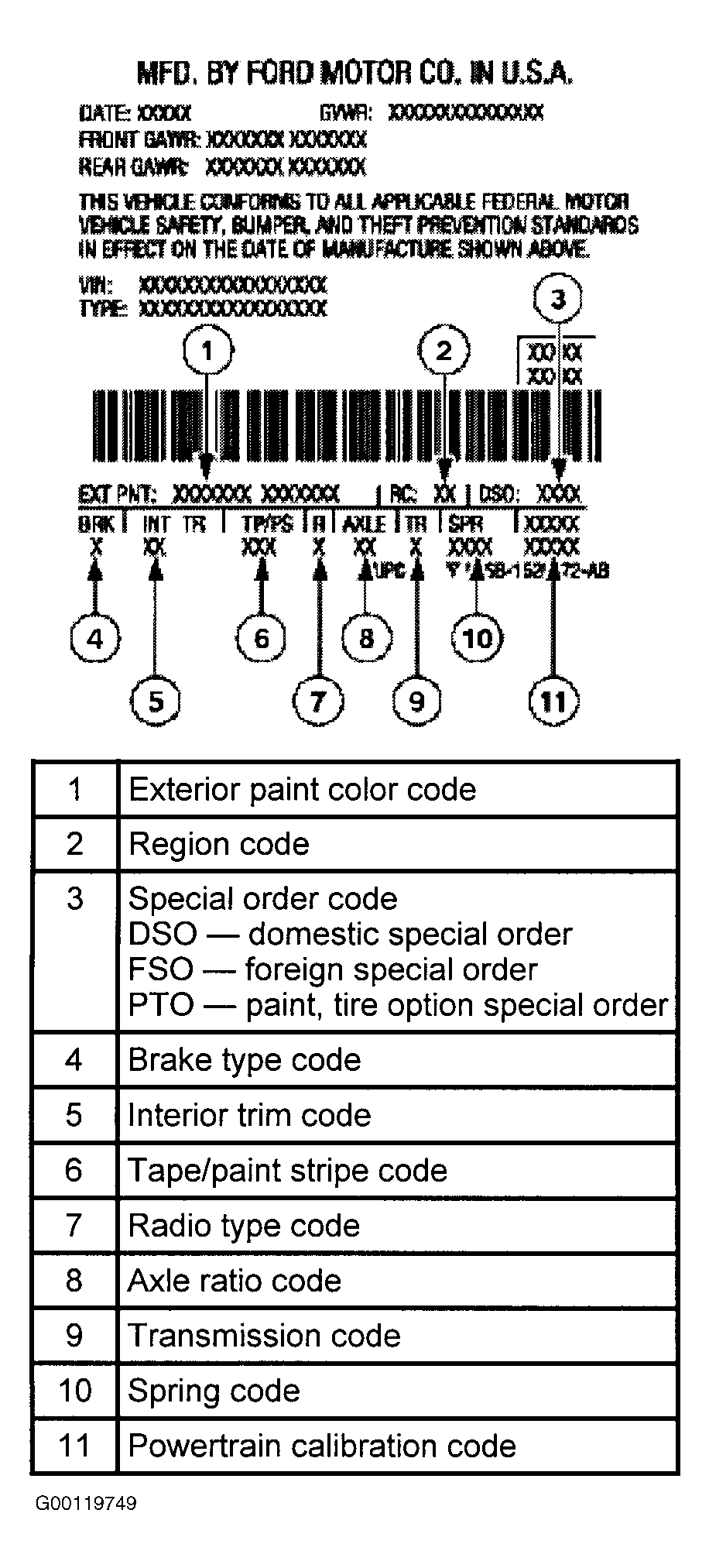

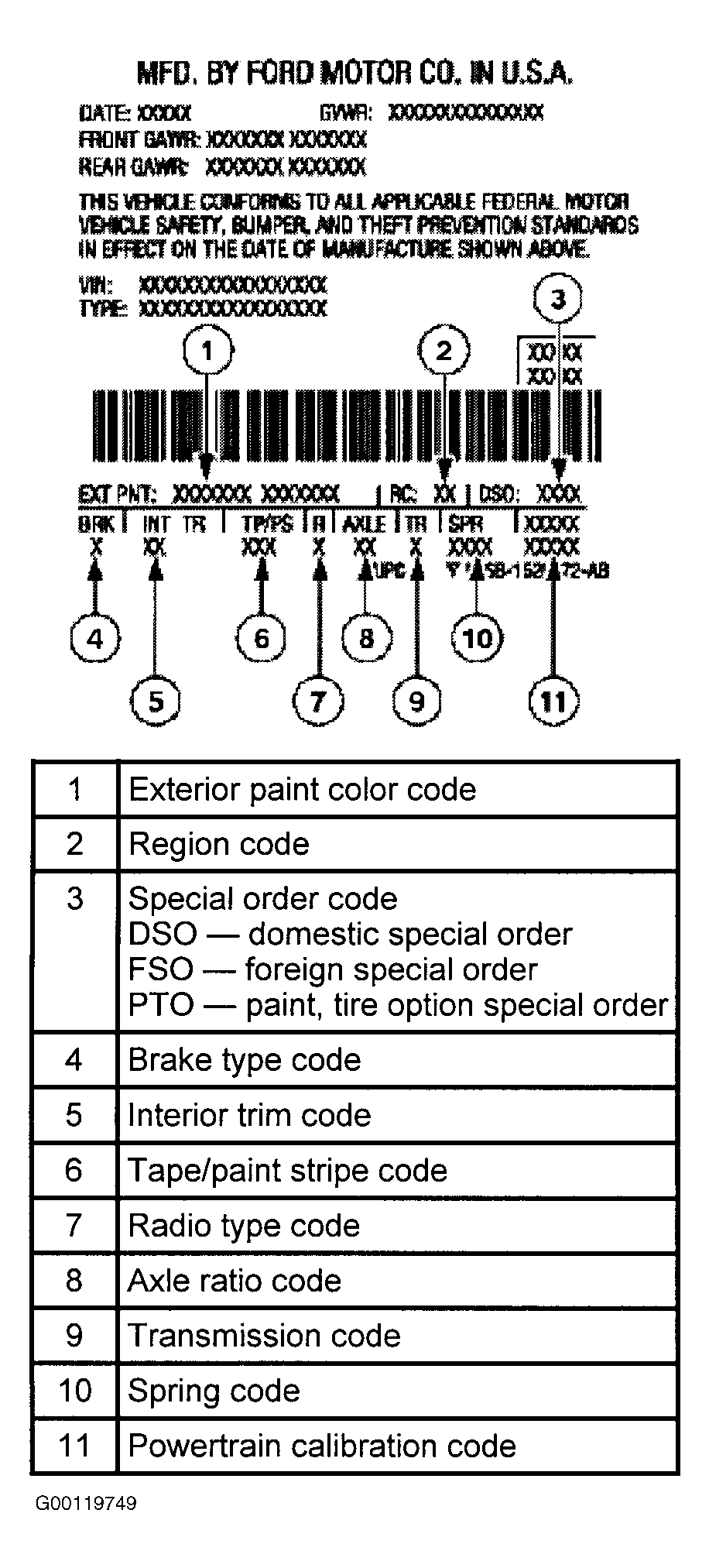

Fig 1: Identifying Service Identification Tag Coding

Courtesy of FORD MOTOR CO.

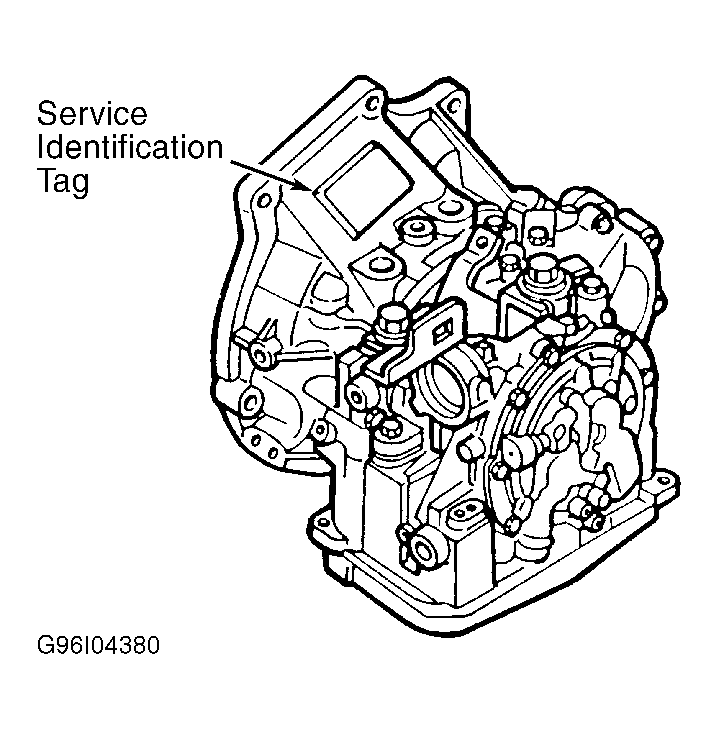

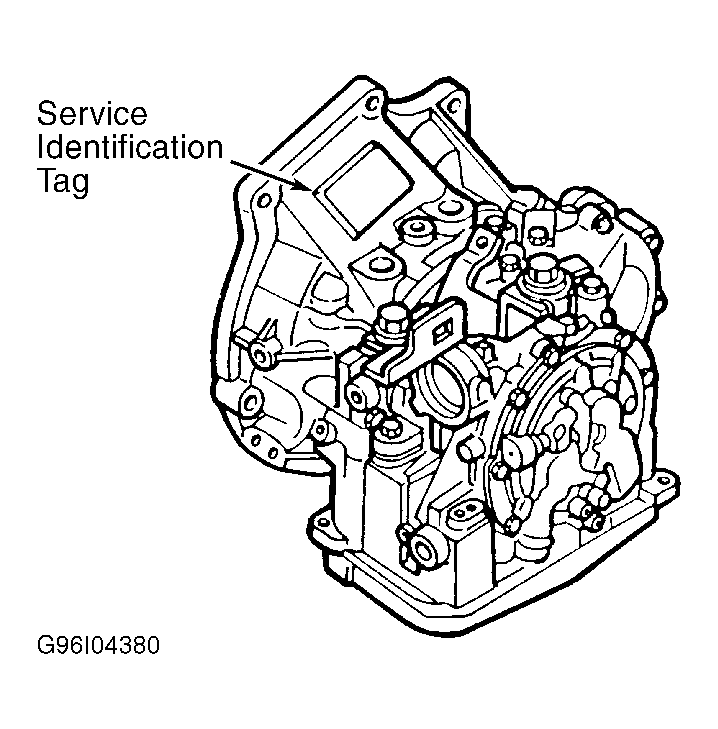

Fig 2: Locating Service Identification Tag

Courtesy of FORD MOTOR CO.
