Pinpoint Test C: DTC C1096 - Pump Motor Open

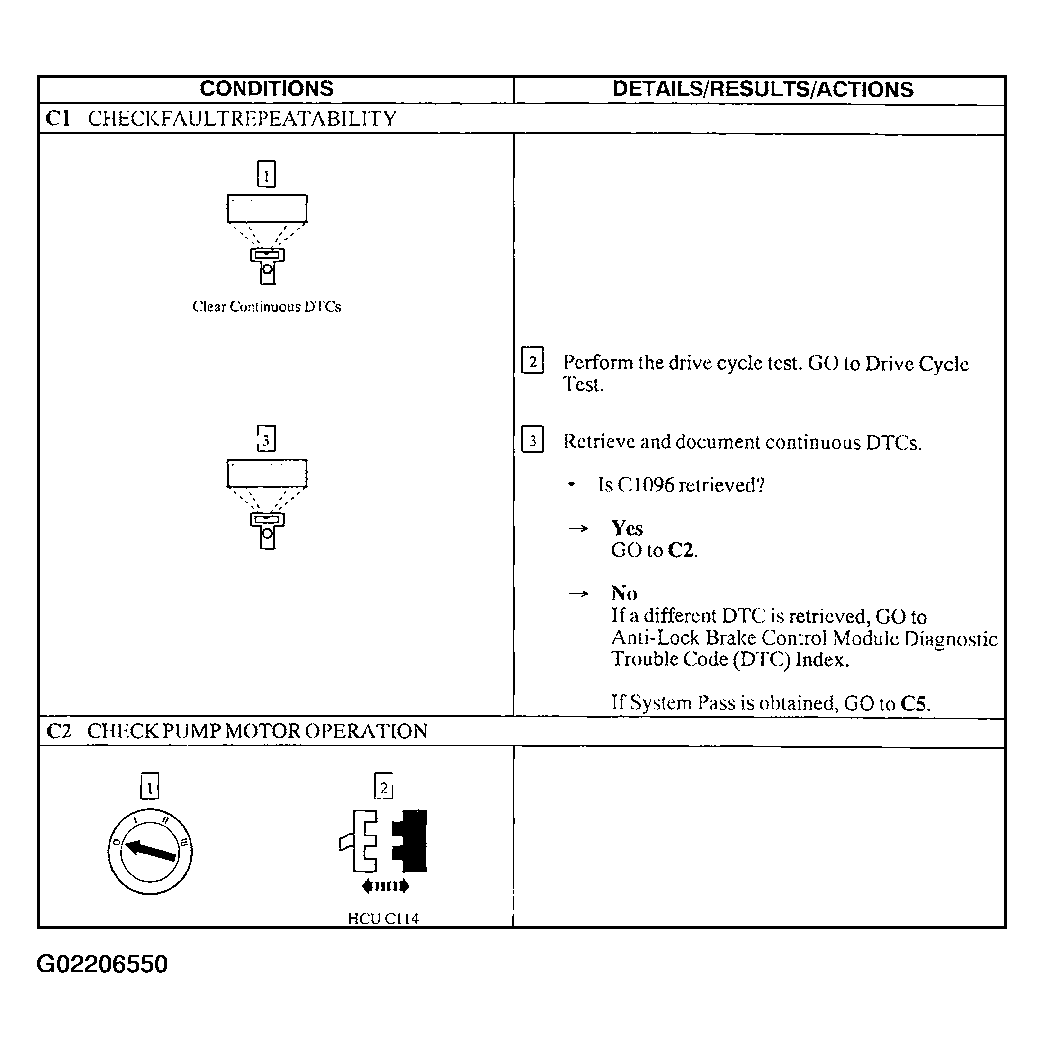

Fig 1: Pinpoint Test C: DTC C1096 - Pump Motor Open (Steps C1 & C2)
G02206550Courtesy of FORD MOTOR CO.

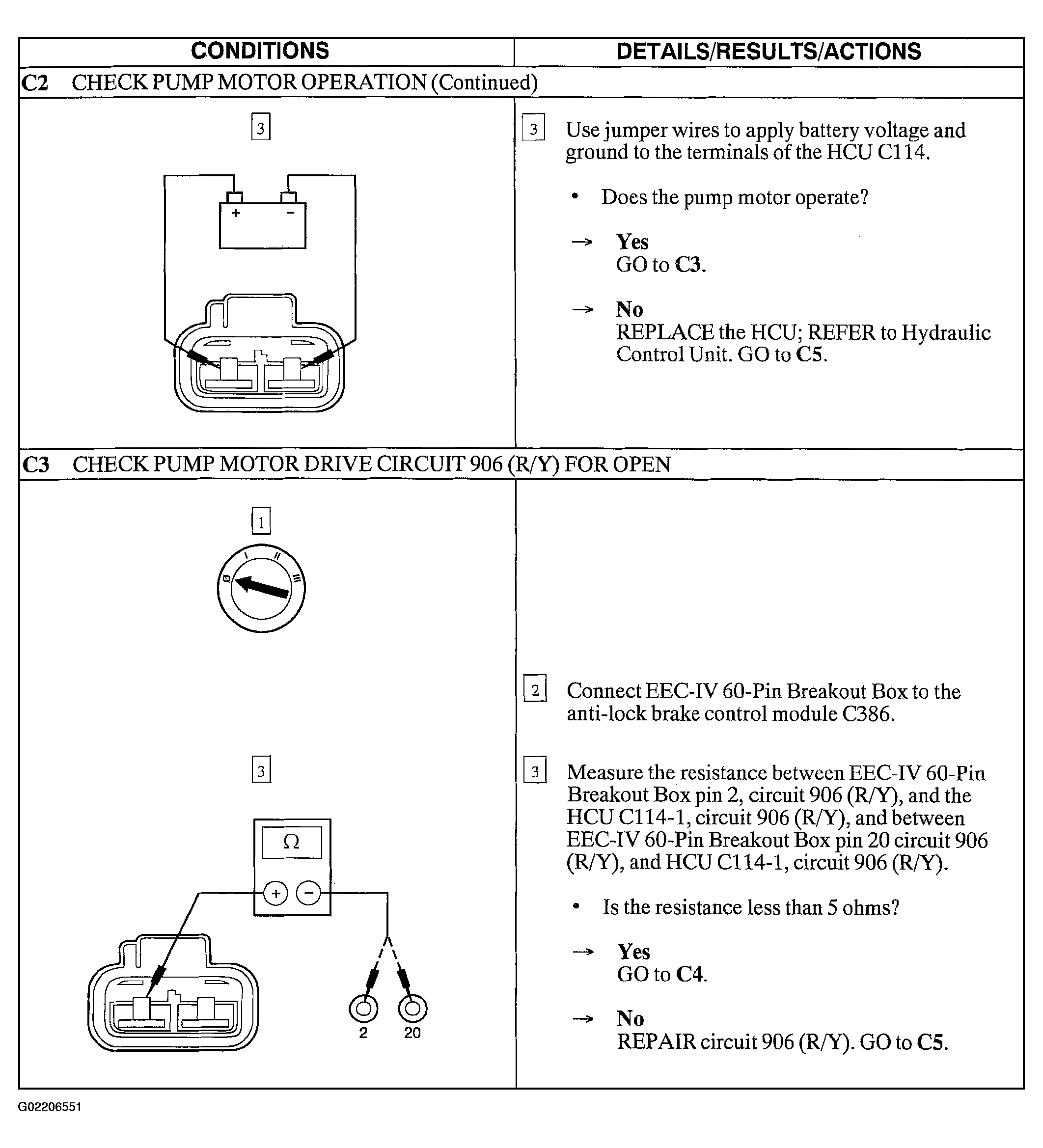

Fig 2: Pinpoint Test C: DTC C1096 - Pump Motor Open (Steps C2 Cont & C3)
G02206551Courtesy of FORD MOTOR CO.

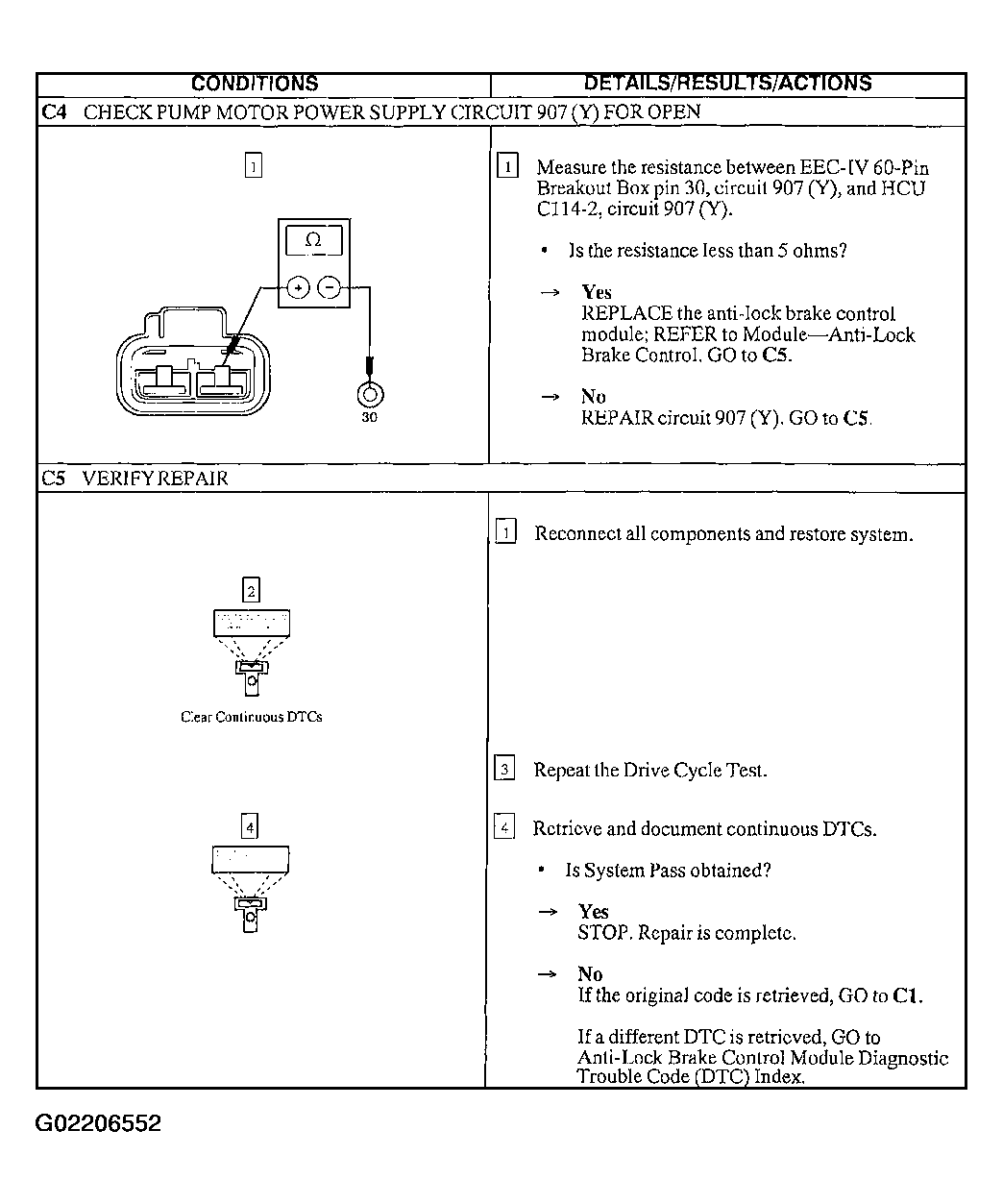

Fig 3: Pinpoint Test C: DTC C1096 - Pump Motor Open (Steps C4 & C5)
G02206552Courtesy of FORD MOTOR CO.
