Symptom Chart

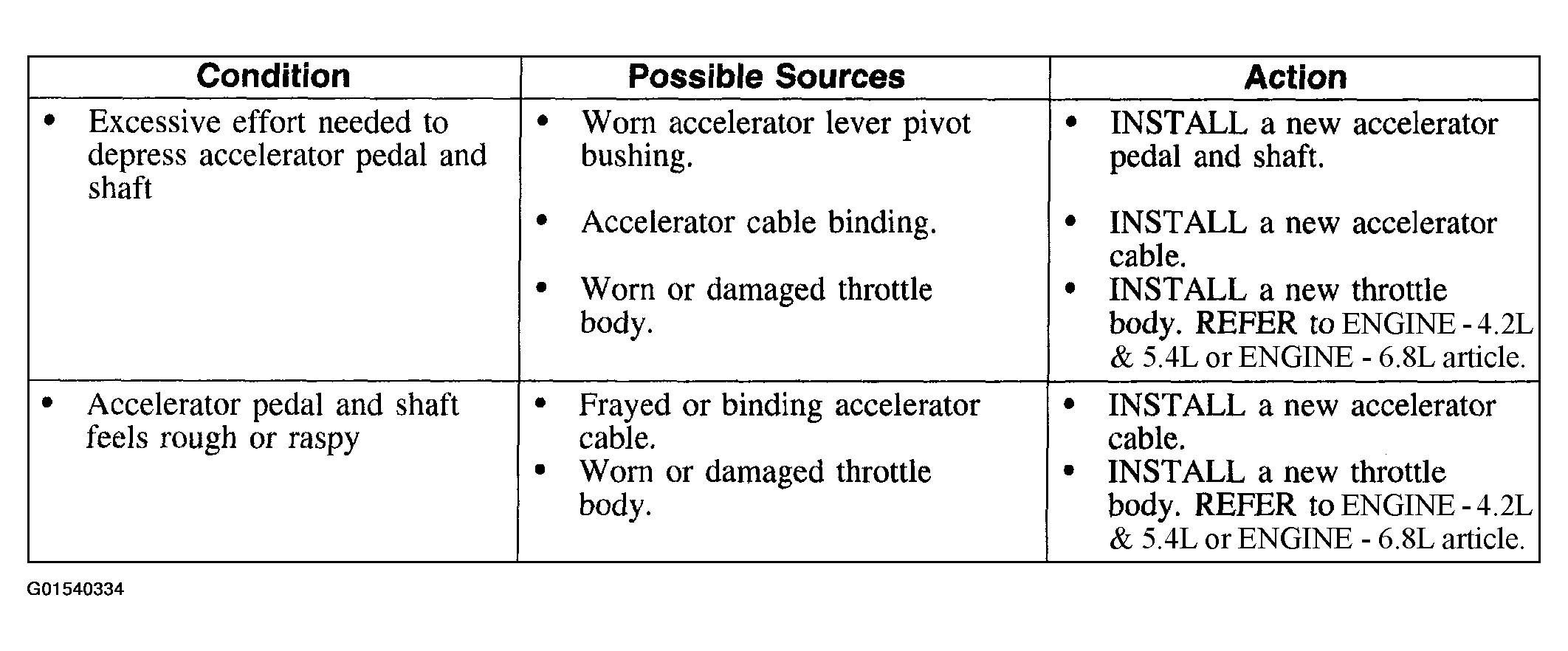

Fig 1: Identifying Symptom Chart (1 Of 2)
G01540334Courtesy of FORD MOTOR CO.

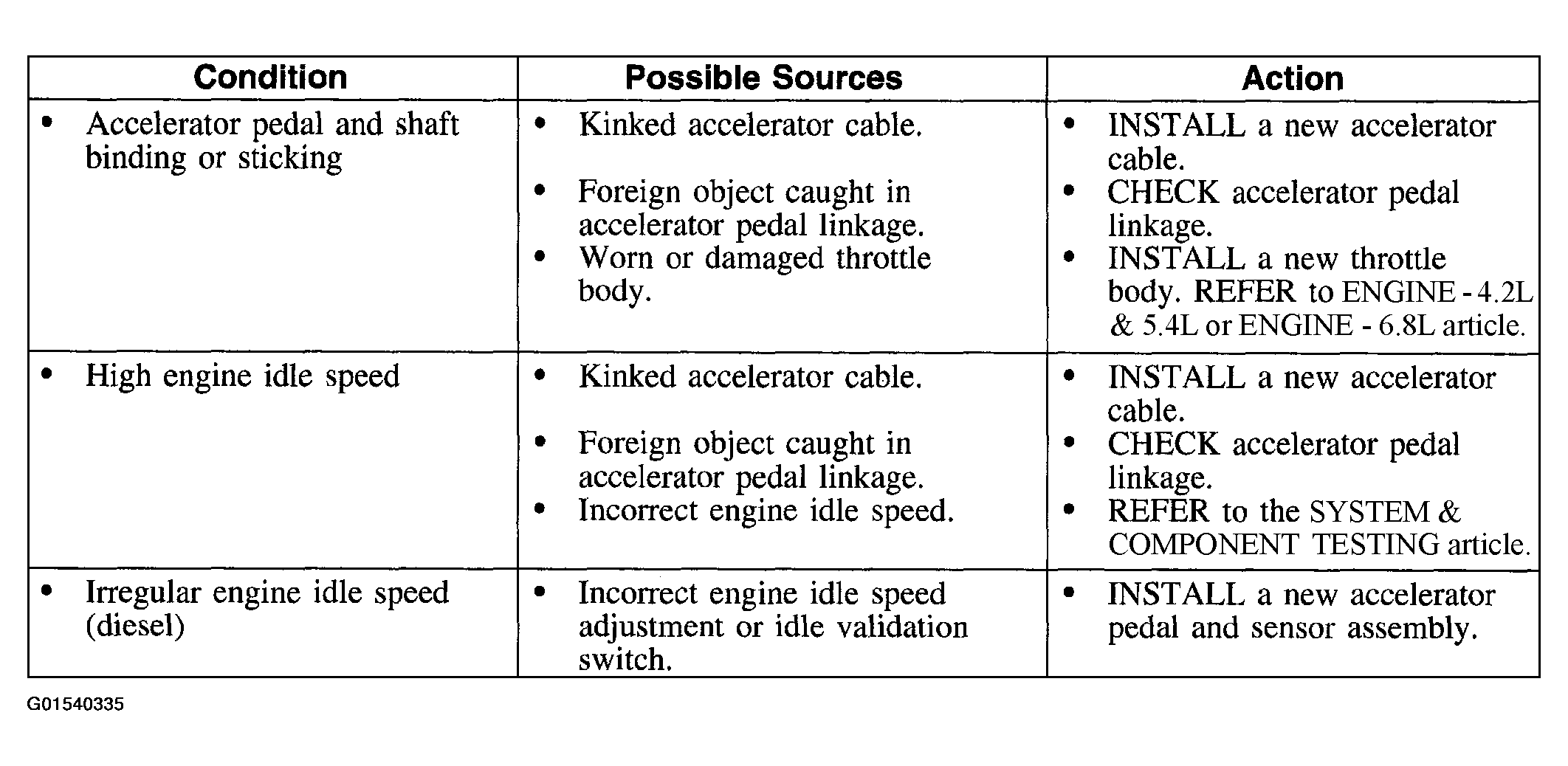

Fig 2: Identifying Symptom Chart (2 Of 2)
G01540335Courtesy of FORD MOTOR CO.
