Symptom Chart

If a concern exists, visually inspect all components of the accelerator pedal and shaft. Look for damage or binding of the accelerator cable. Look for obstructions at the throttle body and accelerator pedal and shaft.

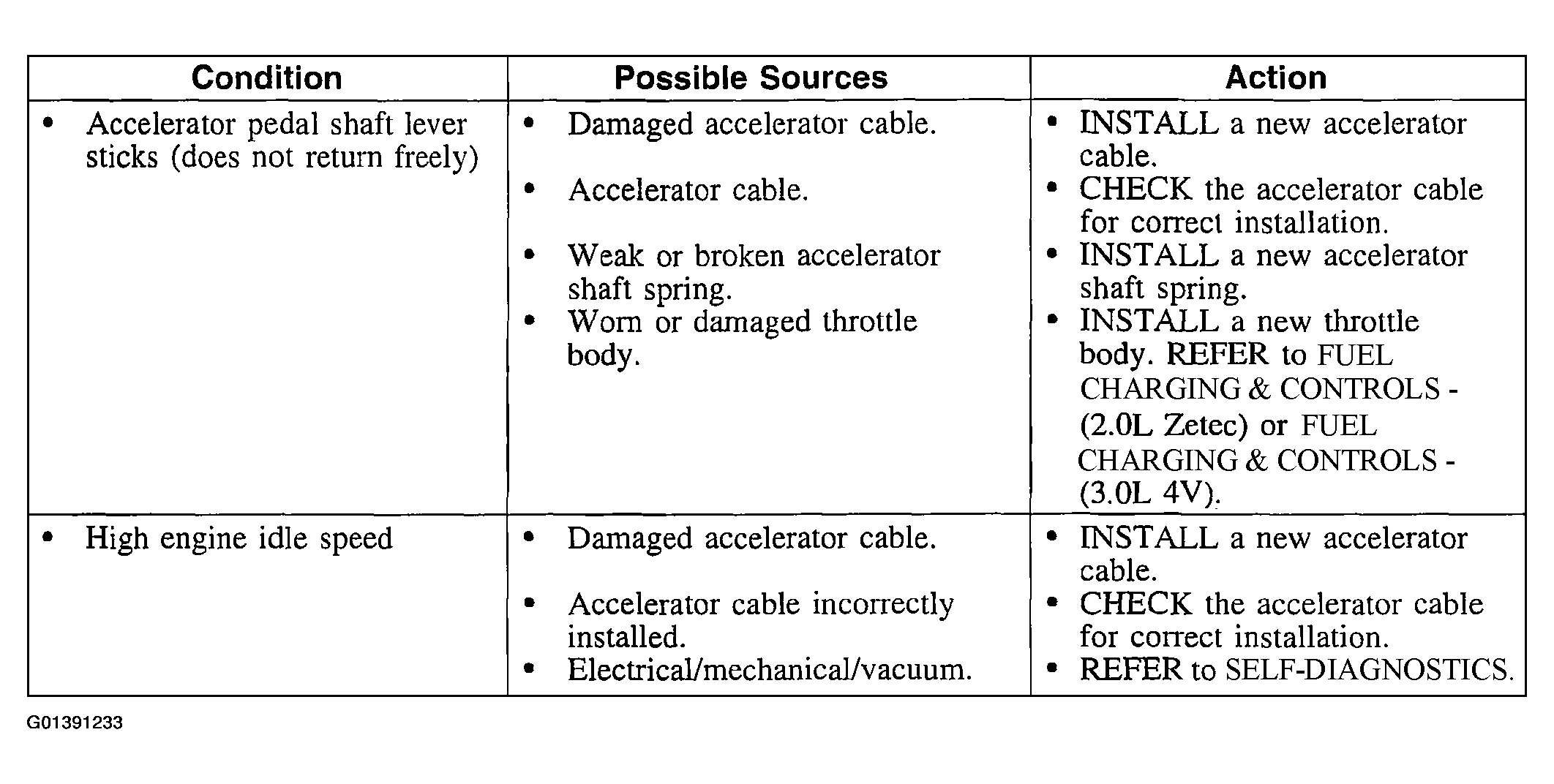

Fig 1: Symptom Diagnosis And Testing Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

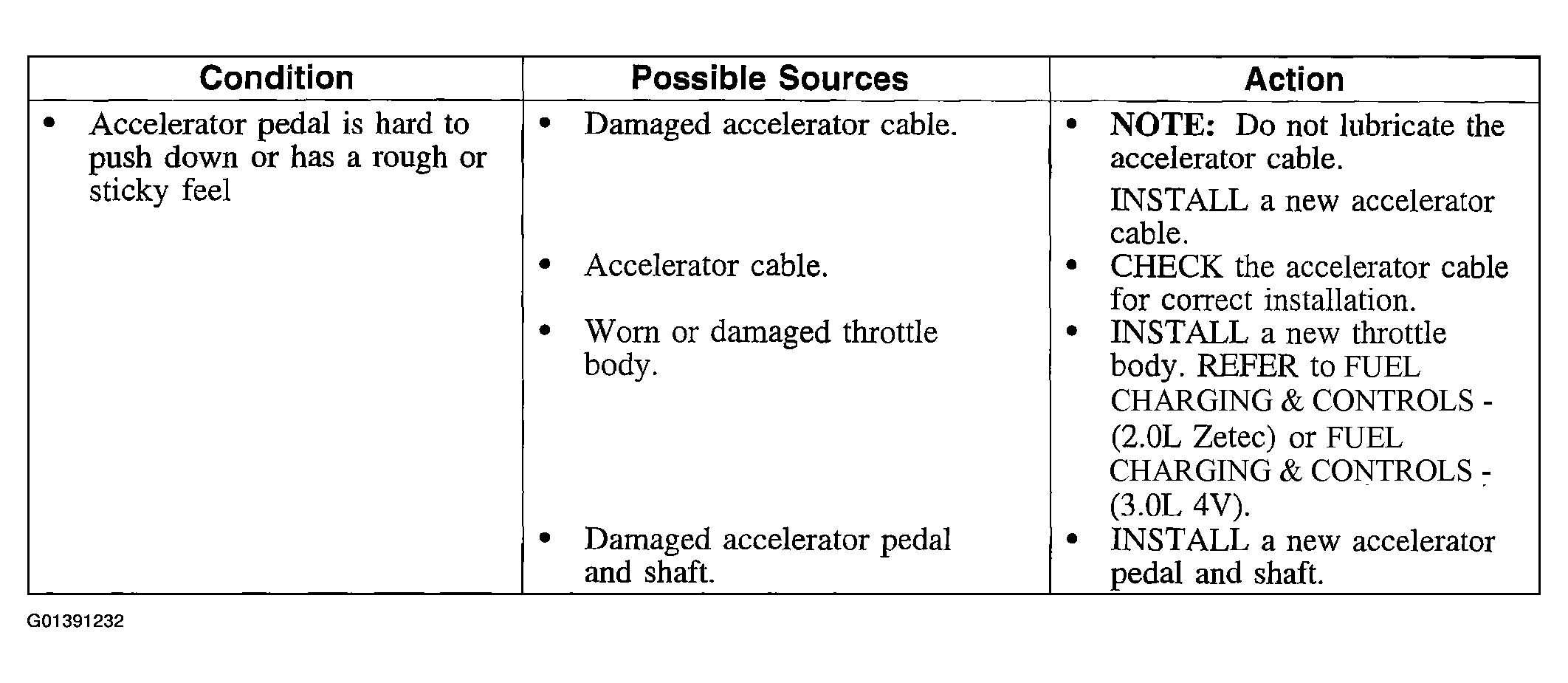

Fig 2: Symptom Diagnosis And Testing Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
