Keyless Entry Key-Pad: Service and Repair

KEYLESS ENTRY KEYPAD

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the front door trim panel.
3. Position the watershield aside.
4. Disconnect the keypad electrical connector.
- Release the harness pin-type retainers.

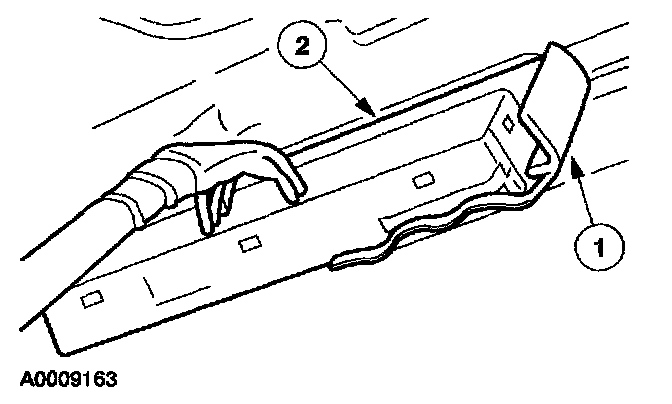

5. Remove the keyless entry keypad and harness.
1 Remove the clip.
2 Remove the keyless entry keypad and harness.

INSTALLATION
1. To install, reverse the removal procedure.
