Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL
1. Turn the ignition switch to the OFF position.

CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

2. Partially drain the cooling system.

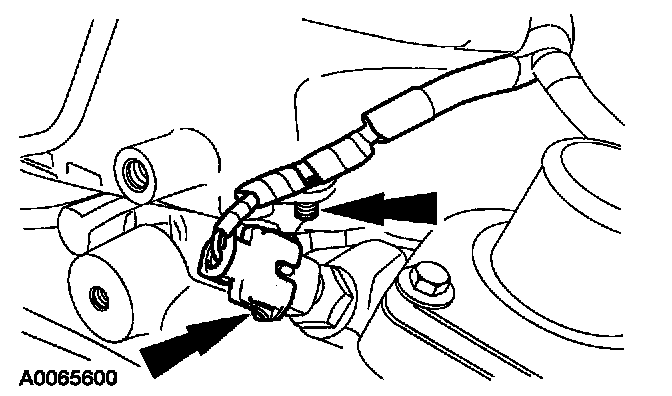

3. Disconnect the Engine Coolant Temperature (ECT) electrical connector.







4. Remove the engine coolant temperature (ECT) sensor.

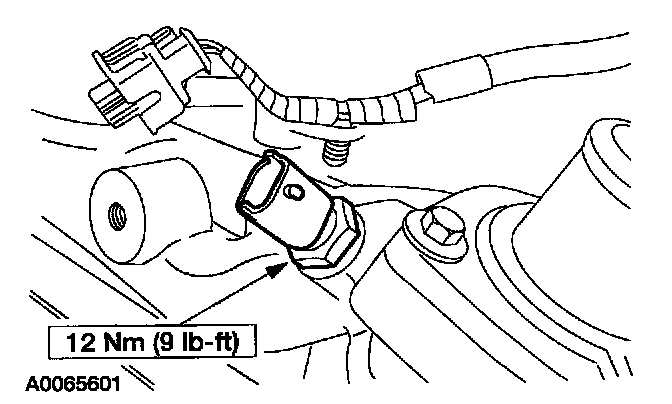

INSTALLATION
1. To install, reverse the removal procedure.
