Engine Control Module: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Always disconnect the battery ground cable prior to working on the electronic engine controls.

2. Remove the driver side battery.

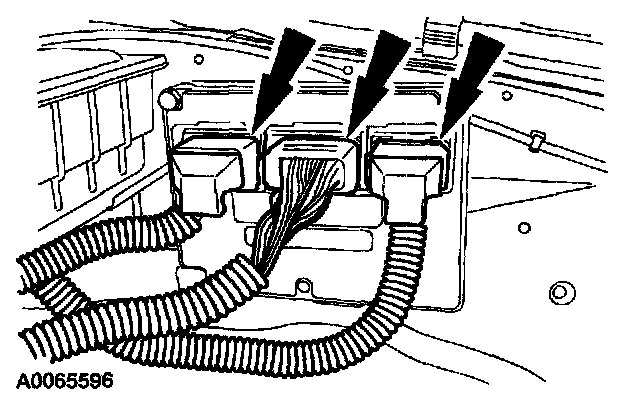

3. Disconnect the Powertrain Control Module (PCM) electrical connectors.

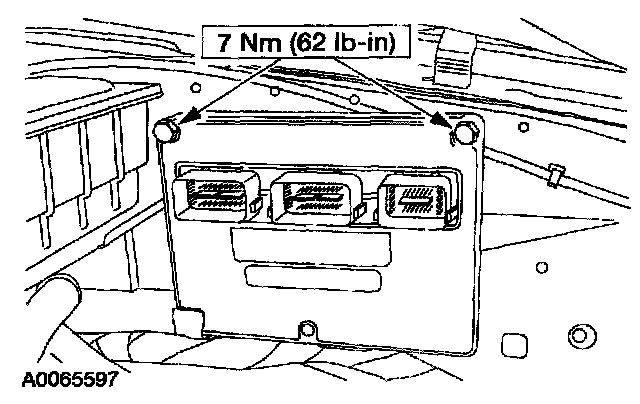

4. Remove the bolts and PCM.

INSTALLATION
1. To install, reverse the removal procedure.
