Torque Specifications

Torque Specifications

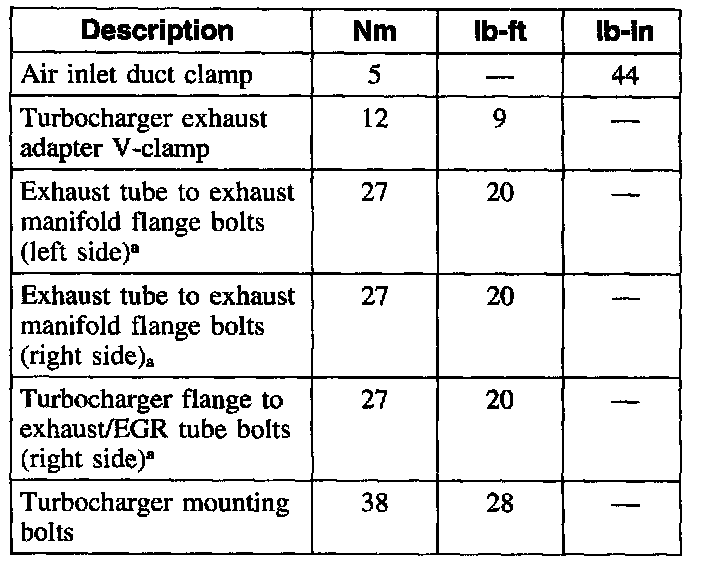

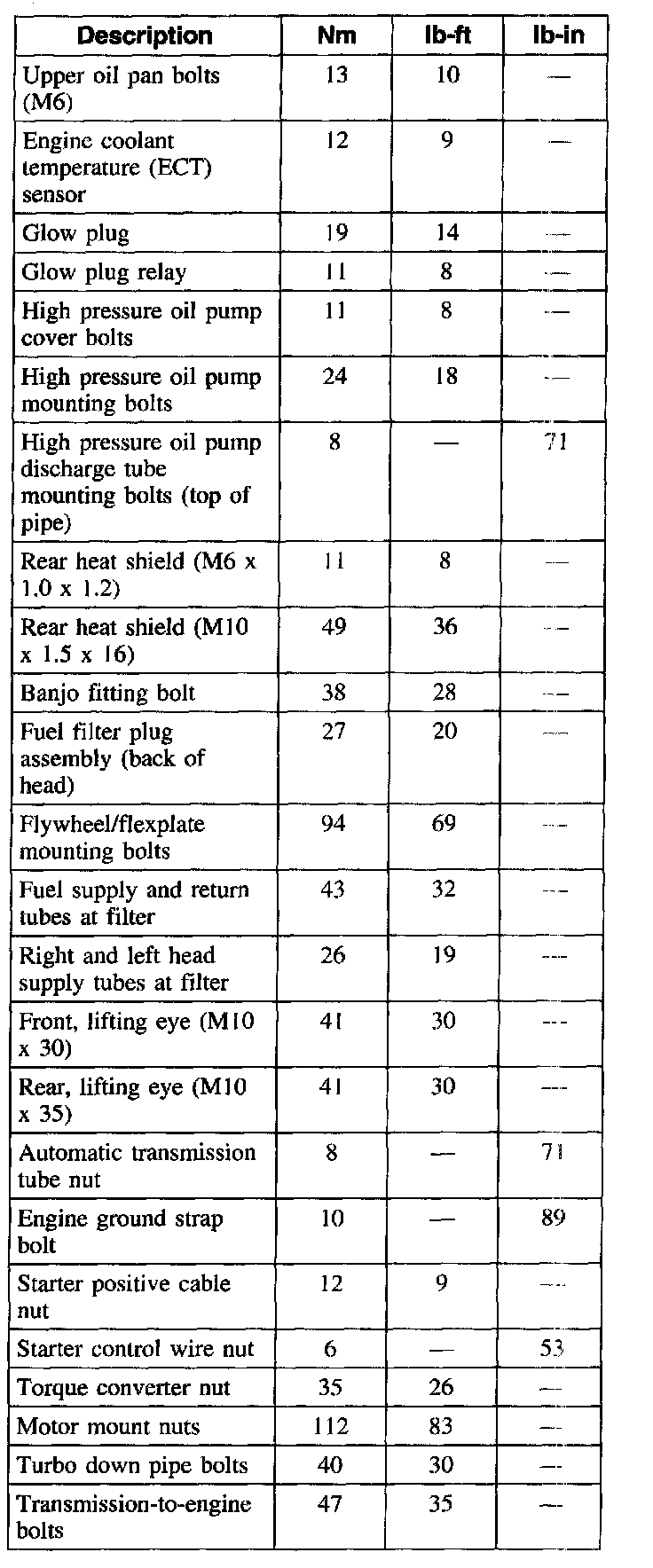

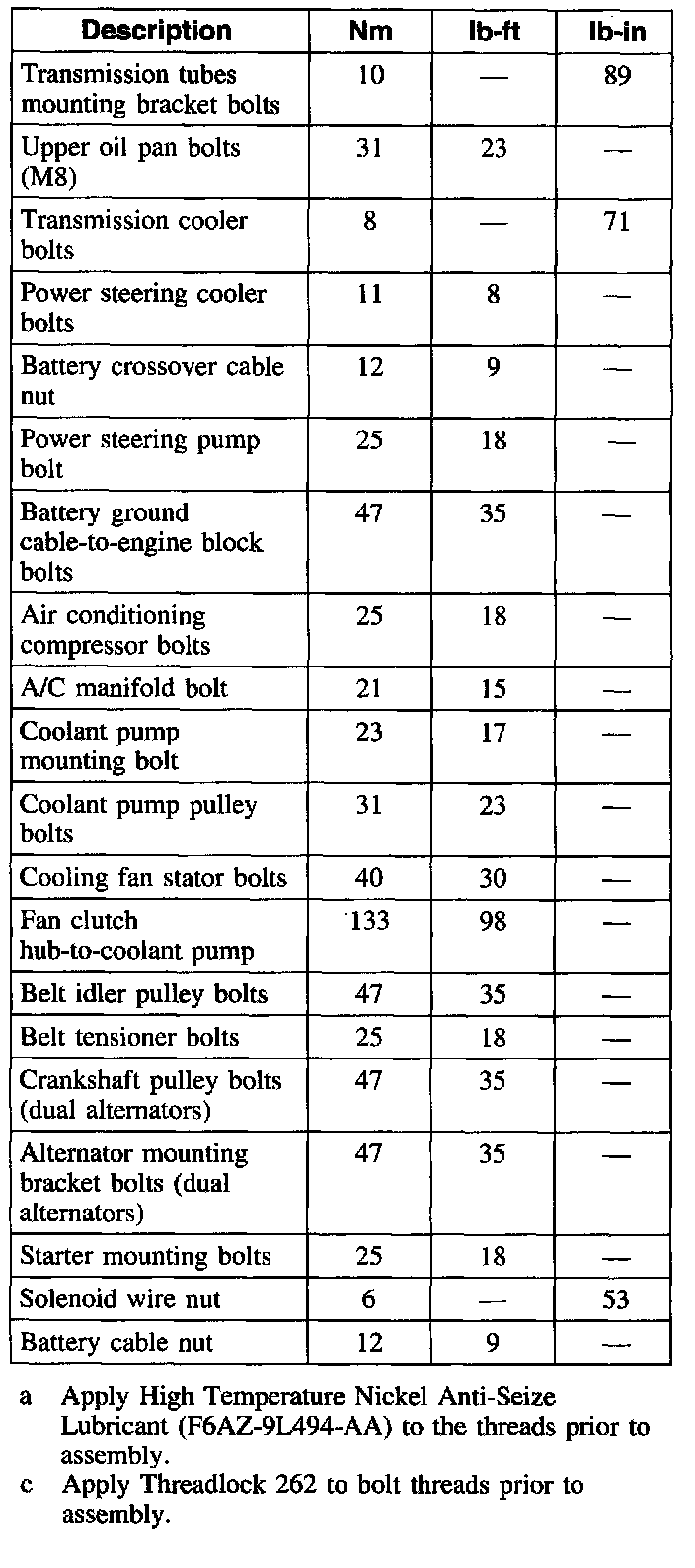

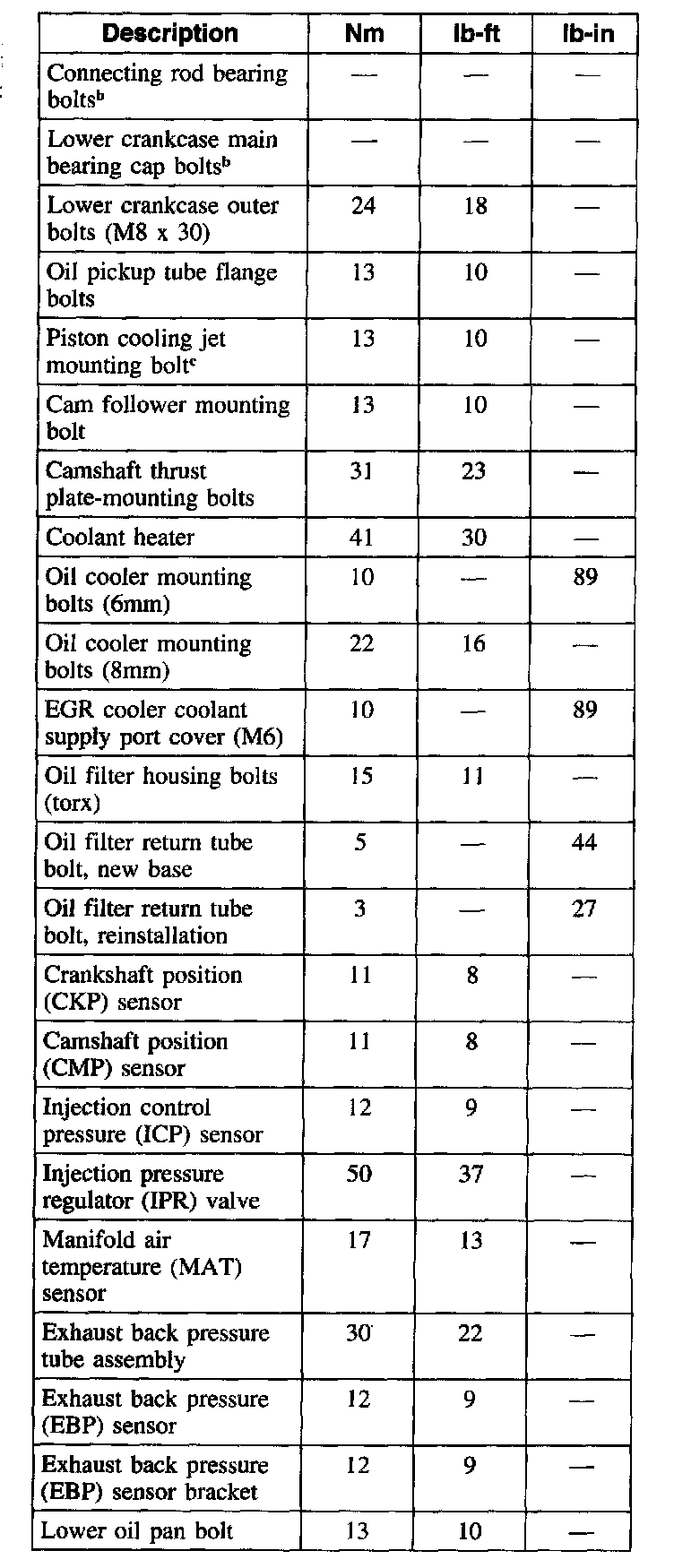

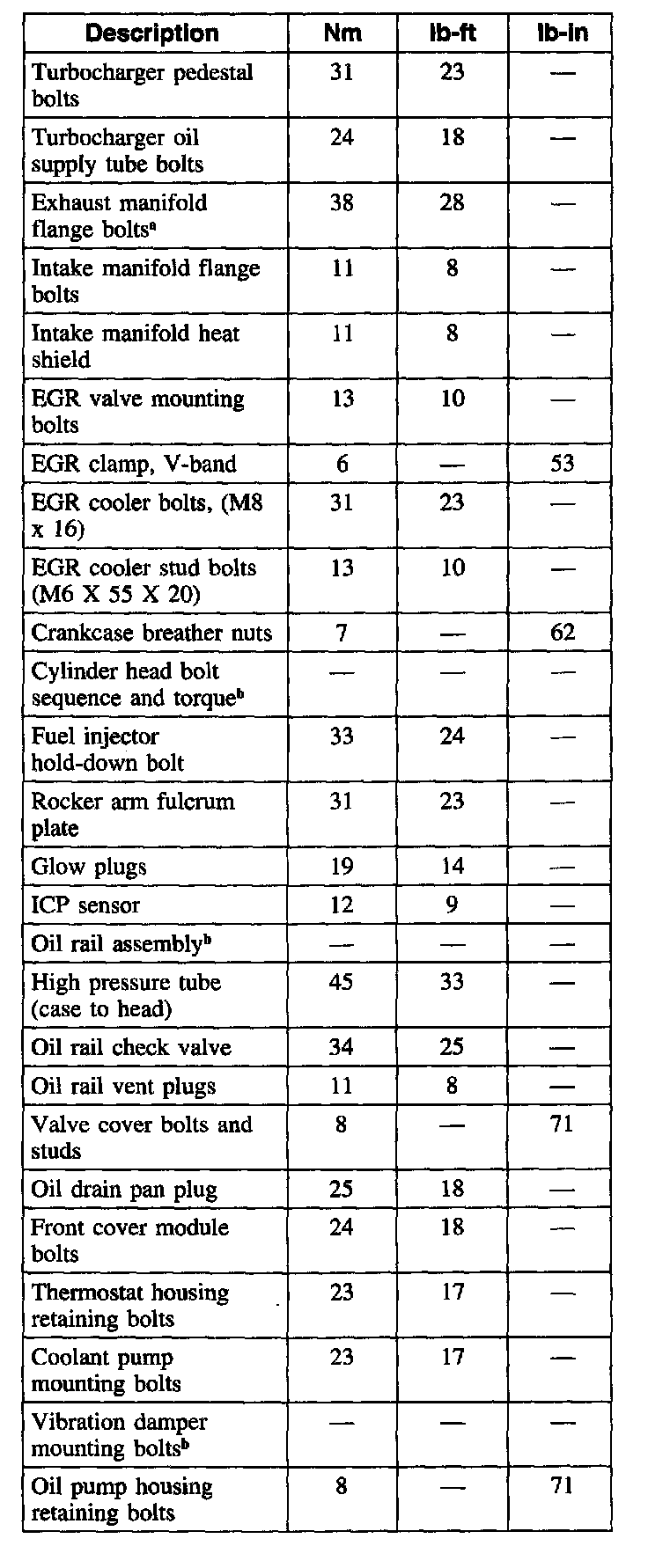

Part 1 Of 5:




Part 2 Of 5:




Part 3 Of 5:




Part 4 Of 5:




Part 5 Of 5:

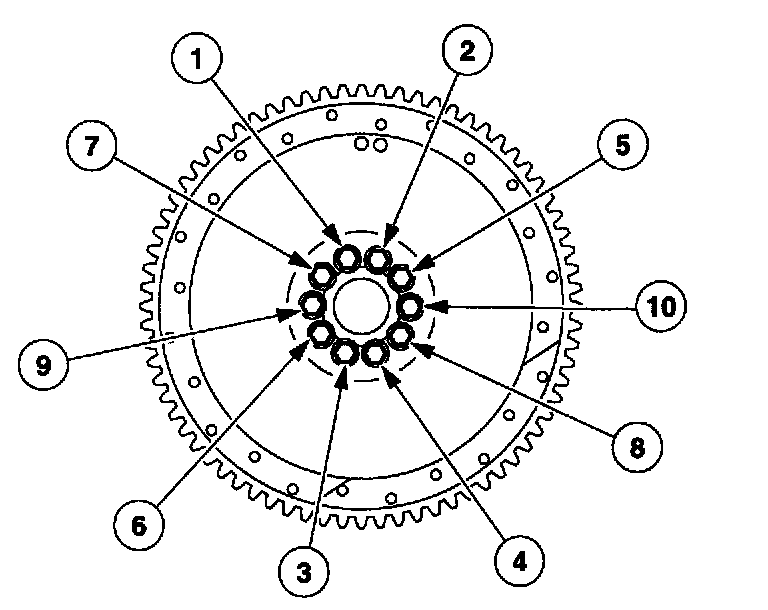

Flexplate/Flywheel 94 Nm (69 ft. lbs.)

Left Side:




Right Side:

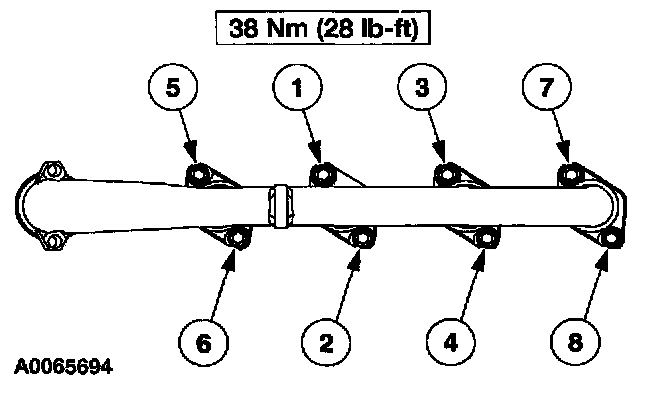

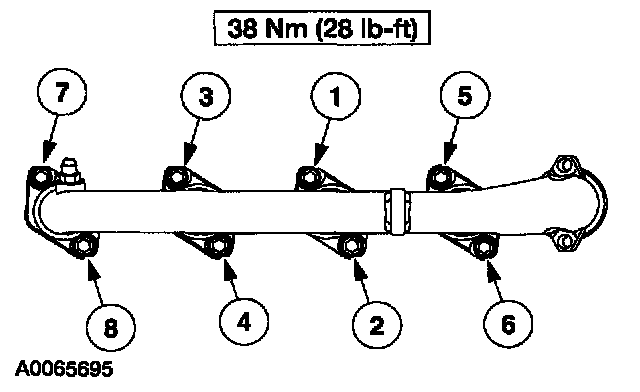

Exhaust Manifolds
