Diagnostic Tool Message Index

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

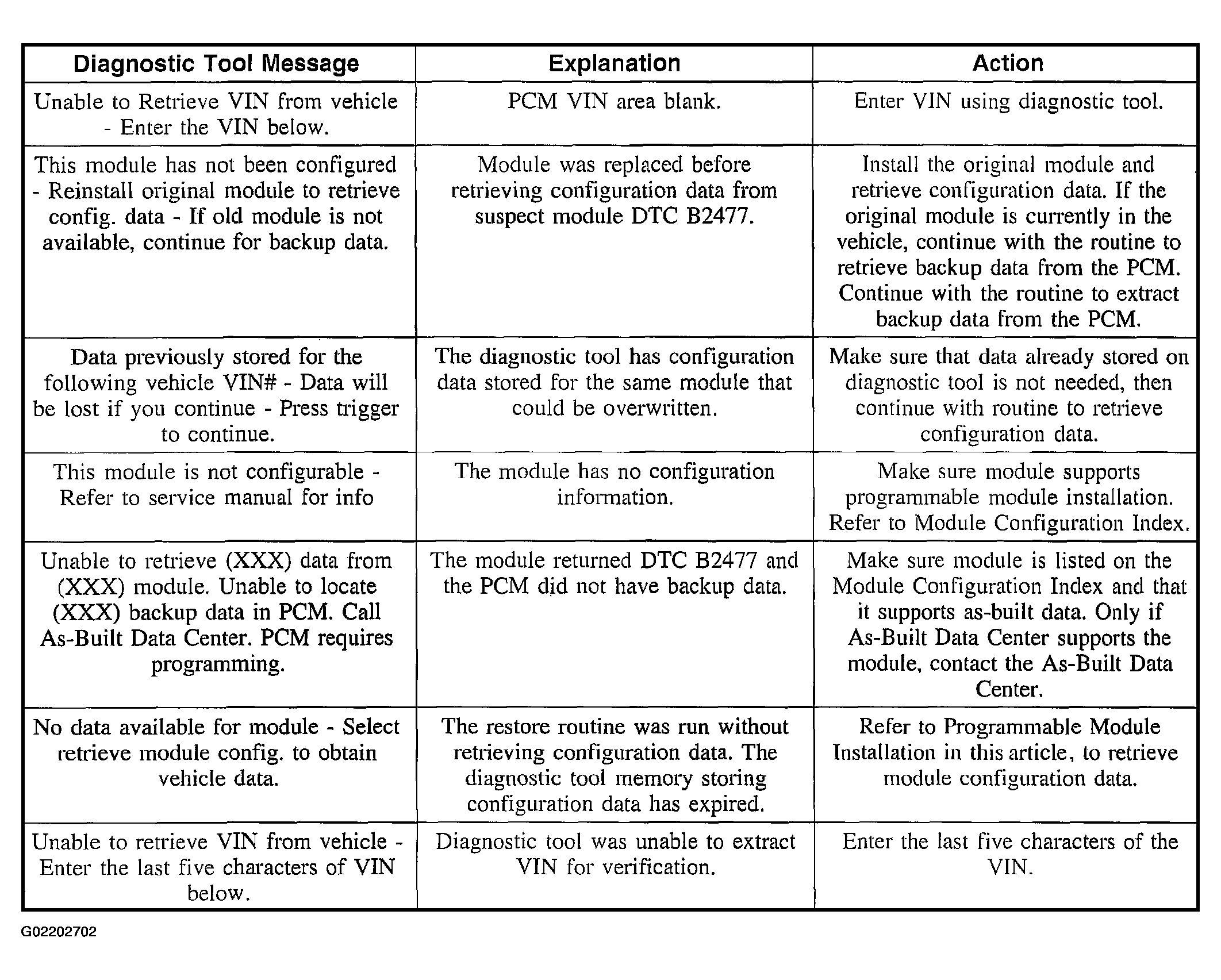

Fig 1: Diagnostic Tool Message Index (Steps 1-2)
G02202702Courtesy of FORD MOTOR CO.

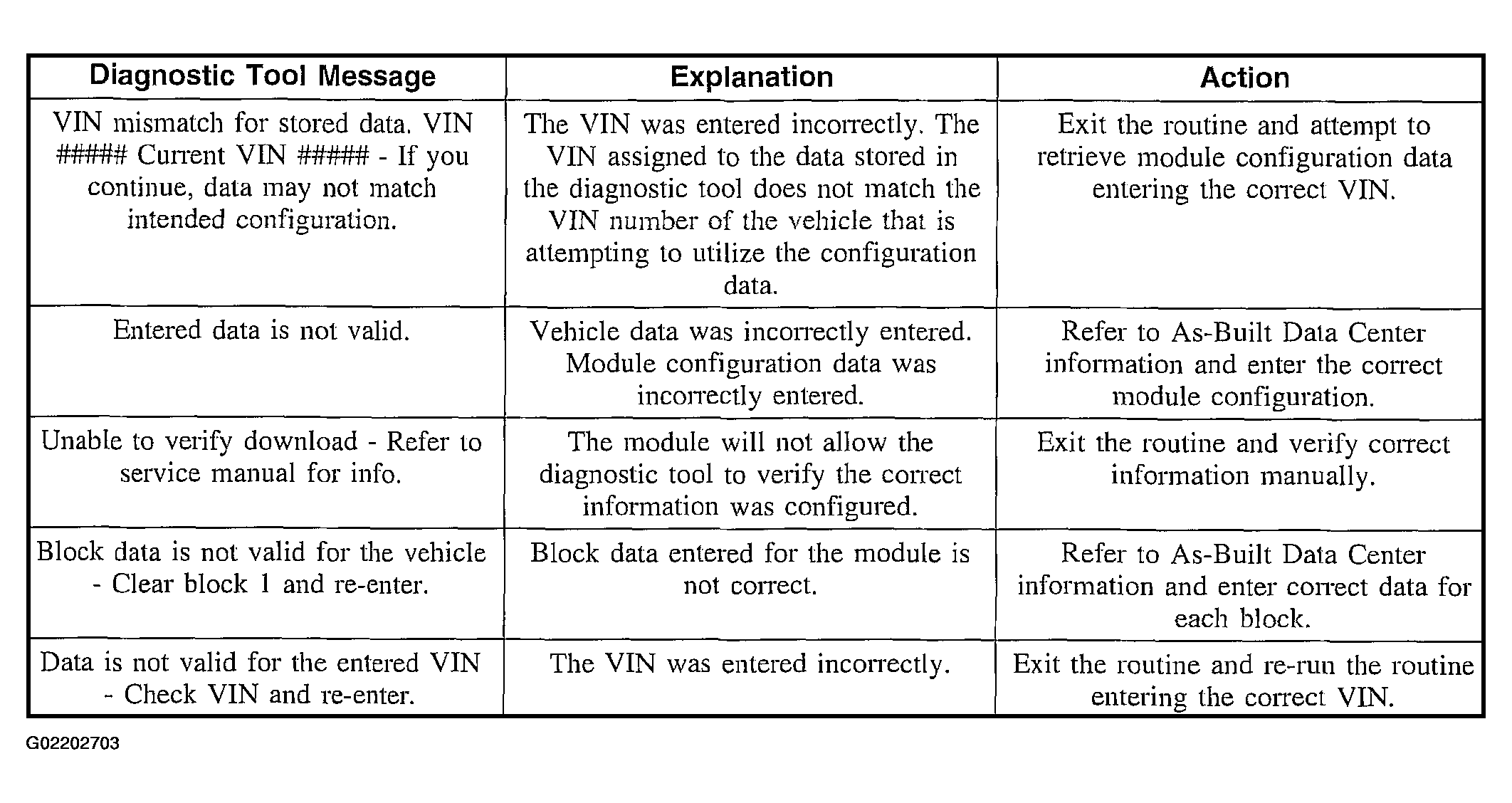

Fig 2: Diagnostic Tool Message Index (Steps 2-2)
G02202703Courtesy of FORD MOTOR CO.
