Pinpoint Test A: Unable To Configure The New Module
WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

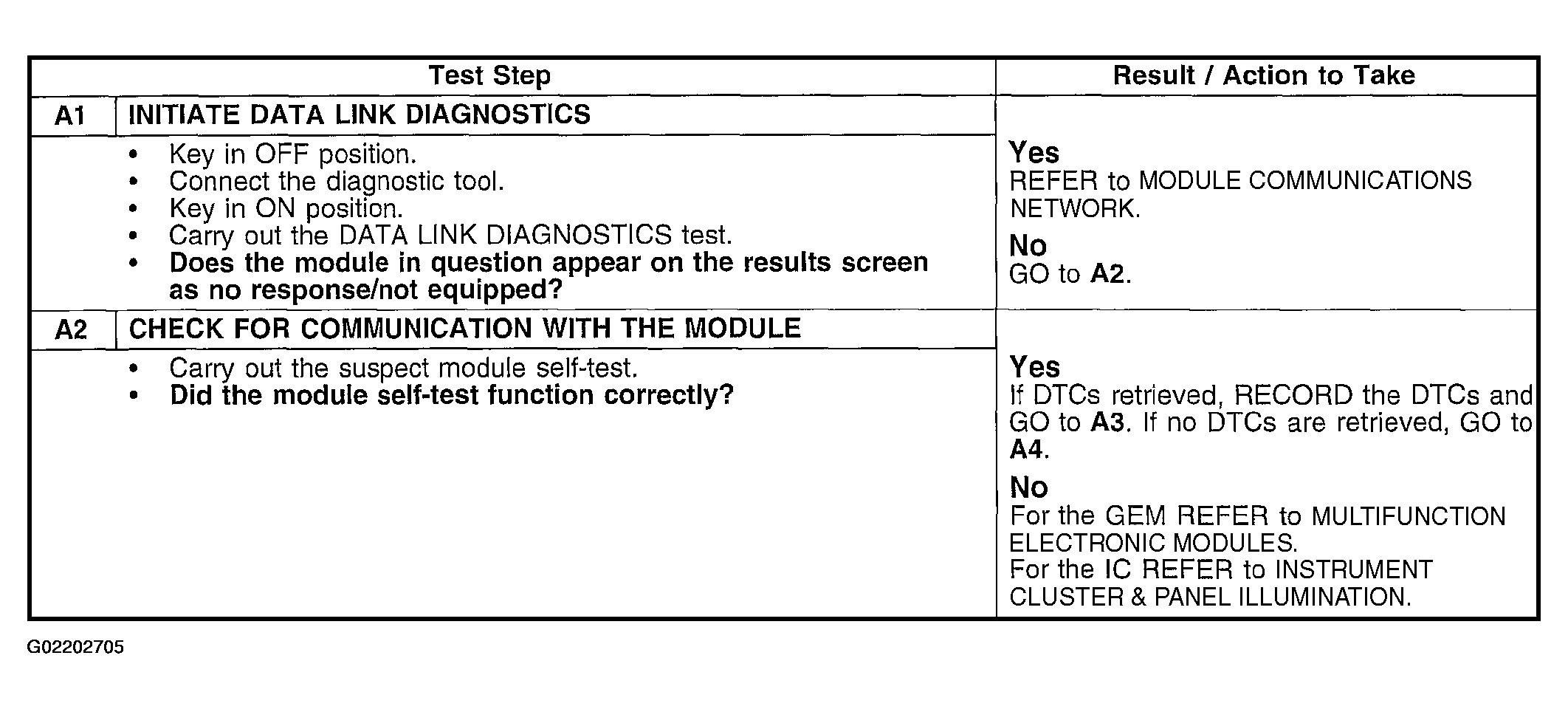

Fig 1: Pinpoint Test A: Unable To Configure New Module (Steps A1-A2)
Courtesy of FORD MOTOR CO.

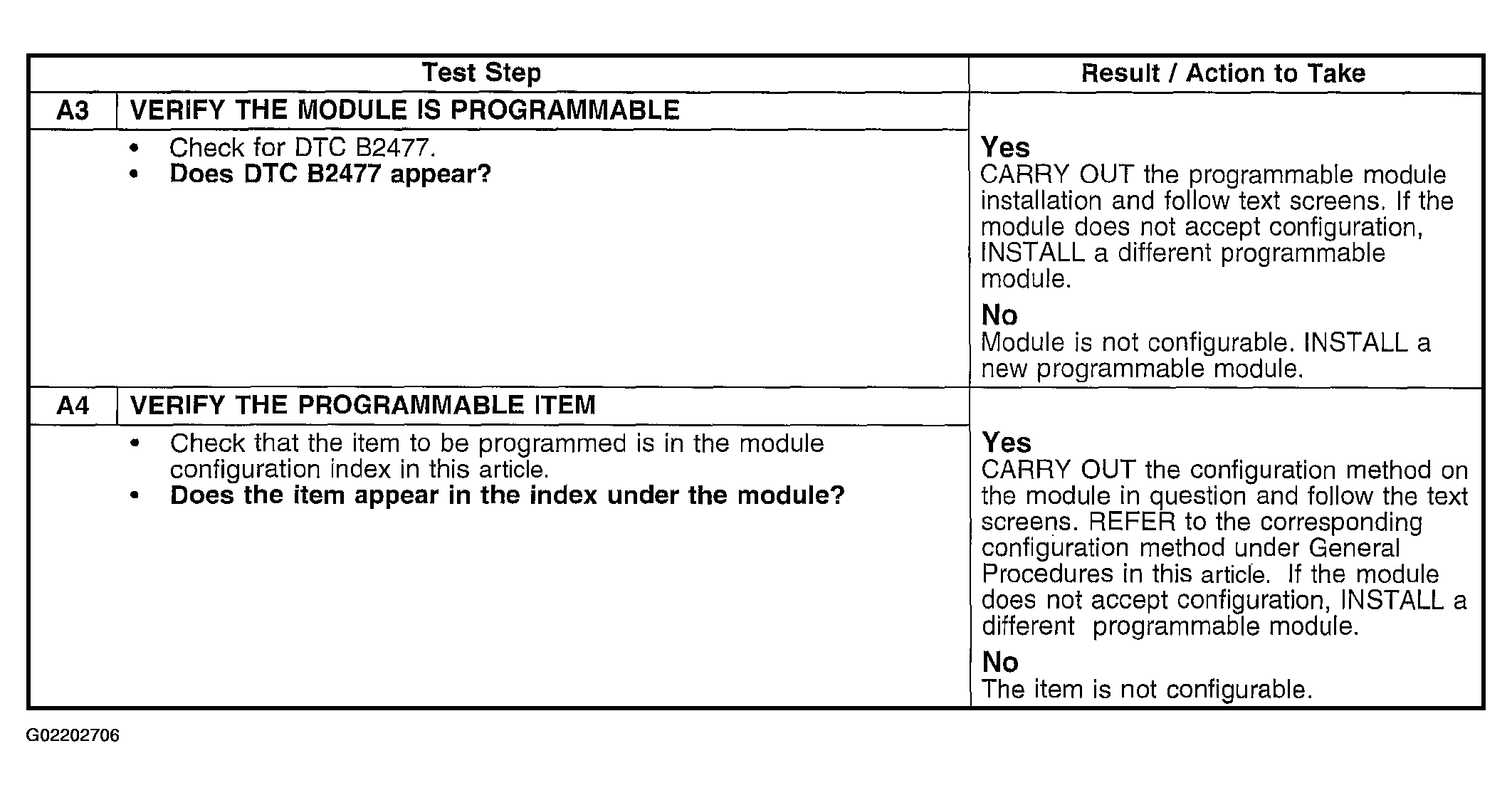

Fig 2: Pinpoint Test A: Unable To Configure New Module (Steps A3-A4)
