Pinpoint Test H: Red Brake Warning Indicator Does Not Self-Check

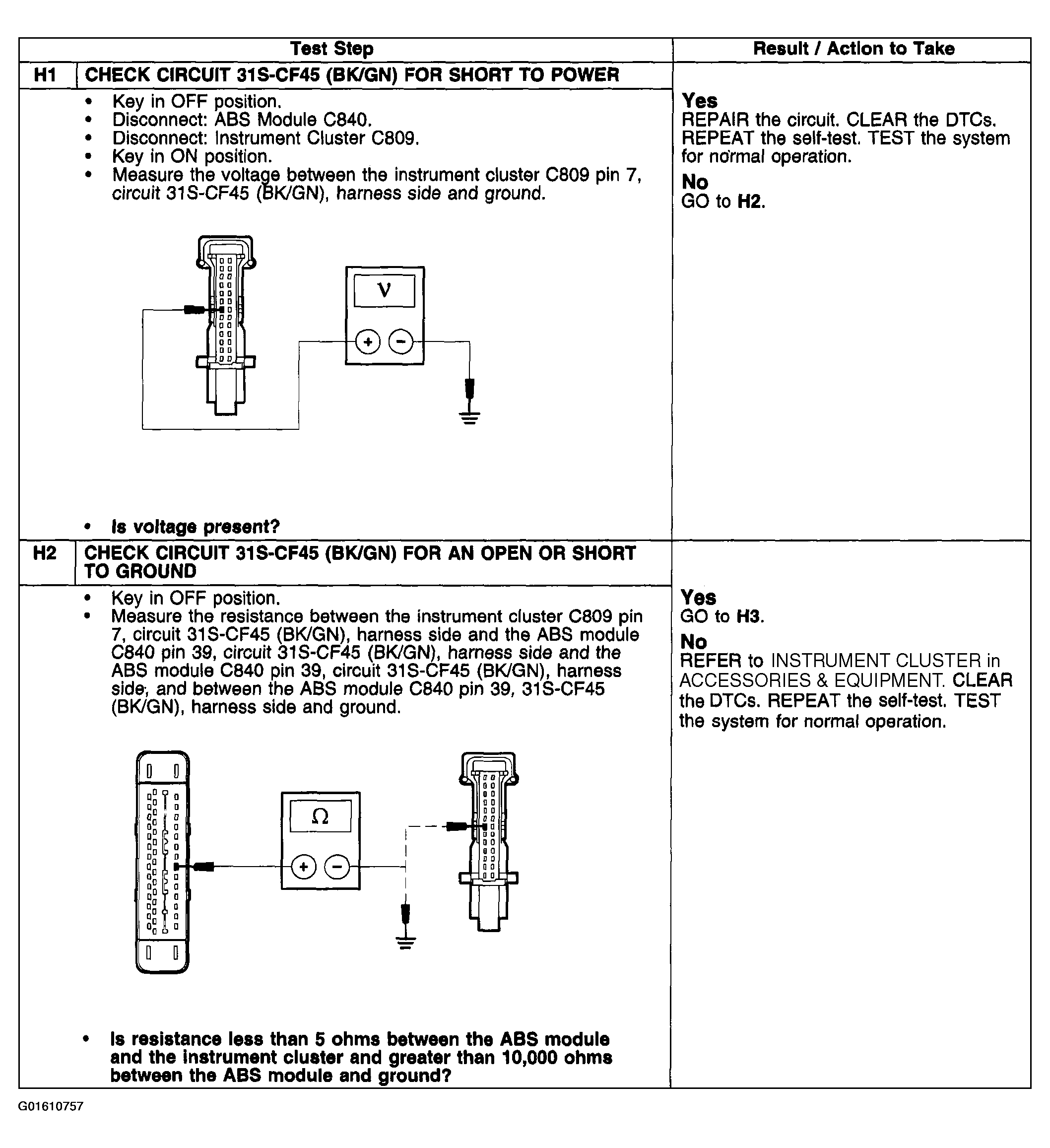

Fig 1: Pinpoint Test H: Red Brake Warning Indicator Does Not Self-Check (H1-H2)

Courtesy of FORD MOTOR CO.

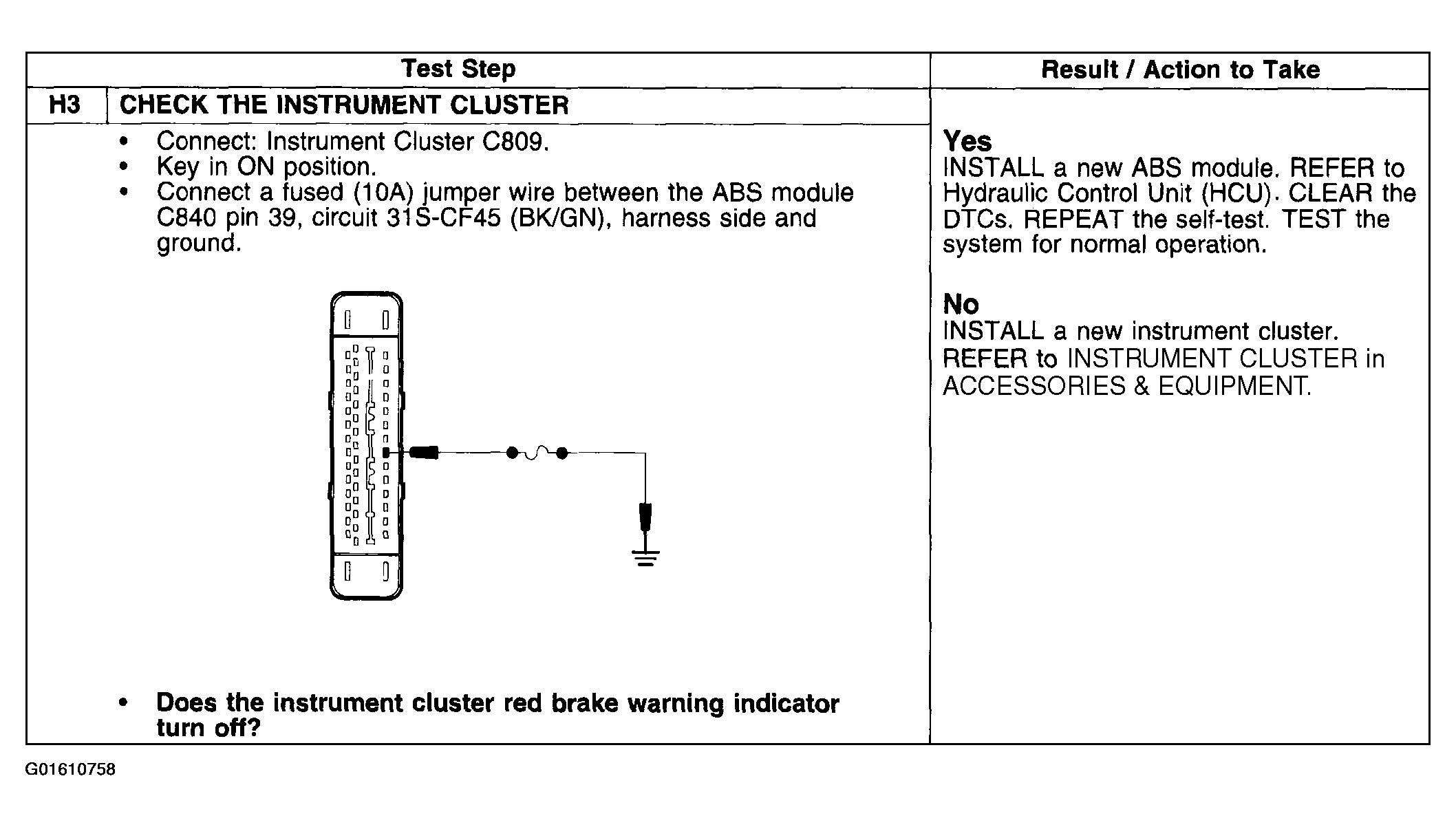

Fig 2: Pinpoint Test H: Red Brake Warning Indicator Does Not Self-Check (H3)

Courtesy of FORD MOTOR CO.
