Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

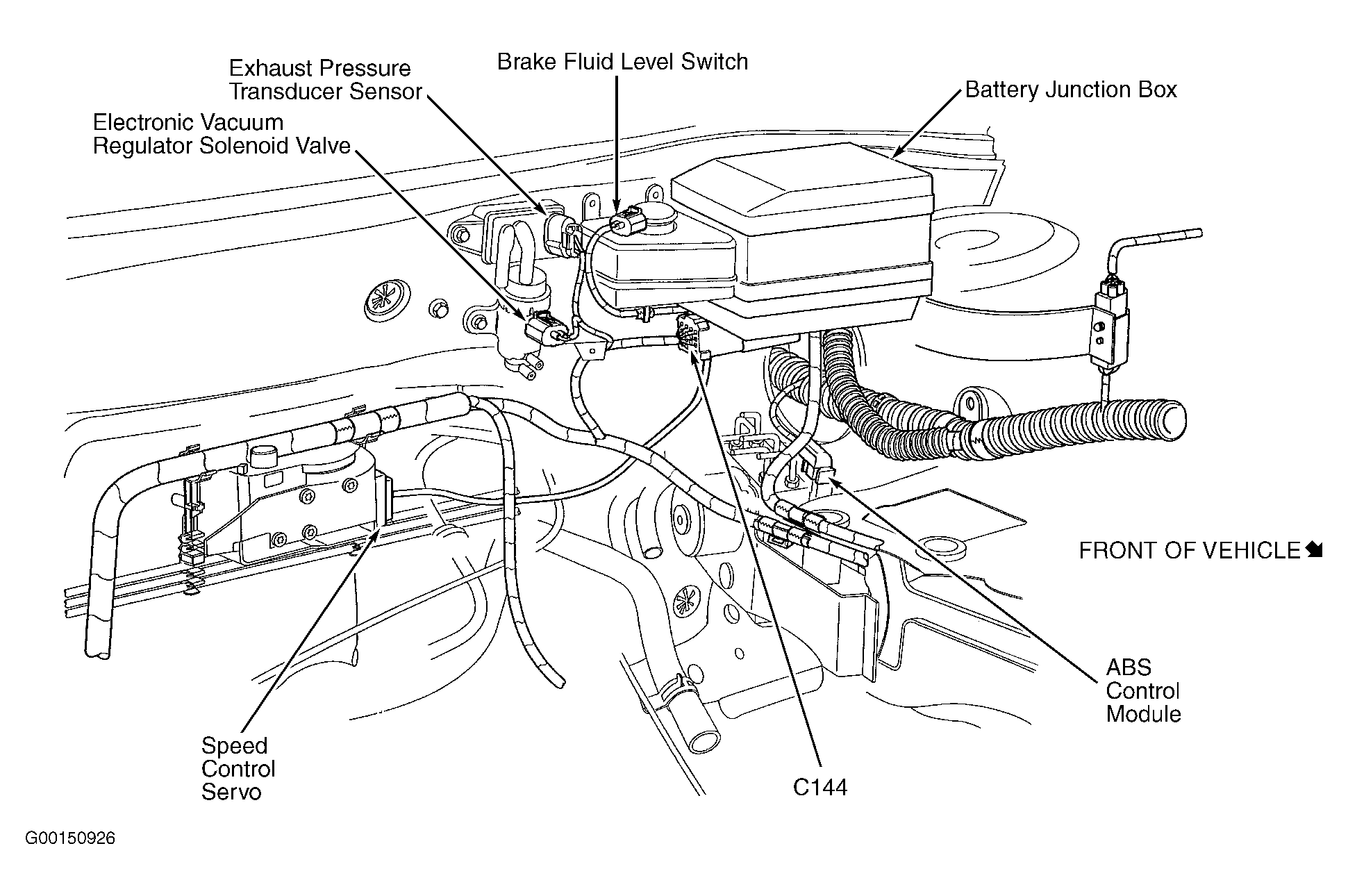

| Battery Junction Box | In left rear corner of engine compartment. See Figure. |
| Blower Motor Resistor | Behind center of dash. |
| Central Junction Box | Behind left side of dash. |
| In-Line Fuse | At front of engine. |
