Engine Mechanical: Mechanical: Engine-SVT: Specifications: Valves

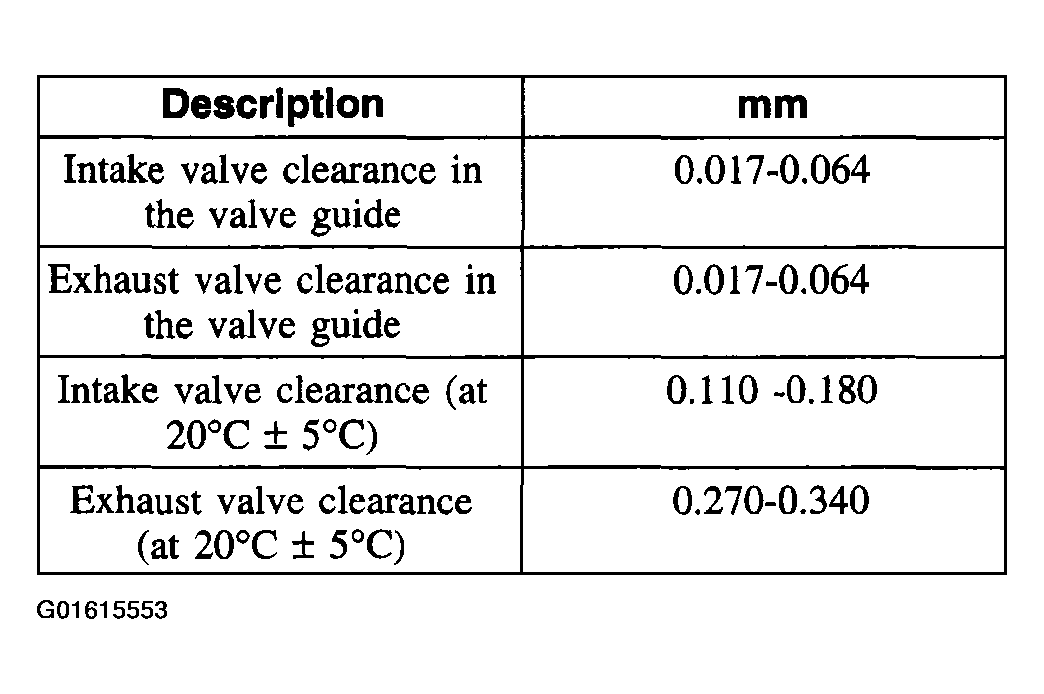

Fig 1: Valves Specifications Chart

G01615553

Courtesy of FORD MOTOR CO.
